Shop:PLC - Remote maintenance - Process Informatik Entwicklungsgesellschaft mbH

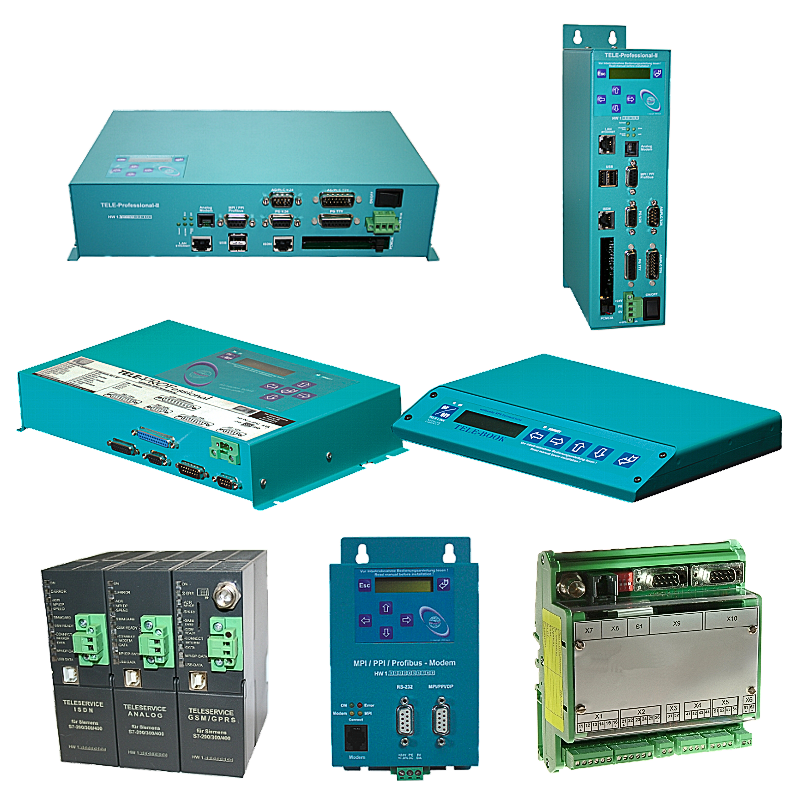

PLC - Remote maintenance

Facilities management world wide by telephone

Which system programmer does not know this: On Friday, just before weekend, a call from a customer comes in: „ The production stands still, nothing works. You have to solve this problem immediately. Otherwise...e.g.“. No other choice than going as fast as possible to the customer to set the important system into operation.

What could be the problem? Which input, that is necessary for the release of the program, is not set? Is the problem caused by the end switch?

During the long ride to the customer, many of such questions come to mind. Then sometimes it happens, that you discover a still missing link in your PLC program. Wouldn’t it be nice, to get rid of the problem simply with a phone call.

Why not? Our remote maintenance devices are the answer to the question.

application table:
TELE LINK NETWORK

Tele-Prof-II
Tele-Prof
Tele-Book
MPI-Modem
TELEService
secured modem-protocol
x
x
x
additional software needed
Siemens TS -Software
Siemens TS -Software
modem
analogue/ISDN
analogue
opt. via PCMCIA
analogue/GSM
analogue/ISDN/GSM
modem for world wide use
x
x
x
x
x
interfaeces
MPI/Profibus
9600-12MBd
9600-12MBd
9600-12MBd
RS232
2x
2x
2x
1x
1x
TTY
2x
2x
2x
PCMCIA
2x
1x
1x
Ethernet
10/100BaseTx
USB
2x
1x
LCD
x
x
x
x
instead 10 LEDs
supported PLC-protocols *
S7
x
x
x
x
x
S5
x
x (optional)
x (optional)
Pilz PSS
x
x (optional)
x (optional)
Allen-Bradley
x
x (optional)
x (optional)
AEG
x (optional)
x (optional)
Bosch
x (optional)
x (optional)
Telemecanique
x (optional)
x (optional)
GE-Fanuc
x (optional)
x (optional)
Klöckner-Moeller
x (optional)
x (optional)
Mitsubishi
x (optional)
x (optional)
SMS-sending/Pager(S5/S7)
x
x
x
x (no Pager)
SMS-receive with GSM
x
DTMF with analogue
x
e-mail-dispatch
x
x
FAX-dispatch(S5/S7)
x
x (optional)
x (optional)
PLC-data coupling(S5/S7)
x
x (optional)
x (optional)
ASCII-transfer from S5/S7
x
x (optional)
x (optional)
internet-coupling
x
power supply
24V/DC
24V/DC
24V/DC
24V/DC
24V/DC
dimensions w x h x d (in mm)
Hoch: 67 x 280 x 170
FLAT: 300 x 175 x 70
300 x 175 x 66
235 x 162 x 37
90 x 162 x 54
40 x 125 x 115

* other PLC types on request



Shop:TELE-LINK-NETWORK - Process Informatik Entwicklungsgesellschaft mbH

TELE-LINK-NETWORK

Secure and comfortable remote maintenance with all devices of the Tele-Link-Network family

• interconnecting of all devices of the Tele-Link-Network-family possible
• multiple secure intelligent modem transmission protocol
• electronics to the telephone network and the external power supply as well as to the control system respectively to the programming unit galvanically isolated
• robust steel plate case with mounting flange

Shop:TELE-PROFessional-II (TP-II) - Process Informatik Entwicklungsgesellschaft mbH

TELE-PROFessional-II (TP-II)

Programming of S5- and S7-PLC’s via telephone from afar

• secured modem-protocol, no additional software needed
• UMTS- / VPN- / internet-service
• also for PLC’s with ProfiNet
• SMS and fax sending directly from S7-300/400 (no PLC-programming necessary)
• analogue modem couples automatically via ISDN
• with integrated CP-343-1 / 443-1 functionality
• Ethernet also for router function
• PCMCIA-slots for extensions (memory cards / specific modem cards (GSM) / WLAN)
• compatible to the forerunner model (TELE-Prof / TELE-Book / TELE-Link)
• also as TCP/IP-router
• S7-variables display via Web-Browser
• S7-remote maintenance with MPI-Interface
• S5-remote maintenance (access to every S5 direct / via H1, L1, L2 and KOR/MUX)
• integrated telephone directory
• call-back of partner possible
• software-update via PC (LAN) respectively from device to device possible
Technical Specifications:
Supply voltage: 24V/DC +/- 20%
Power consumption: 15 watt
Display: expressive LCD display
5 status LEDs
Handling/Configuration: integrated keypad
WEB-Browser
Interfaces:
to the PLC:
PPI/MPI/Profibus interface: 9,6 KBd - 12 MBd
TTY/20mA current loop (AG-TELE aktiv, PLC passiv)
RS232: 9,6 KBd - 115,2 KBd / fully assigned
to the PD/PC:
10/100BaseTX RJ45-ethernet jack
TTY/20mA current loop (100 % mechanically and electr. compatible)
RS232: 9,6 KBd - 115,2 KBd / with a 1on1-cable to the PC
others:
2xUSB, 2xPCMCIA
Integrated modem: 33K6 HIGH-SPEED, V.42/BIS MNP5 analogue modem
ISDN (Euro ISDN + 1TR6)
Operating temperature: 5 - 55°C
Case: powder coated metal case with mounting flange and DIN-rail mounting
Dimensions: Flat 300 x 175 x 70 mm
Hoch 67 x 280 x 170 mm


Remote maintenance / telecontrol of PLC

Unbenanntes Dokument
Access to the connected PLC takes place by coupling via Analogue-, ISDN-, mixed Analogue-ISDN-, GSM-, UMTS-line and also via Internet.
Analogue and ISDN - how do they come together?

Unbenanntes Dokument

You have on the plant side only ISDN for telephone, but in your office there is only an analogue system? No problem, you have to install on the clients side the TP-II and activate there the analogue-emulation in the device. No, the modem signals will be send digitalized over ISDN and you can connect to it. So, you will be able to communicate though the telephone systems are different and your client isn´t forced to install an analogue connection.

Router – Mode (access to the network without router)

Unbenanntes Dokument
The Tele-Prof-II can also be used as a router for access from a PC via dial-up connection, so that a communication with the behind covered network results. Furthermore a network connection can be made with the TP-II <=> TP-II-line, but in doing so the IP-address-root must differ.
S7-CP-alternate (without LAN-CP to the PLC)

Unbenanntes Dokument
Do you have a PLC without CP343-1 or CP443-1 and a TP-II as remote maintenance device? Then activate the CP-mode of the TP-II and your visualisation goes directly ONLINE via the LAN of the TP-II.
PLC coupling (data exchange between PLCs)

Unbenanntes Dokument
Your pumping stations report the water levels of the central control via telephone network. The central office itself can of course transmit commands/messages to the substations as well. Thereto no dedicated line is required, a “normal” telephone connection is sufficient because the devices cut the line after occured message.
Failure report transmission released by the PLC

Unbenanntes Dokument
Your outstation reports the current value cyclically, or in case of malfunction the status via FAX, as SMS to your mobile phone, to your pager or also via e-mail.
Failure report transmission without any change in the PLC programm

Unbenanntes Dokument
Your outstation reports the current value cyclically, or in case of malfunction the status via FAX, as SMS to your mobile phone, to your pager or also via e-mail. And this without an intervention of the PLC-program. Here the variables and actions are stored and processed in the TP-II.
Remote maintenance of centralized PLC-devices

Unbenanntes Dokument
You have many PLC and you want to programm them central on one place? No problem, you have to connect them all to the KOR/MUX-Tele-Switch, connect it with the TP-II and after telephone connect you will be able with the PD-bus-selection of your Step5-software to go ONLINE. Of course the MOR/MUX-Tele-Switch is cascadable, so you can connect up to 30 PLCs to the devices.
Sending ASCII-data to a PC

Unbenanntes Dokument
Your car park or control sends the configuration / capacity utilisation to a PC with a modem, so that the data can be used for further processing.
Direct-mode „extended serial interface“

Unbenanntes Dokument
There is an unsupported control or data logger or converter integrated in your installation which protocol is not supported? No problem, the signs that the PC in the office sends will be transferred via telephone line by the Direct-mode, and on-site reproduced by the TP-II. The way back is identical. So in that case there’s also a communication to the electronic devices available.
Data logger with FTP-interface

Unbenanntes Dokument
You need a data logger which tape-records the specified data of the PLC and you can collect the data via FTP on demand. No problem, TP-II with the option Datalogger is the solution for you.
article:
Art. ID.nameprice
9372-OEM TELE-PROFessional II worldwide use
OEM - Version (all accessories optional)		 1188,- €

variants:
Art. ID.nameprice
9372-FLAT TELE-PROFessional II worldwide use "FLAT"
flat version / OEM - Version (all accessories optional)		 1188,- €

accessories:
Art. ID.nameprice
9359.1:1 1:1 cable 9pins D-SUB 23,- €
9391.1 24V DC power-supply unit 625mA
Primary 110V - 240 VAC Euro+USA-plug		 39,- €
9391-MT Mounting set
for DIN-rail-holder		 25,- €
9636-CROSS Cross-cable 3m Cat5+
both sides RJ45-Plug		 10,- €
9379.1 MPI-/Profibus connecting cable 1m 10,- €
9636-TCPIP Patch-cable 3m, Cat5+
both sides RJ45-Plug		 10,- €
9361-3 S5-connecting cable 3m
forTELE-PROF, MINI-/PG-MUX-II		 38,- €
9361-3.05M S5-connecting cable 5m
for TELE-PROF, MINI-/PG-MUX-II		 43,- €
9361-3.06M S5-connecting cable 6m
for TELE-PROF, MINI-/PG-MUX-II		 46,- €
9361-3.10M S5-connecting cable 10m
for TELE-PROF, MINI-/PG-MUX-II		 56,- €
9371-6 Servicebag
for TP, TB + TP-II-FLAT		 59,- €
9372-24 Power connector 3pins big 2,- €
9370-TAE TAE junction box 20,- €
9372 TELE-PROFessional II Starter-Kit
completing 9372-OEM		 162,- €
9370-SET Phone-connector-set 16parts
worldwide use		 230,- €
9370-8-D/USA Phone-cable analogue Germany+USA 10,- €
9370-8-ISDN Phone-cable ISDN 10,- €
9370-8-BE Special phone-cable for Belgium 23,- €
9370-8-DK Special phone-cable for Denmark 23,- €
9370-8-FR Special phone-cable for France 23,- €
9370-8-GB Special phone-cable for Great Britain 23,- €
9370-8-NL Special phone-cable for Netherlands 23,- €
9370-8-CH Special phone-cable for Switzerland 23,- €
9370-8-AT Special phone-cable for Austria 23,- €
9372-UMTS-Ant UMTS directional antenna 199,- €
9372-UMTS-Card UMTS-card for TP-II
Option GLOBETROTTER GT MAX HSUPA		 290,- €
9352.1 USB-cable plug/plug Type A-A 3m 10,- €

Shop:TELE-PROFessional (TP) - Process Informatik Entwicklungsgesellschaft mbH

TELE-PROFessional (TP)

Facilities management world wide – remote maintenance and diagnosis via telephone

• secured modem-protocol, no additional software needed
• high throughput
• no PLC-crash possible
• all online functions possible
• compatible to SIMATIC-S7-200/300/400
• compatible to all SIMATIC-S5-PLC’s
• supports operation on H1, L1, L2 regarding path selection
• supports the operation KOR/MUX of Siemens, as well as PD-BUS
• easy handling because of menu navigation and display in plain text
• easy and quick configuration by menu item initial configuration
• multi-stage password levels provide high data security
• cost improvement because of call-back function
• PD-PD-coupling possible
• integrated telephone directory
• compatible to all TELE-Network-devices
• integrated MUX as 2. PD-socket on Siemens
• analogue modem for world wide use
• EMC-compatible circuit arrangement
• other PLC-protocols with optional Tele-Manager reloadable
• software-updates via telephone line transferable
• incl. modem cable and power supply unit
Technical Specifications:
Supply voltage: 24V/DC +/- 20%
Power consumption: 5 watt
Display: expressive LCD-display
Handling/Configuration: integrated keypad
Tele-Manager
Interfaces:
to the PLC:
TTY/20mA current loop (AG-TELE aktiv, PLC passiv)
RS232: 9,6 KBd - 115,2 KBd / fully assigned
to the PD/PC:
TTY/20mA current loop (100 % mechanically and electr. compatible)
RS232: 9,6 KBd - 115,2 KBd / with a 1on1-cable to the PC
others:
1 x parallel port, 1 x PCMCIA
Integrated modem: 33K6-analogue modem with BZT-approval
Operating temperature: 5 - 55°C
Case: powder coated metal case with mounting flange
Dimensions: 280 x 170 x 55 mm


Remote maintenance / telecontrol of PLC-devices

Unbenanntes Dokument
Access to the connected PLC takes place by coupling via Analogue-, ISDN- (only with AB-adapter) and GSM-(only with external GSM-modem)-line.
PLC coupling (data exchange between PLCs)

Unbenanntes Dokument
Your pumping stations report the water levels of the central control via telephone network. The central office itself can of course transmit commands/messages to the substations as well. Thereto no dedicated line is required, a “normal” telephone connection is sufficient because the devices hangs up the line after occured message.
PLC-coupling (data exchange between PLC-devices)

Unbenanntes Dokument

Your outstation reports the current value cyclically, or in case of malfunction the status via FAX, to your mobile phone as SMS or to your pager.

Sending ASCII-data to a PC

Unbenanntes Dokument
Your car park or control sends the configuration/capacity utilisation to a PC with a modem, so that the data can be used for further processing.
Direct-mode „extended serial interface“

Unbenanntes Dokument
There is an unsupported control or data logger or converter integrated in your installation which protocol is not supported? No problem, the signs that the PC in the office sends will be transferred via telephone line by the Direct-mode , and on-site reproduced by the TP/TB. The way back is identical. So in that case there’s also a communication to the electronic devices available.
article:
Art. ID.nameprice
9371 TELE-PROFessional 1099,- €
9371-US TELE-PROFessional
worldwide PLC remote maintenance
USA-version		 1099,- €

options:
Art. ID.nameprice
9370-11 Option ASCII-TELE 251,- €
9370-3 Option FAX-TELE 251,- €
9370-7 Option H1 with CP-cable 251,- €
9370-6 Option L1 with CP-cable 251,- €
9370-5 Option L2 with CP-cable 251,- €
9370-2 Option PLC-TELE 251,- €
9370.A Option TP+TB AEG
TELE-PROFessional for AEG A120,A250
1273,- €
9370.AB Option TP+TB Allen-Bradley
TELE-PROFessional for Allen-Bradley		 1273,- €
9370.B Option TP+TB Bosch
TELE-PROFessional for Bosch		 1273,- €
9370.G Option TP+TB GE-Fanuc
TELE-PROFessional for GE-Fanuc		 1273,- €
9370.KM Option TP+TB Klöckner-Moeller
TELE-PROFessional for Klöckner-Moeller
1273,- €
9370.M Option TP+TB Mitsubishi
TELE-PROFessional for Mitsubishi
1273,- €
9370.P Option TP+TB Pilz
TELE-PROFessional for Pilz PSS		 1273,- €
9370.T Option TP+TB Telemechanique
TELE-PROFessional for Telemechanique		 1273,- €

accessories:
Art. ID.nameprice
9391.1 24V DC power-supply unit 625mA
Primary 110V - 240 VAC Euro+USA-plug		 39,- €
9391-MT Mounting set
for DIN-rail-holder		 25,- €
9370-ISDN ISDN-adapter for analogue terminals 251,- €
9379-ANT Magnetic base antenna
for TP, TS + MPI-Modem		 24,- €
9361-3 S5-connecting cable 3m
forTELE-PROF, MINI-/PG-MUX-II		 38,- €
9361-3.05M S5-connecting cable 5m
for TELE-PROF, MINI-/PG-MUX-II		 43,- €
9361-3.06M S5-connecting cable 6m
for TELE-PROF, MINI-/PG-MUX-II		 46,- €
9361-3.10M S5-connecting cable 10m
for TELE-PROF, MINI-/PG-MUX-II		 56,- €
9370-COM Serial PCMCIA-adapter
for TP + TB		 205,- €
9371-6 Servicebag
for TP, TB + TP-II-FLAT		 59,- €
9370-SLM Leased-line modem for TP
only usuable as pairs		 128,- €
9371-24 Power connector 2pins big 2,- €
9370-TAE TAE junction box 20,- €
9370-SET Phone-connector-set 16parts
worldwide use		 230,- €
9370-8-D/USA Phone-cable analogue Germany+USA 10,- €
9370-8-ISDN Phone-cable ISDN 10,- €
9370-8-BE Special phone-cable for Belgium 23,- €
9370-8-DK Special phone-cable for Denmark 23,- €
9370-8-FR Special phone-cable for France 23,- €
9370-8-GB Special phone-cable for Great Britain 23,- €
9370-8-NL Special phone-cable for Netherlands 23,- €
9370-8-CH Special phone-cable for Switzerland 23,- €
9370-8-AT Special phone-cable for Austria 23,- €

Shop:TELE-BOOK (TB) - Process Informatik Entwicklungsgesellschaft mbH

TELE-BOOK (TB)

PLC-remote maintenance also available from the car, with 12V power supply

• secured modem-protocol, no additional software needed
• high throughput
• all online functions possible
• easy handling because of menu navigation and display in plain text
• easy and quick configuration by menu item initial configuration
• multi-stage password levels provide high data security
• cost improvement because of call-back function
• integrated telephone directory
• compatible to all TELE-Network-devices
• EMC-compatible circuit arrangement
• other PLC-protocols with optional Tele-Manager reloadable
• software-updates via telephone line transferable
• incl. power supply unit
Technical Specifications:
Supply voltage: 24V/DC (12 - 36V)
Power consumption: 3 watt
Display: expressive LCD-display
Handling/Configuration: integrated keypad
Tele-Manager
Interfaces:
to the PLC:
RS232: 9,6 KBd - 115,2 KBd / fully assigned
to the PD/PC:
TTY/20mA current loop (100 % mechanically and electr. compatible)
RS232: 9,6 KBd - 115,2 KBd / with a 1on1-cable to the PC
others:
1 x PCMCIA
Integrated modem: -
Operating temperature: 5 - 55°C
Case: powder coated metal table case
Dimensions: 233 x 162 x 39 mm


Use in the car with a 12V supply only

Unbenanntes Dokument
Your’re on road with your car and your employee reports a failure? What next? Approach the next parking place and try to get a telephone line to solve the problem? Or solve the problem in your head? Hit the next parking place and start your Tele-Book which is plugged on your car’s cigarette lighter, and build-up a connection to your installation. With the notebook you will solve the problem within a short time.
Remote maintenance / telecontrol of PLC-devices

Unbenanntes Dokument
Access to the connected PLC takes place by coupling via Analogue-, ISDN- (only with AB-adapter) and GSM-(only with external GSM-modem)-line.
PLC-coupling (data exchange between PLC-devices)

Unbenanntes Dokument
Your pumping stations report the water levels of the central control via telephone network. The central office itself can of course transmit commands/messages to the substations as well. Thereto no dedicated line is required, a “normal” telephone connection is sufficient because the devices hangs up the line after occured message.
Failure report transmission released by the PLC

Unbenanntes Dokument

Your outstation reports the current value cyclically, or in case of malfunction the status via FAX, to your mobile phone as SMS or to your pager.

Sending ASCII-data to a PC

Unbenanntes Dokument
Your car park or control sends the configuration/capacity utilisation to a PC with a modem, so that the data can be used for further processing.
Direct-mode „extended serial interface“

Unbenanntes Dokument
There is an unsupported control or data logger or converter integrated in your installation which protocol is not supported? No problem, the signs that the PC in the office sends will be transferred via telephone line by the Direct-mode , and on-site reproduced by the TP/TB. The way back is identical. So in that case there’s also a communication to the electronic devices available.
article:
Art. ID.nameprice
9380 TELE-BOOK PLC remote maintenance
as PLC-or PG-TELE switchable 		1099,- €

options:
Art. ID.nameprice
9370-11 Option ASCII-TELE 251,- €
9370-3 Option FAX-TELE 251,- €
9370-7 Option H1 with CP-cable 251,- €
9370-6 Option L1 with CP-cable 251,- €
9370-5 Option L2 with CP-cable 251,- €
9370-2 Option PLC-TELE 251,- €
9370.A Option TP+TB AEG
TELE-PROFessional for AEG A120,A250
1273,- €
9370.AB Option TP+TB Allen-Bradley
TELE-PROFessional for Allen-Bradley		 1273,- €
9370.B Option TP+TB Bosch
TELE-PROFessional for Bosch		 1273,- €
9370.G Option TP+TB GE-Fanuc
TELE-PROFessional for GE-Fanuc		 1273,- €
9370.KM Option TP+TB Klöckner-Moeller
TELE-PROFessional for Klöckner-Moeller
1273,- €
9370.M Option TP+TB Mitsubishi
TELE-PROFessional for Mitsubishi
1273,- €
9370.P Option TP+TB Pilz
TELE-PROFessional for Pilz PSS		 1273,- €
9370.T Option TP+TB Telemechanique
TELE-PROFessional for Telemechanique		 1273,- €

accessories:
Art. ID.nameprice
9391.1 24V DC power-supply unit 625mA
Primary 110V - 240 VAC Euro+USA-plug		 39,- €
9381.KABEL Analogue cable for TAE-modem PCMCIA 51,- €
9370-ISDN ISDN-adapter for analogue terminals 251,- €
9370-COM Serial PCMCIA-adapter
for TP + TB		 205,- €
9371-6 Servicebag
for TP, TB + TP-II-FLAT		 59,- €
9372-24 Power connector 3pins big 2,- €
9381 TAE-modemPCMCIA-card for TELE-BOOK 205,- €
9370-TAE TAE junction box 20,- €
9380-9S Connecting cable TELE-Book on Slot-PLC
from Siemens		 51,- €

Shop:TELE-Manager - Process Informatik Entwicklungsgesellschaft mbH

TELE-Manager

configuration / update of TELE-Network devices from PC (Windows-Software)

• reading out and updating of TELE-Network devices’ firmware comfortable from PC
• saving and reloading of configuration
• administration of several TELE-Network devices
• With the TWIN option 2 PLC types (firmware-files) can be loaded parallel into a TP device

article:
Art. ID.nameprice
9370-TM TELE-Manager for Windows 3.x
configuration / Update from PC (Windows Software)		 404,- €
9370-TM-2 TELE-Manager TWIN-option 251,- €

Shop:Win-TELE-PROF - Process Informatik Entwicklungsgesellschaft mbH

Win-TELE-PROF

replacement of the PD-TELE at telephone bounded remote maintenance

• Software-TELE-PROFessional for all devices in the TELE-Network
• comfortable telephone book
• intern/external analogue and ISDN-standard modems useable
• no external TELE-device on PC-side necessary
• ideal for on the way use
• also with original Siemens STEP5/7-programming software via virtual COM-Port
• supports TCP/IP-Router of the TELE-PROFessional II
• remote configuration of TELE-Network devices
• Win NT/2000/XP supported
• a 56k Modem is necessary on PC-side

WinTELEPROF-software = software-PG-TELE

Unbenanntes Dokument
Your’re using the devices of the Tele-Network-family and don’t want to have a device standing on the table? No problem. Install the WinTELEPROF-software on your PC and after link connection access to your Step5/7-programming software (also Siemens) via a virtual Com-Port.
At Step5 the Step5-software is going to be patched, then working with the virtual Com-Port will be also possible.
article:
Art. ID.nameprice
9371-PC-S5 Win-TELE-PROF S5 Ground package TP 511,- €
9371-PC-S5-F Win-TELE-PROF S5 Ground package TP 1533,- €
9371-PC-S5-S Win-TELE-PROF S5 Ground package TP 168,- €
9372-PC-S5 Win-TELE-PROF S5 Ground package TP-II 511,- €
9372-PC-S5-F Win-TELE-PROF S5 Ground package TP-II 1533,- €
9372-PC-S5-S Win-TELE-PROF S5 Ground package TP-II 168,- €
9371-PC-S5-X Win-TELE-PROF S5 Add-on package TP 357,- €
9371-PC-S5-F-X Win-TELE-PROF S5 Add-on package TP 1088,- €
9371-PC-S5-X-S Win-TELE-PROF S5 Add-on package TP 119,- €
9372-PC-S5-X Win-TELE-PROF S5 Add-on package TP-II 357,- €
9372-PC-S5-F-X Win-TELE-PROF S5 Add-on package TP-II 1088,- €
9372-PC-S5-X-S Win-TELE-PROF S5 Add-on package TP-II 119,- €
9371-PC Win-TELE-PROF S7 Ground package TP 511,- €
9371-PC-F Win-TELE-PROF S7 Ground package TP 1533,- €
9371-PC-S Win-TELE-PROF S7 Ground package TP 168,- €
9372-PC Win-TELE-PROF S7 Ground package TP-II 511,- €
9372-PC-F Win-TELE-PROF S7 Ground package TP-II 2044,- €
9372-PC-S Win-TELE-PROF S7 Ground package TP-II 168,- €
9371-PC-X Win-TELE-PROF S7 Add-on package TP 357,- €
9371-PC-F-X Win-TELE-PROF S7 Add-on package TP 1088,- €
9371-PC-X-S Win-TELE-PROF S7 Add-on package TP 119,- €
9372-PC-X Win-TELE-PROF S7 Add-on package TP-II 357,- €
9372-PC-F-X Win-TELE-PROF S7 Add-on package TP-II 1088,- €
9372-PC-X-S Win-TELE-PROF S7 Add-on package TP-II 119,- €

Shop:TELEService - Process Informatik Entwicklungsgesellschaft mbH

TELEService

Remote maintenance of PPI, MPI and Profibus <=> analogue 56K, ISDN, GSM

• directly pluggable on the S7-300-profile rack
• power supply from the S7-PLC or external
• SMS and e-mail sending directly from S7-300/400
• RS232-interface for configuration or on-site use as serial PC-Adapter
• USB-interface for configuration or on-site use as USB-PC-Adapter
• Online firmware update and diagnosis over telephone-connection
• all TELESERVICE-devices inclusive S7-cable art.nr: 9377.1 (1m)
• all TELESERVICE-devices inclusive specific telephone lead respectively GSM-antenna
Technical Specifications:
Supply voltage: 24V/DC +/- 20%
Power consumption: 5 watt
Display: detailed status indication via 10 LEDs
Handling/Configuration: Kabelmanager-Software
Interfaces:
to the PLC:
PPI/MPI/Profibus interface: 9,6 KBd - 12 MBd
to the PD/PC:
RS232: 9,6 KBd - 115,2 KBd / with a 1on1-cable to the PC
USB 1.1 jack type B
others:
-
Integrated modem: 56K-analogue modem / ISDN-modem / GSM-modem
Operating temperature: 5 - 55°C
Case: single-size standard S7-300-case
Dimensions: 40 x 125 x 115 mm


Atomic time (GPRS) for the PLC

Unbenanntes Dokument
You need an exact time for your S7-plc? No problem, the TeleService-GSM fetches the current time via GPRS from a time-server and advises it to the S7-plc. How often and whenever the time shall be updated can be parameterised in the device.
Failure report transmission released by the PLC

Unbenanntes Dokument
Your outstation reports the current value cyclically, or in case of malfunction the status via FAX, as SMS to your mobile phone, to your pager or also via e-mail.
Use on-site without PC-adapter?

Unbenanntes Dokument
With the TeleService-device you can connect serial or by USB-cable to your PC/laptop and then communicate directly with the control without a PC-adapter or other S7-programming cables.
The USB-cable is a standard-cable just as the one you use at your printer.
Remote maintenance / telecontrol of PLC

Unbenanntes Dokument
The access to the connected PLC with the Siemens TS-software or PG-2000 including TS-option results of coupling via Analogue-, ISDN- (only with AB-adapter) as well as GSM-line.
article:
Art. ID.nameprice
9377-ANALOG-OP TELESERVICE ANALOGUE up to 12MBaud MPI+DP
without DP V0/V1/V2		 469,- €
9377-GSM-OP TELESERVICE GSM up to 12MBaud MPI+DP
without DP V0/V1/V2		 619,- €
9377-ISDN-OP TELESERVICE ISDN up to 12MBaud MPI+DP
without DP V0/V1/V2		 544,- €

accessories:
Art. ID.nameprice
9391.1 24V DC power-supply unit 625mA
Primary 110V - 240 VAC Euro+USA-plug		 39,- €
9379-ANT Magnetic base antenna
for TP, TS + MPI-Modem		 24,- €
9377.1 MPI-/Profibus connecting cable 1m
for Tele-Service		 10,- €
9371-24 Power connector 2pins big 2,- €
9370-TAE TAE junction box 20,- €
9370-SET Phone-connector-set 16parts
worldwide use		 230,- €
9370-8-D/USA Phone-cable analogue Germany+USA 10,- €
9370-8-ISDN Phone-cable ISDN 10,- €
9370-8-BE Special phone-cable for Belgium 23,- €
9370-8-DK Special phone-cable for Denmark 23,- €
9370-8-FR Special phone-cable for France 23,- €
9370-8-GB Special phone-cable for Great Britain 23,- €
9370-8-NL Special phone-cable for Netherlands 23,- €
9370-8-CH Special phone-cable for Switzerland 23,- €
9370-8-AT Special phone-cable for Austria 23,- €
9352.2 USB-cable plug/plug Type A-B 3m 10,- €

Shop:MPI / PPI - Profibusmodem - Process Informatik Entwicklungsgesellschaft mbH

MPI / PPI - Profibusmodem

Programming of S7-PLC’s via telephone from afar

• standard modem-protocol, the Siemens TS-software is needed
• analogue modem for world wide use
• data transmission via radio (GSM)
• screwable antenna/prolongable (GSM)
• for Siemens-S7-Teleservice
• incl. modem-cable and S7-cable (1m)
• GSM-Modem incl. magnetic base antenna and S7-cable (1m)
Technical Specifications:
Supply voltage: 24V/DC +/- 20%
Power consumption: 5 watt
Display: expressive LCD-display
4 status-LEDs
Handling/Configuration: integrated keypad
Interfaces:
to the PLC:
PPI/MPI/Profibus interface: 9,6 KBd - 12 MBd
to the PD/PC:
RS232: 9,6 KBd - 115,2 KBd / with a 1on1-cable to the PC
others:
-
Integrated modem: 33K6-analogue modem
GSM-modem
Operating temperature: 5 - 55°C
Case: powder coated metal case with mounting flange
Dimensions: 165 x 90 x 50 mm


Remote maintenance / telecontrol of PLC

Unbenanntes Dokument
The access to the connected PLC with the Siemens TS-software or PG-2000 including TS-option results of coupling via Analogue-, ISDN- (only with AB-adapter) as well as GSM-line.
Use on-site without PC-adapter?

Unbenanntes Dokument
With the MPI/PPI/Profibus-modem you can connect serial to your PC/laptop and then communicate directly with the PLC without a PC-adapter or other S7-programming cables.
article:
Art. ID.nameprice
9379-OP MPI/PPI-Modem
maximum baud rate MPI- and Profibus up to 12Mbaud 		469,- €
9379-G-OP MPI/PPI-Modem GSM
maximum baud rate MPI- and Profibus up to 12Mbaud 		619,- €

accessories:
Art. ID.nameprice
9359.1:1 1:1 cable 9pins D-SUB 23,- €
9391.1 24V DC power-supply unit 625mA
Primary 110V - 240 VAC Euro+USA-plug		 39,- €
9370-ISDN ISDN-adapter for analogue terminals 251,- €
9379-ANT Magnetic base antenna
for TP, TS + MPI-Modem		 24,- €
9379.1 MPI-/Profibus connecting cable 1m 10,- €
9372-24 Power connector 3pins big 2,- €
9370-TAE TAE junction box 20,- €
9370-SET Phone-connector-set 16parts
worldwide use		 230,- €
9370-8-D/USA Phone-cable analogue Germany+USA 10,- €
9370-8-BE Special phone-cable for Belgium 23,- €
9370-8-DK Special phone-cable for Denmark 23,- €
9370-8-FR Special phone-cable for France 23,- €
9370-8-GB Special phone-cable for Great Britain 23,- €
9370-8-NL Special phone-cable for Netherlands 23,- €
9370-8-CH Special phone-cable for Switzerland 23,- €
9370-8-AT Special phone-cable for Austria 23,- €

Shop:EVENT-MODEM - Process Informatik Entwicklungsgesellschaft mbH

EVENT-MODEM

Long distance report- and information systems

Basic model:
• Digital in-/outputs, each one configurable as opener or closer
• 8 report targets per input
• Fax, e-mail, SMS, Pager and Voice (fixed report texts)
• inclusive modem-cable

Analogue:
GSM:
Event-Modem A100 ECO
• analogue modem V92
• 4 digital inputs, 4 digital outputs
Event-Modem G100 ECO
• GSM-Dualband-Modem
• 4 digital inputs, 4 digital outputs
Event-Modem A200
• analogue modem V92
• 8 digital in-/outputs
• 2 analogue inputs / 2 analogue outputs
• voice response of the digital- / analogue values
• data logger funktion
• remote maintenance/remote switching via modem and web-interface
Event-Modem G200
• GSM-Dualband-Modem
• 8 digital in-/outputs
• 2 analogue inputs / 2 analogue outputs
• voice response of the digital- / analogue values
• data logger funktion
• remote maintenance/remote switching via modem and web-interface
Event-Modem A242
composed of Event-Modem A200 and X332
• 8 + 32 digital in-/outputs
• 2 analogue inputs
Event-Modem G242
composed of Event-Modem G200 and X332
• 8 + 32 digital in-/outputs
• 2 analogue inputs
Technical Specifications:
Supply voltage: 24V/DC +/- 20%
Power consumption: 4 watt
Display: Web-Browser
Handling/Configuration: 4 DIP-Switch for operating states
Interfaces:
to the PLC:
digital in-/outputs
analogue in-/outputs
to the PD/PC:
RS232
RS485
others:
-
Integrated modem: analogue modem V92 / GSM-modem
Operating temperature: -20 - +60°C
Case: plastic case for DIN-rail mounting
Dimensions: 110 x 125 x 60 mm


Direct Voice - speach output with EventModem

Unbenanntes Dokument
The receiver will be called by conventional telephone network or by mobile phone with a direct voice message. If a connection comes off the message will be transmitted.
Direct Fax

Unbenanntes Dokument
By direct dialling up the fax machine a message is carried out to a fax-receiver. If a connection comes off the message will be transmitted.
Remote Maintenance via keyboard and voice

Unbenanntes Dokument
The EventModem remote station will be called directly by conventional Telephone network or by. If a connection comes off, digital In- and Outputs for teleswitching will be transmitted. Each device can both transmit state of things and accordingly receive switch signals.
Remote switching with Eventmodem to Eventmodem

Unbenanntes Dokument
The EventModem will be called by conventional Telephone network or by mobile phone. With a direct voice message and DTMF–tone dialling the corresponding output will be set-up. If a switching operation has come off a speech output will confirm it.
Message via SMS (SMSC)

Unbenanntes Dokument
A SMS to a mobile phone is basically send by SMSC. Within the GSM-network it takes place via on-net SMSC. Thereby it’s unimportant in which mobile network the receiver is.
The message is activated by:
- digital contacts (relays, motion detector...)
- serial interface (PLC, PC, Microcontroller ...) bitserial (PLC)
The detection system transmits the SMS to the mobile network operator. The mobile network operator provides the SMS to the mobile phone. Optionally the detection system dials the mobile phone to „wake up“ the receiver or to initiate the confirmation handling.
Data logging

Unbenanntes Dokument
Cyclic data logging or data logging on occasion is realisable. The log data will be transmitted e.g. once a day via e-mail.
Special data logger functions can be implemented on request and are not part of the basis functions.
To switch a EventModem-output via SMS

Unbenanntes Dokument
Switching an output via SMS is an integrated function of the EventModem. Herewith the switching operation will be secure and comprehensible from afar.
article:
Art. ID.nameprice
15300 Event-Modem A100 ECO 495,- €
15301 Event-Modem A200 715,- €
15304 Event-Modem A242 995,- €
15302 Event-Modem G100 ECO 890,- €
15303 Event-Modem G200 995,- €
15305 Event-Modem G242 1275,- €

accessories:
Art. ID.nameprice
9391.1 24V DC power-supply unit 625mA
Primary 110V - 240 VAC Euro+USA-plug		 39,- €
9379-ANT Magnetic base antenna
for TP, TS + MPI-Modem		 24,- €
9370-TAE TAE junction box 20,- €
9370-SET Phone-connector-set 16parts
worldwide use		 230,- €
9370-8-D/USA Phone-cable analogue Germany+USA 10,- €
9370-8-BE Special phone-cable for Belgium 23,- €
9370-8-DK Special phone-cable for Denmark 23,- €
9370-8-FR Special phone-cable for France 23,- €
9370-8-GB Special phone-cable for Great Britain 23,- €
9370-8-NL Special phone-cable for Netherlands 23,- €
9370-8-CH Special phone-cable for Switzerland 23,- €
9370-8-AT Special phone-cable for Austria 23,- €

Shop:S7 - interface cable - Process Informatik Entwicklungsgesellschaft mbH

S7 - interface cable

With each interface of your PC to the S7-PLC

• multifunctional, several functions in one product
• well-priced alternative to high-priced original products
• easy handling and therefore quick operation

application table:
MPI/PPI
MPI - II
MPI - USB
MPI - LAN
S7 - LAN
PPI-Bus
PPI 9.6 KBit/s - 19.2 KBit/s
x
x
x
x
x
Multimaster 9.6 KBit/s - 187.5 KBit/s
x
x
x
x
MPI-Bus
19.2 KBit/s
x
x
x
x
x
187.5 KBit/s
x
x
x
x
x
1.5 MBit/s
x
x
x
x
Profibus
9.6 KBit/s
x
x
x
x
19.2 KBit/s
x
x
x
x
x
45.45 KBit/s
x
x
x
x
93.75 KBit/s
x
x
x
x
187.5 KBit/s
x
x
x
x
x
500 KBit/s
x
x
x
x
1.5 MBit/s
x
x
x
x
3.0 MBit/s
x
x
x
x
6.0 MBit/s
x
x
x
x
12.0 MBit/s
x
x
x
x
Profibus-profile
DP
x(12)
x
x
x
x
standard
x(12)
x
x
x
x
universal(DP/FMS)
x
x
x
x
RS 232
9.6 KBit/s
x(19)
x(19)
19.2 KBit/s
x
x
38.4 KBit/s
x
x
57.6 KBit/s
x(9)
x(9)
115.2 KBit/s
x(9)
x(9)
USB
USB 1.1 (6)
x(1)
x
LAN
10/100BaseTx
x(7)
x
TeleService operation
with S7-300/400
x(14)(18)
x(14)(18)
baud rates at TS-operation directly at the PC
9.6 KBit/s
x
x
19.2 KBit/s
x
x
38.4 KBit/s
x(8)
x(8)
57.6 KBit/s
x(8)
x(8)
baud rates at TS-operation directly with a modem
9.6 KBit/s
x
x
19.2 KBit/s
x
x
38.4 KBit/s
x
x
57.6 KBit/s
x
x
115.2 KBit/s
x
x
HMI
9.6 KBit/s
x
x
x(13)
x(13)
x(13)
19.2 KBit/s
x
x
x(13)
x(13)
x(13)
38.4 KBit/s
x
x
x(13)
x(13)
x(13)
57.6 KBit/s
x
x
x(13)
x(13)
x(13)
115.2 KBit/s
x
x
x(13)
x(13)
x(13)
update
firmware-update
x(10)
x(10)
x(15)
x(15)
x(15)
input/online help
keypad
x
x
x

display
x
x
x
x

simultaneous PD connections
PLCVCOM
x
1
1
8
8
RFC1006
x
x
simultaneous AG connections
passive subscriber
1
15
15
15
15
active subscriber
126
126
126
126
126
more functions
webserver for configuration
x
x
status/control variable(20)
x
x
S7 on S7/S5 DB exchange(20)
x
x
S5 on MPI DB exchange(20)
x
S7 on MPI (Send/Fetch)(20)
x
x
Profinet Gateway(20)
x
x
MPI-Printer(network, lpr)(20)
x
x
galvanic separation
to the bus (screen connected through) 1KV 1KV 1KV 1,5KV 1,5KV
mounting
wall monuting
(with opt. wall mounting-set)
x
x
x
x
upgrading with
CheapConn+cable
x
x
x
x
supports
WIN 98
x
x(3)
x
x
WIN 98 SE
x
x
x
x
x
WIN ME
x
x
x
x
x
WIN NT
x
x(5)
x(5)
x
WIN 2000
x
x
x
x
x
WIN XP Home (4)
x
x
x
x
x
WIN XP Professional
x
x
x
x
x
Vista(32bit)
x
x
x
x
x

(1) just with USB-cable plug <-> plug, type A <-> A, item number: 9352.1
(3) only serial communication
(4) Siemens Step7 V5.2 and higher dont run with this operationing system
(5) USB-communication is only possible with the special driver for Win NT
(6) USB 2.0 is backward compatible to 1.1
(7) Cable is designed for direct connection to PC network card socket. It can also be a hub / switch with uplink port or operated at a hub / switch with automatic detection of assignement and adaptation
(8) only in combination with the MPI-Speed-driver („continously-active“)
(9) Siemens Step7 supports these baud rates only with the MPI-Speed-Utility
(10) Update directly with PC or via Tele-Network if the cable is connected to a device of the Tele-Network-family (Tele-Link, Tele-Book or Tele-Professional)
(11) only in the mode: MultiMaster-Mode
(12) up to a maximum baud rate of 187.5 KBit/s
(13) In this transmission, the baud rate is irrelevant, because it communicates via a virtual COM-port.
(14) with the use of the TS-adapter / item number: 9350.TS
(15) Update directly with PC via virtual COM-Port
(18) Operation requires Step 7 with additional software Tele-Service (TS) from Siemens
(19) only at PPI-communication possible
(20) option with costs



Shop:S7-LAN - Process Informatik Entwicklungsgesellschaft mbH

S7-LAN

smallest ethernet-gateway with PD-socket, multifunctional, 1 adapter for all PPI, MPI and Profibus applications
now with ext.24V-connector

• automatic protocol- and baud rate detection
• firmwareupdate via internet for free
• PPI - adapter for S7 - 200
• MPI - adapter for S7 - 300 + 400
• CE/EMC compliant construction
• applicable with original Siemens programming software by included software
• power supply from the S7-PLC or external
• network configuration free adjustable
• VPN remote maintenance possible / for the maintenance of the PLC via Internet
• with full PD – diagnosis socket
• coupling of two PLC's S7 - S7 / S7 -S5 is possible with the Gateway type
Technical Specifications:
Supply voltage: 24V/DC +/- 20%
Power consumption: 2 watt
Display: Web-Browser
2 status-LEDs
Handling/Configuration: Web-Browser
Kabelmanager-Software
Interfaces:
to the PLC:
PPI/MPI/Profibus interface: 9,6 KBd - 12 MBd
to the PD/PC:
PD/diagnosis jack
10/100BaseTX RJ45-ethernet jack
Galvanic separation: 1500V PPI/MPI/Profibus to the PC
Operating temperature: 5 - 55°C
Case: ABS-plastic case
Dimensions: 65 x 43 x 17 mm


Programming of S7-PLC-devices via LAN

Unbenanntes Dokument
You would like to respond to your S7-PLC-device via LAN but not integrate an Ethernet-CP? No problem, plug the S7-LAN or also the MPI-LAN-cable on the MPI/PPI/Profibus-interface and access via LAN.
Watching of S7-PLC-devices via LAN without Ethernet-CP

Unbenanntes Dokument
Your panel only has a LAN-socket as PLC-interface? No problem, connect this socket with the S7-LAN or the MPI-LAN-cable and plug it directly on the PPI/MPI/Profibus of the PLC. Then access to the variables and data of the PLC is already available.
Remote maintenance of your S7-PLC-device via LAN / Internet

Unbenanntes Dokument
You have access to a on-site network and your PLC-device has no LAN-connection? No problem, plug the S7-LAN on the PLC-device and you will have immediate access to the PLC from afar.
PLC coupling (data exchange between PLC-devices)

Unbenanntes Dokument
Your pumping stations report the water levels of the central control via telephone network. The central office itself can of course transmit commands/messages to the substations as well. Thereto no dedicated line is required, it’s sufficient when the stations connect via network (DSL-router).
S7-CP-replacement (without LAN-CP to the PLC-device)

Unbenanntes Dokument
Do you have a S7-PLC-device without CP243-1, CP343-1 or CP443-1 and would like to connect via LAN? Then plug the S7-LAN on the PLC-device and your access via RFC1006 is ready for use.
Variable-chart without Step7-programming package

Unbenanntes Dokument
You would like to give your customer the opportunity to read current numbers of the manufacturing Online, without installing a visualisation or even the STEP7-package? Then a S7-LAN with the option „Status Variable“ is needed, and your customer can take a look at these password protected data on a site of the integrated webserver.
Malfunctions on the Bus although everything is (apparently) connected properly?

Unbenanntes Dokument
The S7-LAN can also be used for controlling/checking the MPI/Profibus. It will be plugged on the Bus so that you can take a look at the status of the busses via software on PC, for example the numbers of parity errors.
article:
Art. ID.nameprice
9352-LANCON S7-LAN connector
Ethernetmodule for PPI/MPI/Profibus		 399,- €

variant:
Art. ID.nameprice
9352-GATE S7-Gateway
PLC-PLC coupling		 599,- €

options:
Art. ID.nameprice
9352-VAST Option "Variable Control" 99,- €
9352-WATCHDOG Option Watchdog 99,- €

accessories:
Art. ID.nameprice
9391.1 24V DC power-supply unit 625mA
Primary 110V - 240 VAC Euro+USA-plug		 39,- €
9636-CROSS Cross-cable 3m Cat5+
both sides RJ45-Plug		 10,- €
9636-TCPIP Patch-cable 3m, Cat5+
both sides RJ45-Plug		 10,- €
9352-S7-Bridge S7-Bridge 249,- €
9352-24 Power connector 2pins small 2,- €

Shop:S7-Bridge - Process Informatik Entwicklungsgesellschaft mbH

S7-Bridge

Wireless programming with a S7-LAN directly at the laptop or in the corporate network

• Connecting a network subscriber via WLAN to an Access Point
• To link to a S7-PLC a S7-LAN is a needed
• Ad-hoc capable for direct programming with the laptop
• Auto-negotiation of the RJ45-Ethernet jack
• Power supply from the S7 controller or external; while configuration from USB of the connected PC
• with full PG - diagnostic socket
• simply parameterizing via USB
• CE / EMC compliant design
Technical Specifications:
Requirement: programming tool from LAN to MPI/Profibus
like S7-LAN or MPI-LAN is required!
Supply voltage: 24V/DC +/- 20%
5V/DC USB
Power consumption: 1,2 watt
Display: 2 status-LEDs
Handling/Configuration: S7BridgeConfig-software
Interfaces:
to the S7-LAN:
10/100BaseTX RJ45-ethernetplug
to the PD/PC:
9pin PD/diagnosis jack
WLAN connection (802.11 b/g)
Mini-USB-B-jack (for Configuration)
Operating temperature: 5 - 55°C
Case: ABS-plastic case
Dimensions: 65 x 43 x 17 mm


Without LAN-cable round of the PLC

Unbenanntes Dokument

Your’re right in the middle of your production line and and should move around the machine and simultaneously observe / manage. No problem, you parameterize the S7-Bridge, connect to the S7-LAN and connect to an access-point or with the ad-hoc-network of your laptop and are ONLINE on the PLC.

article:
Art. ID.nameprice
9352-S7-Bridge S7-Bridge 249,- €

needed accessories:
Art. ID.nameprice
9352-LANCON S7-LAN connector
Ethernetmodule for PPI/MPI/Profibus		 399,- €

accessories:
Art. ID.nameprice
9352-S7-Bridge-ANT Magnetic base antenna for S7-Bridge
cable length: 3m		 78,- €
9636-TCPIP.02M Patch-cable 0.25m, Cat5e, screened 14,- €
9352.3 USB-cable plug/plug Type A-B-Mini 3m 23,- €

Shop:MPI/PPI - Process Informatik Entwicklungsgesellschaft mbH

MPI/PPI

S7-Interface cable for PPI, MPI, TS, HMI <=> RS232 applications

• automatic protocol- and baud rate detection
• firmwareupdate via internet for free
• PPI - adapter for S7 - 200
• MPI - adapter for S7 - 300 + 400
• CE/EMC compliant construction
• applicable with original Siemens programming software by included software
• integrated display for output of diagnostic informations
• applicable as TS/HMI adapter
• double-sided connected cable
• short plug to PLC
Technical Specifications:
Supply voltage: 24V/DC +/- 20%
Power consumption: 2 watt
Display: double lined LCD-display
Handling/Configuration: Kabelmanager-Software
Interfaces:
to the PLC:
PPI/MPI-bus interface: 9,6 KBd - 187,5 KBd
to the PD/PC:
RS232: 9,6 KBd - 115,2 KBd
Galvanic separation: 1000V PPI/MPI-bus to the PC
Operating temperature: 5 - 55°C
Case: ABS-plastic case
Dimensions: 146 x 41 x 29 mm


Serial programming of the S7- PLC

Unbenanntes Dokument
With the MPI/PPI-cable you have the ability to access a connected SPC-PLC S7-200 (PPI 9600 Baud and 19200 Baud) as well as S7-300/400 (MPI/Profbus 9600 Baud up to 187500 Baud) via PC serial with up to 115200 Baud for reading respectively writing of data.
Visualisation of your S7- PLC via COM-Port

Unbenanntes Dokument
Your panel provides a serial port and no MPI/Profibus for connecting a S7-PLC. Connect the MPI/PPI-cable with it and you’re Online with your panel.
article:
Art. ID.nameprice
9350 MPI+PPI+HMI+TS - Interfacecable 3m
with LCD-display		 178,- €
9350.05M MPI+PPI+HMI+TS - Interfacecable 5m
with LCD-display		 184,- €
9350.10M MPI+PPI+HMI+TS - Interfacecable 10m
with LCD-display		 196,- €
9350.15M MPI+PPI+HMI+TS - Interfacecable 15m
with LCD-display		 209,- €

variant:
Art. ID.nameprice
9350-M MPI+PPI-Interfacecable TS-version 2m
9-pin modem plug		 199,- €

accessories:
Art. ID.nameprice
9350-TS Adapter cable 9pins to modem
for TS-function		 30,- €
9350-9-CHP CheapConn Busconnector
for PROFIBUS		 25,- €
9391-HH DIN-rail-holder for MPI/PPI 10,- €
9352-104 MPI-PC104-card 1 channel up to 12Mbaud 315,- €
9352-104-2 MPI-PC104-card 2 channel up to 12Mbaud 415,- €
9350-4-ON Power-adapter for MPI-cable
without power-supply unit		 41,- €
9350-9-CHP-CC Option CheapConn for MPI
9350-9-CHP+9350-9-CHP-K already mounted		 35,- €
9361-7 T-Connector to PPI / MPI-Bus 143,- €
9350-9-CHP-K Connecting cable MPIx to CheapConn 5,- €
9350-WAND Wall-mounting
for MPI/PPI + MPI-II + MPI-USB		 5,- €

Shop:MPI-II - Process Informatik Entwicklungsgesellschaft mbH

MPI-II

S7-Interface cable for PPI, MPI, Profibus, TS, HMI <=> USB, RS232 applications

• automatic protocol- and baud rate detection
• firmwareupdate via internet for free
• PPI - adapter for S7 - 200
• MPI - adapter for S7 - 300 + 400
• CE/EMC compliant construction
• applicable with original Siemens programming software by included software
• integrated display for output of diagnostic informations
• power supply from the S7-PLC or external
• applicable as TS/HMI adapter
• USB-connector
• double-sided connected cable
• short plug to PLC
Technical Specifications:
Supply voltage: 24V/DC +/- 20%
Power consumption: 2,5 watt
Display: double lined LCD-display
Handling/Configuration: Kabelmanager-Software
keypad on the back
Interfaces:
to the PLC:
PPI/MPI/Profibus interface: 9,6 KBd - 12 MBd
to the PD/PC:
RS232: 9,6 KBd - 115,2 KBd
USB 1.1 for cable type A <-> A
Galvanic separation: 1000V PPI/MPI/Profibus to the PC
Operating temperature: 5 - 55°C
Case: ABS-plastic case
Dimensions: 146 x 41 x 29 mm


Programming of the S7- PLC via RS232 and USB

Unbenanntes Dokument
With the MPI-II-cable you have the ability to access a connected SPC-PLC S7-200 (PPI 9600 Baud, 19200 Baud and also 187500 Baud) as well as S7-300/400 (MPI/Profbus 9600 Baud up to 12 MBaud) via PC serial with up to 115200 Baud or via USB-port for reading respectively writing of data.
Visualisation of your S7-PLC via COM-Port

Unbenanntes Dokument
Your panel provides a serial port and no MPI/Profibus for connecting a S7-PLC. Connect the MPI-II-cable with it and you’re Online with your panel.
Coupling of S5-PLC with S7-PLC via PD-interfaces

Unbenanntes Dokument
You still have an installation in your machinery which is equiped with a S5-PLC and the modification to S7 isn’t profitable, but the central control needs the manufacturing data? No problem, connect the S5-PLC via the S5toMPI to your central control and the S5toMPI ensures that the data will be accordingly interchanged. Both sides can be active, but also only one. Both is configurable.
article:
Art. ID.nameprice
9352 MPI-II - Interfacecable 3m
PPI/MPI/Profibus up to 12Mbit/s		 299,- €
9352.05M MPI-II - Interfacecable 5m
PPI/MPI/Profibus up to 12Mbit/s		 304,- €
9352.10M MPI-II - Interfacecable 10m
PPI/MPI/Profibus up to 12Mbit/s		 317,- €
9352.15M MPI-II - Interfacecable 15m
PPI/MPI/Profibus up to 12Mbit/s		 329,- €

accessories:
Art. ID.nameprice
9391.1 24V DC power-supply unit 625mA
Primary 110V - 240 VAC Euro+USA-plug		 39,- €
9350-TS Adapter cable 9pins to modem
for TS-function		 30,- €
9350-9-CHP CheapConn Busconnector
for PROFIBUS		 25,- €
9391-HH DIN-rail-holder for MPI/PPI 10,- €
9352-104 MPI-PC104-card 1 channel up to 12Mbaud 315,- €
9352-104-2 MPI-PC104-card 2 channel up to 12Mbaud 415,- €
9350-9-CHP-CC Option CheapConn for MPI
9350-9-CHP+9350-9-CHP-K already mounted		 35,- €
9352-24 Power connector 2pins small 2,- €
9361-7 T-Connector to PPI / MPI-Bus 143,- €
9352.1 USB-cable plug/plug Type A-A 3m 10,- €
9350-9-CHP-K Connecting cable MPIx to CheapConn 5,- €
9350-WAND Wall-mounting
for MPI/PPI + MPI-II + MPI-USB		 5,- €

Shop:S7-USB - Process Informatik Entwicklungsgesellschaft mbH

S7-USB

smallest USB-gateway for PPI, MPI, Profibus, HMI <=> USB applications

• automatic protocol- and baud rate detection
• firmwareupdate via internet for free
• PPI - adapter for S7 - 200
• MPI - adapter for S7 - 300 + 400
• CE/EMC compliant construction
• applicable with original Siemens programming software by included software
• with full PD – diagnosis socket
• power supply from the USB-jack
Technical Specifications:
Supply voltage: 5V/DC
Power consumption: 2 watt
Display: 2 status-LEDs
Handling/Configuration: Kabelmanager-Software
Interfaces:
to the PLC:
PPI/MPI/Profibus interface: 9,6 KBd - 12 MBd
to the PD/PC:
PD/diagnosis jack
Mini-USB-B-Buchse
Galvanic separation: 1000V PPI/MPI/Profibus to the PC
Operating temperature: 5 - 55°C
Case: ABS-plastic case
Dimensions: 65 x 43 x 17 mm


Access to MPI/Profibus without power supply

Unbenanntes Dokument
Your’re right in the middle of your production line and are standing in front of a passive assembly just like a switcher or a ET200, in that case you won’t be able to go Online without an external power supply of your programming adapter, unless you’re using the S7USB. This module is supplied completely from the USB-interface.
article:
Art. ID.nameprice
9352-S7-USB S7-USB 299,- €

accessories:
Art. ID.nameprice
9352.3 USB-cable plug/plug Type A-B-Mini 3m 23,- €

Shop:MPI-USB - Process Informatik Entwicklungsgesellschaft mbH

MPI-USB

S7-Interface cable for PPI, MPI, Profibus, HMI <=> USB applications

• automatic protocol- and baud rate detection
• firmwareupdate via internet for free
• PPI - adapter for S7 - 200
• MPI - adapter for S7 - 300 + 400
• CE/EMC compliant construction
• applicable with original Siemens programming software by included software
• power-supply from USB
• double-sided connected cable
• short plug to PLC
Technical Specifications:
Supply voltage: 5V/DC
Power consumption: 2 watt
Display: double lined LCD-display
Handling/Configuration: Kabelmanager-Software
keypad on the back
Interfaces:
to the PLC:
PPI/MPI/Profibus interface: 9,6 KBd - 12 MBd
to the PD/PC:
USB 1.1 cable type A
Galvanic separation: 1000V PPI/MPI/Profibus to the PC
Operating temperature: 5 - 55°C
Case: ABS-plastic case
Dimensions: 146 x 41 x 29 mm


Access to MPI/Profibus without power supply

Unbenanntes Dokument
Your’re right in the middle of your production line and are standing in front of a passive assembly just like a switcher or a ET200, in that case you won’t be able to go Online without an external power supply of your programming adapter, unless you’re using the MPI-USB. This cable is supplied completely from the USB-interface.
article:
Art. ID.nameprice
9352-USB MPI-USB-cable 3m
PPI/MPI/Profibus up to 12Mbit/s		 299,- €
9352-USB.05M MPI-USB-cable 5m
PPI/MPI/Profibus up to 12Mbit/s		 324,- €

accessories:
Art. ID.nameprice
9350-9-CHP CheapConn Busconnector
for PROFIBUS		 25,- €
9391-HH DIN-rail-holder for MPI/PPI 10,- €
9352-104 MPI-PC104-card 1 channel up to 12Mbaud 315,- €
9352-104-2 MPI-PC104-card 2 channel up to 12Mbaud 415,- €
9350-9-CHP-CC Option CheapConn for MPI
9350-9-CHP+9350-9-CHP-K already mounted		 35,- €
9361-7 T-Connector to PPI / MPI-Bus 143,- €
9350-9-CHP-K Connecting cable MPIx to CheapConn 5,- €
9350-WAND Wall-mounting
for MPI/PPI + MPI-II + MPI-USB		 5,- €

Shop:MPI-LAN - Process Informatik Entwicklungsgesellschaft mbH

MPI-LAN

S7-Interface cable for PPI, MPI, Profibus, HMI <=> LAN applications

• automatic protocol- and baud rate detection
• firmwareupdate via internet for free
• PPI - adapter for S7 - 200
• MPI - adapter for S7 - 300 + 400
• CE/EMC compliant construction
• applicable with original Siemens programming software by included software
• power supply from the S7-PLC or external
• network configuration free adjustable
• VPN remote maintenance possible / for the maintenance of the PLC via Internet
• integrated display for output of diagnostic informations
• double-sided connected cable
• short plug to PLC
Technical Specifications:
Supply voltage: 24V/DC +/- 20%
Power consumption: 2,5 watt
Display: double lined LCD-display
Handling/Configuration: Kabelmanager-Software
keypad on the back
Interfaces:
to the PLC:
PPI/MPI/Profibus interface: 9,6 KBd - 12 MBd
to the PD/PC:
10/100MBit ethernet interface
Galvanic separation: 1500V PPI/MPI/Profibus to the PC
Operating temperature: 5 - 55°C
Case: ABS-plastic case
Dimensions: 146 x 41 x 29 mm


Programming of S7-PLCs via LAN

Unbenanntes Dokument
You would like to respond to your S7-PLC-device via LAN but not integrate an Ethernet-CP? No problem, plug the S7-LAN or also the MPI-LAN-cable on the MPI/PPI/Profibus-interface and access via LAN.
Watching of S7-PLC-devices via LAN without Ethernet-CP

Unbenanntes Dokument
Your panel only has a LAN-socket as PLC-interface? No problem, connect this socket with the S7-LAN or the MPI-LAN-cable and plug it directly on the PPI/MPI/Profibus of the PLC. Then access to the variables and data of the PLC is already available.
Remote maintenance / telecontrol of PLC-devices via LAN / internet

Unbenanntes Dokument
You have access to a on-site network and your PLC-device has no LAN-connection? No problem, plug the S7-LAN on the PLC-device and you will have immediate access to the PLC from afar.
PLC-coupling (data exchange between PLC-devices)

Unbenanntes Dokument
Your pumping stations report the water levels of the central control via telephone network. The central office itself can of course transmit commands/messages to the substations as well. Thereto no dedicated line is required, it’s sufficient when the stations connect via network (DSL-router).
S7-CP-replacement (without LAN-CP to the PLC-device)

Unbenanntes Dokument
Do you have a S7-PLC-device without CP243-1, CP343-1 or CP443-1 and would like to connect via LAN? Then plug the S7-LAN on the PLC-device and your access via RFC1006 is ready for use.
Variable-chart without Step7-programming package

Unbenanntes Dokument
You would like to give your customer the opportunity to read current numbers of the manufacturing Online, without installing a visualisation or even the STEP7-package? Then a S7-LAN with the option „Status Variable“ is needed, and your customer can take a look at these password protected data on a site of the integrated webserver.
Malfunctions on the Bus although everything is (apparently) connected properly?

Unbenanntes Dokument
The S7-LAN can also be used for controlling/checking the MPI/Profibus. It will be plugged on the Bus so that you can take a look at the status of the busses via software on PC, for example the numbers of parity errors.
article:
Art. ID.nameprice
9352-LAN MPI-LAN-cable 3m
PPI/MPI/Profibus up to 12Mbit/s		 399,- €

accessories:
Art. ID.nameprice
9391.1 24V DC power-supply unit 625mA
Primary 110V - 240 VAC Euro+USA-plug		 39,- €
9350-9-CHP CheapConn Busconnector
for PROFIBUS		 25,- €
9391-HH DIN-rail-holder for MPI/PPI 10,- €
9352-104 MPI-PC104-card 1 channel up to 12Mbaud 315,- €
9352-104-2 MPI-PC104-card 2 channel up to 12Mbaud 415,- €
9350-9-CHP-CC Option CheapConn for MPI
9350-9-CHP+9350-9-CHP-K already mounted		 35,- €
9352-24 Power connector 2pins small 2,- €
9361-7 T-Connector to PPI / MPI-Bus 143,- €
9350-9-CHP-K Connecting cable MPIx to CheapConn 5,- €
9350-WAND Wall-mounting
for MPI/PPI + MPI-II + MPI-USB		 5,- €

Shop:S5 - interface cable - Process Informatik Entwicklungsgesellschaft mbH

S5 - interface cable

With each interface of your PC to the S5-PLC

• multifunctional, several functions in one product
• well-priced alternative to high-priced original products

application table:
PG-UNI + PG-UNI-II
S5-LAN
PG-USB
PG-COM
PG-ISO-SET
device type
S5-90U
x
+ext. 24V
x
x
x
S5-95U
x
+ext. 24V
x
x
x
S5-100U
x
+ext. 24V(2)
x
x
x
S5-115U
at 944 + 9359-8
at 944 + 9359-8 + ext. 24V
x
x
x
S5-135U
x
x
x
x
x
S5-155U
x
x
x
x
x
S5-AG110S
+9359-5-150 + 9359-4
+9359-5-150 + 9359-4 + ext. 24V
+9359-5-150-USB
+9359-5-150 + 9359-4(1)
S5-AG130W/B
+9359-5-150 + 9359-4
+9359-5-150 + 9359-4 + ext. 24V
+9359-5-150-USB
+9359-5-150 + 9359-4(1)
S5-AG150A/K/S/U
+9359-5-150 + 9359-4
+9359-5-150 + 9359-4 + ext. 24V
+9359-5-150-USB
+9359-5-150 + 9359-4(1)
CP-143
x
x
x
CP-521
+CP521 adapter

+CP521 adapter(1)
CP-523
+CP523 adapter

+CP523 adapter(1)
CP-525
+9359-5

+9359-USB

+9359-5(1)
CP-526
x

x

x
CP-527
x

x

x
CP-528
x

x

x
CP-544
x

x

x
CP-5430
x

x

x
CP-5431
x


IP-252
x

x

x
IP-247
x

x

x
IP-252
x

x

x
IP-266
+9359-4
x
+9359-4(1)
WF-470
+9359-4 + 9359-5-WF470
+9359-5-WF470-USB
+9359-5-WF470 + 9359-4(1)
SIN-805
+9359-6
+9359-6 + ext. 24V
+9359-6-USB
+9359-6(1)
SIN-820
+9359-6
+9359-6 + ext. 24V
+9359-6-USB
+9359-6(1)
SIN-840
+9359-6
+9359-6 + ext. 24V
+9359-6-USB
+9359-6(1)
SIN-850
+9359-6
+9359-6 + ext. 24V
+9359-6-USB
+9359-6(1)
SIN-880
+9359-6
+9359-6 + ext. 24V
+9359-6-USB

+9359-6(1)
max. prolongation: 300m (UNI-extension) 300m (S5-LAN-extension) +ext. 24V 100m (PG-USB-extension)   300m (UNI-extension)

(1) ISO adapter can not be used because the required supply voltage on the PG interface of the module is not present.
(2) At the CPU 6ES5 102-8MA02 Release 3 is a PG-ISO-Adapter or Netz-Adapter additional required.



Shop:S5-LAN++ - Process Informatik Entwicklungsgesellschaft mbH

S5-LAN++

Industrial Ethernet - TCP/IP for all SIMATIC-S5 via the programming-interface

• fastest installation to the network of every SIMATIC - S5
• reading and writing of S5-data (E,A,M,DB,Z,T) via TCP/IP
• ideal for process-visualisation
• programming with STEP 5 via Ethernet
• simultaneous programming and visualisation possible (integrated multiplexer function)
• power supply from the S5-PLC or external
• disclosed TCP/IP-protocol
• DHCP / Auto-IP supported
• timing-equitable communication with the S5-PLC via integrated firmware
• driver-DLL for Windows available, EXCEL and WORD can read/write S5-data
• compatible with VIPA-S5-TCP/IP driver
• direct operation with WinCC via TCP/IP driver S5 Layer4 possible
• with WinCC Flexible (e.g. MP377, TP177B) via S7-TCP/IP to the Simatic S5 (CP-343-1 compatible)
• data exchange between S5 – S5 and S5 - S7 via TCP/IP
• RK 512 and TCP/IP H1-ISO-On-TCP RFC1006 (CP1430 TCP) supported
• versions: 3964R-LAN, ASCII-LAN, PG-LAN, as RS232-version and for the MUX757
Technical Specifications:
Supply voltage: 24V/DC +/- 20%
Power consumption: 2 watt
Display: status-LED
Handling/Configuration: reset-switch-key (factory setting)
S5-LAN Manager
Interfaces:
to the PLC:
TTY/20mA current loop (S5-LAN passiv, PLC aktiv)
to the PD/PC:
10/100BaseTX RJ45-ethernet jack
Operating temperature: 5 - 55°C
Case: ABS-plastic case
Dimensions: 42 x 15 x 65 mm


Programming of S5-PLC’s via LAN

Unbenanntes Dokument
You would like to respond to your S5-PLC via LAN, but not integrate an Ethernet-CP? No problem, plug the S5-LAN++ on the PD-interface and access via LAN.
Communication with Win98 – XP/Vista via LAN to S5-PLC

Unbenanntes Dokument
You still have a PC with Win98 and Step5-package and would like to go Online on your S5-PLC via LAN? No problem, the provided virtual Com-Port PLCVCom emulates a COM-port on your PC with which you go Online. Even your MS-DOS-based Step5-software can use this virtual Com-Port. With a patchtool for the Siemens Step5-software, which is provided as well, nothing else stands in your way to communicate via LAN.
Watching of S5-PLC’s via LAN without Ethernet-CP

Unbenanntes Dokument
Your panel only has a LAN-socket as PLC-interface, no problem. Connect this socket with the S5-LAN++ and plug it directly on the PD-interface of the PLC. Then access to the variables and data of the PLC is already available.
Watching of S5- PLC’s with panel for S7-PLC

Unbenanntes Dokument
Your panel only has a LAN-socket as PLC-interface and supports only S7-RFC1006, no problem. Connect this socket with the S5-LAN++ and plug it directly on the PD-interface of the PLC. The S5-LAN++ performs adverse your panel as a S7-PLC although you receive the data from the S5-PLC. Then access to the variables and data of the S5-PLC is already available.
Remote maintenance of your S5-PLC via LAN / Internet

Unbenanntes Dokument
You have access to a on-site network and your PLC has no LAN-connection? No problem, plug the S5-LAN on the PLC and you will have immediate access to the PLC from afar.
PLC coupling (data exchange between PLC’s)

Unbenanntes Dokument
Your pumping stations report the water levels of the central control via telephone network. The central office itself can of course transmit commands/messages to the substations as well. Therefore no dedicated line is required, it’s sufficient when the stations connect via network (DSL-router).
Visualisation via 3964R-interface without using the protocol itself

Unbenanntes Dokument
Your visualisation-software does not support a 3964R-protocol, but you have to apply this package? No problem, connect the 3964R-LAN to your CP and activate the RFC1006-emulation in the module. Now your software gets the data from the module via RFC1006, which in turn communicates with the assembly via 3964R.
Extension of a 3964R-line via LAN

Unbenanntes Dokument
There is a control with CP524 in your outstation and the communication partner of the CP has moved locally. Connecting path is a LAN-network. So each of both participants gets a 3964R-LAN and after input of the partner’s IP-address a coupling via LAN will be configured.
article:
Art. ID.nameprice
9359-LAN S5-LAN++ 390,- €

variant:
Art. ID.nameprice
9359-RK S5-3964R-LAN 749,- €
9359-RK-RS S5-3964R-LAN RS232-version 839,- €
9359-ASCII S5-ASCII-LAN 490,- €
9359-LAN-RS S5-LAN++ RS232-version 480,- €
9359-LAN-M S5-LAN-MUX757
S5-LAN with path selection (MUX757)		 1890,- €
9359-PG-LAN S5-PG-LAN 799,- €

accessories:
Art. ID.nameprice
9391.1 24V DC power-supply unit 625mA
Primary 110V - 240 VAC Euro+USA-plug		 39,- €
9359-5-150 AG-150-adapter
for PG-UNI + PG-UNI-II-cable to AG-150		 39,- €
9636-CROSS Cross-cable 3m Cat5+
both sides RJ45-Plug		 10,- €
9359-4 NETZ-adapter
for PG-UNI-cable /UNI-II-cable/S5-LAN		 59,- €
9636-TCPIP Patch-cable 3m, Cat5+
both sides RJ45-Plug		 10,- €
9359-8 PG-ISO-adapter
1000V galv. seperation		 89,- €
9359-6 SINUM-adapter
for PG-UNI + PG-UNI-II-cable to SINUMERIK		 39,- €
9352-24 Power connector 2pins small 2,- €

Shop:PG-USB - Process Informatik Entwicklungsgesellschaft mbH

PG-USB

Coupling of PC (USB-port type A) with the 15pin X4/X5 PD-port of the PLC

• complete electronics in the plug housing
• slide lock for firm grip on the PLC
• power supply from the USB-port
• prolongable up to 100m on the PLC side
• runs with the standard S5-software despite virtual com-port (driver for Win2000 and XP will be provided)
Technical Specifications:
Supply voltage: 5V/DC
Power consumption: 0,3 watt
Display: 2 status-LEDs for RXT/TXD
Interfaces:
to the PLC:
TTY/20mA current loop (PG-USB aktiv, PLC passiv)
to the PD/PC:
USB 1.1 cable type A
Operating temperature: 5 - 55°C
Case: metal case
Dimensions: 50 x 40 x 17 mm


Active on every S5-PLC

Unbenanntes Dokument
You have to program an assembly which does not provide neither power sources nor voltages at your PD-interface, such as the AS511-card for example? No problem, the PG-USB-cable supplies itself completely from the USB-port and so it’s active adverse the communication partner. He uses own power sources for the communication.
Communication with Win98 – XP/Vista via USB to S5-PLC

Unbenanntes Dokument
You still have a PC with Win98 and Step5-package and would like to go Online on your S5-PLC via USB? No problem, the provided virtual Com-Port PLCVCom emulates a COM-port on your PC with which you go Online. With a patchtool for the Siemens Step5-software, which is provided as well, nothing else stands in your way to communicate via LAN.
article:
Art. ID.nameprice
9359-1 PG-USB-cable 3m
125,- €
9359-1.05M PG-USB-cable 5m
150,- €

accessories:
Art. ID.nameprice
9359-5-150-USB PG-USB AG-150-adapter
for PG-USB-cable to AG-150		 39,- €
9359-5-USB PG-USB CP-525-adapter
for PG-USB-cable to CP-525		 39,- €
9359-5K-USB PG-USB CP-525-K-adapter
for PG-USB-cable to CP-525-communication		 39,- €
9359-6-USB PG-USB SINUM-adapter
for PG-USB-cable to SINUMERIK		 39,- €
9359-5-WF470-USB PG-USB WF-470-adapter
for PG-USB-cable to WF470		 39,- €
9359-7-USB PG-USB-lengthening set
complete mounting set		 29,- €

Shop:S5toMPI - Process Informatik Entwicklungsgesellschaft mbH

S5toMPI

Connects the S5-PLC with a S7-PLC

• bi-directional exchange of data blocks
• automatic protocol- and baud rate detection
• power supply from the S7-PLC or external
• galvanic separation 1000V
• double-sided connected cable
• short plug to PLC
• firmwareupdate via internet for free
• easy handling without programming the S5/S7
• incl. 9 pol. adapter for connecting a S5-interface cable
• optional is a PG-COM or PG-UNI cable necessary
Technical Specifications:
Supply voltage: 24V/DC +/- 20%
Power consumption: 2,5 watt
Display: double lined LCD-display
Handling/Configuration: Kabelmanager-Software
keypad on the back
Interfaces:
to the PLC:
PPI/MPI/Profibus interface: 9,6 KBd - 12 MBd
to the PD/PC:
RS232: 9,6 KBd - 115,2 KBd
USB 1.1 for cable type A <-> A
Operating temperature: 5 - 55°C
Case: ABS-plastic case
Dimensions: 146 x 41 x 29 mm


Coupling of S5-PLC with S7-PLC via PD-interfaces

Unbenanntes Dokument
You still have an installation in your machinery which is equiped with a S5-PLC and the modification to S7 isn’t profitable, but the central control needs the manufacturing data? No problem, connect the S5-PLC via the S5toMPI to your central control and the S5toMPI ensures that the data will be accordingly interchanged. Both sides can be active, but also only one. Both is configurable.
article:
Art. ID.nameprice
9352-S5-OP S5toMPI/Profibus 399,- €

accessories:
Art. ID.nameprice
9391.1 24V DC power-supply unit 625mA
Primary 110V - 240 VAC Euro+USA-plug		 39,- €
9350-9-CHP CheapConn Busconnector
for PROFIBUS		 25,- €
9391-HH DIN-rail-holder for MPI/PPI 10,- €
9350-9-CHP-CC Option CheapConn for MPI
9350-9-CHP+9350-9-CHP-K already mounted		 35,- €
9352-24 Power connector 2pins small 2,- €
9350-9-CHP-K Connecting cable MPIx to CheapConn 5,- €
9350-WAND Wall-mounting
for MPI/PPI + MPI-II + MPI-USB		 5,- €

appropriate interface-cables:
Art. ID.nameprice
9359.10CM PG-COM-cable 0.1m special length 59,- €
9359 PG-COM-cable 3m 59,- €
9359.05M PG-COM-cable 5m 66,- €
9359.10M PG-COM-cable 10m 83,- €
9359.15M PG-COM-cable 15m 97,- €
9359-2 PG-UNI-II-cable 3m
for PLC's/CP's+ LED + metal case		 99,- €
9359-2.05M PG-UNI-II-cable 5m
for PLC's/CP's+ LED + metal case		 109,- €
9359-2.10M PG-UNI-II-cable 10m
for PLC's/CP's+ LED + metal case		 125,- €
9359-3.10CM PG-UNI-cable 0.1m special length
for PLC's and CP's 		89,- €
9359-3 PG-UNI-cable 3m
for PLC's and CP's 		89,- €
9359-3.05M PG-UNI-cable 5m
for PLC's and CP's		 99,- €
9359-3.10M PG-UNI-cable 10m
for PLC's and CP's		 115,- €

Shop:PG-COM - Process Informatik Entwicklungsgesellschaft mbH

PG-COM

Couples the PC (9 pol. COM-interface) with the 15 pol. X4/X5 interface port of the PLC

• complete electronics in the plug housing
• slide lock for firm grip on the PLC
• supply from the PLC over the 5V DC of the PD-port
Technical Specifications:
Supply voltage: 5V/DC
Power consumption: 0,2 watt
Display: -
Interfaces:
to the PLC:
TTY/20mA current loop (PG-COM passiv, PLC aktiv)
to the PD/PC:
RS232: 9,6 KBd - 115,2 KBd
Operating temperature: 5 - 55°C
Case: plastic case
Dimensions: 47 x 40 x 15 mm


Serial communication to the S5-PLC (CPU-assemblies 15pin)

Unbenanntes Dokument
You have a PC with programming software and a 9pin COM-port as interface? No problem, for this purpose the PG-COM-cable is exactly the right product. Connect it to PLC and PC and you’re Online.
article:
Art. ID.nameprice
9359.10CM PG-COM-cable 0.1m special length 59,- €
9359 PG-COM-cable 3m 59,- €
9359.05M PG-COM-cable 5m 66,- €
9359.10M PG-COM-cable 10m 83,- €
9359.15M PG-COM-cable 15m 97,- €

variant:
Art. ID.nameprice
9359-SON Additional charge for special wiring
PG-COM/ PG-UNI/ PG-UNI-II		 5,- €
9390 Additional charge for special length
for S5-Interface cables per Meter 3,- Euro		 3,- €
9359.X Special length: PG-COM-cable (3m) + 9390 69,- €

Shop:PG-UNI - Process Informatik Entwicklungsgesellschaft mbH

PG-UNI

Couples the PC (9 pol. COM-interface) with the 15 pol. X4/X5 interface port of the PLC

• complete electronics in the plug housing
• slide lock for firm grip on the PLC
• supply from the PLC of 20mA-current sources
• galvanic separation to 1000V with PG-ISO-adapter
• prolongable up to 300 meters on PLC side
• functioned also at many CP’s, IP’s and Sinumerik-PLC’s
Technical Specifications:
Supply voltage: from the current sources of the PLC
Power consumption: 0,2 watt
Display: -
Interfaces:
to the PLC:
TTY/20mA current loop (PG-COM passiv, PLC aktiv)
to the PD/PC:
RS232: 9,6 KBd - 115,2 KBd
Operating temperature: 5 - 55°C
Case: plastic case
Dimensions: 47 x 40 x 15 mm


Serial communication to the S5-PLC

Unbenanntes Dokument
You have a PC with programming software and a 9pin COM-port as interface? No problem, for this purpose the PG-UNI-cable is exactly the right product. Connect it to PLC and PC and you’re Online. Even the 25pin interface of the AS511-card is no problem. You need the NETZ-adapter and also the AG-150-adapter and then this control is programmable, too.
Serial communication with CP and more S5-assemblies

Unbenanntes Dokument
You have a PC with programming software and a 9pin COM-port as interface? No problem, for this purpose the PG-UNI-cable is exactly the right product. Connect it to a Siemens assembly such as H1-CP (CP1430), WF470 and PC or CP-525 with the CP525-adapter and PC and you’re Online.
article:
Art. ID.nameprice
9359-3.10CM PG-UNI-cable 0.1m special length
for PLC's and CP's 		89,- €
9359-3 PG-UNI-cable 3m
for PLC's and CP's 		89,- €
9359-3.05M PG-UNI-cable 5m
for PLC's and CP's		 99,- €
9359-3.10M PG-UNI-cable 10m
for PLC's and CP's		 115,- €

variant:
Art. ID.nameprice
9359-SON Additional charge for special wiring
PG-COM/ PG-UNI/ PG-UNI-II		 5,- €
9390 Additional charge for special length
for S5-Interface cables per Meter 3,- Euro		 3,- €
9359-3.X Special length: PG-UNI-cable (3m) + 9390 101,- €

accessories:
Art. ID.nameprice
9359-9.M Adapter COM 1 : COM2
25pins (male) - 9pins (female)		 17,- €
9359-9 Adapter COM 1 : COM2
9pins (male) - 25pins (female)		 17,- €
9359-5-150 AG-150-adapter
for PG-UNI + PG-UNI-II-cable to AG-150		 39,- €
9359-5 CP-525-adapter
for PG-UNI + PG-UNI-II-cable <-> CP-525		 39,- €
9359-5K CP-525-K-adapter
for PG-UNI + PG-UNI-II-cable <-> CP-525-communication		 39,- €
9359-4 NETZ-adapter
for PG-UNI-cable /UNI-II-cable/S5-LAN		 59,- €
9359-8 PG-ISO-adapter
1000V galv. seperation		 89,- €
9359-7 PG-UNI - lengthening set
16,- €
9359-MAX233 RS232 / V24 chip
for interfacecable		 5,- €
9359-6 SINUM-adapter
for PG-UNI + PG-UNI-II-cable to SINUMERIK		 39,- €
9359-5-WF470 WF-470-adapter
for PG-UNI + PG-UNI-II-cable to WF470		 39,- €
9310 Additional charge 25-pins PC-plug 10,- €

Shop:PG-UNI II - Process Informatik Entwicklungsgesellschaft mbH

PG-UNI II

Couples the PC (9 pol. COM-interface) with the 15 pol. X4/X5 interface port of the PLC

• complete electronics in the plug housing
• slide lock for firm grip on the PLC
• supply from the PLC of 20mA-current sources
• galvanic separation to 1000V with PG-ISO-adapter
• prolongable up to 300 meters on PLC side
• functioned also at many CP’s, IP’s and Sinumerik-PLC’s
• ESD firm transducer component up to 15kV
• Display of RxD/TxD with LEDs
Technical Specifications:
Supply voltage: from the current sources of the PLC
Power consumption: 0,25 watt
Display: 2 status-LEDs for RXT/TXD
Interfaces:
to the PLC:
TTY/20mA current loop (PG-COM passiv, PLC aktiv)
to the PD/PC:
RS232: 9,6 KBd - 115,2 KBd
Operating temperature: 5 - 55°C
Case: metal case
Dimensions: 50 x 40 x 17 mm


Insensible communication with the S5-PLC

Unbenanntes Dokument

You need a communication to a PLC-device, which is stable against influence from out like frequency converter or electrostatic charge? No problem, the PG-UNI-II-cable is the correct interface cable. Its metal D-SUB-cases and esd-resistant components you will have here best protection against this influences.

Serial communication to the S5-PLC

Unbenanntes Dokument

You have a PC with programming software and a 9pin COM-port as interface? No problem, for this purpose the PG-UNI-II-cable is exactly the right product. Connect it to PLC and PC and you’re Online. The communication itself is visible by the both included LEDs. Even the 25pin interface of the AS511-card is no problem. You need the NETZ-adapter and also the AG-150-adapter and then this control is programmable, too.

Serial communication with CP and more S5-assemblies

Unbenanntes Dokument
You have a PC with programming software and a 9pin COM-port as interface? No problem, for this purpose the PG-UNI-II-cable is exactly the right product. Connect it to a Siemens assembly such as H1-CP (CP1430), WF470 and PC or CP-525 with the CP525-adapter and PC and you’re Online.
article:
Art. ID.nameprice
9359-2 PG-UNI-II-cable 3m
for PLC's/CP's+ LED + metal case		 99,- €
9359-2.05M PG-UNI-II-cable 5m
for PLC's/CP's+ LED + metal case		 109,- €
9359-2.10M PG-UNI-II-cable 10m
for PLC's/CP's+ LED + metal case		 125,- €

variant:
Art. ID.nameprice
9359-SON Additional charge for special wiring
PG-COM/ PG-UNI/ PG-UNI-II		 5,- €
9390 Additional charge for special length
for S5-Interface cables per Meter 3,- Euro		 3,- €
9359-2.X Special length: PG-UNI-II cable (3m) + 9390 111,- €

accessories:
Art. ID.nameprice
9359-9.M Adapter COM 1 : COM2
25pins (male) - 9pins (female)		 17,- €
9359-9 Adapter COM 1 : COM2
9pins (male) - 25pins (female)		 17,- €
9359-5-150 AG-150-adapter
for PG-UNI + PG-UNI-II-cable to AG-150		 39,- €
9359-5 CP-525-adapter
for PG-UNI + PG-UNI-II-cable <-> CP-525		 39,- €
9359-5K CP-525-K-adapter
for PG-UNI + PG-UNI-II-cable <-> CP-525-communication		 39,- €
9359-4 NETZ-adapter
for PG-UNI-cable /UNI-II-cable/S5-LAN		 59,- €
9359-8 PG-ISO-adapter
1000V galv. seperation		 89,- €
9359-7-II PG-UNI-II - lengthening set
29,- €
9359-MAX233 RS232 / V24 chip
for interfacecable		 5,- €
9359-6 SINUM-adapter
for PG-UNI + PG-UNI-II-cable to SINUMERIK		 39,- €
9359-5-WF470 WF-470-adapter
for PG-UNI + PG-UNI-II-cable to WF470		 39,- €
9310 Additional charge 25-pins PC-plug 10,- €

Shop:PG-ISO-SET - Process Informatik Entwicklungsgesellschaft mbH

PG-ISO-SET

PLC-communication with 1000V galvanic separation without power supply

• galvanic separation between PD/PC and PLC up to 1kV
• contact-protected plastic housing
• supply of the module from the PLC voltage 5V DC and/or 24V DC
• the SET contains a PG-UNI-Kabel (3m) Art.Nr.9359-3 and a PG-ISO-Adapter Art.Nr.9359-8
• slide lock for firm grip on the PLC
Technical Specifications:
Supply voltage: 5V/DV und/oder 24V/DC
Power consumption: 0,3 watt
Display: -
Interfaces:
to the PLC:
TTY/20mA current loop (PG-COM passiv, PLC aktiv)
to the PD/PC:
RS232: 9,6 KBd - 115,2 KBd
Operating temperature: 5 - 55°C
Case: plastic case
Dimensions: PG-UNI: 47 x 40 x 15 mm / PG-ISO-Adapter: 50 x 45 x 15 mm


Galvanic coupling to the S5-PLC (CPU-assemblies 15pin)

Unbenanntes Dokument
You have to configure a galavanic isolated connection to a S5-PLC? No problem, connect the PG-ISO-set (PG-UNI-cable + PG-ISO-adapter) to the PLC and PC, and now you’re Online connected to the PLC. And all without earth-relation between PLC and PC.
article:
Art. ID.nameprice
9359-S PG-ISO-SET 3m 139,- €
9359-S.05M PG-ISO-SET 5m 159,- €
9359-S.10M PG-ISO-SET 10m 179,- €

accessories:
Art. ID.nameprice
9359-9.M Adapter COM 1 : COM2
25pins (male) - 9pins (female)		 17,- €
9359-9 Adapter COM 1 : COM2
9pins (male) - 25pins (female)		 17,- €
9359-5-150 AG-150-adapter
for PG-UNI + PG-UNI-II-cable to AG-150		 39,- €
9359-5 CP-525-adapter
for PG-UNI + PG-UNI-II-cable <-> CP-525		 39,- €
9359-5K CP-525-K-adapter
for PG-UNI + PG-UNI-II-cable <-> CP-525-communication		 39,- €
9359-4 NETZ-adapter
for PG-UNI-cable /UNI-II-cable/S5-LAN		 59,- €
9359-MAX233 RS232 / V24 chip
for interfacecable		 5,- €
9359-6 SINUM-adapter
for PG-UNI + PG-UNI-II-cable to SINUMERIK		 39,- €
9359-5-WF470 WF-470-adapter
for PG-UNI + PG-UNI-II-cable to WF470		 39,- €
9310 Additional charge 25-pins PC-plug 10,- €

Shop:Other interface cables - Process Informatik Entwicklungsgesellschaft mbH

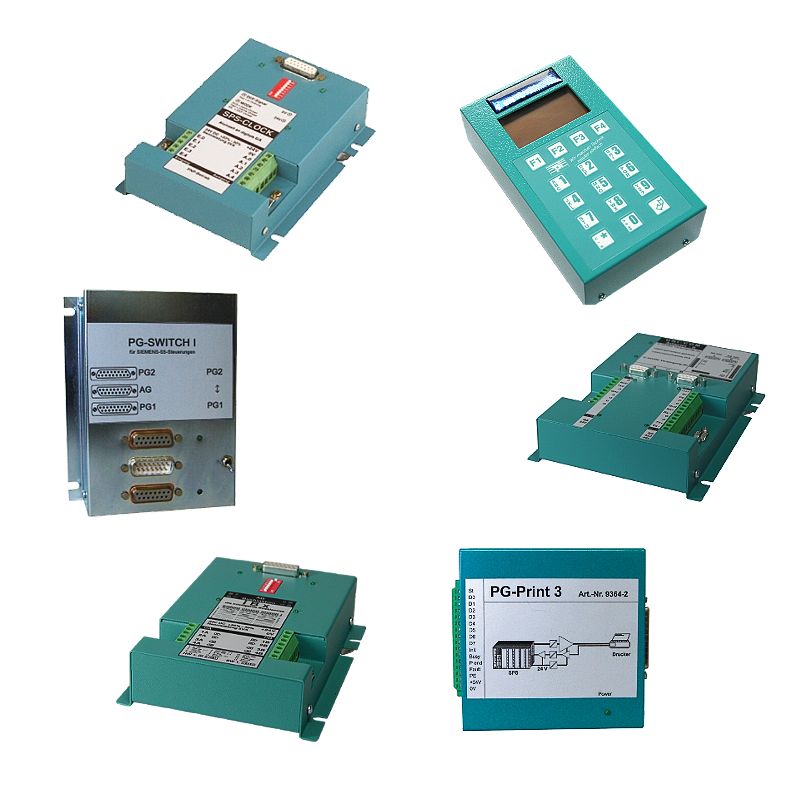

Other interface cables

Other useful devices to simplify your work with the PLC

Your advantage of use PI-interface cables:

• extensive cable and adapter program
in our inventory is a extensive cable and adapter program available for you, even for special connections we have a solution for you
• simple handling
for most interconnections no external power is required
• easy maintenance
our free technical hotline is available with help and advice for you
• function reliability
each cable is manufactured and tested according to quality guidelines in Germany
• function guarantee
each cable is tested with a special cable tester on all connections and connected to PLC to test online features
• CE and EMV reliability
all cables are certified by effective directives

article:
Art. ID.nameprice
9359.1:1 1:1 cable 9pins D-SUB 23,- €
9359.AF Connecting-cable CP with S5-PLC 49,- €
9359.AB PLC-connecting cable
PC <-> Allen-Bradley		 28,- €
9359-90 CP-cable 49,- €
9636-CROSS Cross-cable 3m Cat5+
both sides RJ45-Plug		 10,- €
9359.0 Null-modem-cable 9-pin D-SUB 23,- €
9359.OP OP-Programming cable to PC 3m 49,- €
9636-TCPIP Patch-cable 3m, Cat5+
both sides RJ45-Plug		 10,- €
9359.PCS PCS-cable
for Lauer-operator units		 38,- €
9359-91 PG-685-cable 5m 49,- €
9359.7XX PG-7XX-cable 5m 59,- €
9359-MAX233 RS232 / V24 chip
for interfacecable		 5,- €
9359.M SC-09 cable 3m for Mitsubishi
RS232 <-> RS485		 102,- €
9359-1-RS232 USB-Serial-converter cable 3m
USB <=> RS-232		 125,- €
9359-V24 V24-adapter 51,- €
9380-9S Connecting cable TELE-Book on Slot-PLC
from Siemens		 51,- €

Shop:Memory modules / Prommer - Process Informatik Entwicklungsgesellschaft mbH

Memory modules / Prommer

All about memory modules and the corresponding programming devices

• robust steel plate case (programming devices)
• applicable for use as a desktop unit (programming device)
• easy handling and therefore quick on-site operation
• replacement for already discontinued original products

Shop:Memory-modules - Process Informatik Entwicklungsgesellschaft mbH

Memory-modules

Memory-modules for SIMATIC® - S5&S7

Your Advantages by using our PC memory modules:

• Simple Handling
The programming number is identical with the Siemens programming number
• Secure Handling
Each module has a label with its type and programming number
• Reduced risk to use the wrong module by mistake
Module with 21 V = black written labels – modules with -12,5 V = red written labels
• reliable and secure viability
Each module is produced and verified according to German Quality-Standards
• Guarantied viability
Each module has to pass a PLC – write and read test
• Guarantied Safeness through mark of conformity (CE) and electromagnetic compatibility mark (EMC)
All of our modules comply with the current regulations

article:
Art. ID.nameprice
375-8LC11 EEPROM module 2KByte for S90
not RoHs-compliant		 65,- €
375-8LC21 EEPROM module 8KByte for S90
not RoHs-compliant		 95,- €
375-OLC21 EEPROM module for S95-S115
2/4KByte - not RoHs-compliant		 65,- €
375-OLC41 EEPROM module for S95-S115
8/16KByte - not RoHs-compliant		 95,- €
375-OLC41X EEPROM module for S95-S115
8/16KByte
with PLC-write protection - not RoHs-compliant		 105,- €
375-1LA15 EPROM module 8KByte for S95-S115
not RoHs-compliant		 34,- €
375-OLA15 EPROM module 8KByte for S95-S115
not RoHs-compliant		 34,- €
375-1LA21 EPROM module 16KByte for S95-S115
not RoHs-compliant		 66,- €
375-1LA41 EPROM module 32KByte for S95-S115
not RoHs-compliant		 102,- €
375-1LA61 EPROM module 64KByte for S95-S115
not RoHs-compliant		 152,- €
375-1LA71 EPROM module 128KByte for S95-S115
not RoHs-compliant		 305,- €
375-OLA21 EPROM module 16KByte for S95-S115
not RoHs-compliant		 66,- €
373-OAA41 EPROM module 16KWords for S135-S155
not RoHS-compliant		 99,- €
373-1AA41 EPROM module 16KWords for S135-S155
not RoHs-compliant		 99,- €
375-OLA41 EPROM module 32KByte for S95-S115
not RoHs-compliant		 102,- €
373-OAA61 EPROM module 32KWords for S135-S155
not RoHs-compliant		 125,- €
373-1AA61 EPROM module 32KWords for S135-S155
not RoHs-compliant		 125,- €
373-OAA81 EPROM module 64KWords for S135-S155
not RoHs-compliant
245,- €
373-1AA81 EPROM module 64KWords for S135-S155
not RoHs-compliant		 245,- €
375-8LA11 EPROM module 8KByte for S90
not RoHs-compliant		 38,- €
376-1AA11 EPROM module short 12,5V 8KWords
for S135-S155 - not RoHs-compliant		 69,- €
376-1AA21 EPROM module short 12,5V 16KWords
for S135-S155 - not RoHs-compliant		 83,- €
376-1AA31 EPROM module short 12,5V 32KWords
for S135-S155 - not RoHs-compliant		 103,- €
376-OAA11 EPROM module short 21V 8KWords
for S135-S155 - not RoHs-compliant		 69,- €
376-OAA21 EPROM module short 21V 16KWords
for S135-S115 - not RoHs-compliant		 83,- €
376-OAA31 EPROM module short 21V 32KWords
for S135-S155 - not RoHs-compliant		 103,- €
375-8LA12 FLASH-EPROM 8KByte for S90
not RoHs-compliant		 38,- €
951-0KD00-0AA0 Flash memory card 16KByte for S7 short
not RoHs-compliant		 64,- €
951-0KE00-0AA0 Flash memory card 32KByte for S7 short
not RoHs-compliant		 95,- €
951-0KF00-0AA0 Flash memory card 64KByte for S7 short
not RoHs-compliant		 126,- €
952-0KF00-0AA0 Flash memory card 64KByte for S7-400 long
not RoHs-compliant		 125,- €
951-0KG00-0AA0 Flash memory card 128KByte for S7 short
not RoHs-compliant		 189,- €
374-2KG21 Flash memory card 128KByte long
not RoHs-compliant		 149,- €
374-1KH21 Flash memory card 256KByte short
not RoHs-compliant		 295,- €
374-2FH21 Flash memory card 256KByte long
not RoHs-compliant		 296,- €
374-2KH21 Flash memory card 256KByte long
not RoHs-compliant		 387,- €
951-0KJ00-0AA0 Flash memory card 512KByte for S7 short
not RoHs-compliant		 274,- €
375-OLD11 RAM module 8KByte for S95-S115
not RoHs-compliant		 107,- €
375-OLD31 RAM modulel 32KByte for S95-S115
not RoHs-compliant		 245,- €
377-OAA11 RAM module short series 377 16KByte
for S135-S155 - not RoHs-compliant		 135,- €
377-OAA21 RAM module short series 377 32KByte
for S135-S155 - not RoHs-compliant		 219,- €
377-OAA32 RAM module short series 377 64KByte
for S135-S155 - not RoHs-compliant		 290,- €
377-OAA41 RAM module short series 377 128KByte
for S135-S155 - not RoHs-compliant		 509,- €
377-OAB21 RAM module long series 377 32KByte
for S135-S155 - not RoHs-compliant		 195,- €
377-OAB31 RAM module long series 377 64KByte
for S135-S155 - not RoHs-compliant		 265,- €
377-OAB41 RAM module long series 377 128KByte
for S135-S155 - not RoHs-compliant		 508,- €

Shop:MULTI-PROMMER - Process Informatik Entwicklungsgesellschaft mbH

MULTI-PROMMER

programming device for S5 and S7-300/400 memory modules and Dual-In-Line

• fast access via serial interface
• all Siemens-S5-E(E)PROM memory modules can be read, written or deleted
• are designed for rough industrial application
• comfortable operation software for Win 95/98/ME/NT/2000/XP with direct Siemens file management
• very universal memory programming device
• spacious and robust service bags optionally available
• connecting cable, memory module library and a user-friendly PC program included in delivery
Technical Specifications:
Supply voltage: 230V/AC 50-60Hz (115V/AC optional)
Power consumption: 30 watt
Display: -
Handling/Configuration: WinPrommer-Software
Interfaces:
to the PD/PC:
RS232 to any COM-Port
parallel port for centronics-interface
others:
S5-memory modules
S5-/S7-FlashCards
Dual-In-Line-memory devices
24V/DV-output for UVL3
Operating temperature: 5 - 45°C
Case: powder coated metal case
Dimensions: 245 x 47 x 187 mm


article:
Art. ID.nameprice
9363-2 MULTI-PROMMER 230VAC
for S5/S7-Memory-modules		 762,- €
9363-2-US MULTI-PROMMER 115VAC
for S5/S7-Memory-modules		 818,- €

accessories:
Art. ID.nameprice
9359.1:1 1:1 cable 9pins D-SUB 23,- €
9363-13 PLCC32-adapter
for MULTI-Prommer
175,- €
9363-7 Servicebag
for MULTI-PROMMER		 49,- €

Shop:MINI-PROMMER - Process Informatik Entwicklungsgesellschaft mbH

MINI-PROMMER

programming device for S5 memory modules

• fast access via serial interface
• all Siemens-S5-E(E)PROM memory modules can be read, written or deleted
• are designed for rough industrial application
• comfortable operation software for Win 95/98/ME/NT/2000/XP with direct Siemens file management
• spacious and robust service bags optionally available
• connecting cable, memory module library and a user-friendly PC program included in delivery
Technical Specifications:
Supply voltage: 24V/DC +/- 20%
Power consumption: 8,2 watt
Display: 3 status-LEDs
Handling/Configuration: WinPrommer-Software
Interfaces:
to the PD/PC:
RS232 to any COM-Port (connected through)
others:
S5-memory modules
Operating temperature: 5 - 40°C
Case: powder coated metal case
Dimensions: 80 x 45 x 130 mm


article:
Art. ID.nameprice
9363-5 MINI-PROMMER III 24VDC
for S5 memory-modules		 404,- €

accessories:
Art. ID.nameprice
9359.1:1 1:1 cable 9pins D-SUB 23,- €
9391.1 24V DC power-supply unit 625mA
Primary 110V - 240 VAC Euro+USA-plug		 39,- €
9363-6 Servicebag
MINI-PROMMER + FLASH-PROMMER		 33,- €
9371-24 Power connector 2pins big 2,- €

Shop:FLASH-PROMMER - Process Informatik Entwicklungsgesellschaft mbH

FLASH-PROMMER

programming device for S5 and S7 memory modules

• quick access via serial interface
• write, read, delete and compare
• for FlashCards and MMC-Card
• designed for harsh industrial use
• comfortable operation construction Software for Win 95/98/ME/NT/2000/XP with direct Siemens file management
• spacious and robust service bags available as an option
Technical Specifications:
Supply voltage: 24V/DC +/- 20%
Power consumption: 5 watt
Display: LED for function and watchdog supervision
Handling/Configuration: WinPrommer-Software
Interfaces:
to the PD/PC:
RS232 to any COM-Port
others:
S5-/S7-FlashCards
MMC-Cards (optional)
Operating temperature: 5 - 45°C
Case: powder coated metal case
Dimensions: 130 x 80x 50mm


article:
Art. ID.nameprice
9363-8 FLASH-PROMMER-II 24VDC
for Flashcards		 404,- €
9363-8-MMC FLASH-PROMMER-II-MMC 24VDC
for Flashcards + MMC		 499,- €
9363-8-USB FLASH-PROMMER-USB
599,- €

accessories:
Art. ID.nameprice
9359.1:1 1:1 cable 9pins D-SUB 23,- €
9391.1 24V DC power-supply unit 625mA
Primary 110V - 240 VAC Euro+USA-plug		 39,- €
9363-6 Servicebag
MINI-PROMMER + FLASH-PROMMER		 33,- €
9372-24 Power connector 3pins big 2,- €

Shop:EPROM-ERASER LG07 - Process Informatik Entwicklungsgesellschaft mbH

EPROM-ERASER LG07

Erasing EPROM memory modules

• reliable erasing of EPROM-modules with UV-light
• erasing time adjustable up to 60min
• are designed for rough industrial application
Technical Specifications:
Supply voltage: 230 V/AC 50-60Hz
Power consumption: 8 watt
Handling/Configuration: turn switch for the time switch
Operating temperature: 5 - 40°C
Case: anodised aluminium case
Dimensions: 90 x 80 x 240 mm


article:
Art. ID.nameprice
9363-3 EPROM-Eraser LG-07
230V Desktop Device with clock		 248,- €

accessories:
Art. ID.nameprice
9391.1 24V DC power-supply unit 625mA
Primary 110V - 240 VAC Euro+USA-plug		 39,- €
9363-3-LAMPE Replacement lamp for LG-07 85,- €

Shop: EPROM-ERASER UVL3 - Process Informatik Entwicklungsgesellschaft mbH

EPROM-ERASER UVL3

Erasing EPROM memory modules

• reliable erasing of EPROM-modules with UV-light
• erasing time adjustable up to 30min
• are designed for rough industrial application
Technical Specifications:
Supply voltage: 24 V/DC +/- 20%
Power consumption: 8 watt
Handling/Configuration: rotary switch for the clock timer
Operating temperature: 5 - 40°C
Case: powder coated metal case
Dimensions: 85 x 50 x 160 mm


article:
Art. ID.nameprice
9363-3-B EPROM-Eraser UVL3
24V Miniature Device as cap		 169,- €

accessories:
Art. ID.nameprice
9391.1 24V DC power-supply unit 625mA
Primary 110V - 240 VAC Euro+USA-plug		 39,- €
9363-4-LAMPE Replacement lamp for UVL3 41,- €

Shop:PD-interface-multiplexer - Process Informatik Entwicklungsgesellschaft mbH

PD-interface-multiplexer

Interface-multiplexer for the Programming Device (PD) of the programmable logic controller (PLC)

You have to put an operating device or a text display into operation by connecting it to a PD-Interface?
Be prepared having to stick the plug into the device and out, over and over again!

The time has come to change that!

The PG-MUX makes it possible to operate simultaneously two devices at one PD-interface, regardless whether it is a programming device, a text display, an operating device or any other kind of connections with a PD-interface
PG-MUX is an independent communications processor, which multiplexes the PD-interface in real time

By this method you can for example operate two programming devices “ONLINE” at the same time.

Shop:PG-MUX II - Process Informatik Entwicklungsgesellschaft mbH

PG-MUX II

PD-Interface Multiplexer for professionally usage (active)

• advanced version of the world widely used PG-MUX
• all connectors and controls on the front
• permanent checking of the device functions and power supply => restart at failure
• right away ONLINE with both interfaces to the PLC
• all PD functions can be accomplished parallel by 2 PD’s
• possible PLC’s: S5-90, S5-95, S5-100-series, S5-115 (also CPU945), S5-135U-series and S5-155-series
• no additional or specific adapters needed
• connecting mechanics, pin assignment and the electrical data correspond to the PD/PLC-interfaces
• capability of connecting on PD-side: 2 x AS511 (PD-protocol) / 1 x SINEC-L1-BUS / SIMATIC-S5 AG90...AG155
• 3m cable for AG-connection included in delivery
• also available in the variants for AEG, Bosch, Klöckner-Moeller PS3/4 und Mitsubishi
Technical Specifications:
Supply voltage: 230V/AC +/- 15%, 50-60Hz
24V/DC +/- 20%
Power consumption: 4 watt
Display: LED for function and watchdog supervision
Interfaces:
to the PLC:
TTY/20mA current loop (multiplexer aktiv, PLC passiv)
to the PD/PC:
2 PD x TTY/20mA current loop (multiplexer aktiv, 100 % mechanically and electr. compatible)
Operating temperature: 5 - 55°C
Case: powder coated metal case with mounting flange
Dimensions: 190 x 110 x 50 mm


PD-interface of the S5-PLC already occupied (service device)

Unbenanntes Dokument
Your PD-interface of the S5-PLC is already occupied with a panel and you should accomplish program modifications without removing the panel? No problem, connect the Multiplexer one-time to the PLC and then connect the panel and also your PC to the Multiplexer. Now you can work parallel with the PLC without the need of affecting the operation of the panel. You can even work with 2 programming devices simultaneously, 2x open the same component, only changes which are stored last will be finally stored in the PLC. Also ideal for trainings purposes if PLC’s are scare goods.
article:
Art. ID.nameprice
9361-5 PG-MUX-II for SIEMENS-S5
incl. connecting-cable to PLC		 663,- €

variant:
Art. ID.nameprice
9361-11 PG-MUX-II for AEG 774,- €
9361-12 PG-MUX-II for BOSCH 774,- €
9361-13-PS3 PG-MUX-II for Klöckner-Möller for PS3 774,- €
9361-13-PS4 PG-MUX-II for Klöckner-Möller for PS4 774,- €
9361-14 PG-MUX-II for Mitsubishi 774,- €
9361-5-24V PG-MUX-II for SIEMENS-S5 24V version
incl. connecting-cable to PLC		 663,- €

accessories:
Art. ID.nameprice
9391.1 24V DC power-supply unit 625mA
Primary 110V - 240 VAC Euro+USA-plug		 39,- €
9391-MT Mounting set
for DIN-rail-holder		 25,- €
9361-3 S5-connecting cable 3m
forTELE-PROF, MINI-/PG-MUX-II		 38,- €
9361-3.05M S5-connecting cable 5m
for TELE-PROF, MINI-/PG-MUX-II		 43,- €
9361-3.06M S5-connecting cable 6m
for TELE-PROF, MINI-/PG-MUX-II		 46,- €
9361-3.10M S5-connecting cable 10m
for TELE-PROF, MINI-/PG-MUX-II		 56,- €
9361-6 Servicebag
for PG-MUX-II		 59,- €
9371-24 Power connector 2pins big 2,- €

Shop:MINI-MUX - Process Informatik Entwicklungsgesellschaft mbH

MINI-MUX

PD-Interface Multiplexer Lightversion (passive)

• is the Light-version of PG-MUX-II because of it’s passive OP socket
• as an alternative we offer also a DIN-Rail Version
• all connectors and controls on the front
• all PD functions can be accomplished parallel to a text display by one PD
• possible PLC’s: S5-90, S5-95, S5-100-series, S5-115 (also CPU945), S5-135U-series and S5-155-series
Technical Specifications:
Supply voltage: 24V/DC +/- 20%
Power consumption: 3 watt
Display: LED for function and watchdog supervision
Interfaces:
to the PLC:
TTY/20mA current loop (multiplexer aktiv, PLC passiv)
to the PD/PC:
PD TTY/20mA current loop (multiplexer aktiv, 100 % mechanically and electr. compatible)
OP TTY/20mA current loop (multiplexer passiv, restricted to control panel function)
Operating temperature: 5 - 55°C
Case: metal case with mounting flange
Dimensions: 95 x 135 x 35 mm


PD-interface of the S5-PLC already occupied (OEM-device)

Unbenanntes Dokument
Your PD-interface of the S5-PLC is already occupied with a panel and you should accomplish program modifications without removing the panel? No problem, connect the Multiplexer one-time to the PLC and then connect the panel and also your PC to the Multiplexer. Now you can work parallel with the PLC without the need of affecting the operation of the panel.
article:
Art. ID.nameprice
9361-1 MINI-MUX for S5 RK511 + L1
all cables optional		 464,- €

accessories:
Art. ID.nameprice
9391.1 24V DC power-supply unit 625mA
Primary 110V - 240 VAC Euro+USA-plug		 39,- €
9391-MT Mounting set
for DIN-rail-holder		 25,- €
9361-3 S5-connecting cable 3m
forTELE-PROF, MINI-/PG-MUX-II		 38,- €
9361-3.05M S5-connecting cable 5m
for TELE-PROF, MINI-/PG-MUX-II		 43,- €
9361-3.06M S5-connecting cable 6m
for TELE-PROF, MINI-/PG-MUX-II		 46,- €
9361-3.10M S5-connecting cable 10m
for TELE-PROF, MINI-/PG-MUX-II		 56,- €
9361-6 Servicebag
for PG-MUX-II		 59,- €
9371-24 Power connector 2pins big 2,- €

Shop:T-Connector to PPI/MPI-Bus - Process Informatik Entwicklungsgesellschaft mbH

T-Connector to PPI/MPI-Bus

Supply 2 PD’s with 24V and 5 V at a S7-200 / 300 / 400 AG interface

• all connectors and controls on the front
• secure supply of two devices that want to provide from the S7
• all PD functions can be accomplished parallel by 2 PD’s
• no additional or specific adapters needed
• connecting mechanics, pin assignment and the electrical data correspond to the PD/PLC-interfaces
• 3m cable for PLC-connection included in delivery
Technical Specifications:
Supply voltage: 24V/DC +/- 20%
Power consumption: 14 watt
Display: LED for function and watchdog supervision
Interfaces:
to the PLC:
9 pol. plug for AG-connection
to the PD/PC:
2 x 9 pol. jack for PD-connection
Operating temperature: 5 - 55°C
Case: metal case with mounting flange
Dimensions: 95 x 35 x 135 mm


Doubling of PPI/MPI/Profibus-interface without bus-connector

Unbenanntes Dokument
Do you have a single control with panel in use and have to accomplish a little modification in the control program? No problem, plug the T-Connector on the PLC, the panel and PC to the device and then both participants can work with the PLC without annoying bus-cable tapering and interconnections.
article:
Art. ID.nameprice
9361-7 T-Connector to PPI / MPI-Bus 143,- €

accessories:
Art. ID.nameprice
9359.1:1 1:1 cable 9pins D-SUB 23,- €
9391.1 24V DC power-supply unit 625mA
Primary 110V - 240 VAC Euro+USA-plug		 39,- €
9371-24 Power connector 2pins big 2,- €

Shop:other PLC accessories - Process Informatik Entwicklungsgesellschaft mbH

other PLC accessories

Useful additional Hardware for your PLC

• robust steel plate case with mounting flange
• easy handling and therefore quick on-site operation
• replacement for already discontinued original products

Shop:Profibus-Plug-DiagConn PB - Process Informatik Entwicklungsgesellschaft mbH

Profibus-Plug-DiagConn PB

Join a subscriber with an integrated test function

• status display for bus test functions
• high interference resistance because of full metal case
• visual connection control
• cable connection via comfortable insulation displacement technology
• captive one-screw mounting system
• integrated shiftable load resistor
• cable outlet versions 0° / 45° / 90°
Technical Specifications:
Supply voltage: 5V/DC
Power consumption: 0,15 watt
Display: 4 status-LEDs
Interfaces:
to the PLC:
PPI/MPI/Profibus interface: 9,6 KBd - 12 MBd
to the PD/PC:
PD/diagnosis-socket (only at the 45° and 90° variant)
others:
2 x appliance for connecting a 8mm buscable
Operating temperature: -20 - +75°C
Case: zinc-diecast
Dimensions: 66 x 40 x 16 mm


article:
Art. ID.nameprice
9350-0-DIAG DiagConn 0° Highend-connector
for PROFIBUS with diagnosis functions		 40,- €
9350-4-DIAG DiagConn 45° Highend-connector
for PROFIBUS with diagnosis functions		 40,- €
9350-9-DIAG DiagConn 90° Highend-connector
for PROFIBUS with diagnosis functions		 40,- €

Shop:PD- / PLC-Switcher - Process Informatik Entwicklungsgesellschaft mbH

PD- / PLC-Switcher

Coupling of one PLC to several PD’s or one PD to several PLC’s

• connecting mechanism, pin assignment and electrical data match the control’s specifications
• applicable with all original and compatible programming devices
• all connection- and operating controls frontal
• supply from the PLC or external
Technical Specifications:
Supply voltage: 5V/DC
Power consumption: 1 watt
Display: LED-display for aktiv port
Handling/Configuration: toggle or rotary switch for port selection
Interfaces:
to the PLC:
1 / 2 / 4 x TTY/20mA current loop (switch passiv, PLC aktiv)
to the PD/PC:
1 / 2 x TTY/20mA current loop (100 % mechanically and electr. compatible)
Operating temperature: 5 - 55°C
Case: EMC-dense metal case with mounting flange
Dimensions: 135 x 110 x 50 mm


Interface switch for the S5

Unbenanntes Dokument

Your PD-interface of the S5-PLC is already occupied with a panel and you should accomplish program modifications without removing the panel? No problem, connect a device if the PG-Switch-family one-time to the PLC and then connect the panel and also your PC to the device. With a toggle switch (PG-Switch-I) you select the pc or pannel to communciate with the PLC. The selection on a PG-Switch-II will be driven via the 24V-controll input. The PG-Switch-III has an automatic detection. The pannel is connected to the device and can communicate to the PLC. You connect your PD/PC to the device and it switches automatically, so you can communicate. After plug off the PD/PG the device switches back, so the pannel is connected to the PLC.

Interface-switch for PD/PC

Unbenanntes Dokument

You have to work with more PLC-devices, but no pleasure to switch on/off? No problem, you connect a device of the AG-Switch-family to the PLC-devices and your PD/PC and you will be able to communicate to both PLCs. The selection which PLC you make for AG-Switch-I via toggle switch and for the AG-Switch-II via 24V-controll input.

article:
Art. ID.nameprice
9360.A AG-SWITCH
PD-/PLC-Switcher		 89,- €
9360.A-4 AG-SWITCH 4-times
PD-/PLC-Switcher		 296,- €
9360.A-2 AG-SWITCH II
PD-/PLC-Switcher		 129,- €
9360 PG-SWITCH
PD- / PLC-Switcher		 89,- €
9360-2 PG-SWITCH II
PD- / PLC-Switcher		 129,- €
9360-3 PG-SWITCH III
PD- / PLC-Switcher		 129,- €

accessories:
Art. ID.nameprice
9391.1 24V DC power-supply unit 625mA
Primary 110V - 240 VAC Euro+USA-plug		 39,- €
9371-24 Power connector 2pins big 2,- €

Shop:iBx-Busklemme - Process Informatik Entwicklungsgesellschaft mbH

iBx-Busklemme

Intelligent networking of S5-PLCs

• no bus terminal resistor necessary
• LEDs for controlling the data stream on the IBX-bus
• all connection- and operating controls frontal
• LWL-adapter available as an option
Technical Specifications:
Supply voltage: 24V/DC +/- 20%
Power consumption: 5 watt
Display: 4 status-LEDs
Handling/Configuration: DIP-Switch for address Configuration
Interfaces:
to the AG and PD/PC:
TTY/20mA current loop (iBx-Klemme aktiv, PLC passiv)
others:
10 x screw type terminal for bus connection A and B
2 x screw type terminal for 24V/DC power supply
Operating temperature: 5 - 55°C
Case: powder coated metal case with mounting flange
Dimensions: 97 x 149 x 36 mm


Linking of S5-PLC’s without modifying the PLC-program

Unbenanntes Dokument
You have to link several S5-PLC’s so that in case of need you can respond to all of them without modifying the PLC-program? No problem, connect all PLC’s that are in the run with the IBX-Klemme, set up the respective address (1 to 30) at the IBX-Klemme and with the address 0 you will be able to respond to all PLC’s via PD-bus-path selection.
Sinec-L1-bus configuration without BT-777-terminal

Unbenanntes Dokument
You have to configure a Sinec-L1-bus, own the master, but there’s no BT-777-busterminal to buy? No problem, connect the IBX-Klemme to every S5-PLC that is in the run via the optional IBX-SPS-cable, supply every IBX-Klemme with ext. 24V DC if the PLC is not able to provide it, set-up the address 0 and define the actual L1-bus-address in the PLC. Now your master can communicate with the slave-assemblies.
Longer distances for L1-Bus

Unbenanntes Dokument

You need for your L1-Bus higher distance like the possible 1200m? You have strong distrubance on your L1-Bus? You need a serial line for higher distances and this galvanic decoupled? No problem, all this points are solved through the LWL-adapter. They are available for artificial and optical fibre, for L1-Bus and RS232.

article:
Art. ID.nameprice
9530 iBx-Busterminal 177,- €

accessories:
Art. ID.nameprice
9391.1 24V DC power-supply unit 625mA
Primary 110V - 240 VAC Euro+USA-plug		 39,- €
9429 DUP-TEXT-Display DUPLINE 1002,- €
9530-9S iBx-SPS-cable to PLC 3m 38,- €
9530-9WS iBx-SPS-cable to PLC 3m
bothside 45° angle		 38,- €
9531-K Light wire-adapter
for plasticfibre-cables		 173,- €
9531-G Light wire-adapter
for glasfibre-cables		 198,- €
9532-K Light wire-adapter
RS232 for plasticfibre-cables		 690,- €
9428 S5-DUP-Interface card
1202,- €

Shop:UNI-COM - Process Informatik Entwicklungsgesellschaft mbH

UNI-COM

Potential split level conversion for L1-BUS, TTY, RS232, RS422

• 100% galvanic separation of the interfaces up to 1000V
• available in 6 different models
• baud rate up to 38,4 kBd
• 4 LEDs to control the data flow
• interface configuration printed on a label on the front
Technical Specifications:
Supply voltage: 24V/DC +/- 20%
Power consumption: 4 watt
Display: 4 status-LEDs
Handling/Configuration: -
Interfaces:
others:
2 x D-Sub-female 9pol
3 x screw type terminal for 24V/DC power supply
18 x screw type terminal for bus connection A and B
Operating temperature: 5 – 55°C
Case: EMC-dense powder coated metal case with mounting flange
Dimensions: 170 x 125 x 40 mm


Interface accommodation with galvanic decoupling

Unbenanntes Dokument
You have to connect two devices with different hardware-interfaces? No problem, with the devices of the UNICOM-familiy you will be able to couple both interfaces and get additional a galvanic decoupling up to 1000V.
article:
Art. ID.nameprice
9505-3 UNI-COM II RS422 <-> RS232 187,- €
9505-1 UNI-COM II SINEC-L1 <-> RS232 199,- €
9505-2 UNI-COM II TTY <-> RS232 187,- €
9505-4 UNI-COM II TTY <-> RS422 199,- €

accessories:
Art. ID.nameprice
9359.1:1 1:1 cable 9pins D-SUB 23,- €
9391.1 24V DC power-supply unit 625mA
Primary 110V - 240 VAC Euro+USA-plug		 39,- €
9505-K RS-232-cable for UNI-COM II 28,- €

Shop:L1-Controller - Process Informatik Entwicklungsgesellschaft mbH

L1-Controller

Interface converter for connecting different interface types

• computers have an optional possibility of attendance, as Master or Slave, on Sinec-L1-bus
• the interfaces of the L1 controllers are with plug-in modules (RS232, RS422, TTY, L1-bus) customizable
• easy data exchange with the L1-Bus-Controller via ASCII protocol
• autarkic implementation of the controller’s L1-Bus functions, also without computer performance
• settings for diverse baud rates and modes
• status display for preset modes, errors and specifications
Technical Specifications:
Supply voltage: 5V/DC +/- 20%
Power consumption: -
Display: 2 x 7-segment display
Handling/Configuration: DIP-Switch
Interfaces:
others:
1 x D-Sub-female 9pol for PC connection
3 x Weidmüller for 5V/DC power supply
9 x Weidmüller for bus connection A and B
Operating temperature: 5 – 55°C
Case: plastic case
Dimensions: 160 x 100 x 50 mm


Sinec-L1-bus without master (CP530)

Unbenanntes Dokument
You have a running Sinec-L1-bus and your master the CP530 is defective or rather broke down and the bus has to continue running? No problem, connect the L1-controller to the according bus-modules instead of the CP530, define the circulation list of the clients and the L1-bus continues running immediately.
article:
Art. ID.nameprice
9510 L1-BUS Controller DIN-rail-holder
for 5VDC without modules		 660,- €
9510-F L1-BUS Controller DIN-rail-holder Flash-version 711,- €
9511 L1-BUS Controller Desktop Device 711,- €
9511-F L1-BUS Controller Desktop Device Flash-version 762,- €

accessories:
Art. ID.nameprice
9520 L1-Bus-module 38,- €
9521 RS-232-module 23,- €
9522 RS-422-module 23,- €
9523 TTY-20mA-module 33,- €

Shop:PLC-clock - Process Informatik Entwicklungsgesellschaft mbH

PLC-clock

DCF-time reception for the PLC via digital I/O

• transfer of DCF-time and date to the PLC
• representation in sec, min, h, day, month, year, weekday
• statusbits for summer-, wintertime , DCF-OK, etc.
• 4 LEDs for displaying power supply, mode and DCF-Signal
Technical Specifications:
Supply voltage: 24V/DC +/- 20%
Power consumption: 3 watt
Display: 4 status-LEDs
Handling/Configuration: DIP-Switch
Interfaces:
to the PLC:
5 x screw type terminal for E/A-inputs
5 x screw type terminal for E/A-outputs
others:
2 x screw type terminal for 24V/DC power supply
15pol female for DCF77-antenna connection
Operating temperature: 5 - 55°C
Case: powder coated metal case with mounting flange
Dimensions: 97 x 149 x 36 mm


Atomic time at the PLC

Unbenanntes Dokument
For your production flow you’re always in need of an exact time? No problem, connect the SPS-Clock with 4 digital in-/outputs of your PLC, after synchronisation of the SPS-Clock the updating time can be read in a DB of the PLC.
article:
Art. ID.nameprice
9366 DCF-77-antenna 51,- €
9365 SPS-CLOCK
atomic time to digital I/O of PLC		 251,- €
9366-1 Amplifier for DCF-antenna 77,- €

accessories:
Art. ID.nameprice
9391.1 24V DC power-supply unit 625mA
Primary 110V - 240 VAC Euro+USA-plug		 39,- €

Shop:PG-PRINT, PG-PRINT-III - Process Informatik Entwicklungsgesellschaft mbH

PG-PRINT, PG-PRINT-III

Printing connecting unit for the PLC via digital I/O

• the PG-PRINT has to be connected to the normal PLC-I/O-level with a cable (not scope of the standard delivery) via 8 digital outputs and 1 digital input and the provided PLC-software installed in the S5-PLC
• now db-contents (e.g. texts) can be easily passed on via bits and control words to any Centronics-printer (preferably EPSON-emulation in accordance with special characters)
• 3 additional signals (on demand) can query printer in error status (input), paper-out (input), and printer can be initialised (output)
• with this system you can accomplish e.g. faults and software-flow-controls well-priced
• the PG-PRINT-III is designed with a robust metal case and full 8-bit. The connecting cables are assembled on the case. An extensive software tool is included in delivery
• the PG-PRINT is designed with a plastic case and 7-bit
• he will be directly plugged on the Centronics-socket. The connecting cable to PLC is not included in delivery
Technical Specifications:
Supply voltage: 24V/DC +/- 20%
Power consumption: 6 watt
Display: LED for power supply
Interfaces:
to the PLC:
1 x phönix plug for PLC-connection
to the PD/PC:
1 x 25pol D-Sub-female for printer connection
others:
1 x connection plug for 24V/DC power supply
Operating temperature: 5 - 55°C
Case: powder coated metal case
Dimensions: 120 x 105 x 37 mm


Direct printing from the PLC via dig. I/O

Unbenanntes Dokument
You need production data, circulation lists of your PLC’s, but don’t want to use a CP or don’t get a serial printer anymore? No problem, you need 8 digital outputs and 3 digital inputs of the PLC, and if you connect the PG-Print at it you can generate these lists with a EPSON- or HP-compatible parallel printer.
article:
Art. ID.nameprice
9364 PG-PRINT 76,- €
9364-2 PG-Print III
incl. PLC-software + cable		 138,- €
9364-3 PG-PRINT-S5-softwaretools 204,- €

accessories:
Art. ID.nameprice
9391.1 24V DC power-supply unit 625mA
Primary 110V - 240 VAC Euro+USA-plug		 39,- €

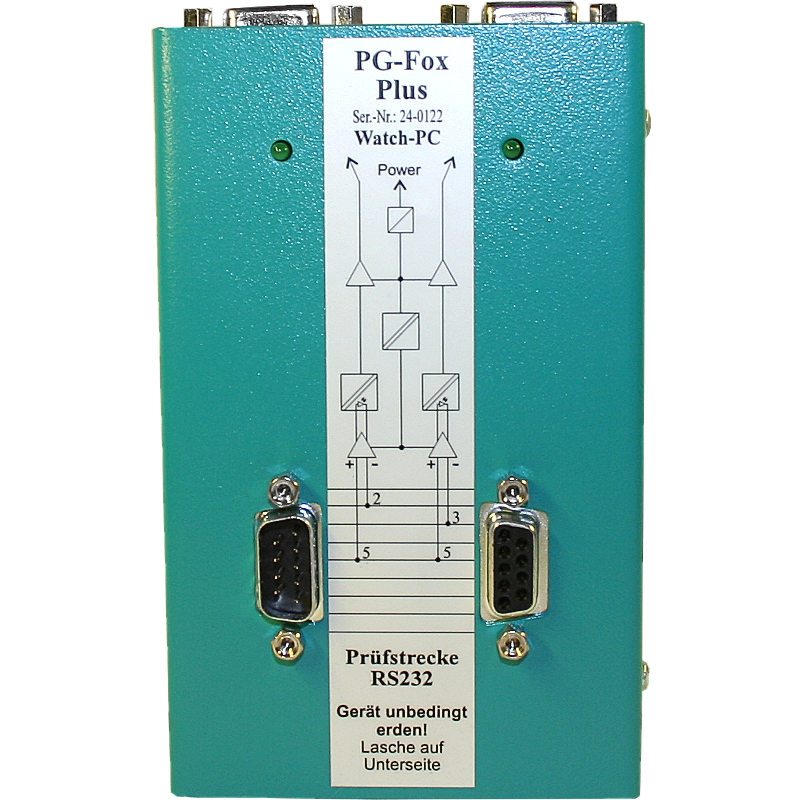

Shop:PG-FOX - Process Informatik Entwicklungsgesellschaft mbH

PG-FOX

Recording of serial transmission lines for error analysis

• listening in, logging and analysing of asynchronous communication protocols
• versions for RS232 / RS422 / RS485 and TTY
• galvanic separation of PC and communication line
• data output in HEX- or ASCII-format
Technical Specifications:
Supply voltage: 9V/DC
Power consumption: - watt
Interfaces:
to the PLC:
depending on the variant:
2 x RS232
2 x RS422
2 x TTY/20mA current loop
to the PD/PC:
2 x RS232
Operating temperature: 5 - 55°C
Case: powder coated metal case
Dimensions: 130 x 80 x 35 mm


Logging and analysis of communication data

Unbenanntes Dokument

You want check,why your application can´t communicate with the PLC or why after some time past the communication will be broken? No problem, integrate the PG-FOX-hardware in this communication way and log through the PG-FOX-software on an PC the sended data in the exact time. So, you can later check the date and find a solution of the problem.

article:
Art. ID.nameprice
9362-1P PG-FOX-PLUS RS-232 166,- €
9362-2P PG-FOX-PLUS RS-422 166,- €

accessories:
Art. ID.nameprice
9391.1 24V DC power-supply unit 625mA
Primary 110V - 240 VAC Euro+USA-plug		 39,- €
9362 PG-FOX-software 16 Bit
DOS		 102,- €
9362-32 PG-FOX-software 32 Bit
Win95/98/NT/2000/XP		 153,- €
9362-U U-adapter
power supply		 51,- €

Shop:S5-DIAG - Process Informatik Entwicklungsgesellschaft mbH

S5-DIAG

Quick and comfortable debugging for the PLC and the bus

• simple connect to the PLC via the PD-interface
• troubleshooting without the need of programming one line
• error report in a clear and plain way
• signal recording possible
• comfortable operation via function keys
• 2 languages selectable (German/English)
• power supply from the PLC
• optional power supply possible, in case PLC has no power sources
Technical Specifications:
Supply voltage: 24V/DC +/- 20%
Power consumption: 3,5 watt
Display: LCD-display
Handling/Configuration: integrated keypad with function keys
Interfaces:
to the PLC:
TTY/20mA current loop
Operating temperature: 5 - 55°C
Case: powder coated metal case
Dimensions: 187 x 110 x 49 mm


S5-PLC-diagnosis or signal’s doesn’t come, but why?

Unbenanntes Dokument
Your installation shows an error and the commissioning engineer isn’t available? No problem, connect S5-DIAG with the PLC, enter reason of PLC’s malfunction (e.g. O32.5 doesn’t come) and the device lists the possibilities why the output has not been set. So you’re able to figure out the problem (e.g. safety door not locked) quickly.
article:
Art. ID.nameprice
9368 S5-DIAG
Hand-held unit incl. connecting-cable		 1253,- €

accessories:
Art. ID.nameprice
9391.1 24V DC power-supply unit 625mA
Primary 110V - 240 VAC Euro+USA-plug		 39,- €

Shop:KOR-MUX / TELE-Switch - Process Informatik Entwicklungsgesellschaft mbH

KOR-MUX / TELE-Switch

Programming several S5-PLC’s with one PD without plugging on/off

• compatible with MUX757 in KOR-MUX-mode
• operation as TELE-Switch possible
• Ports (1-31) are cascadable
• up to 8 accessible slaves per COM-port of PC
Technical Specifications:
Supply voltage: 24V/DC +/- 20%
Power consumption: 12 watt
Display: 8 LEDs for displaying the aktiv port
Handling/Configuration: DIP-Switch for cascadability of the ports and mode Configuration
Interfaces:
to the PLC:
8 x TTY/20mA current loop (100 % mechanically and electr. compatible)
8 x RS232: 9,6 KBd - 115,2 KBd / fully assigned
to the PD/PC:
1 x TTY/20mA current loop (100 % mechanically and electr. compatible)
1 x RS232: 9,6 KBd - 115,2 KBd / with a 1on1-cable to the PC
Operating temperature: 5 - 55°C
Case: powder coated metal case with mounting flange
Dimensions: 352 x 182 x 42 mm


Many PLC-devices conflated

Unbenanntes Dokument

You have many PLC and you want to programm them central on one place? No problem, you have to connect them all to the KOR/MUX-Tele-Switch an with the PD-bus-selection of your Step5-software you go ONLINE. Of course the KOR/MUX-Tele-Switch is cascadable, so you can connect up to 30 PLCs to the devices.

article:
Art. ID.nameprice
9370-KOR KOR-MUX / TELE-SWITCH 652,- €

accessories:
Art. ID.nameprice
9359.1:1 1:1 cable 9pins D-SUB 23,- €
9391.1 24V DC power-supply unit 625mA
Primary 110V - 240 VAC Euro+USA-plug		 39,- €
9371-24 Power connector 2pins big 2,- €

Shop:16-times PC-Switch - Process Informatik Entwicklungsgesellschaft mbH

16-times PC-Switch

Communicate with multiple serial devices without replugging

• cascading of the switches on 4 bits of the Centronics interface
• serial and Centronics interface conected through
• active port indicated by a LED
Technical Specifications:
Supply voltage: 24V/DC +/- 20%
Power consumption: 1,5 watt
Display: 16 LEDs for displaying the aktiv port
Handling/Configuration: DIP-Switch for cascadability of the Switches
Interfaces: 16 x RS232: 9,6 KBd - 115,2 KBd / fully assigned
1 x RS232 input: 9,6 KBd - 115,2 KBd / with a 1on1-cable to the PC
1 x RS232 output: 9,6 KBd - 115,2 KBd / with a 1on1-cable to the next switch
1 x Centronics input: for switch selection via 4 bit
1 x 25pin D-Sub output: for switch selection via 4 bit
Operating temperature: 5 - 55°C
Case: powder coated metal case with mounting flange
Dimensions: 352 x 182 x 42 mm


article:
Art. ID.nameprice
9360-16 16-times-PC-SWITCH 497,- €

accessories:
Art. ID.nameprice
9359.1:1 1:1 cable 9pins D-SUB 23,- €
9391.1 24V DC power-supply unit 625mA
Primary 110V - 240 VAC Euro+USA-plug		 39,- €
9371-24 Power connector 2pins big 2,- €

Shop:Gasanalysis - Process Informatik Entwicklungsgesellschaft mbH

Gasanalysis

Determination of the residual oxygen content in gases

• very precise O2-measurement results
• devices with (OSC-II) and without (OSM-HMG) measuring probe
• adaptation of the measuring probes possible via probe offset
• devices are designed for industrial application
• continuous oxygen measuring by permanent running

Oxygen content in gases

Shop:OSM-HMG - Process Informatik Entwicklungsgesellschaft mbH

OSM-HMG

mobile and accurate measurement of oxygen at OSM sensors

• display of oxygen in %
• metering range 0 - 100% oxygen
• handily use because of battery operation
• for external OSM-sensor
• pin assignment of the DIN-sockets on the label
• zero compensation and slope balance via Potis
• resolution of the metering range in 0,1% steps
• accuracy over total metering range +/- 1%
• output voltage proportional to the aligned measured value of 0 - 1V
Technical Specifications:
Supply voltage: 9V/DC battery block integrated
12 - 24V/DC charging voltage
Power consumption: 0,8 watt
Display: LCD-display / 13mm / 3,5-digit
LED for charge control
Handling/Configuration: on-/off-switch
2 x poti
Interfaces: 4pol DIN-female for sensor connection
5pol DIN-female for test port
jack bush for charging cable
Operating temperature: 5 - 55°C
Case: plastic case (black)
Dimensions: 195 x 100 x 40 mm


Easy handily oxygen display

Unbenanntes Dokument

You need the concentration of oxygen in your neighborhood? No problem, with the mobile HMG you can determine the concentration from 1 up to 100% with a exactness of 1% (dependend on your sensor).

article:
Art. ID.nameprice
9101.9 OSM-HMG
hand measuring instrument		 404,- €
9101.2 OSM sensor
Plum - O2 - Cell		 151,- €

Shop:Oxygen - Service - Controller II - Process Informatik Entwicklungsgesellschaft mbH

Oxygen - Service - Controller II

Analyzer for determination of residual oxygen in gases

• integrated zirconium probe
• high metering precesion
• automatic switch of range %, ppm, E-xx
• high resolution of the display areas
• integrated switchable pump
• integrated flowmeter with regulating valve 0 - 10 l/h
• probe offset with known O2-content of test gas possible
• free adjustable limit values for the relay outputs
• configurations are code protected against accidental modifications
• configurations are stored with mains failure protection
Technical Specifications:
Supply voltage: 230V/AC 50Hz
Power consumption: 200 watt
Display: illuminated, detailed graphics display (70 x 35 mm)
5 LEDs (power, heating, relay outputs)
Handling/Configuration: integrated keypad
Interfaces: 1 x analogue outputs: 0/4 - 20mA
3 x digital outputs: 230V / 2A
2 x sample gas connection 4mm VA-pipe (in-/outputs)
1 x D-Sub-female for RS232/422(optional)
Operating temperature:
Case: metal case in the versions (19"-slot / table device / service carrying case)
Dimensions: 19"-slot: 440 x 370 x 135 mm
table device: 360 x 350 x 150 mm
service carrying Case: 360 x 350 x 150 mm


Oxygen analysis in industrial gases

Unbenanntes Dokument

You need a continuous measurement of the concentration of oxygen without any configuration of the device or a switch of range of measurement? No problem, with the OSC-II-devices you are right. It shows you the concentration from % down to E -24 without any action from you. It switches automatically the ragne of measurement.

Documentation of oxygen concentration

Unbenanntes Dokument
The integratet current output issues the actual concentration in the range of 0/4 - 20mA via free definable limits.
Free definable limits

Unbenanntes Dokument

You need some limits? No problem, with the OSC-II-devices you will be able to define 3 relay outputs (toggle switch) like UG (down level) or OG (top level) or as a ready-flag (internal probe has working temperature).

Fuzzy controller with the OSC-II

Unbenanntes Dokument

Through 3 free configurable limits (of each kind) you won´t be able to realice a fuzzy-controller of your heat treatment furnace.

article:
Art. ID.nameprice
9110.1 OSC-II 19" Rack Device
OxygenServiceController 100% - 10E-24%		 4090,- €
9110.3 OSC-II Service-Transport-Box
OxygenServiceController 100% - 10E-24%		 4397,- €
9110.2 OSC-II Desktop Device
OxygenServiceController 100% - 10E-24%		 4295,- €
9110.0 OSC-II Wallcase
(without probe, pump, DMM)		 2556,- €

Shop:PLC-software-tools - Process Informatik Entwicklungsgesellschaft mbH

PLC-software-tools

Interesting tools for your PLC control

• easy handling and therefore quick on-site operation
• one software release for all operating systems from Win98 to Vista
• testable as demo version without installation on the hard drive

Shop:PLC – Data safety - Process Informatik Entwicklungsgesellschaft mbH

PLC – Data safety

PLC-Backup and restore for the S5- and S7-PLC

• backup of the PLC-programs for data protection
• simple restoring of the made backup

article:
Art. ID.nameprice
9650 SPS-Data saftey S5-BACKUP/S5-RESTORE
DOS
company license		 151,- €
9650-UNI PLC-Data saftey S5/S7/H1-Backup
Win95/98/NT/2000/XP
company license		 490,- €
9650-MPI SPS-Data saftey S7-BACKUP/S7-RESTORE
DOS
company license		 251,- €

Shop:CIM - 2001 - Process Informatik Entwicklungsgesellschaft mbH

CIM - 2001

Process - Visualisation, PLC - data directly into Excel

• visualisation on screen e.g. in excel
• logging via the printer/screen
• archiving on the PC (data saving/restoring)
• process control by the PC
• safe operation, using standardised user interface

article:
Art. ID.nameprice
9820 CIM-2001 for single S5 (without Bus)
Single license		 490,- €
9820-F CIM-2001 for single S5 (without Bus)
Company license		 1990,- €
9820-B CIM-2001 for up to 30 x S5 (with Bus)
Single license		 790,- €
9820-B-F CIM-2001 for up to 30 x S5 (with Bus)
Company license		 2390,- €
9821 CIM-2001 for S7-300/400
Single license
790,- €
9821-F CIM-2001 for S7-300/400
Company license
2390,- €
9822 CIM-2001 for S7-300/400 over RFC1006
Single license
790,- €
9822-F CIM-2001 for S7-300/400 over RFC1006
Company license
2390,- €

Shop:STEP5 / STEP7 - programming - Process Informatik Entwicklungsgesellschaft mbH

STEP5 / STEP7 - programming

PG2000 - Programming with comfort

• for Siemens-PLC’s S5-90 … S5-155, S7-300 and S7-400
• according to the licensed usage rights STEP5 + STEP7 can be programmed in STL statementlist, LAD ladder mode and CFS (for S5) / FBD (for S7) functionplan
• system requirements AT386 with 4MB RAM, 16MB free space on the fixed disc and MS-Windows version 98/NT/2000/XP/Vista/windows 7
• direct processing of the original S5D files; existing files can be assumed directly from Siemens-PD´s; a conversion is not necessary; with PG-2000 created S5D files can also be processed with a Siemens-PD without difficulty
• the enhanced graphic symbols in LAD and CFS (for S5) / FBD (for S7) are integrated
• at LAD and CFS (for S5) / FBD (for S7) all symbols are easily selectable from a toolbar (can be positioned freely)
• online syntax checking already during input of the instruction
• the main commands are directly selectable by using the mouse or by keypress
• no differentiation of the normal modes: input, view, correction
• during editing direct switching of the representation types STL, LAD, CFS (for S5) / FBD (for S7) is possible, as well as parallel presentation
• the accountant of PG-2000 provides numerous features for marking, transferring, deleting and comparing of single blocks, block groups or all blocks
• the result of a block comparison is displayed readable in STL form, not as hexdump
• via Windows clipboard the block feature enables comfortable copying, scrolling and deleting of single lines, marked blocks or entire networks
• blocks which contain calls of no longer existing FB’s can be edited anyway
• if parameters will be inserted or deleted from a FB-header, the already existing accesses to the formal operand retains
• previously necessary commands "NOP 0", which were generated in the course of program input in LAD and CFS (for S5) / FBD (for S7) are no longer required
• PG-2000 is modularly structured, so that the user only has to aquire the program modules he actually needs for his daily work
• low priced subsequent- and company licenses are available; for schools and for occupational field there are non-commercial school licenses available (without a limitation of users and for a nonrecurring low nominal charge)
• everything existing so far should be taken for granted at PG-2000, because PG-2000 is the only open PLC programming system of the future; PG-2000 will be constantly developed, even particular desires of users will be taken into account in full detail
• at reorder within 6 months the already paid license charge will be credited to 100%, within 12 months to 50%
• the integrated project management offers an optimal overview of the projects
• detailled online help with graphic elements and cross references
• simultaneous display of lines- and symbolism comments

Programming/controlling of S5/7-PLC’s

Unbenanntes Dokument
If you have to accomplish modifications in your installation, connect the PC with the PLC and start your programming package PG-2000. With this software you have one and the same user interface for S5 and S7, so you don’t have to switch between both versions, just as it is with most of other packages.
Remote maintenance of a S7-PLC

Unbenanntes Dokument
You have to solve a problem in the PLC-program, but the installation is not placed nearby? No problem, start your PG-2000-software with "option teleservice", activate your modem and after selection intra PG-2000-software access to the PLC is possible as if being on-site.
Data logging of your PLC

Unbenanntes Dokument
You shortly need a logging of your PLC’s operating states respectively are on the way of figuring out a problem and have no datalogger? No problem, connect the PC, start the PG-2000-software with "option datalogger", define relevant variables, appoint timestamp and then the recording starts running immediately. The data will be stored on the fixed disc according to the configuration.
Backup of formulas without knowledge of PLC

Unbenanntes Dokument
You consistently have to back up formulas which are stored in data blocks or back up production protocols, but the employee in charge has no knowledge of PLC-programming respectively handling PC-programs? No problem, install the PG-2000-software with "option DB-backup" on your PC and connect it with the PLC. The employee only has to click on a symbol on the desktop of the PC and the data blocks of the parameterised PLC will be stored on the fixed disc. Afterwards the program closes itself and the mentioned employee didn’t had to accomplish an intervention on the program.
Project/history-administration of PLC-programming

Unbenanntes Dokument
Who doesn’t know this? When accessing the PLC you find out that parts of the program flow has been changed and none of the colleagues/employees are responsible for it? Therefore install the "option controller" for the PG-2000-software, and every activity of the employees working with the program will be recorded. So you can identify the one employee very quickly and changes are ex post comprehensible, too.
Shop:PG-2000 STEP 7 - Process Informatik Entwicklungsgesellschaft mbH

PG-2000 STEP 7

STEP7 - Programming with comfort

License- and usage rights:
• due to user handling reasons we abstain from software protection by dongle or likewise, but each license incorporates the licensee’s address and appears several times in the program
• though a single license may be installed on several PC’s, it is not allowed to be used on more than one PC at the same time
• subesequent licenses are needed if simultaneous working on several PC’s is required; the activation of options has to be identical with the ones of the single license
• a company license allows one and the same company resp. plant to use the PLC programming software in unlimited numbers simultaneously; each plant resp. division requires a separate company license
• a school license allows one and the same school resp. training centre to use the PLC programming software in unlimited numbers; with signing the license agreement the responsible trainer confirms that the software will be used uncommercial and only for training purposes
• S5 requires at least S5-STL, S7 at least S7-STL
• economic prices because of modular usage rights
• free software update and hotline service

article:
Art. ID.nameprice
9857 PG-2000 STEP7 STL single license
representation statementlist for Siemens S7		 404,- €
9857-3 PG-2000 STEP7 STL company license 1212,- €
9857-2 PG-2000 STEP7 STL subsequent license 146,- €

options:
Art. ID.nameprice
9851-CTR PG-2000 option Controller single license
comfortable Projekt / History - administration		 176,- €
9851-CTR-3 PG-2000 option Controller company license
comfortable Projekt / History - administration		 529,- €
9851-CTR-2 PG-2000 option Controller subsequent license
comfortable Projekt / History - administration		 59,- €
9856 PG-2000 option Datalogger single license
linewriter for the PLC		 176,- €
9856-3 PG-2000 option Datalogger company license
linewriter for the PLC		 529,- €
9856-2 PG-2000 option Datalogger subsequent license
linewriter for the PLC		 59,- €
9851-DB PG-2000 option DB - Backup single license
automatic Backup / Restore of DB's		 176,- €
9851-DB-3 PG-2000 option DB - Backup company license
automatic Backup / Restore of DB's		 529,- €
9851-DB-2 PG-2000 option DB - Backup subsequent license
automatic Backup / Restore of DB's		 59,- €
9854 PG-2000 option CFS (S5)/FBD (S7) single license
representation functionplan		 176,- €
9854-3 PG-2000 option CFS (S5)/FBD (S7) company lic.
representation functionplan		 529,- €
9854-2 PG-2000 option CFS(S5)/FBD(S7) subsequent lic.
representation functionplan		 59,- €
9858 PG-2000 option H1 single license
programming over Network-adapter		 251,- €
9858-3 PG-2000 option H1 company license
programming over Network-adapter		 614,- €
9858-2 PG-2000 option H1 subsequent license
programming over Network-adapter		 87,- €
9853 PG-2000 option LAD single license
representation ladder mode		 176,- €
9853-3 PG-2000 option LAD company license
representation ladder mode		 529,- €
9853-2 PG-2000 option LAD subsequent license
representation ladder mode		 59,- €
9851-TS PG-2000 option Teleservice single license
original TS-function for PG-2000		 176,- €
9851-TS-3 PG-2000 option Teleservice company license
original TS-function for PG-2000		 529,- €
9851-TS-2 PG-2000 option Teleservice subsequent license
original TS-function for PG-2000		 59,- €

Shop:PG-2000 STEP 5 - Process Informatik Entwicklungsgesellschaft mbH

PG-2000 STEP 5

STEP5 - Programming with comfort

License- and usage rights:
• due to user handling reasons we abstain from software protection by dongle or likewise, but each license incorporates the licensee’s address and appears several times in the program
• though a single license may be installed on several PC’s, it is not allowed to be used on more than one PC at the same time
• subesequent licenses are needed if simultaneous working on several PC’s is required; the activation of options has to be identical with the ones of the single license
• a company license allows one and the same company resp. plant to use the PLC programming software in unlimited numbers simultaneously; each plant resp. division requires a separate company license
• a school license allows one and the same school resp. training centre to use the PLC programming software in unlimited numbers; with signing the license agreement the responsible trainer confirms that the software will be used uncommercial and only for training purposes
• S5 requires at least S5-STL, S7 at least S7-STL
• economic prices because of modular usage rights
• free software update and hotline service

article:
Art. ID.nameprice
9851 PG-2000 STEP5-STL single license
representation statementlist for Siemens S5		 253,- €
9851-3 PG-2000 STEP5-STL company license
representation statementlist for S5-90 ... 155U		 759,- €
9851-2 PG-2000 STEP5-STL subsequent license
representation statementlist for S5-90 ... 155U		 84,- €

options:
Art. ID.nameprice
9851-CTR PG-2000 option Controller single license
comfortable Projekt / History - administration		 176,- €
9851-CTR-3 PG-2000 option Controller company license
comfortable Projekt / History - administration		 529,- €
9851-CTR-2 PG-2000 option Controller subsequent license
comfortable Projekt / History - administration		 59,- €
9856 PG-2000 option Datalogger single license
linewriter for the PLC		 176,- €
9856-3 PG-2000 option Datalogger company license
linewriter for the PLC		 529,- €
9856-2 PG-2000 option Datalogger subsequent license
linewriter for the PLC		 59,- €
9851-DB PG-2000 option DB - Backup single license
automatic Backup / Restore of DB's		 176,- €
9851-DB-3 PG-2000 option DB - Backup company license
automatic Backup / Restore of DB's		 529,- €
9851-DB-2 PG-2000 option DB - Backup subsequent license
automatic Backup / Restore of DB's		 59,- €
9854 PG-2000 option CFS (S5)/FBD (S7) single license
representation functionplan		 176,- €
9854-3 PG-2000 option CFS (S5)/FBD (S7) company lic.
representation functionplan		 529,- €
9854-2 PG-2000 option CFS(S5)/FBD(S7) subsequent lic.
representation functionplan		 59,- €
9858 PG-2000 option H1 single license
programming over Network-adapter		 251,- €
9858-3 PG-2000 option H1 company license
programming over Network-adapter		 614,- €
9858-2 PG-2000 option H1 subsequent license
programming over Network-adapter		 87,- €
9853 PG-2000 option LAD single license
representation ladder mode		 176,- €
9853-3 PG-2000 option LAD company license
representation ladder mode		 529,- €
9853-2 PG-2000 option LAD subsequent license
representation ladder mode		 59,- €

Shop:PG-2000 Complete package - Process Informatik Entwicklungsgesellschaft mbH

PG-2000 Complete package

STEP5 & STEP7 - Programming with comfort

License- and usage rights:
• due to user handling reasons we abstain from software protection by dongle or likewise, but each license incorporates the licensee’s address and appears several times in the program
• though a single license may be installed on several PC’s, it is not allowed to be used on more than one PC at the same time
• subesequent licenses are needed if simultaneous working on several PC’s is required; the activation of options has to be identical with the ones of the single license
• a company license allows one and the same company resp. plant to use the PLC programming software in unlimited numbers simultaneously; each plant resp. division requires a separate company license
• a school license allows one and the same school resp. training centre to use the PLC programming software in unlimited numbers; with signing the license agreement the responsible trainer confirms that the software will be used uncommercial and only for training purposes
• S5 requires at least S5-STL, S7 at least S7-STL
• economic prices because of modular usage rights
• free software update and hotline service

article:
Art. ID.nameprice
9855 PG-2000 STEP5 complete package single license
STL + LAD + CFS		 562,- €
9855-3 PG-2000 STEP5 complete package company lic.
STL + LAD + CFS		 1534,- €
9855-2 PG-2000 STEP5 complete package subsequent lic.
STL + LAD + CFS		 202,- €
9890 PG-2000 STEP5 complete package school license
STL + LAD + CFS		 251,- €
9855-S5/7 PG-2000 STEP5/7 complete package
single license
STL + LAD + CFS (for S5) / FBD (for S7)		 920,- €
9855-3-S5/7 PG-2000 STEP5/7 complete package
company license
STL + LAD + CFS (for S5) / FBD (for S7)		 2533,- €
9855-2-S5/7 PG-2000 STEP5/7 complete package
subsequent license
STL + LAD + CFS (for S5) / FBD (for S7)		 332,- €
9890-S5/7 PG-2000 STEP5/7 complete package
school license
STL + LAD + CFS (for S5) / FBD (for S7)		 455,- €
9855-S7 PG-2000 STEP7 complete package
single license
STL + LAD + FBD		 690,- €
9855-3-S7 PG-2000 STEP7 complete package
company license
STL + LAD + FBD		 1866,- €
9855-2-S7 PG-2007 STEP7 complete package
subsequent license
STL + LAD + FBD		 230,- €
9897 PG-2000 STEP7 complete package
school license
STL + LAD + FBD		 251,- €

options:
Art. ID.nameprice
9851-CTR PG-2000 option Controller single license
comfortable Projekt / History - administration		 176,- €
9851-CTR-3 PG-2000 option Controller company license
comfortable Projekt / History - administration		 529,- €
9851-CTR-2 PG-2000 option Controller subsequent license
comfortable Projekt / History - administration		 59,- €
9856 PG-2000 option Datalogger single license
linewriter for the PLC		 176,- €
9856-3 PG-2000 option Datalogger company license
linewriter for the PLC		 529,- €
9856-2 PG-2000 option Datalogger subsequent license
linewriter for the PLC		 59,- €
9851-DB PG-2000 option DB - Backup single license
automatic Backup / Restore of DB's		 176,- €
9851-DB-3 PG-2000 option DB - Backup company license
automatic Backup / Restore of DB's		 529,- €
9851-DB-2 PG-2000 option DB - Backup subsequent license
automatic Backup / Restore of DB's		 59,- €
9858 PG-2000 option H1 single license
programming over Network-adapter		 251,- €
9858-3 PG-2000 option H1 company license
programming over Network-adapter		 614,- €
9858-2 PG-2000 option H1 subsequent license
programming over Network-adapter		 87,- €
9851-TS PG-2000 option Teleservice single license
original TS-function for PG-2000		 176,- €
9851-TS-3 PG-2000 option Teleservice company license
original TS-function for PG-2000		 529,- €
9851-TS-2 PG-2000 option Teleservice subsequent license
original TS-function for PG-2000		 59,- €

Shop:PLC - communication driver - Process Informatik Entwicklungsgesellschaft mbH

PLC - communication driver

Driver for S7- / S5- / AEG- / BOSCH- and MITSUBISHI-controll systems

• operating systems: Windows CE/NT/2000/XP/Vista, Linux
• programming languages: C/C+, C#, VB, VB.NET, Delphi, LabView, Excel, Access, PHP, Java

Communication to PLC-devices, but no knowledge of the specific protocoles

Unbenanntes Dokument

Who know´s the problem, you need for the analysis of your production some data from the plc, but you don´t know the protocole of the PLC? No problem, you have to use the specific protocole of the PLC as DLL in your application ( if itself developed or Excel, Access, ans so on) and you will be able to read from or write to the PLC.

Shop:SIMATIC S7-communication driver - Process Informatik Entwicklungsgesellschaft mbH

SIMATIC S7-communication driver

Driver for the communication with S7-controll systems

• operating systems: Windows CE/NT/2000/XP/Vista, Linux
• no additional PLC-program necessary
• inputs, outputs, flags, DB's, timers, counters
• programming languages: C/C+, C#, VB, VB.NET, Delphi, LabView, Excel, Access, PHP, Java
• DLL/library for data exchange PC and SIMATIC S7

article:
Art. ID.nameprice
9742.LIN-P IP-S7-LINK LINUX single license 511,- €
9742.LIN IP-S7-LINK LINUX company license 3067,- €
9742.32-S7 IP-S7-LINK S7-200/300/400/1200
company license
Win95/98/NT/2000/XP/Vista/Windows 7 32-Bit		 3067,- €
9742.64-S7-P IP-S7-LINK S7-200/300/400/1200
single license
XP/Vista/Windows 7 64-Bit		 506,- €
9742.64-S7 IP-S7-LINK S7-200/300/400/1200
company license
XP/Vista/Windows 7 64-Bit		 3067,- €
9742.32-S7-P IP-S7-LINK S7-200/300/400/1200
single license
Win95/98/NT/2000/XP/Vista/Windows 7 32-Bit		 506,- €
9759-S7 IP-driver for S7-LAN company license
Windows DLL
Win95/98/NT/2000/XP/Vista		 390,- €
9749.32-P PC-MPI-S7-LINK S7-200/300/400 single license
Win95/98/NT/2000/XP/Vista		 511,- €
9749.LIN-P PC-MPI-S7-LINK S7-200/300/400 single license
LINUX		 620,- €
9749.32 PC-MPI-S7-LINK S7-200/300/400 company lic.
Win95/98/NT/2000/XP/Vista		 2044,- €
9749.LIN PC-MPI-S7-LINK S7-200/300/400 company lic.
LINUX		 2044,- €
9749.32-L PC-MPI-S7-LINK S7-200/300/400 school license
Win95/98/NT/2000/XP/Vista		 251,- €
9749.32-S PC-MPI-S7-LINK S7-200/300/400 Sourcecode
Win95/98/NT/2000/XP/Vista
9203,- €
9742-PHP-WIN.P PHP-Interface for IP-S7-Link single license
for Windows		 790,- €
9742-PHP-WIN PHP-Interface for IP-S7-Link company license
for Windows		 4200,- €
9742-PHP-LIN.P PHP-Interface for IP-S7-Link single license
for LINUX		 790,- €
9742-PHP-LIN PHP-Interface for IP-S7-Link company license
for LINUX		 4200,- €
9742.32-S7R-P Routing to all PLC single license
via CP to MPI and Profibus		 1012,- €
9742.32-S7R.LIN-P Routing to all PLC single license
via CP to MPI and Profibus		 1012,- €
9742.32-S7R Routing to all PLC company license
via CP to MPI and Profibus
4600,- €
9742.32-S7R.LIN Routing to all PLC company license
via CP to MPI and Profibus		 4600,- €

Shop:SIMATIC S5-communication driver - Process Informatik Entwicklungsgesellschaft mbH

SIMATIC S5-communication driver

Driver for the communication with S5-controll systems

• operating systems: Windows CE/NT/2000/XP/Vista, Linux
• programming languages: C/C+, C#, VB, VB.NET, Delphi, LabView, Excel, Access, PHP, Java
• PLCs: Siemens S5, VIPA

article:
Art. ID.nameprice
9742.32-H1-P IP-H1-LINK for H1/TCP/IP single license
Win95/98/NT/2000/XP/Vista		 506,- €
9742.32-H1 IP-H1-LINK for H1/TCP/IP company license
Win95/98/NT/2000/XP/Vista		 3067,- €
9759-S5 IP-driver for S5-LAN company license
S5-LAN-Link Windows DLL
Win95/98/NT/2000/XP/Vista		 390,- €
9742.32-VP-P IP-VIPA-LINK for VIPA TCP/IP CP's single license
Win95/98/NT/2000/XP/Vista		 506,- €
9742.32-VP IP-VIPA-LINK for VIPA TCP/IP CP's company license
Win95/98/NT/2000/XP/Vista		 3067,- €
9748.32-P PC-H1-LINK single license
H1-access for standard-Ethernetcard
Win95/98/NT/2000/XP/Vista		 664,- €
9748.32 PC-H1-LINK company license
H1-access for standard-Ethernetcard
Win95/98/NT/2000/XP/Vista		 3067,- €
9748.32-S PC-H1-LINK Sourcecode
H1-access for standard-Ethernetcard
Win95/98/NT/2000/XP/Vista		 6953,- €
9741-32 PC-R3964R-LINK protocol RK512 company license
Win95/98/NT/2000/XP/Vista		 945,- €
9741-S-32 PC-R3964R-LINK protocol RK512 Sourcecode
Win95/98/NT/2000/XP/Vista
2044,- €
9745-P PC-S5-LINK PG-BUS-AS511 single license
(up to 30 PLC's to 1 COM)
Win95/98/NT/2000/XP/Vista		 660,- €
9745 PC-S5-LINK PG-BUS-AS511 company license
(up to 30 PLC's to 1 COM)
Win95/98/NT/2000/XP/Vista		 2555,- €
9747-P PC-S5-LINK-AS511 single license
(1 PLC to 1 COM)
Win95/98/NT/2000/XP/Vista		 511,- €
9747 PC-S5-LINK-AS511 company license
(1 PLC to 1 COM)
Win95/98/NT/2000/XP/Vista		 2044,- €
9894 PC-S5-LINK-AS511 school license
(1 PLC to 1 COM)
Win95/98/NT/2000/XP/Vista		 251,- €
9747-S PC-S5-LINK-AS511 Sourcecode
(1 PLC to 1 COM)
Win95/98/NT/2000/XP/Vista		 4396,- €
9759-S5-PHP-WIN PHP-Interface for S5-LAN-LINK company license
for Windows		 990,- €
9759-S5-PHP-LIN PHP-Interface for S5-LAN-LINK company license
for LINUX		 990,- €

Shop:AEG-communication driver - Process Informatik Entwicklungsgesellschaft mbH

AEG-communication driver

Driver for the communication with AEG-controll systems

• operating systems: Windows CE/NT/2000/XP/Vista, Linux
• programming languages: C/C+, C#, VB, VB.NET, Delphi, LabView, Excel, Access, PHP, Java
• PLC's: A120, A250

article:
Art. ID.nameprice
9740.AEG-32 PC-AEG-LINK company license
Protocol KS-functions (A120, A250)
Win 95/98/NT/2000/XP/Vista		 1022,- €
9740-S.AEG-32 PC-AEG-LINK Sourcecode
Protocol KS-functions (A120, A250)
Win 95/98/NT/2000/XP/Vista
2044,- €

Shop:BOSCH-communication driver - Process Informatik Entwicklungsgesellschaft mbH

BOSCH-communication driver

Driver for the communication with BOSCH-controll systems

• operating systems: Windows CE/NT/2000/XP/Vista, Linux
• programming languages: C/C+, C#, VB, VB.NET, Delphi, LabView, Excel, Access, PHP, Java
• PLC's: BUEP19/BUEP19E

article:
Art. ID.nameprice
9749.BO-P IP-Bosch-LINK single license
Protocol BUEP19/BUEP19E
Win95/98/NT/2000/XP/Vista		 511,- €
9749.BO IP-Bosch-LINK company license
Protocol BUEP19/BUEP19E
Win95/98/NT/2000/XP/Vista		 3000,- €
9749.BO-Linux IP-Bosch-LINK Linux
Protocol BUEP19/BUEP19E
Win95/98/NT/2000/XP/Vista		 3000,- €
9743-32 PC-Bosch-LINK company license
Protocol BUEP19/BUEP19E
Win95/98/NT/2000/XP/Vista		 1022,- €
9743-S-32 PC-Bosch-LINK Sourcecode
Protocol BUEP19/BUEP19E
Win95/98/NT/2000/XP/Vista		 2044,- €

Shop:MITSUBISHI/MELSEC-communication driver - Process Informatik Entwicklungsgesellschaft mbH

MITSUBISHI/MELSEC-communication driver

Driver for the communication with Mitsubishi/Melsec-controll systems

• operating systems: Windows CE/NT/2000/XP/Vista, Linux
• programming languages: C/C+, C#, VB, VB.NET, Delphi, LabView, Excel, Access, PHP, Java
• PLC’s: A-/Q-/FX-series

article:
Art. ID.nameprice
9744-32-QJ PC-Melsec System-QJ-LINK TCP/IP single license
(QJ71E71-100 serial)
Win95/98/NT/2000/XP/Vista		 690,- €
9744-S-32-QJ PC-Melsec System-QJ-LINK TCP/IP company license
(QJ71E71-100 serial)
Win95/98/NT/2000/XP/Vista		 3067,- €
9744-32-QR2 PC-Melsec System-QR2-LINK serial single license
(QJ71E71-100 serial)
Win95/98/NT/2000/XP/Vista		 690,- €
9744-S-32-QR2 PC-Melsec System-QR2-LINK serial company license
(QJ71E71-100 serial)
Win95/98/NT/2000/XP/Vista		 3067,- €
9744-32 PC-Mitsubishi-LINK company license
Win95/98/NT/2000/XP/Vista		 1022,- €
9744-S-32 PC-Mitsubishi-LINK Sourcecode
Win95/98/NT/2000/XP/Vista		 2044,- €

Shop:Visualisation / OPC-Server - Process Informatik Entwicklungsgesellschaft mbH

Visualisation / OPC-Server

simple and comfortable visualisation / data recall by OPC-Server



Shop:OPC-Server - Process Informatik Entwicklungsgesellschaft mbH

OPC-Server

Data exchange between OPC-Clients and PLC’s

• OPC-Clients due to specification 1.0 / 2.0
• protocols: MPI on S7-300/400, PPI on S7-200
• clearly arranged listing of links with status display
• four serial ports (COM1 – COM4)
• low CPU stress

article:
Art. ID.nameprice
9769-23 OPC 3964R
with RK512 serial		 849,- €
9769-24 OPC 3964R
with RK512 TCP/IP with 3964R LAN		 1150,- €
9760-10 OPC AEG 120/250 KS-Fct. on TCP 1150,- €
9760-002 OPC E-Mail Client / Server 629,- €
9760-09 OPC Klöckner Moeller on TCP 1150,- €
9760-19 OPC Modbus Slave seriell on TCP 1150,- €
9760-022 OPC S5 H1 on ISO 1150,- €
9760-003 OPC SMS/Pager/Voicemail 629,- €
9760-012 OPC WAGO on TCP
Single license		 320,- €
9760-004 OPC XML-DA-package 1990,- €
9760-001 OPC-data base connection 1490,- €
9760-110 OPC-Manager (like 9760-100)
company license per protocol 		7800,- €
9760 OPC-Manager lite 0,- €
9760-100 OPC-Manager S7 TCP/IP RFC1006
+ OPC S7 MPI/PPI
+ OPC S7 PPI S7200
+ OPC S5 AS511 serial
+ OPC S5 H1 on TCP		 400,- €
9760-100-USB-N USB-Dongle for OPC-Manager
past licensing		 150,- €
9760-100-USB USB-Dongle for OPC-Manager
at licensing		 100,- €

Shop:Victory Boxed Release - Process Informatik Entwicklungsgesellschaft mbH

Victory Boxed Release



article:
Art. ID.nameprice
V9500-1B Victory Boxed Release 5
1.000 variables		 1199,- €
V9500-005 B Victory Boxed Release 5
50 variables		 399,- €
V9500-01 B Victory Boxed Release 5
100 variables
599,- €
V9500-02 B Victory Boxed Release 5
200 variables		 799,- €
V9500-05 B Victory Boxed Release 5
500 variables		 999,- €
V9500-5 B Victory Boxed Release 5
5.000 variables
1399,- €
V9500-10 B Victory Boxed Release 5
10.000 variables		 1599,- €
V9500-20 B Victory Boxed Release 5
20.000 variables
1799,- €
V9500-N B Victory Boxed Release 5
unlimited variables		 1999,- €

Shop:Victory Release 5 - Process Informatik Entwicklungsgesellschaft mbH

Victory Release 5

Visualisation of your company and your machines’ process run

• 32-bit visualisation with multiprocessor support
• unlimited number of variables -> unlimited number of I/O
• Victory is working with following data types: value, text and array (field)
• the text length and array depth is not limited
• each module driver is an independent COM/DCOM-Server, therefore immediately network-compatible
• the cycle program uses the process programming language CPL, which is ajar to the syntax of C / C++
• programming takes place in a modern programming environment and offers several features, which are enormously helpful during processing and in the test phase
• message processing is an inherent part of the Victory’s quintessence and is also used for own reporting
• completely new and enormous improved graphic engine
• integrated ODBC connection, HTTP-Server, E-Mail-Client, SMS/Pager/VoiceMail-services
• user management is based on user groups and their assigned activities

article:
Art. ID.nameprice
V9530-S5 Victory Release 5 PLC-driver
Siemens S5 protocols		 899,- €
V9530-S7 Victory Release 5 PLC-driver
Siemens S7 protocols		 799,- €
V9533-1 Victory Release 5 PLC-driver
AEG Modicon
AEG A120 / A250		 399,- €
V9537-1 Victory Release 5 PLC-driver
Victory4/WinLab/easyware
Victory4 Netfile		 199,- €
V9538-1 Victory Release 5 PLC-driver
SAIA & Burgess
SAIA PLC via S-Comm		 399,- €
V9539-1 Victory Release 5 PLC-driver
General protocols
MODBUS Server serial l+TCP/IP		 399,- €
V9536-1 Victory Release 5 PLC-driver EPIS
EPIS EMD-series		 299,- €
V9532-1 Victory Release 5 PLC-driver Hilscher
Profibus DP (for card CIF-50 PB)		 299,- €
V9534-1 Victory Release 5 PLC-driver IBH
IBH softec SoftPLC		 299,- €
V9531-2 Victory Release 5 PLC-driver Moeller
Moeller PS4/PS416		 399,- €
V9535-1 Victory Release 5 PLC-driver WAGO
WAGO Ethernet TCP/IP FPC		 399,- €
V9500-1 Victory Release 5 developer licenses
1.000 variables		 1299,- €
V9500-20 Victory Release 5 developer licenses
20.000 variables		 1999,- €
V9500-N Victory Release 5 developer licenses
unlimited variables		 2499,- €
V9510-5 Victory Release 5 option dialogue/reporter 499,- €
V9510-1 Victory Release 5 option recorder 499,- €
V9510-4 Victory Release 5 option switching time planer 499,- €
V9510-6 Victory Release 5 option touchscreen input 299,- €
V9599-HTTP Victory Release 5 HTTP-Runtime licenses
for each HTTP-Client		 99,- €
V9599-02 Victory Release 5 Runtime licenses
200 variables		 349,- €
V9599-1 Victory Release 5 Runtime licenses
1.000 variables		 499,- €
V9599-5 Victory Release 5 Runtime licenses
5.000 variables		 749,- €
V9599-10 Victory Release 5 Runtime licenses
10.000 variables
999,- €
V9599-20 Victory Release 5 Runtime licenses
20.000 variables		 1299,- €
V9599-N Victory Release 5 Runtime licenses
20.000+ variables		 1799,- €
V9500-MT Victory Release 5 maintenance service 12months
per developer license		 799,- €

Shop:Accessories - Process Informatik Entwicklungsgesellschaft mbH

Accessories

Here you will find everything you need on our products



Shop:Monkey-swing - Process Informatik Entwicklungsgesellschaft mbH

Monkey-swing

Connecting cable CP with a S5-PLC

• connects the PG socket of the S5-PLC with the PG socket of the CP
• to program the S5 PLC via the CP
• 15pin D-Sub connector - 15pin D-Sub connector
• length: 60cm

article:
Art. ID.nameprice
9359.AF Connecting-cable CP with S5-PLC 49,- €

Shop:AG-connection cable - Process Informatik Entwicklungsgesellschaft mbH

AG-connection cable

Connect a Allen-Bradley controller with the PC

• Connecting your Allen-Bradley controller to the PC
• 9pol D-Sub-jack - 9pol D-Sub-jack
• length: 3 m

article:
Art. ID.nameprice
9359.AB PLC-connecting cable
PC <-> Allen-Bradley		 28,- €

Shop:AG150-adapter - Process Informatik Entwicklungsgesellschaft mbH

AG150-adapter

Communication & programming of a AG150 controller

• the AG150 adapter is an additional adapter to the PG-Uni, PG-Uni-II or S5-LAN
• AG150 adapter only in conjunction with a Netz adapter used
• bolts and slide lock for fixing
• 15pin (female) - 25pin (female)
• length: 10 cm

article:
Art. ID.nameprice
9359-5-150 AG-150-adapter
for PG-UNI + PG-UNI-II-cable to AG-150		 39,- €

variant:
Art. ID.nameprice
9359-5-150-USB PG-USB AG-150-adapter
for PG-USB-cable to AG-150		 39,- €

accessories:
Art. ID.nameprice
9359-4 NETZ-adapter
for PG-UNI-cable /UNI-II-cable/S5-LAN		 59,- €

Shop:AG150-adapter for PG-USB - Process Informatik Entwicklungsgesellschaft mbH

AG150-adapter for PG-USB

Communication & programming of a AG150 controller

• the AG150-adapter is an additional adapter to the PG-USB
• bolts and slide lock for fixing
• 15pin (female) - 25pin (female)
• length: 10 cm

article:
Art. ID.nameprice
9359-5-150-USB PG-USB AG-150-adapter
for PG-USB-cable to AG-150		 39,- €

variant:
Art. ID.nameprice
9359-5-150 AG-150-adapter
for PG-UNI + PG-UNI-II-cable to AG-150		 39,- €

Shop:Analogue cable for PCMCIA TAE-modem - Process Informatik Entwicklungsgesellschaft mbH

Analogue cable for PCMCIA TAE-modem

Connecting the analogue PCMCIA modem to the telephone socket

• plug for PCMCIA-modem card connection
• TAE plug for the phone jack in Germany/USA
• 3m long cable

article:
Art. ID.nameprice
9381.KABEL Analogue cable for TAE-modem PCMCIA 51,- €

Shop:Mounting-set - Process Informatik Entwicklungsgesellschaft mbH

Mounting-set

for DIN-rail-holder

• fast and easy mounting on DIN rail
• mounting kit is made of metal
• scope of supply: 2 x mounting brackets + 2 x screws

article:
Art. ID.nameprice
9391-MT Mounting set
for DIN-rail-holder		 25,- €

Shop:Cheap-Conn - Process Informatik Entwicklungsgesellschaft mbH

Cheap-Conn

Connection of a Profibus node to the bus line

• cable connection via compression fitting technique
• integrated switchable terminating resistors
• different cable diameter useable
• one-screw mounting system
• inside screened housing
• 90° cable outlet
Technical Specifications:
Configuration: Switch for bus termination (ON/OFF)
Interfaces:
to the PLC:
PPI/MPI/Profibus interface: 9,6 KBd - 12 MBd
to the PD/PC:
PD/diagnosis jack
Operating temperature: 5 - 55°C
Case: ABS-plastic case
Dimensions: 65 x 43 x 17 mm


article:
Art. ID.nameprice
9350-9-CHP CheapConn Busconnector
for PROFIBUS		 25,- €

accessories:
Art. ID.nameprice
9350-9-CHP-K Connecting cable MPIx to CheapConn 5,- €

Shop:COM1 : COM2 - adapter - Process Informatik Entwicklungsgesellschaft mbH

COM1 : COM2 - adapter

serial adapter 9pol -> 25pol

• 9pins (male) - 25pins (female)
• 4 screws for mounting
• dimensions: 65 x 55 x 15 mm

article:
Art. ID.nameprice
9359-9 Adapter COM 1 : COM2
9pins (male) - 25pins (female)		 17,- €

Shop:COM2 : COM1 - adapter - Process Informatik Entwicklungsgesellschaft mbH

COM2 : COM1 - adapter

serial adapter 25pins -> 9pins

• 25pins (male) - 9pins (female)
• 4 screws for mounting
• dimensions: 65 x 55 x 15 mm

article:
Art. ID.nameprice
9359-9.M Adapter COM 1 : COM2
25pins (male) - 9pins (female)		 17,- €

Shop:CP525-adapter - Process Informatik Entwicklungsgesellschaft mbH

CP525-adapter

Programming of a CP525

• the CP525-adapter is an additional adapter to the PG-Uni, PG-Uni-II
• connection to the programming port of the CP525
• bolts and slide lock for fixing
• 15pin (female) - 25pin (male)
• length: 10 cm

article:
Art. ID.nameprice
9359-5 CP-525-adapter
for PG-UNI + PG-UNI-II-cable <-> CP-525		 39,- €

variant:
Art. ID.nameprice
9359-5-USB PG-USB CP-525-adapter
for PG-USB-cable to CP-525		 39,- €

Shop:CP525-adapter for PG-USB - Process Informatik Entwicklungsgesellschaft mbH

CP525-adapter for PG-USB

Programming of a CP525

• the CP525-adapter is an additional adapter to the PG-USB
• connection to the programming port of the CP525
• bolts and slide lock for fixing
• 15pin (female) - 25pin (male)
• length: 10 cm

article:
Art. ID.nameprice
9359-5-USB PG-USB CP-525-adapter
for PG-USB-cable to CP-525		 39,- €

variant:
Art. ID.nameprice
9359-5 CP-525-adapter
for PG-UNI + PG-UNI-II-cable <-> CP-525		 39,- €

Shop:CP525-K-adapter - Process Informatik Entwicklungsgesellschaft mbH

CP525-K-adapter

Communication with a CP525

• the CP525-adapter is an additional adapter to the PG-Uni, PG-Uni-II
• connection to the communication port of the CP525
• this adapter is also suitable for a CP524 and SA523/525
• bolts and slide lock for fixing
• 15pin (female) - 25pin (male)
• length: 10 cm

article:
Art. ID.nameprice
9359-5K CP-525-K-adapter
for PG-UNI + PG-UNI-II-cable <-> CP-525-communication		 39,- €

variant:
Art. ID.nameprice
9359-5K-USB PG-USB CP-525-K-adapter
for PG-USB-cable to CP-525-communication		 39,- €

Shop:CP525-K-adapter for PG-USB - Process Informatik Entwicklungsgesellschaft mbH

CP525-K-adapter for PG-USB

Communication with a CP525

• the CP525-adapter is an additional adapter to the PG-USB
• connection to the communication port of the CP525
• this adapter is also suitable for a CP524 and SA523/525
• bolts and slide lock for fixing
• 15pin (female) - 25pin (male)
• length: 10 cm

article:
Art. ID.nameprice
9359-5K-USB PG-USB CP-525-K-adapter
for PG-USB-cable to CP-525-communication		 39,- €

variant:
Art. ID.nameprice
9359-5K CP-525-K-adapter
for PG-UNI + PG-UNI-II-cable <-> CP-525-communication		 39,- €

Shop:Cross-cable - Process Informatik Entwicklungsgesellschaft mbH

Cross-cable

Network cable crossed connected through

• connect two ethernet devices directly
• foil shielded twisted pair cable
• with bend protection at the plug endings
• RJ45 plug - R45 plug
• pinout for EIA/TIA 56813
• length: 3m

article:
Art. ID.nameprice
9636-CROSS Cross-cable 3m Cat5+
both sides RJ45-Plug		 10,- €

variant:
Art. ID.nameprice
9636-TCPIP.02M Patch-cable 0.25m, Cat5e, screened 14,- €
9636-TCPIP Patch-cable 3m, Cat5+
both sides RJ45-Plug		 10,- €

Shop:DCF-77-antenna - Process Informatik Entwicklungsgesellschaft mbH

DCF-77-antenna

reception of DCF-signals

• 15pol plug for the connection to the SPS-Clock or the DCF-Verstärker
• for reception of DCF-77-signals
• dimensions: 75 x 70 x 55 mm
• length: 5m

article:
Art. ID.nameprice
9366 DCF-77-antenna 51,- €

Shop:DCF-amplifier - Process Informatik Entwicklungsgesellschaft mbH

DCF-amplifier

Prepares your weak or not clean DCF signals

• signal preparing in low DCF reception
• LED to indicate whether a DCF signal is detected
Technical Specifications:
Supply voltage: 24V/DC +/- 20%
Power consumption: 1 watt
Display: LED for displaying incoming DCF-signals and power
Interfaces: 15pin D-Sub jack for the DCF-antenna
15pin D-Sub plug for the SPS-Clock
2pin Phönixjack for power supply
Operating temperature: 5 - 55°C
Case: metal case with mounting flange
Dimensions: 95 x 35 x 135 mm


article:
Art. ID.nameprice
9366-1 Amplifier for DCF-antenna 77,- €

options:
Art. ID.nameprice
9366 DCF-77-antenna 51,- €

Shop:Replacement lamp for LG07 - Process Informatik Entwicklungsgesellschaft mbH

Replacement lamp for LG07

Replaces the defective lamp of LG07



article:
Art. ID.nameprice
9363-3-LAMPE Replacement lamp for LG-07 85,- €

Shop:Replacement lamp for UVL3 - Process Informatik Entwicklungsgesellschaft mbH

Replacement lamp for UVL3

Replaces the defective lamp of UVL3



article:
Art. ID.nameprice
9363-4-LAMPE Replacement lamp for UVL3 41,- €

Shop:DIN-rail mounting for MPI cables - Process Informatik Entwicklungsgesellschaft mbH

DIN-rail mounting for MPI cables

Simple and quik mounting of MPI cables on the DIN-rail

• fast and easy mounting on DIN rail
• mounting kit is made of black metal
• scope of supply: 1 x bracket for MPI cable + 2 x screws

article:
Art. ID.nameprice
9391-HH DIN-rail-holder for MPI/PPI 10,- €

variant:
Art. ID.nameprice
9350-WAND Wall-mounting
for MPI/PPI + MPI-II + MPI-USB		 5,- €

Shop:iBx-PLC cable - Process Informatik Entwicklungsgesellschaft mbH

iBx-PLC cable

Connecting the iBx-Klemme with the PLC

• 15pol jack for the PD side
• 15pol plug for the AG side
• both sides with plastic cases
• dimensions of the plastic cases: 45 x 40 x 15 mm
• in the variants 1 x 45° cable outlet / 2 x 45° cable outlet

article:
Art. ID.nameprice
9530-9S iBx-SPS-cable to PLC 3m 38,- €
9530-9WS iBx-SPS-cable to PLC 3m
bothside 45° angle		 38,- €

Shop:ISDN-adapter for analogue terminals - Process Informatik Entwicklungsgesellschaft mbH

ISDN-adapter for analogue terminals

Full ISDN functionality for traditional analogue terminals

• easy installation and automatic recognition of dialling procedure used (pulse dialling, tone dialling)
• can be directly connected to an ISDN multiple device port or to a PABX
• free internal calls between connected telephones
• supports keypad-functions
• full ISDN functionality provided, e.g. call waiting, 3-party conference and toggling
• 2 external calls can be made simultaneously
• 3 numbers (MSN) per analogue port can be configured (up to 6 MSNs possible)
• display of caller's telephone number (CLIP) and reception of SMS messages (FSK-Verfahren) are possible on suitable telephones
Technical Specifications:
Supply voltage: via an AC adapter 230V/AC 50Hz
Interfaces: 1 x ISDN Basic Rate Access (DSS1)
2 x ports for analogue terminals (coding U / F)
1 x port for analogue terminal (coding N) for additional devices
dialling: pulse or tone
Case: plastic case for table operation or wall mounting
Dimensions: 180 x 140 x 45 mm


article:
Art. ID.nameprice
9370-ISDN ISDN-adapter for analogue terminals 251,- €

Shop:Fiber optic adapter for differential transmission (G) - Process Informatik Entwicklungsgesellschaft mbH

Fiber optic adapter for differential transmission (G)

Connect the differential line with fiber optic technology (fiberglass cable)

• extend and connect the differential transmission line with fiberglass cable
• fail-safe by insensitivity to electromagnetic fields
• no sparks through cable breakage or separation
• no crosstalk possible
• lightning protection guaranteed
• transfer of TxD and RxD
Technical Specifications:
Supply voltage: 24V/DC +/- 20%
Power consumption: 1,5 watt
Interfaces: 2 x screw terminal for power supply
4 x screw terminal for differential transmission (RxD and TxD)
2 x socket for F-SMA fiber optic connector
Maximum connection length: 2,5 km
Operating temperature: 5 - 55°C
Case: powder coated metal case with mounting flange
Dimensions: 75 x 65 x 30 mm


article:
Art. ID.nameprice
9531-G Light wire-adapter
for glasfibre-cables		 198,- €

variant:
Art. ID.nameprice
9531-K Light wire-adapter
for plasticfibre-cables		 173,- €
9532-K Light wire-adapter
RS232 for plasticfibre-cables		 690,- €

accessories:
Art. ID.nameprice
9391.1 24V DC power-supply unit 625mA
Primary 110V - 240 VAC Euro+USA-plug		 39,- €

Shop:Fiber optic adapter for differential transmission (K) - Process Informatik Entwicklungsgesellschaft mbH

Fiber optic adapter for differential transmission (K)

Connect the differential line with fiber optic technology (plastic cable)

• extend and connect the differential transmission line with plastic cable
• fail-safe by insensitivity to electromagnetic fields
• no sparks through cable breakage or separation
• no crosstalk possible
• lightning protection guaranteed
• transfer of TxD and RxD
Technical Specifications:
Supply voltage: 24V/DC +/- 20%
Power consumption: 1,5 watt
Interfaces: 2 x screw terminal for power supply
4 x screw terminal for differential transmission (RxD and TxD)
2 x socket for duplex connectors with or without locking
Maximum connection length: 145 m
Operating temperature: 5 - 55°C
Case: powder coated metal case with mounting flange
Dimensions: 75 x 65 x 30 mm


article:
Art. ID.nameprice
9531-K Light wire-adapter
for plasticfibre-cables		 173,- €

variant:
Art. ID.nameprice
9531-G Light wire-adapter
for glasfibre-cables		 198,- €
9532-K Light wire-adapter
RS232 for plasticfibre-cables		 690,- €

accessories:
Art. ID.nameprice
9391.1 24V DC power-supply unit 625mA
Primary 110V - 240 VAC Euro+USA-plug		 39,- €

Shop:Fiber optic adapter for RS232 (plastic cable) - Process Informatik Entwicklungsgesellschaft mbH

Fiber optic adapter for RS232 (plastic cable)

Connect the RS232 line with fiber optic technology

• extend and connect the RS232 transmission line with plastic cable
• fail-safe by insensitivity to electromagnetic fields
• no sparks through cable breakage or separation
• no crosstalk possible
• lightning protection guaranteed
• transfer of TxD and RxD
Technical Specifications:
Supply voltage: 24V/DC +/- 20%
Power consumption: 1,5 watt
Interfaces: 3 x screw terminal for power supply and PE
3 x screw terminal for RS232 transmission (RxD, TxD, GND)
2 x socket for duplex connectors with or without locking
Maximum connection length: 145 m
Operating temperature: 5 - 55°C
Case: powder coated metal case with mounting flange
Dimensions: 75 x 65 x 30 mm


article:
Art. ID.nameprice
9532-K Light wire-adapter
RS232 for plasticfibre-cables		 690,- €

variant:
Art. ID.nameprice
9531-K Light wire-adapter
for plasticfibre-cables		 173,- €
9531-G Light wire-adapter
for glasfibre-cables		 198,- €

accessories:
Art. ID.nameprice
9391.1 24V DC power-supply unit 625mA
Primary 110V - 240 VAC Euro+USA-plug		 39,- €

Shop:Magnetic base antenna - Process Informatik Entwicklungsgesellschaft mbH

Magnetic base antenna

Antenna for the reception with the S7-Bridge

• screw on the connector GSM/FME(f) to the S7-Bridge
• water-proof IP65
• magnetic base (3x neodyn magnet) for mounting on the cabinet, etc.
• length of the cable (RG174): 3m
• dimensions: ca. 70 x 15 mm, cable diameter: 2,7mm

article:
Art. ID.nameprice
9352-S7-Bridge-ANT Magnetic base antenna for S7-Bridge
cable length: 3m		 78,- €

Shop:Magnetic base antenna - Process Informatik Entwicklungsgesellschaft mbH

Magnetic base antenna

Antenna for the reception with the GSM modem

• screw on the connector to the modem
• magnetic base for mounting on the cabinet, etc.
• length of the cable: 2,5m
• dimensions: 70 x 30 x 30 mm

article:
Art. ID.nameprice
9379-ANT Magnetic base antenna
for TP, TS + MPI-Modem		 24,- €

Shop:MPI- / Profibus connecting cable - Process Informatik Entwicklungsgesellschaft mbH

MPI- / Profibus connecting cable

connecting your S7 with an additional subscriber / device

• 9pol (male) - 9pol (male)
• 4 screws for mounting
• dimensions of the plug: 50 x 35 x 15 mm
• length: 1m

article:
Art. ID.nameprice
9379.1 MPI-/Profibus connecting cable 1m 10,- €

Shop:MPI- / Profibus connecting cable (for Tele-Service) - Process Informatik Entwicklungsgesellschaft mbH

MPI- / Profibus connecting cable (for Tele-Service)

connecting your S7 with an additional subscriber / device

• 9pol (male) - 9pol (male)
• 4 screws for mounting
• dimensions of the plug: 30 x 30 x 13 mm
• length: 1m

article:
Art. ID.nameprice
9377.1 MPI-/Profibus connecting cable 1m
for Tele-Service		 10,- €

Shop:MPI-Netzadapter with power-adapter - Process Informatik Entwicklungsgesellschaft mbH

MPI-Netzadapter with power-adapter

Power adapter for MPI-cable

• generates a 24V power supply for the MPI cable
• allows a 2-wire connection to the PLC
• voltage is not on the PLC side
• the rest is connected through 1 : 1
Technical Specifications:
Supply voltage: 100 - 240 V/AC, 50 - 60 Hz
Output voltage: 24 V/DC
Power supply: 15 watt
Interfaces:
to the PLC:
9 pol. plug for AG-connection
to the PD/PC:
9 pol. jack for PD-connection
Operating temperature: 5 - 40°C
Case: grey plastic case
Dimensions: 65 x 35 x 15 mm


article:
Art. ID.nameprice
9350-4 Power-adapter for MPI-cable
with power-supply unit 100-240VAC		 51,- €

variant:
Art. ID.nameprice
9350-4-ON Power-adapter for MPI-cable
without power-supply unit		 41,- €

Shop:MPI-Netzadapter without power-adapter - Process Informatik Entwicklungsgesellschaft mbH

MPI-Netzadapter without power-adapter

Power adapter for MPI-cable

• generates a 24V power supply for the MPI cable
• allows a 2-wire connection to the PLC
• voltage is not on the PLC side
• the rest is connected through 1 : 1
Technical Specifications:
Supply voltage: 24 V/DC
Output voltage: 24 V/DC
Power supply: depending on your voltage source
Interfaces:
to the PLC:
9 pol. plug for AG-connection
to the PD/PC:
9 pol. jack for PD-connection
Operating temperature: 5 - 40°C
Case: grey plastic case
Dimensions: 65 x 35 x 15 mm


article:
Art. ID.nameprice
9350-4-ON Power-adapter for MPI-cable
without power-supply unit		 41,- €

variant:
Art. ID.nameprice
9350-4 Power-adapter for MPI-cable
with power-supply unit 100-240VAC		 51,- €

accessories:
Art. ID.nameprice
9391.1 24V DC power-supply unit 625mA
Primary 110V - 240 VAC Euro+USA-plug		 39,- €

Shop:NETZ-adapter - Process Informatik Entwicklungsgesellschaft mbH

NETZ-adapter

Generats own current sources

• generates new current sources for the communication
• operation area: damaged current sources, not existing current sources, sanded current sources, passiv interfaces, ...
• external power supply
Technical Specifications:
Supply voltage: 24V/DC +/- 20%
Power consumption: 1 watt
Interfaces: 2 x TTY/20mA current loop (1 x 15pol plug / 1 x 15pol jack)
Operating temperature: 5 - 55°C
Case: plastic case
Dimensions: 50 x 45 x 15 mm


article:
Art. ID.nameprice
9359-4 NETZ-adapter
for PG-UNI-cable /UNI-II-cable/S5-LAN		 59,- €

Shop:Null-modem-cable - Process Informatik Entwicklungsgesellschaft mbH

Null-modem-cable

Conenction from PC to PC

• Ideal for connecting PC to PC
• for other applications suited as well by the crossed contact
• TXD -> RXD / RXD -> TXD
• 9pol D-Sub-jack - 9pol D-Sub-jack
• length: 3 m

article:
Art. ID.nameprice
9359.0 Null-modem-cable 9-pin D-SUB 23,- €

variant:
Art. ID.nameprice
9359.1:1 1:1 cable 9pins D-SUB 23,- €

Shop:OP-programming cable - Process Informatik Entwicklungsgesellschaft mbH

OP-programming cable

Connect a Siemens Panal with a PC

• connect a Siemens Panal (15pin RS232 interface) with a PC
• screws and slide lock for fixing
• 15pin (male) - 9pin (female)
• length: 3 m

article:
Art. ID.nameprice
9359.OP OP-Programming cable to PC 3m 49,- €

Shop:Option CheapConn for MPI cables - Process Informatik Entwicklungsgesellschaft mbH

Option CheapConn for MPI cables

Parallel connection of a MPI cable on the bus

• connect your CheapConn with one of our MPI cable for parallel programming on the bus
• plug in with simple and mix-up-proof standardized connectors to the MPI cable
• consisting of the CheapConn connection cable and a CheapConn
• fully assembled and ready for mounting on the MPI cable
• 9-pin 1 : 1 plated-through
• screen connected through
• length: 0.5 m

article:
Art. ID.nameprice
9350-9-CHP-CC Option CheapConn for MPI
9350-9-CHP+9350-9-CHP-K already mounted		 35,- €

accessories:
Art. ID.nameprice
9350-9-CHP CheapConn Busconnector
for PROFIBUS		 25,- €
9350-9-CHP-K Connecting cable MPIx to CheapConn 5,- €

Shop:Patch cable - Process Informatik Entwicklungsgesellschaft mbH

Patch cable

Network cable 1 : 1 connected through

• connect your ethernet device with a HUB/Switch or a wall plate
• foil shielded twisted pair cable
• with bend protection at the plug endings
• RJ45 plug - R45 plug
• pinout for EIA/TIA 568
• length: 3m

article:
Art. ID.nameprice
9636-TCPIP Patch-cable 3m, Cat5+
both sides RJ45-Plug		 10,- €

variant:
Art. ID.nameprice
9636-CROSS Cross-cable 3m Cat5+
both sides RJ45-Plug		 10,- €
9636-TCPIP.02M Patch-cable 0.25m, Cat5e, screened 14,- €

Shop:Patchcable 0.25m - Process Informatik Entwicklungsgesellschaft mbH

Patchcable 0.25m

Optimal for connecing the S7-Bridge to the S7-LAN

• connect your S7-Bridge with a S7-LAN on the shortest way
• foil shielded twisted pair cable
• with bend protection at the plug endings
• RJ45 plug - R45 plug
• pinout for EIA/TIA 568
• length: 0,25m

article:
Art. ID.nameprice
9636-TCPIP.02M Patch-cable 0.25m, Cat5e, screened 14,- €

variants:
Art. ID.nameprice
9636-CROSS Cross-cable 3m Cat5+
both sides RJ45-Plug		 10,- €
9636-TCPIP Patch-cable 3m, Cat5+
both sides RJ45-Plug		 10,- €

Shop:PC-104-card 1-channel or 2-channel - Process Informatik Entwicklungsgesellschaft mbH

PC-104-card 1-channel or 2-channel

Provides PPI, MPI- and Profibus

• Card conforms to PC104-declaration (90.2 x 95.9mm)
• Depending on the version 1 or 2 connector sockets for post-spring-bar for PPI, MPI and Profibus
• Supports all baud rates up to 12M
• PC104 bus through dual-Portet-Ram separate from actual hardware
• PPI, MPI and PROFIBUS is electrically isolated from residual Hardware
• Firmware is kept in the integrated flash-memory, therefore easier update possible

article:
Art. ID.nameprice
9352-104 MPI-PC104-card 1 channel up to 12Mbaud 315,- €

variant:
Art. ID.nameprice
9352-104-2 MPI-PC104-card 2 channel up to 12Mbaud 415,- €

Shop:PCMCIA-modemcard (analogue) - Process Informatik Entwicklungsgesellschaft mbH

PCMCIA-modemcard (analogue)

Connection to the analog telephone network via PCMCIA

• BZT-permission (D132754J / CTR21 / CEO560X)
• transfer rate up to 56000 Bps vollduplex asynchron
• AT-Hayes instruction set
• getting an outgoing line with flash or number
• MNP 2-4, V.42 / MNP 5, V.42bis
• Analogue telefone lead included in delivery
• communication-/fax-software included in delivery
Technical Specifications:
Power consumption: 250 mA
Interfaces: 1 x PCMCIA to PD/PC
1 x analogue connection
Specifications: CCITT V.21, V.22, V.22bis, V.23, V.32, V.32bis, V.fc, V.34, V.34+, K56flex
Case: PCMCIA-format 2.0 type II
Dimensions: 85 x 55 x 5 mm


article:
Art. ID.nameprice
9381 TAE-modemPCMCIA-card for TELE-BOOK 205,- €

options:
Art. ID.nameprice
9381.KABEL Analogue cable for TAE-modem PCMCIA 51,- €

Shop:PG-ISO-Adapter - Process Informatik Entwicklungsgesellschaft mbH

PG-ISO-Adapter

galvanic separation up to 1000V

• contact-protected plastic case
• generates new current sources and a ne ground for the communication
• galvanic separation between PC and PLC up to 1000V
• power supply from the PLC
Technical Specifications:
Supply voltage: 5V/DC and/or 24V/DC +/- 20%
Power consumption: 1 watt
Interfaces: 2 x TTY/20mA current loop (1 x 15pol plug / 1 x 15pol jack)
Galvanic separation: 1000V PLC to the PC
Operating temperature: 5 - 55°C
Case: plastic case
Dimensions: 50 x 45 x 15 mm


article:
Art. ID.nameprice
9359-8 PG-ISO-adapter
1000V galv. seperation		 89,- €

Shop:PG-UNI-II lengthening set - Process Informatik Entwicklungsgesellschaft mbH

PG-UNI-II lengthening set

Lengthening of the PG-UNI-II cable up to 300m

• extend your PG-UNI-II cable on the PLC side up to 300m
• all parts included except the connection cable
• instructions and description of the pin configuration included
• length is selectable arbitrarily / up to 300m

article:
Art. ID.nameprice
9359-7-II PG-UNI-II - lengthening set
29,- €

Shop:PG-UNI lengthening set - Process Informatik Entwicklungsgesellschaft mbH

PG-UNI lengthening set

Lengthening of the PG-UNI cable up to 300m

• extend your PG-UNI cable on the PLC side up to 300m
• all parts included except the connection cable
• instructions and description of the pin configuration included
• length is selectable arbitrarily / up to 300m

article:
Art. ID.nameprice
9359-7 PG-UNI - lengthening set
16,- €

Shop:PG-USB lengthening set - Process Informatik Entwicklungsgesellschaft mbH

PG-USB lengthening set

Lengthening of the PG-USB cable up to 100m

• extend your PG-USB cable on the PLC side up to 100m
• all parts included except the connection cable
• instructions and description of the pin configuration included
• length is selectable arbitrarily / up to 100m

article:
Art. ID.nameprice
9359-7-USB PG-USB-lengthening set
complete mounting set		 29,- €

Shop:PG685 cable - Process Informatik Entwicklungsgesellschaft mbH

PG685 cable

Connction cable of a PG685 to a S5-PLC

• 15pin D-Sub PLC connectivity via 25-pin D-sub PG685
• supply from the PLC over the 5V power supply
• the transducer electronics are fully integrated in the cable
• length: 3 m

article:
Art. ID.nameprice
9359-91 PG-685-cable 5m 49,- €

Shop:PLCC32-adapter - Process Informatik Entwicklungsgesellschaft mbH

PLCC32-adapter

Writing on a Flash in the PLCC32 housing with the Multi-Prommer

• with this adapter are also flashs in PLCC32 housing plugable in a dual inline socket
• on the dual inline socket continue the usual pin order

• with ejection mechanism of the PLCC32-socket

article:
Art. ID.nameprice
9363-13 PLCC32-adapter
for MULTI-Prommer
175,- €

Shop:Prof-II-Starterkit - Process Informatik Entwicklungsgesellschaft mbH

Prof-II-Starterkit

Starter Set for Prof-II remote maintenance

• for a simple introduction to PLC remote maintenance
• set consists 11 parts

Content:

• power adapter 110 - 240V/AC -> 24V/DC
• MPI- / Profibus cable
• S5-cable
• patch cable
• cross cable
• serial cable 9-pin
• null modem cable
• USB-cable A - A
• USB-cable A - B
• telephone cable ISDN
• telephone cable analogue D/USA

article:
Art. ID.nameprice
9372 TELE-PROFessional II Starter-Kit
completing 9372-OEM		 162,- €

Shop:RS232 / V24 converter module - Process Informatik Entwicklungsgesellschaft mbH

RS232 / V24 converter module

TTL <-> RS232 Converter-IC

• replacement component for your PG-COM and PG-UNI
• converts TTL signals to RS232
• module in DIL20 housing

article:
Art. ID.nameprice
9359-MAX233 RS232 / V24 chip
for interfacecable		 5,- €

Shop:S5-cable - Process Informatik Entwicklungsgesellschaft mbH

S5-cable

1:1 connecting cable for the S5-controller

• 15pol jack for the PD side
• 15pol plug for the AG side
• both sides with plastic cases
• dimensions of the plastic cases: 45 x 40 x 15 mm
• in the variants 3m / 5m / 6m / 10m

article:
Art. ID.nameprice
9361-3 S5-connecting cable 3m
forTELE-PROF, MINI-/PG-MUX-II		 38,- €
9361-3.05M S5-connecting cable 5m
for TELE-PROF, MINI-/PG-MUX-II		 43,- €
9361-3.06M S5-connecting cable 6m
for TELE-PROF, MINI-/PG-MUX-II		 46,- €
9361-3.10M S5-connecting cable 10m
for TELE-PROF, MINI-/PG-MUX-II		 56,- €

Shop:SC-09 cable - Process Informatik Entwicklungsgesellschaft mbH

SC-09 cable

Couples the PC (9 pol. COM-interface) with the RS485 interface port of the PLC

• PLC connectivity via 25-pin D-sub or mini-DIN (special adapter)
• supply from the PLC over the 5V power supply
• the transducer electronics are fully integrated in the cable
• length: 3 m

article:
Art. ID.nameprice
9359.M SC-09 cable 3m for Mitsubishi
RS232 <-> RS485		 102,- €

Shop:Serial PCMCIA-adapter - Process Informatik Entwicklungsgesellschaft mbH

Serial PCMCIA-adapter

Serial COM-Port using a PCMCIA-card

• extend your device to a serial 9 pin interface
• generats an RS232 interface from a PCMCIA interface
• transfer rate up to 115.2 kbit/s
• PCMCIA card is completely immersed in the device
• dimensions: 85 x 55 x 5 mm
• 15 cm cable with 9-pin connector

article:
Art. ID.nameprice
9370-COM Serial PCMCIA-adapter
for TP + TB		 205,- €

Shop:Serial cable 9-pin - Process Informatik Entwicklungsgesellschaft mbH

Serial cable 9-pin

Connecting serial devices

• Ideal for connecting our serial devices to the PC
• for other applications suited as well by the 1 : 1 contact
• 9pol D-Sub-plug - 9pol D-Sub-jack
• length: 3 m

article:
Art. ID.nameprice
9359.1:1 1:1 cable 9pins D-SUB 23,- €

variant:
Art. ID.nameprice
9359.0 Null-modem-cable 9-pin D-SUB 23,- €

Shop:Servicebag for Mini-/Flash-Prommer - Process Informatik Entwicklungsgesellschaft mbH

Servicebag for Mini-/Flash-Prommer

spacious and robust servicebag

• for the MINI-Prommer and FLASH-Prommer applicable
• everything for the MINI-/FLASH-Prommer in one bag stowable
• equipped with a handle for comfortable transport
• robust zipper for opening and closing
• washable surface
Technical Specifications:
Material: rugged synthetic leather
Colour: black
Attachment features: 1 x velcro strips for mounting the device
1 x rubber strap for the cables
1 x pocket for the manual / CDs / documentations / etc.
Dimensions: 200 x 175 x 65 mm


article:
Art. ID.nameprice
9363-6 Servicebag
MINI-PROMMER + FLASH-PROMMER		 33,- €

Shop:Servicebag for MULTI-Prommer - Process Informatik Entwicklungsgesellschaft mbH

Servicebag for MULTI-Prommer

spacious and robust servicebag

• for the MULTI-Prommer applicable
• everything for the MULTI-Prommer in one bag stowable
• equipped with a handle for comfortable transport
• robust zipper for opening and closing
• washable surface
Technical Specifications:
Material: rugged synthetic leather
Colour: black
Attachment features: 1 x velcro strips for mounting the device
1 x rubber strap for the cables
1 x pocket for the manual / CDs / documentations / etc.
Dimensions: 280 x 325 x 100 mm


article:
Art. ID.nameprice
9363-7 Servicebag
for MULTI-PROMMER		 49,- €

Shop:Servicebag for PG-MUX-II - Process Informatik Entwicklungsgesellschaft mbH

Servicebag for PG-MUX-II

spacious and robust servicebag

• for the PG-MUX-II applicable
• everything for the PG-MUX-II in one bag stowable
• equipped with a handle for comfortable transport
• robust zipper for opening and closing
• washable surface
Technical Specifications:
Material: rugged synthetic leather
Colour: black
Attachment features: 1 x velcro strips for mounting the device
1 x rubber strap for the cables
1 x pocket for the manual / CDs / documentations / etc.
Dimensions: 265 x 260 x 55 mm


article:
Art. ID.nameprice
9361-6 Servicebag
for PG-MUX-II		 59,- €

Shop:Servicebag für TB, TP, TP-II-Flat - Process Informatik Entwicklungsgesellschaft mbH

Servicebag für TB, TP, TP-II-Flat

spacious and robust servicebag

• for the TB, TP, TP-II applicable
• everything for the TB, TP, TP-II in one bag stowable
• equipped with a handle for comfortable transport
• robust zipper for opening and closing
• washable surface
Technical Specifications:
Material: rugged synthetic leather
Colour: black
Attachment features: 1 x velcro strips for mounting the device
3 x rubber strap for the cables
1 x pocket for the manual / CDs / documentations / etc.
Dimensions: 325 x 325 x 60 mm


article:
Art. ID.nameprice
9371-6 Servicebag
for TP, TB + TP-II-FLAT		 59,- €

Shop:Sinum-adapter - Process Informatik Entwicklungsgesellschaft mbH

Sinum-adapter

Communication & programming of a Sinumerik controller

• the Sinum-adapter is an additional adapter to the PG-Uni, PG-Uni-II or S5-LAN
• this adapter can be used with a 805, 810, 820, 840, 850, 880
• bolts and slide lock for fixing
• 15pin (female) - 25pin (male)
• length: 10 cm

article:
Art. ID.nameprice
9359-6 SINUM-adapter
for PG-UNI + PG-UNI-II-cable to SINUMERIK		 39,- €

variant:
Art. ID.nameprice
9359-6-USB PG-USB SINUM-adapter
for PG-USB-cable to SINUMERIK		 39,- €

Shop:Sinum-adapter for PG-USB - Process Informatik Entwicklungsgesellschaft mbH

Sinum-adapter for PG-USB

Communication & programming of a Sinumerik

• the Sinum-adapter is an additional adapter to the PG-USB
• this adapter can be used with a 805, 810, 820, 840, 850, 880
• bolts and slide lock for fixing
• 15pin (female) - 25pin (male)
• length: 10 cm

article:
Art. ID.nameprice
9359-6-USB PG-USB SINUM-adapter
for PG-USB-cable to SINUMERIK		 39,- €

variant:
Art. ID.nameprice
9359-6 SINUM-adapter
for PG-UNI + PG-UNI-II-cable to SINUMERIK		 39,- €

Shop:Modem for dedicated line for TP - Process Informatik Entwicklungsgesellschaft mbH

Modem for dedicated line for TP

Connection between TP-devices without phone

• Connects 2 TP-devices directly via a copper cable (phone-net not requiered)
• Module suitable for direct switch control box wall mount
• Supply of 24V DC
• Dimension: 77 x 66 x 32mm
• Used in pairs

article:
Art. ID.nameprice
9370-SLM Leased-line modem for TP
only usuable as pairs		 128,- €

Shop:Connector 2pins big - Process Informatik Entwicklungsgesellschaft mbH

Connector 2pins big

Plug for voltage supply

• Connector socket with 2 contacts
• Cable connection with screw terminal
• Locked with the jack with screws
Technical Specifications:
Number of positions: 2
Nominal voltage: 250 V (maximum)
Nominal current: 12 A (maximum)
Pitch: 5,08 mm
Stripping length: 7 mm
Inflammability class: V0


article:
Art. ID.nameprice
9371-24 Power connector 2pins big 2,- €

Shop:Connector 2pins small - Process Informatik Entwicklungsgesellschaft mbH

Connector 2pins small

Plug for voltage supply

• Connector socket with 2 contacts
• Cable connection with screw terminal
Technical Specifications:
Number of positions: 2
Nominal voltage: 160 V (maximum)
Nominal current: 8 A (maximum)
Pitch: 3,81 mm
Stripping length: 7 mm
Inflammability class: V0


article:
Art. ID.nameprice
9352-24 Power connector 2pins small 2,- €

Shop:Connector 3pins big - Process Informatik Entwicklungsgesellschaft mbH

Connector 3pins big

Plug for voltage supply

• Connector socket with 3 contacts
• Cable connection with screw terminal
• Locked with the jack with screws
Technical Specifications:
Number of positions: 3
Nominal voltage: 250 V (maxmum)
Nominal current: 12 A (maximum)
Pitch: 5,08 mm
Stripping length: 7 mm
Inflammability class: V0


article:
Art. ID.nameprice
9372-24 Power connector 3pins big 2,- €

Shop:AC adapter - Process Informatik Entwicklungsgesellschaft mbH

AC adapter

external power-source for our products

• universal power adapter for all our products
• power supply for a wide field of applications
• recognizes and automatically adjusts itself to the applied voltage (100V - 240V)
• Europe and USA plug included
Technical Specifications:
Supply voltage: 100 - 240 V/AC, 50 - 60 Hz
Output voltage: 24 V/DC
Power supply: 15 watt
Operating temperature: 5 - 40°C
Case: black plastic case
Dimensions: 85 x 50 x 32 mm


article:
Art. ID.nameprice
9391.1 24V DC power-supply unit 625mA
Primary 110V - 240 VAC Euro+USA-plug		 39,- €

Shop:TAE-junction box - Process Informatik Entwicklungsgesellschaft mbH

TAE-junction box

Junction box for installation on wall

• Junction box for analogue telephone signals
• Coding NFF (message device - telephone - telephone)
• Suitable for surface mounting

article:
Art. ID.nameprice
9370-TAE TAE junction box 20,- €

Shop:Tele-CP cable - Process Informatik Entwicklungsgesellschaft mbH

Tele-CP cable

Connecting a CP with a TP or TB

• is part of the H1, L1, L2 option for the TP and TB
• connect the PG TTY interface of the TP and TB with the CP
• slide lock for fixing
• 15-pin (male) - 15-pin (male)
• length: 3 m

article:
Art. ID.nameprice
9359-90 CP-cable 49,- €

Shop:Phone-connector-set 16parts - Process Informatik Entwicklungsgesellschaft mbH

Phone-connector-set 16parts

worldwide use

• content: 13 europeane modem-adapters
• Koskin - (synthetic leather) organizer for quick reference
• adapts modems to european destinations
• easy-to-use country selection guide
• convenient travel pouch holds a few adapters while you travel
• dimensions of the Koskin-organizer: 255 x 195 x 50 mm

article:
Art. ID.nameprice
9370-SET Phone-connector-set 16parts
worldwide use		 230,- €

Shop:Telephone cable Belgium - Process Informatik Entwicklungsgesellschaft mbH

Telephone cable Belgium

Connecting our products to the telephone network european wide

• RJ11 plug for modem connection
• Belgian plug for the phone jack in Belgium
• 3m long cable

article:
Art. ID.nameprice
9370-8-BE Special phone-cable for Belgium 23,- €

Shop:Telephone cable Germany/USA - Process Informatik Entwicklungsgesellschaft mbH

Telephone cable Germany/USA

Connecting our products to the telephone network european wide

• RJ11 plug for modem connection
• TAE plug for the phone jack in Germany/USA
• 3m long cable

article:
Art. ID.nameprice
9370-8-D/USA Phone-cable analogue Germany+USA 10,- €

Shop:Telephone cable Denmark - Process Informatik Entwicklungsgesellschaft mbH

Telephone cable Denmark

Connecting our products to the telephone network european wide

• RJ11 plug for modem connection
• Danish plug for the phone jack in Denmark
• 4,5m long cable

article:
Art. ID.nameprice
9370-8-DK Special phone-cable for Denmark 23,- €

Shop:Telephone cable France - Process Informatik Entwicklungsgesellschaft mbH

Telephone cable France

Connecting our products to the telephone network european wide

• RJ11 plug for modem connection
• F010 plug for the phone jack in France
• 4,5m long cable

article:
Art. ID.nameprice
9370-8-FR Special phone-cable for France 23,- €

Shop:Telephone cable Great Britain - Process Informatik Entwicklungsgesellschaft mbH

Telephone cable Great Britain

Connecting our products to the telephone network european wide

• RJ11 plug for modem connection
• 631A plug for the phone jack in Great Britain
• 3m long cable

article:
Art. ID.nameprice
9370-8-GB Special phone-cable for Great Britain 23,- €

Shop:Telephone cable ISDN - Process Informatik Entwicklungsgesellschaft mbH

Telephone cable ISDN

Connecting our products to ISDN

• RJ45 connector - RJ45 connector
• 1 : 1 connected through
• flatband cable black
• 3m long cable

article:
Art. ID.nameprice
9370-8-ISDN Phone-cable ISDN 10,- €

Shop:Telephone cable Netherlands - Process Informatik Entwicklungsgesellschaft mbH

Telephone cable Netherlands

Connecting our products to the telephone network european wide

• RJ11 plug for modem connection
• m.W. PTT DHZ doos plug for the phone jack in the Netherlands
• 4,5m long cable

article:
Art. ID.nameprice
9370-8-NL Special phone-cable for Netherlands 23,- €

Shop:Telephone cable Switzerland - Process Informatik Entwicklungsgesellschaft mbH

Telephone cable Switzerland

Connecting our products to the telephone network european wide

• RJ11 plug for modem connection
• Reichle plug for the phone jack in Switzerland
• 3m long cable

article:
Art. ID.nameprice
9370-8-CH Special phone-cable for Switzerland 23,- €

Shop:Telephone cable Austria - Process Informatik Entwicklungsgesellschaft mbH

Telephone cable Austria

Connecting our products to the telephone network european wide

• RJ11 plug for modem connection
• TDO plug for the phone jack in Austria
• 3m long cable

article:
Art. ID.nameprice
9370-8-AT Special phone-cable for Austria 23,- €

Shop:TS-adapter - Process Informatik Entwicklungsgesellschaft mbH

TS-adapter

Connecting a serial MPI cable to a modem

• adapter makes a 9-pin plug of a 9-pin jack
• simply adjust the MPI cable for TS function and add the adapter
• pin assignment turned in the adapter
• bolts and screws to fasten
• screen connected through
• length: 20 cm

article:
Art. ID.nameprice
9350-TS Adapter cable 9pins to modem
for TS-function		 30,- €

Shop:USB 2.0 connection cable type A/A - Process Informatik Entwicklungsgesellschaft mbH

USB 2.0 connection cable type A/A

Connecting USB - devices with Type A connector

• suitable for USB 1.1 / 2.0 up to 480 Mbps
• connector type A to connector type A
• length: 3m

article:
Art. ID.nameprice
9352.1 USB-cable plug/plug Type A-A 3m 10,- €

variant:
Art. ID.nameprice
9352.2 USB-cable plug/plug Type A-B 3m 10,- €
9352.3 USB-cable plug/plug Type A-B-Mini 3m 23,- €

Shop:USB 2.0 connection cable type A/B - Process Informatik Entwicklungsgesellschaft mbH

USB 2.0 connection cable type A/B

Connecting USB - devices with Type B connector

• suitable for USB 1.1 / 2.0 up to 480 Mbps
• connector type A to connector type B
• length: 3m

article:
Art. ID.nameprice
9352.2 USB-cable plug/plug Type A-B 3m 10,- €

variant:
Art. ID.nameprice
9352.1 USB-cable plug/plug Type A-A 3m 10,- €
9352.3 USB-cable plug/plug Type A-B-Mini 3m 23,- €

Shop:USB 2.0 connection cable type A/Mini B - Process Informatik Entwicklungsgesellschaft mbH

USB 2.0 connection cable type A/Mini B

Connecting USB - devices with a Mini B connector

• suitable for USB 1.1 / 2.0 up to 480 Mbps
• connector type A to connector type Mini-B
• length: 3m

article:
Art. ID.nameprice
9352.3 USB-cable plug/plug Type A-B-Mini 3m 23,- €

variants:
Art. ID.nameprice
9352.1 USB-cable plug/plug Type A-A 3m 10,- €
9352.2 USB-cable plug/plug Type A-B 3m 10,- €

Shop:USB-Serial-Converter cable - Process Informatik Entwicklungsgesellschaft mbH

USB-Serial-Converter cable

Connecting a serial interface via a USB-Port

• generates from a USB-Port a serial Port (9pol. COM-interface)
• supports S5- and S7-interface parameter
• drivers are included for Win 2000 / XP
• free selectable COM-Port: COM1 – COM256
• baud rate: 300 Bit/s – 115,2 KBit/s
• dataflowcontrol: Xon/Xoff, RTS/CTS
• several converters are simultaneously useable at one PC
• complete electronics in the plug housing
• cable length 3m
• power supply from the USB interface
Technical Specifications:
Supply voltage: 5V/DC
Power consumption: 0,2 watt
Display: 2 status-LEDs for RXT/TXD
Interfaces:
to the PD/PC:
USB 1.1 cable type A
others:
RS232: 300 Bd - 115,2 KBd
Operating temperature: 5 - 55°C
Case: metal case
Dimensions: 60 x 30 x 14 mm


article:
Art. ID.nameprice
9359-1-RS232 USB-Serial-converter cable 3m
USB <=> RS-232		 125,- €

Shop:V24-adapter - Process Informatik Entwicklungsgesellschaft mbH

V24-adapter

Level-converter for PLC-TTY-Port

• Contact-protected plastic case
• Generates from the PLC-TTY-port a RS232-port
• Ideal for use with TELE-LINK units to connect a S7-PLC via S7 interface cable
• Power supply from the PLC-TTY-port

article:
Art. ID.nameprice
9359-V24 V24-adapter 51,- €

Shop:Connection cable MPI - X to CheapConn - Process Informatik Entwicklungsgesellschaft mbH

Connection cable MPI - X to CheapConn

Joining a CheapConn to an MPI cable for parallel connection on the bus

• connect your CheapConn with one of our MPI cable for parallel programming on the bus
• plug in with simple and mix-up-proof standardized connectors
• 9-pin 1 : 1 plated-through
• screen connected through
• length: 0.5 m

article:
Art. ID.nameprice
9350-9-CHP-K Connecting cable MPIx to CheapConn 5,- €

Shop:Wall mounting of MPI cables - Process Informatik Entwicklungsgesellschaft mbH

Wall mounting of MPI cables

Simple and quik mounting of MPI cables at the wall

• fast and easy mounting at the wall
• mounting kit is made of plastic
• scope of supply: 2 x cementing clip + 2 x screws + 2 x cable tie

article:
Art. ID.nameprice
9350-WAND Wall-mounting
for MPI/PPI + MPI-II + MPI-USB		 5,- €

variant:
Art. ID.nameprice
9391-HH DIN-rail-holder for MPI/PPI 10,- €

Shop:WF470-adapter - Process Informatik Entwicklungsgesellschaft mbH

WF470-adapter

Communication & programming of a WF470

• the WF470 adapter is an additional adapter to the PG-Uni, PG-Uni-II
• WF470 adapter only in conjunction with a Netz adapter used
• bolts and slide lock for fixing
• 15pin (female) - 25pin (female)
• length: 10 cm

article:
Art. ID.nameprice
9359-5-WF470 WF-470-adapter
for PG-UNI + PG-UNI-II-cable to WF470		 39,- €

variant:
Art. ID.nameprice
9359-5-WF470-USB PG-USB WF-470-adapter
for PG-USB-cable to WF470		 39,- €

accessories:
Art. ID.nameprice
9359-4 NETZ-adapter
for PG-UNI-cable /UNI-II-cable/S5-LAN		 59,- €

Shop:WF470-adapter for PG-USB - Process Informatik Entwicklungsgesellschaft mbH

WF470-adapter for PG-USB

Communication & programming of a WF470

• the WF470-adapter is an additional adapter to the PG-USB
• bolts and slide lock for fixing
• 15pin (female) - 25pin (female)
• length: 10 cm

article:
Art. ID.nameprice
9359-5-WF470-USB PG-USB WF-470-adapter
for PG-USB-cable to WF470		 39,- €

variant:
Art. ID.nameprice
9359-5-WF470 WF-470-adapter
for PG-UNI + PG-UNI-II-cable to WF470		 39,- €
