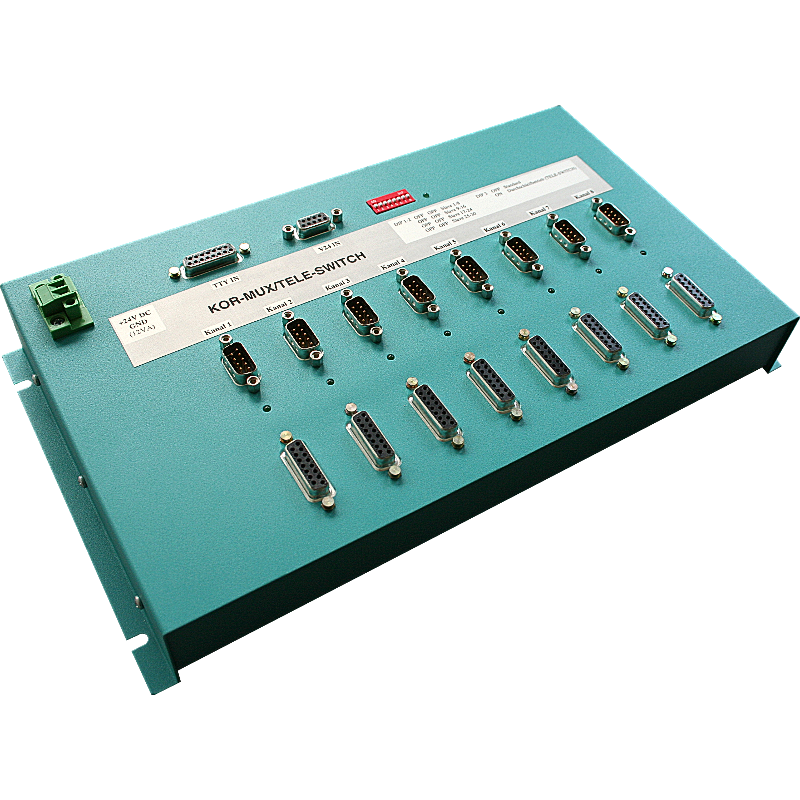

KOR-MUX / TELE-Switch
Programming several S5-PLC’s with one PD without plugging on/off
- Compatible with MUX757 in KOR-MUX-mode
- Operation as TELE-Switch possible
- Ports (1-31) are cascadable
- Up to 8 accessible slaves per COM-port of PC
| Technical Specifications: | |
| Supply voltage: | 24V/DC +/- 20% |
| Power consumption: | 12 watt |
| Display: | 8 LEDs for displaying the aktiv port |
| Handling/Configuration: | DIP-Switch for cascadability of the ports and mode Configuration |
| Interfaces: |
to the PLC:
8 x TTY/20mA current loop (100 % mechanically and electr. compatible)8 x RS232: 9,6 KBd - 115,2 KBd / fully assigned to the PD/PC:
1 x TTY/20mA current loop (100 % mechanically and electr. compatible)1 x RS232: 9,6 KBd - 115,2 KBd / with a 1on1-cable to the PC |
| Operating temperature: | 5 - 55°C |
| Case: | powder coated metal case with mounting flange |
| Dimensions: | 352 x 182 x 42 mm |

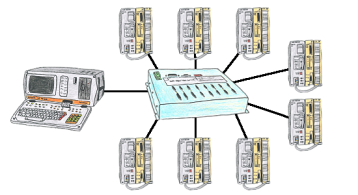

Many PLC-devices conflated  You have many PLC and you want to programm them central on one place? No problem, you have to connect them all to the KOR/MUX-Tele-Switch an with the PD-bus-selection of your Step5-software you go ONLINE. Of course the KOR/MUX-Tele-Switch is cascadable, so you can connect up to 30 PLCs to the devices. | |
to the order datas
| article: | |||||
|---|---|---|---|---|---|
| Art. ID. | name | price | quantity | ||
| 9370-KOR | KOR-MUX / TELE-SWITCH 8 devices (TTY/RS232) to 1 port (TTY/RS232), supports PD-path selection, also for TP-I, TP-II |
652,- € |   |
||
to the order datas
| accessories: | |||||
|---|---|---|---|---|---|
| Art. ID. | name | price | quantity | ||
| 9359.1:1 | 1:1 cable 9pins D-SUB D-SUB 9pins (male) <=> D-Sub 9pins (female), 1to1-assignment |
23,- € | |
||
| 9391.1 | 24V DC power-supply unit 625mA Primary 110V - 240 VAC Euro+USA-plug |
39,- € | |
||
| 9371-24 | Power connector 2pins big connector plug lockable by jack with screws |
3,- € | |
||
