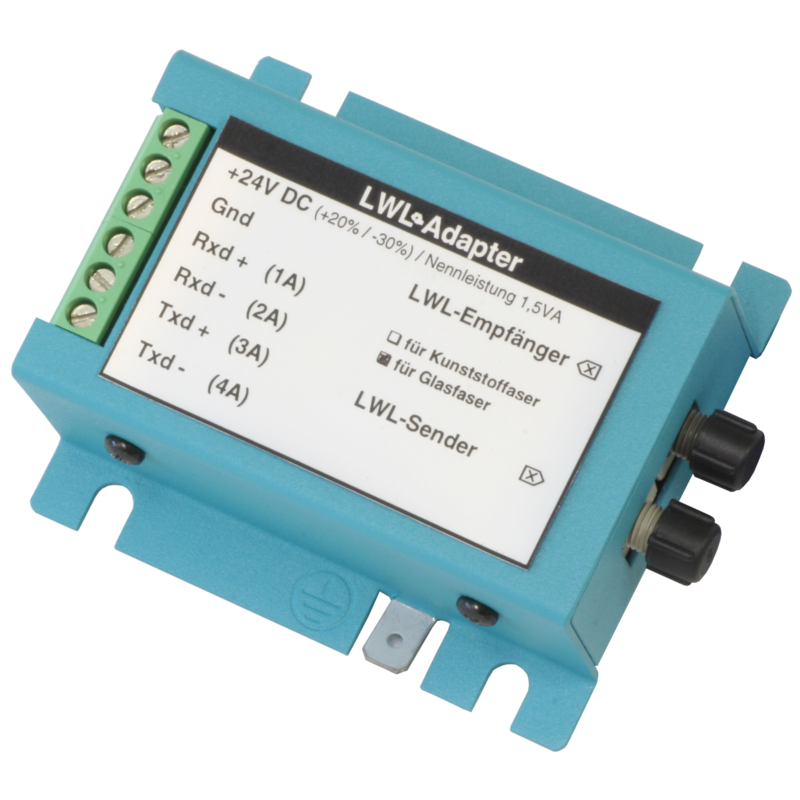

Fiber optic adapter for differential transmission (G)
Connect the differential line with fiber optic technology (fiberglass cable)
- Extend and connect the differential transmission line with fiberglass cable
- Fail-safe by insensitivity to electromagnetic fields
- No sparks through cable breakage or separation
- No crosstalk possible
- Lightning protection guaranteed
- Transfer of TxD and RxD
| Technical Specifications: | |
| Supply voltage: | 24V/DC +/- 20% |
| Power consumption: | 1,5 watt |
| Interfaces: |
2 x screw terminal for power supply 4 x screw terminal for differential transmission (RxD and TxD) 2 x socket for F-SMA fiber optic connector |
| Maximum connection length: | 2,5 km |
| Operating temperature: | 5 - 55°C |
| Case: | powder coated metal case with mounting flange |
| Dimensions: | 75 x 65 x 30 mm |
to the order datas
| article: | |||||
|---|---|---|---|---|---|
| Art. ID. | name | price | quantity | ||
| 9531-G | Light wire-adapter for glasfibre-cables |
198,- € |   |
||
to the order datas
| variant: | |||||
|---|---|---|---|---|---|
| Art. ID. | name | price | quantity | ||
| 9531-K | Light wire-adapter for plasticfibre-cables |
173,- € | |
||
| 9532-K | Light wire-adapter RS232 for plasticfibre-cables |
690,- € | |
||
to the order datas
| accessories: | |||||
|---|---|---|---|---|---|
| Art. ID. | name | price | quantity | ||
| 9391.1 | 24V DC power-supply unit 625mA Primary 110V - 240 VAC Euro+USA-plug |
39,- € | |
||
