Fiber optic adapter for RS232 (plastic cable) - Process Informatik Entwicklungsgesellschaft mbH

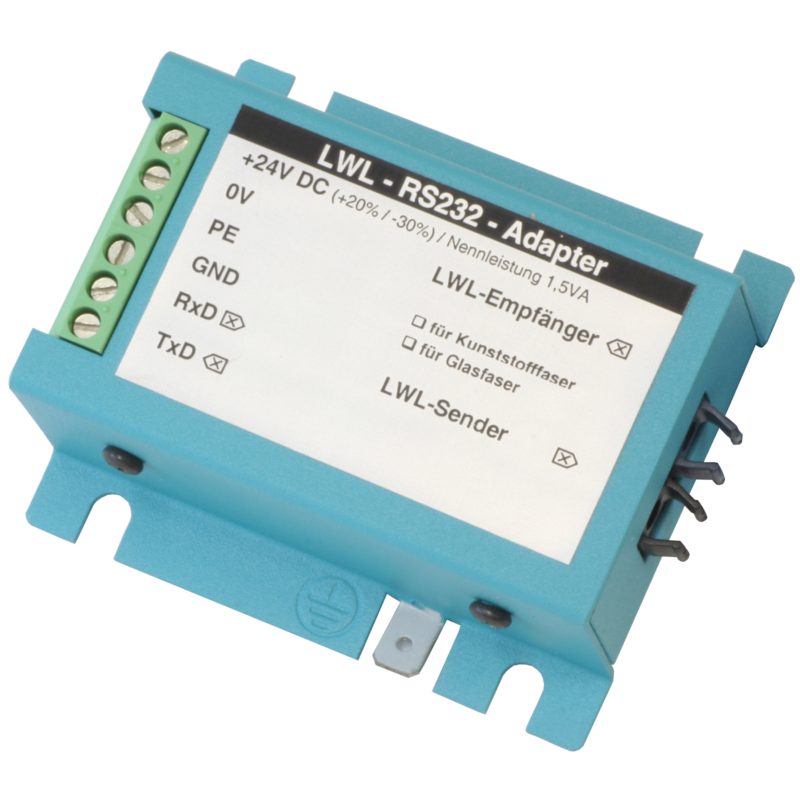

Fiber optic adapter for RS232 (plastic cable)


Connect the RS232 line with fiber optic technology

RS232 for plasticfibre-cables

  • Extend and connect the RS232 transmission line with plastic cable
  • Fail-safe by insensitivity to electromagnetic fields
  • No sparks through cable breakage or separation
  • No crosstalk possible
  • Lightning protection guaranteed

more...
variants:
732,00 € plus VAT. and shipping
ARTNR: 9532-K
Light wire-adapter
Obsolete
EAN number: 4260363243193
HS-code: 85389099


Alternativen

9530
iBx-Busterminal
intelligent bus terminal, substitute for BT-777-terminal, optional PLC-connecting cable
Quickbestellung INFOMAIL
by e-mail
239,00 €
plus VAT. and shipping


9429
DUP-TEXT-Display DUPLINE Obsolete
Panel for the Dup-Line-bus
Quickbestellung INFOMAIL
by e-mail
1002,00 €
plus VAT. and shipping


9530-9S
iBx-SPS-cable to PLC 3m
one side angled, other side straight cable tap
Quickbestellung INFOMAIL
by e-mail
95,00 €
plus VAT. and shipping


9531-K
Light wire-adapter
for plasticfibre-cables
Quickbestellung INFOMAIL
by e-mail
184,00 €
plus VAT. and shipping


9531-G
Light wire-adapter
for glasfibre-cables
Quickbestellung INFOMAIL
by e-mail
210,00 €
plus VAT. and shipping


9530-9WS
iBx-SPS-cable to PLC 3m
bothside 45° angle
Quickbestellung INFOMAIL
by e-mail
95,00 €
plus VAT. and shipping


9532-K
Light wire-adapter Obsolete
RS232 for plasticfibre-cables
Quickbestellung INFOMAIL
by e-mail
732,00 €
plus VAT. and shipping


9391.1
24V DC power-supply unit 625mA
Primary 110V - 240 VAC Euro+USA-plug
Quickbestellung INFOMAIL
by e-mail
59,00 €
plus VAT. and shipping


9391-UH
Mounting of universal DIN-rail-holder
of the relevant product, inclusive holder
Quickbestellung INFOMAIL
by e-mail
63,00 €
plus VAT. and shipping


  • Extend and connect the RS232 transmission line with plastic cable
  • Fail-safe by insensitivity to electromagnetic fields
  • No sparks through cable breakage or separation
  • No crosstalk possible
  • Lightning protection guaranteed
  • Transfer of TxD and RxD
Supply voltage: 24V DC +/- 20%
Power consumption: 1,5 watt
Interfaces: 3 x screw terminal for power supply and PE
3 x screw terminal for RS232 transmission (RxD, TxD, GND)
2 x socket for duplex connectors with or without locking
Maximum connection length: 145 m
Operating temperature: 0 - 55°C
Case: powder coated metal case with mounting flange
Dimensions: 75 x 65 x 30 mm

Scope of delivery: Fiber optic adapter for RS232 (plastic cable)
