S7-Interface cable for PPI, MPI, TS, HMI <=> RS232 applications
- Automatic protocol- and baud rate detection (depends on the used product from 9K6 to 12M)
- Firmwareupdate via internet for free
- PPI - adapter for S7 - 200
- MPI - adapter for S7 - 300 + 400
- CE/EMC compliant construction
- By included driver (depends on the used product) direct integration into the S7-engineering-tools, even with virtual COM port possible
- All intelligent MPI-interface-products including a free OPC-server license "OPC-Manager lite" [limited to 100 items]
- All products, including the examples and demo-version of communication driver on delivered CD
- Integrated display for output of diagnostic informations
- Applicable as TS/HMI adapter
- Double-sided connected cable
- Short plug to PLC
| Technical Specifications: | |
| Supply voltage: | 24V/DC +/- 20% |
| Power consumption: | 2 watt |
| Display: | double lined LCD-display |
| Handling/Configuration: | Kabelmanager-Software |
| Interfaces: |
to the PLC:
PPI/MPI-bus interface: 9,6 KBd - 187,5 KBdto the PD/PC:
RS232: 9,6 KBd - 115,2 KBd |
| Galvanic separation: | 1000V PPI/MPI-bus to the PC |
| Operating temperature: | 5 - 55°C |
| Case: | ABS-plastic case |
| Dimensions: | 146 x 41 x 29 mm |
Serial programming of the S7- PLC  With the MPI/PPI-cable you have the ability to access a connected
SPC-PLC S7-200 (PPI 9600 Baud and 19200 Baud) as well as S7-300/400 (MPI/Profbus
9600 Baud up to 187500 Baud) via PC serial with up to 115200 Baud for reading
respectively writing of data.

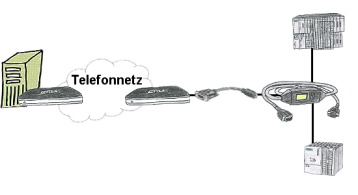

| Remote maintenance with TS-software without original TS-adaptor  You have to reach urgend your PLC via remote maintenance
and have no TS-adaptor in your company? No problem, configure with the MPI-Kabelmanager
your S7-interface-cable MPI/PPI-Kabel the mode "TS" for "remote maintenance",
connect this cable with the TS-Adapter (article number 9350-TS) with a standard modem
and send it all to your client. Now you will be able to start the connection with your
TS-sofware and solve the problem. And this all without buying a original TS-adapter.
|
Visualisation of your S7- PLC via COM-Port  Your panel provides a serial port and no MPI/Profibus for
connecting a S7-PLC. Connect the MPI/PPI-cable with it and you’re Online
with your panel.
| |
to the order datas
| article: | |||||
|---|---|---|---|---|---|
| Art. ID. | name | price | quantity | ||
| 9350 | MPI+PPI+HMI+TS - Interfacecable 3m with LCD-display |
178,- € |   |
||
| 9350.05M | MPI+PPI+HMI+TS - Interfacecable 5m with LCD-display |
184,- € | |
||
| 9350.10M | MPI+PPI+HMI+TS - Interfacecable 10m with LCD-display |
196,- € | |
||
| 9350.15M | MPI+PPI+HMI+TS - Interfacecable 15m with LCD-display |
209,- € | |
||
to the order datas
| variant: | |||||
|---|---|---|---|---|---|
| Art. ID. | name | price | quantity | ||
| 9350-M | MPI+PPI-Interfacecable TS-version 2m 9-pin modem plug |
199,- € | |
||
to the order datas
| accessories: | |||||
|---|---|---|---|---|---|
| Art. ID. | name | price | quantity | ||
| 9350-TS | Adapter cable 9pins to modem for TS-function |
30,- € | |
||
| 9350-9-CHP | CheapConn Busconnector for PROFIBUS |
25,- € | |
||
| 9391-HH | DIN-rail-holder for MPI/PPI quick and easy assembling on the cap rail |
10,- € | |
||
| 9352-104 | MPI-PC104-card 1 channel up to 12Mbaud equates to PC104-standard (90.2 x 95.9mm) |
315,- € | |
||
| 9352-104-2 | MPI-PC104-card 2 channel up to 12Mbaud equates to PC104-standard (90.2 x 95.9mm) |
415,- € | |
||
| 9350-4 | Power-adapter for MPI-cable with power-supply unit 100-240VAC |
51,- € | |
||
| 9350-4-ON | Power-adapter for MPI-cable without power-supply unit |
41,- € | |
||
| 9350-9-CHP-CC | Option CheapConn for MPI 9350-9-CHP+9350-9-CHP-K already mounted |
35,- € | |
||
| 9361-7 | T-Connector to PPI / MPI-Bus doubling of PPI/MPI/Profibus-port without bus connector |
143,- € | |
||
| 9350-9-CHP-K | Connecting cable MPIx to CheapConn 9-pins 1 : 1 plated-through with shield |
5,- € | |
||
| 9350-WAND | Wall-mounting for MPI/PPI + MPI-II + MPI-USB |
5,- € | |
||
