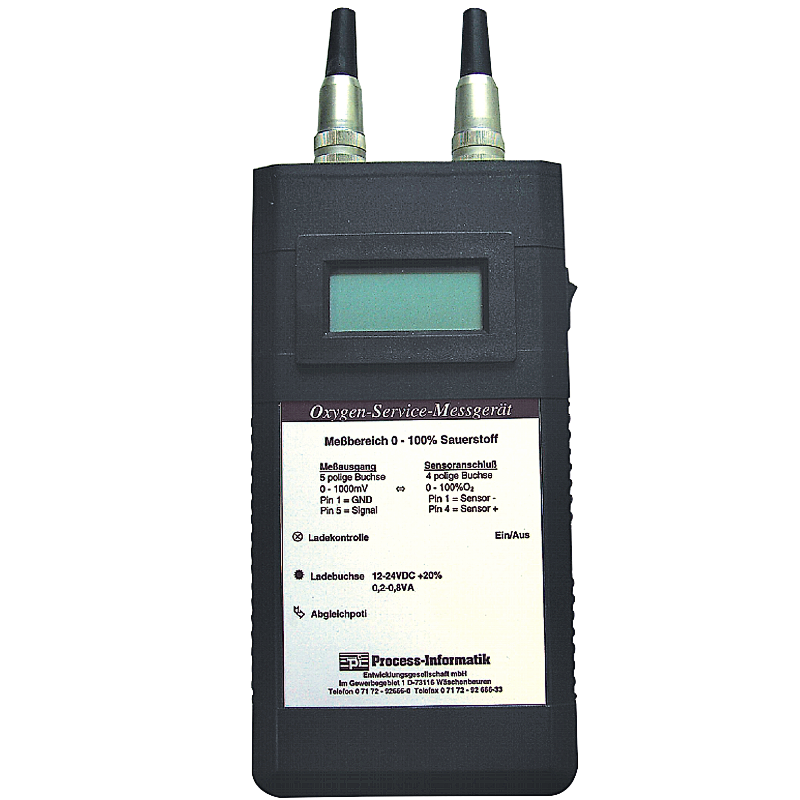

OSM-HMG

mobile and accurate measurement of oxygen at OSM sensors

• display of oxygen in %
• metering range 0 - 100% oxygen
• handily use because of battery operation
• for external OSM-sensor
• pin assignment of the DIN-sockets on the label
• zero compensation and slope balance via Potis
• resolution of the metering range in 0,1% steps
• accuracy over total metering range +/- 1%
• output voltage proportional to the aligned measured value of 0 - 1V


Technical Specifications:
Supply voltage:	9V/DC battery block integrated 12 - 24V/DC charging voltage
Power consumption:	0,8 watt
Display:	LCD-display / 13mm / 3,5-digit LED for charge control
Handling/Configuration:	on-/off-switch 2 x poti
Interfaces:	4pol DIN-female for sensor connection 5pol DIN-female for test port jack bush for charging cable
Operating temperature:	5 - 55°C
Case:	plastic case (black)
Dimensions:	195 x 100 x 40 mm

Easy handily oxygen display Unbenanntes Dokument You need the concentration of oxygen in your neighborhood? No problem, with the mobile HMG you can determine the concentration from 1 up to 100% with a exactness of 1% (dependend on your sensor).

to the order datas

article:
Art. ID.	name	price	quantity
9101.9	OSM-HMG hand measuring instrument	404,- €
9101.2	OSM sensor Plum - O2 - Cell	151,- €
