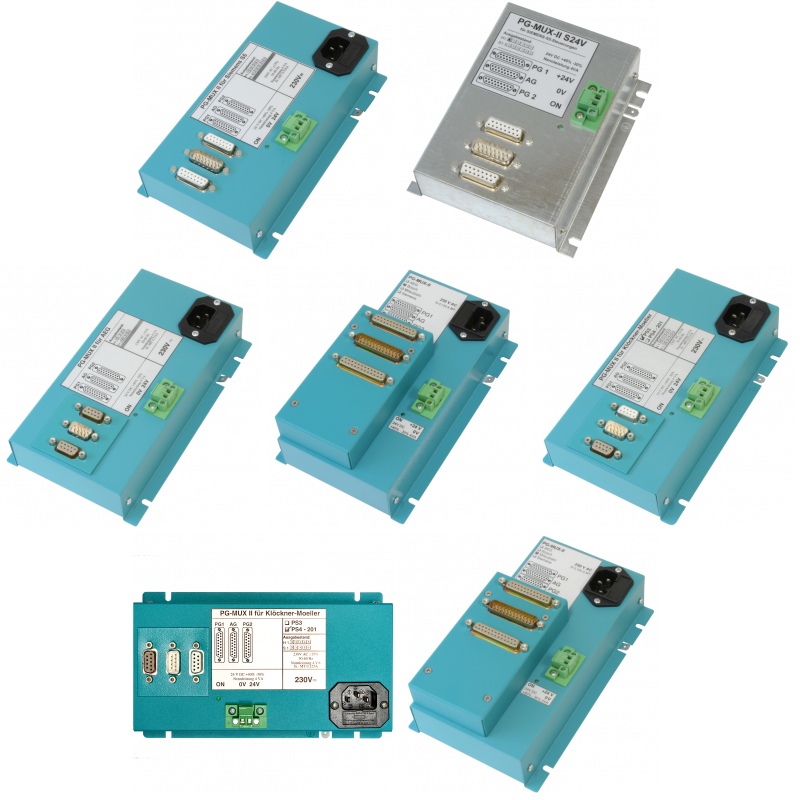

PG-MUX-II family

Devices are advanced versions of the world widely used PG-MUX
All connectors and controls on the front
Permanent checking of the device functions and power supply => restart at failure
Right away ONLINE with both interfaces to the PLC
All PD functions can be accomplished parallel by 2 PD’s
Provided PLC’s: S5-90U to 155U, AEG A120 and A250, Bosch CL 200 and CL 300 and CL 400, Klöckner-Moeller PS3 and PS4-201, Mitsubishi FX- and A-series
No additional or specific adapters are needed
Connecting mechanics, pin assignment and the electrical data correspond to the PD/PLC-interfaces of the relevant PLCs
Capability of connecting on PD-side: 2 x PD's / 2x OP/Pannel / 1x PD + 1x OP/Pannel
3m cable for AG-connection included in delivery

	PG-MUX II for Siemens PD-Interface Multiplexer for professionally usage (active)

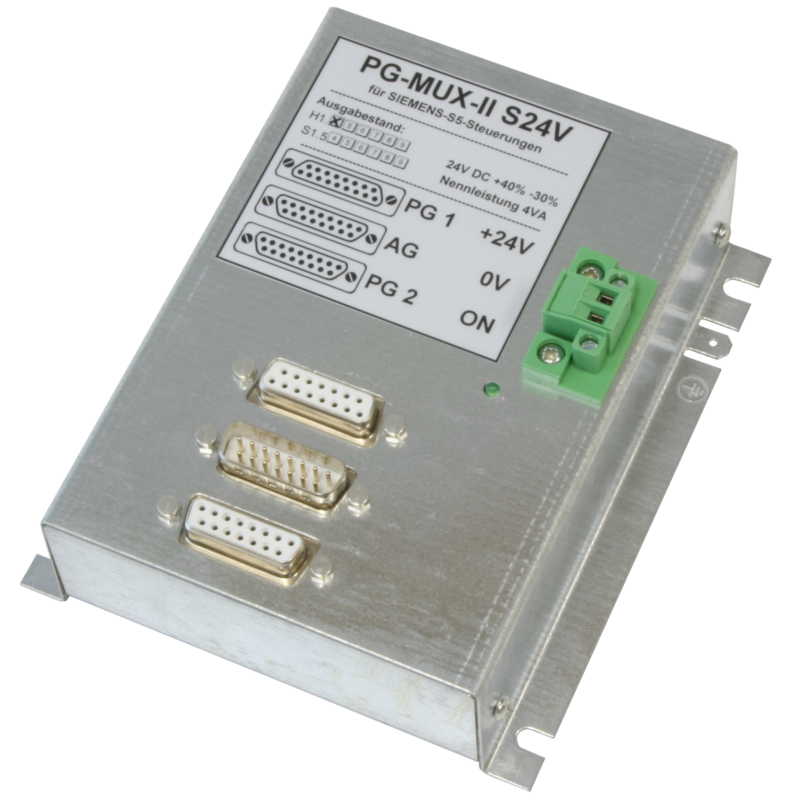

	PG-MUX II for Siemens (only 24V-device) PD-Interface Multiplexer for professionally usage (active)

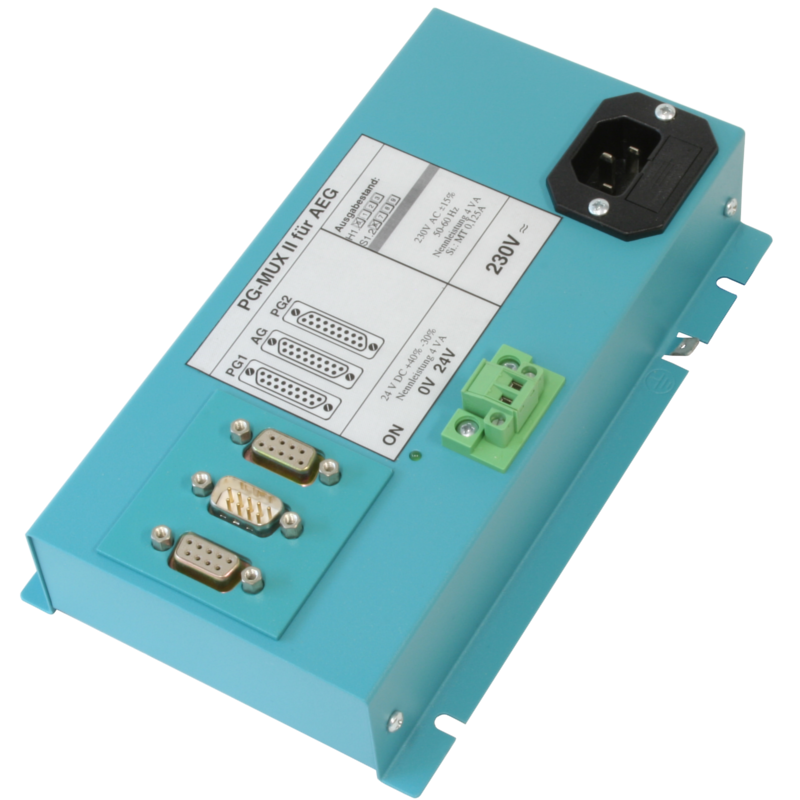

	PG-MUX II for AEG PD-Interface Multiplexer for professionally usage (active)
	PG-MUX II for Bosch PD-Interface Multiplexer for professionally usage (active)
	PG-MUX II for Klöckner-Moeller PS3 PD-Interface Multiplexer for professionally usage (active)
	PG-MUX II for Klöckner-Moeller PS4 PD-Interface Multiplexer for professionally usage (active)
	PG-MUX II for Mitsubishi PD-Interface Multiplexer for professionally usage (active)
