PG-UNI

Couples the PC (9 pol. COM-interface) with the 15 pol. X4/X5 interface port of the PLC

  • Complete electronics in the plug housing
  • Slide lock for firm grip on the PLC
  • Supply from the PLC of 20mA-current sources
  • Galvanic separation to 1000V with PG-ISO-adapter
  • Prolongable up to 300 meters on PLC side
  • Functioned also at many CP’s, IP’s and Sinumerik-PLC’s
Technical Specifications:
Supply voltage: from the current sources of the PLC
Power consumption: 0,2 watt
Display: -
Interfaces:
to the PLC:
TTY/20mA current loop (PG-COM passiv, PLC aktiv)
to the PD/PC:
RS232: 9,6 KBd - 115,2 KBd
Operating temperature: 5 - 55°C
Case: plastic case
Dimensions: 47 x 40 x 15 mm
Serial communication to the S5-PLC

Unbenanntes Dokument

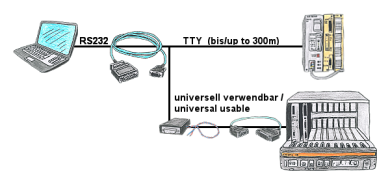

You have a PC with programming software and a 9pin COM-port as interface? No problem, for this purpose the PG-UNI-cable is exactly the right product. Connect it to PLC and PC and you’re Online. Even the 25pin interface of the AS511-card is no problem. You need the NETZ-adapter and also the AG-150-adapter and then this control is programmable, too.
Serial communication with CP and more S5-assemblies

Unbenanntes Dokument

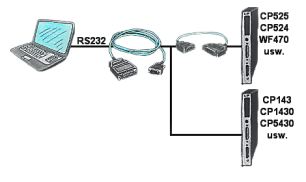

You have a PC with programming software and a 9pin COM-port as interface? No problem, for this purpose the PG-UNI-cable is exactly the right product. Connect it to a Siemens assembly such as H1-CP (CP1430), WF470 and PC or CP-525 with the CP525-adapter and PC and you’re Online.
to the order datas
article:
Art. ID.namepricequantity
9359-3.10CM PG-UNI-cable 0.1m special length
for PLC/CP-IP - connection 		89,- € Quickbestellung INFOMAIL
9359-3 PG-UNI-cable 3m
for PLC/CP-IP - connection 		89,- € Quickbestellung INFOMAIL
9359-3.05M PG-UNI-cable 5m
for PLC/CP-IP - connection 		99,- € Quickbestellung INFOMAIL
9359-3.10M PG-UNI-cable 10m
for PLC/CP-IP - connection 		115,- € Quickbestellung INFOMAIL

to the order datas
variant:
Art. ID.namepricequantity
9359-SON Additional charge for special wiring
PG-COM/ PG-UNI/ PG-UNI-II		 5,- € Quickbestellung INFOMAIL
9390 Additional charge for special length
for S5-Interface cables per Meter 3,- Euro		 3,- € Quickbestellung INFOMAIL
9359-3.X Special length: PG-UNI-cable (3m) + 9390
for PLC/CP/IP - connection		 101,- € Quickbestellung INFOMAIL

to the order datas
accessories:
Art. ID.namepricequantity
9359-9.M Adapter COM 1 : COM2
25pin (male) - 9pin (female)		 17,- € Quickbestellung INFOMAIL
9359-9 Adapter COM 1 : COM2
9pin (male) - 25pin (female)		 17,- € Quickbestellung INFOMAIL
9359-5-150 AG-150-adapter
for PG-UNI + PG-UNI-II-cable to AG-150		 39,- € Quickbestellung INFOMAIL
9359-5 CP-525-adapter
for PG-UNI + PG-UNI-II-cable <-> CP-525		 39,- € Quickbestellung INFOMAIL
9359-5K CP-525-K-adapter
for PG-UNI + PG-UNI-II-cable <-> CP-525-communication		 39,- € Quickbestellung INFOMAIL
9359-4 Power-adapter
for PG-UNI-cable /UNI-II-cable/S5-LAN++		 59,- € Quickbestellung INFOMAIL
9359-8 PG-ISO-adapter
1000V galv. seperation		 89,- € Quickbestellung INFOMAIL
9359-7 PG-UNI - lengthening set
complete assembling set		 16,- € Quickbestellung INFOMAIL
9359-MAX233 RS232 / V24 chip
for interfacecable		 5,- € Quickbestellung INFOMAIL
9359-6 SINUM-adapter
for PG-UNI + PG-UNI-II-cable to SINUMERIK		 39,- € Quickbestellung INFOMAIL
9359-5-WF470 WF-470-adapter
for PG-UNI + PG-UNI-II-cable <-> WF470		 39,- € Quickbestellung INFOMAIL
9310 Additional charge 25-pins PC-plug
special construction of the RS232-side		 10,- € Quickbestellung INFOMAIL
