PG-USB

Coupling of PC (USB-port type A) with the 15pin X4/X5 PD-port of the PLC

  • Complete electronics in the plug housing
  • Slide lock for firm grip on the PLC
  • Power supply from the USB-port
  • Prolongable up to 100m on the PLC side
  • Runs with the standard S5-software despite virtual com-port (driver for Win2000, XP, Vista and Windows7 (32+64-bit) will be provided)
Technical Specifications:
Supply voltage: 5V/DC
Power consumption: 0,3 watt
Display: 2 status-LEDs for RXT/TXD
Interfaces:
to the PLC:
TTY/20mA current loop (PG-USB aktiv, PLC passiv)
to the PD/PC:
USB 1.1 cable type A
Operating temperature: 5 - 55°C
Case: metal case
Dimensions: 50 x 40 x 17 mm
Active on every S5-PLC

Unbenanntes Dokument

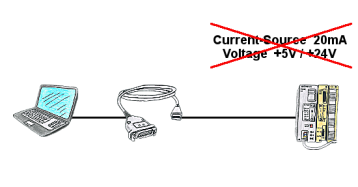

You have to program an assembly which does not provide neither power sources nor voltages at your PD-interface, such as the AS511-card for example? No problem, the PG-USB-cable supplies itself completely from the USB-port and so it’s active adverse the communication partner. He uses own power sources for the communication.
Communication with Win98 – XP/Vista via USB to S5-PLC

Unbenanntes Dokument

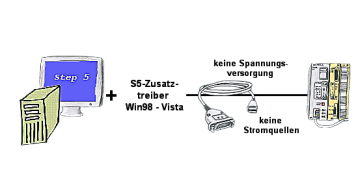

You still have a PC with Win98 and Step5-package and would like to go Online on your S5-PLC via USB? No problem, the provided virtual Com-Port PLCVCom emulates a COM-port on your PC with which you go Online. With a patchtool for the Siemens Step5-software, which is provided as well, nothing else stands in your way to communicate via LAN.
to the order datas
article:
Art. ID.namepricequantity
9359-1 PG-USB-cable 3m
for PLC's + LED + metal case		 125,- € Quickbestellung INFOMAIL
9359-1.05M PG-USB-cable 5m
for PLC's + LED + metal case		 150,- € Quickbestellung INFOMAIL

to the order datas
accessories:
Art. ID.namepricequantity
9359-5-150-USB PG-USB AG-150-adapter
for PG-USB-cable to AG-150		 39,- € Quickbestellung INFOMAIL
9359-5-USB PG-USB CP-525-adapter
for PG-USB-cable <-> CP-525-communication		 39,- € Quickbestellung INFOMAIL
9359-5K-USB PG-USB CP-525-K-adapter
for PG-USB-cable <-> CP-525-communication		 39,- € Quickbestellung INFOMAIL
9359-6-USB PG-USB SINUM-adapter
for PG-USB-cable to SINUMERIK		 39,- € Quickbestellung INFOMAIL
9359-5-WF470-USB PG-USB WF-470-adapter
for PG-USB-cable <-> WF470		 39,- € Quickbestellung INFOMAIL
9359-7-USB PG-USB-lengthening set
complete assembling set		 29,- € Quickbestellung INFOMAIL
