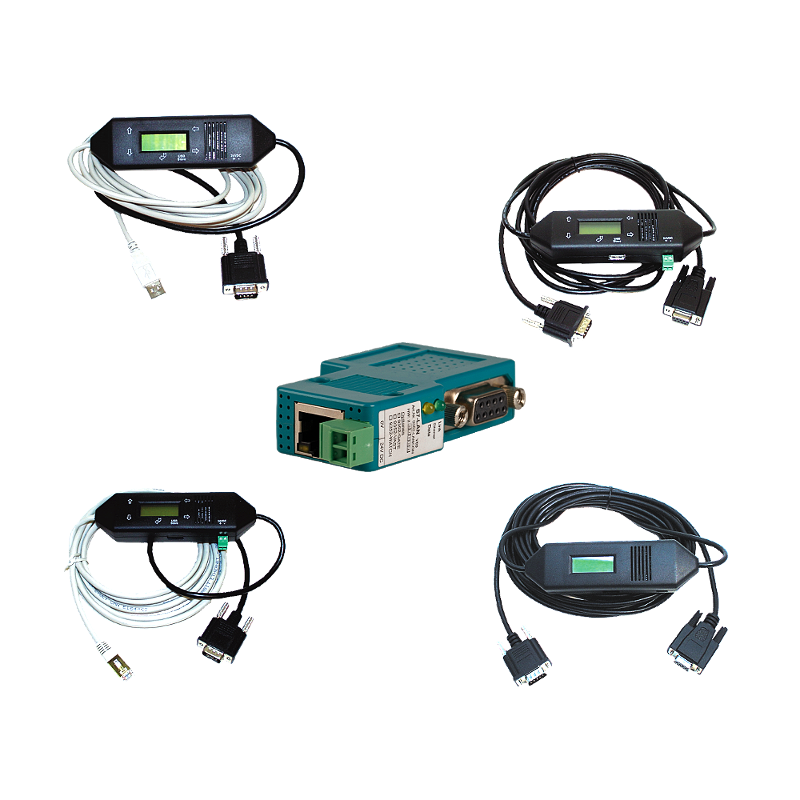

S7 - interface cable

With each interface of your PC to the S7-PLC

• multifunctional, several functions in one product
• well-priced alternative to high-priced original products
• easy handling and therefore quick operation

application table:
MPI/PPI
MPI - II
MPI - USB
MPI - LAN
S7 - LAN
PPI-Bus
PPI 9.6 KBit/s - 19.2 KBit/s
x
x
x
x
x
Multimaster 9.6 KBit/s - 187.5 KBit/s
x
x
x
x
MPI-Bus
19.2 KBit/s
x
x
x
x
x
187.5 KBit/s
x
x
x
x
x
1.5 MBit/s
x
x
x
x
Profibus
9.6 KBit/s
x
x
x
x
19.2 KBit/s
x
x
x
x
x
45.45 KBit/s
x
x
x
x
93.75 KBit/s
x
x
x
x
187.5 KBit/s
x
x
x
x
x
500 KBit/s
x
x
x
x
1.5 MBit/s
x
x
x
x
3.0 MBit/s
x
x
x
x
6.0 MBit/s
x
x
x
x
12.0 MBit/s
x
x
x
x
Profibus-profile
DP
x(12)
x
x
x
x
standard
x(12)
x
x
x
x
universal(DP/FMS)
x
x
x
x
RS 232
9.6 KBit/s
x(19)
x(19)
19.2 KBit/s
x
x
38.4 KBit/s
x
x
57.6 KBit/s
x(9)
x(9)
115.2 KBit/s
x(9)
x(9)
USB
USB 1.1 (6)
x(1)
x
LAN
10/100BaseTx
x(7)
x
TeleService operation
with S7-300/400
x(14)(18)
x(14)(18)
baud rates at TS-operation directly at the PC
9.6 KBit/s
x
x
19.2 KBit/s
x
x
38.4 KBit/s
x(8)
x(8)
57.6 KBit/s
x(8)
x(8)
baud rates at TS-operation directly with a modem
9.6 KBit/s
x
x
19.2 KBit/s
x
x
38.4 KBit/s
x
x
57.6 KBit/s
x
x
115.2 KBit/s
x
x
HMI
9.6 KBit/s
x
x
x(13)
x(13)
x(13)
19.2 KBit/s
x
x
x(13)
x(13)
x(13)
38.4 KBit/s
x
x
x(13)
x(13)
x(13)
57.6 KBit/s
x
x
x(13)
x(13)
x(13)
115.2 KBit/s
x
x
x(13)
x(13)
x(13)
update
firmware-update
x(10)
x(10)
x(15)
x(15)
x(15)
input/online help
keypad
x
x
x

display
x
x
x
x

simultaneous PD connections
PLCVCOM
x
1
1
8
8
RFC1006
x
x
simultaneous AG connections
passive subscriber
1
15
15
15
15
active subscriber
126
126
126
126
126
more functions
webserver for configuration
x
x
status/control variable(20)
x
x
S7 on S7/S5 DB exchange(20)
x
x
S5 on MPI DB exchange(20)
x
S7 on MPI (Send/Fetch)(20)
x
x
Profinet Gateway(20)
x
x
MPI-Printer(network, lpr)(20)
x
x
galvanic separation
to the bus (screen connected through) 1KV 1KV 1KV 1,5KV 1,5KV
mounting
wall monuting
(with opt. wall mounting-set)
x
x
x
x
upgrading with
CheapConn+cable
x
x
x
x
supports
WIN 98
x
x(3)
x
x
WIN 98 SE
x
x
x
x
x
WIN ME
x
x
x
x
x
WIN NT
x
x(5)
x(5)
x
WIN 2000
x
x
x
x
x
WIN XP Home (4)
x
x
x
x
x
WIN XP Professional
x
x
x
x
x
Vista(32bit)
x
x
x
x
x

(1) just with USB-cable plug <-> plug, type A <-> A, item number: 9352.1
(3) only serial communication
(4) Siemens Step7 V5.2 and higher dont run with this operationing system
(5) USB-communication is only possible with the special driver for Win NT
(6) USB 2.0 is backward compatible to 1.1
(7) Cable is designed for direct connection to PC network card socket. It can also be a hub / switch with uplink port or operated at a hub / switch with automatic detection of assignement and adaptation
(8) only in combination with the MPI-Speed-driver („continously-active“)
(9) Siemens Step7 supports these baud rates only with the MPI-Speed-Utility
(10) Update directly with PC or via Tele-Network if the cable is connected to a device of the Tele-Network-family (Tele-Link, Tele-Book or Tele-Professional)
(11) only in the mode: MultiMaster-Mode
(12) up to a maximum baud rate of 187.5 KBit/s
(13) In this transmission, the baud rate is irrelevant, because it communicates via a virtual COM-port.
(14) with the use of the TS-adapter / item number: 9350.TS
(15) Update directly with PC via virtual COM-Port
(18) Operation requires Step 7 with additional software Tele-Service (TS) from Siemens
(19) only at PPI-communication possible
(20) option with costs
