S7-USB - Process Informatik Entwicklungsgesellschaft mbH

S7-USB Produktvideo anzeigen Download


Smallest USB-Gateway +++ USB-Adapter PPI/MPI/PROFIBUS +++ For HMI-USB-applications +++ Simatic-Manager/TIA compatible +++ PD/PC-interface-driver

universal USB-module on PPI/MPI/Profibus
9,6 KBit/s up to 12MBit/s

  • Supplied driver TIC (Total Integrated Communication) (runs under Windows (any)) allows communication and configuration of the interface product
  • Function with TIA-Portal and Simatic-Manager, also with WinCC and Comfort Panel
  • TIC-(Totally Integrated Communication)-driver for Step7/TIA-Portal for Windows (any) 32/64 Bit:
    TIC firmware / configuration-tool / Step7-/TIA-driver
  • Automatic protocol- and baudrate-detection (depends on the used product from 9K6 to 12M)

more...
variants:

317,00 € plus VAT. and shipping

ARTNR: 9352-S7-USB

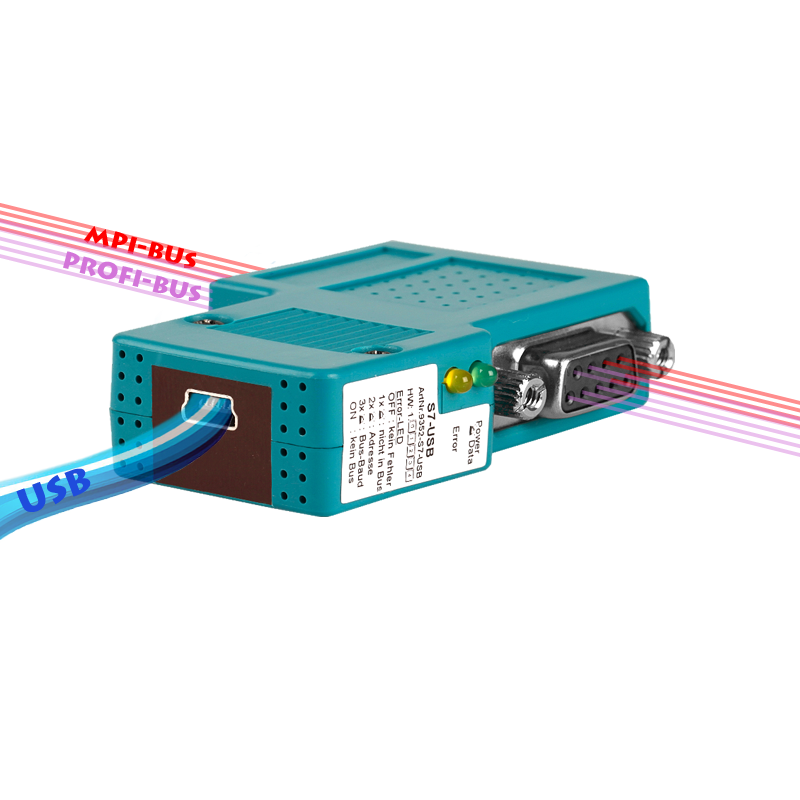

S7-USB connector for Siemens S7 Controller
EAN number: 4260363240000
HS-code: 85444290
Weight: 0.05 kg



S7

PPI-Bus
PPI 9.6 KBit/s - 19.2 KBit/s
x
x
x
x
x
x
x
x
x
Multimaster 9.6 KBit/s - 187.5 KBit/s
x
x
x
x
x
x
x
x
MPI-Bus
19.2 KBit/s
x
x
x
x
x
x
x
x
x
187.5 KBit/s
x
x
x
x
x
x
x
x
x
1.5 MBit/s
x
x
x
x
x
x
x
x
Profibus
9.6 KBit/s
x
x
x
x
x
x
x
x
19.2 KBit/s
x
x
x
x
x
x
x
x
x
45.45 KBit/s
x
x
x
x
x
x
x
x
93.75 KBit/s
x
x
x
x
x
x
x
x
187.5 KBit/s
x
x
x
x
x
x
x
x
x
500 KBit/s
x
x
x
x
x
x
x
x
1.5 MBit/s
x
x
x
x
x
x
x
x
3.0 MBit/s
x
x
x
x
x
x
x
x
6.0 MBit/s
x
x
x
x
x
x
x
x
12.0 MBit/s
x
x
x
x
x
x
x
x
Profibus-profile
DP
x(12)
x
x
x
x
x
x
x
x
standard
x(12)
x
x
x
x
x
x
x
x
universal(DP/FMS)
x
x
x
x
x
x
x
x
RS 232
9.6 KBit/s
x(19)
x(19)
19.2 KBit/s
x
x
38.4 KBit/s
x
x
57.6 KBit/s
x(9)
x(9)
115.2 KBit/s
x(9)
x(9)
USB
USB 1.1 (6)
x(1)
x
x(2)
LAN
10/100BaseTx
x(7)
x
x
x
x
WIFI
2.4 GHz
x
TeleService operation
with S7-300/400
x(14)(18)
x(14)(18)
baud rates at TS-operation directly at the PC
9.6 KBit/s
x
x
19.2 KBit/s
x
x
38.4 KBit/s
x(8)
x(8)
57.6 KBit/s
x(8)
x(8)
baud rates at TS-operation directly with a modem
9.6 KBit/s
x
x
19.2 KBit/s
x
x
38.4 KBit/s
x
x
57.6 KBit/s
x
x
115.2 KBit/s
x
x
HMI
9.6 KBit/s
x
x
x(13)
x(13)
x(13)
x(13)
x(13)
x(13)
x(13)
19.2 KBit/s
x
x
x(13)
x(13)
x(13)
x(13)
x(13)
x(13)
x(13)
38.4 KBit/s
x
x
x(13)
x(13)
x(13)
x(13)
x(13)
x(13)
x(13)
57.6 KBit/s
x
x
x(13)
x(13)
x(13)
x(13)
x(13)
x(13)
x(13)
115.2 KBit/s
x
x
x(13)
x(13)
x(13)
x(13)
x(13)
x(13)
x(13)
update
firmware-update
x(10)
x(10)
x(15)
x(15)
x(15)
x(15)
x(15)
x(15)
x(15)
input/online help
keypad
x
x
x
x(21)
x(21)
x(21)
x(21)
display
x
x
x
x
x(21)
x(21)
x(21)
x(21)
PD connections (maximum)
PLCVCOM
1
1
1
1
1
1
1
1
RFC1006
8
8
32
32
32
AG connections (maximum)
passive subscriber
1
15
15
15
15
15
15
15
15
active subscriber
126
126
126
126
126
126
126
126
126
more functions
integrated PLC-firewall
x
x
x
display diagnostic-buffer in the webbrowser
x
x
x
webserver for configuration
x
x
x
x
x
Remote access over existing VPN-channel
x
x
x
x
x
Access via existing WLAN-channel
x
x
x
x
x
status/control variable
x
x
x
x
x
S7 on S7/S5 DB exchange
x
x
x
x
x
S5 on MPI DB exchange
only as S5toMPI
S7 on MPI (Send/Fetch)
x
x
x
x
x
Profinet Gateway
x
x
x
x
x
Time in PLC from NTP-server
x
x
x
x
x
galvanic separation
to the bus (screen connected through)
1KV
1KV
1KV
1,5KV
1KV
1,5KV
1,5KV
1,5KV
1,5KV
mounting
wall monuting
(with opt. wall mounting-set)
x
x
x
x
upgrading with
CheapConn+cable
x
x
x
x
supports
WIN 98
x
x(3)
x
x
x
x
x
WIN 98 SE
x
x
x
x
x
x
x
x
x
WIN ME
x
x
x
x
x
x
x
x
x
WIN NT
x
x(5)
x(5)
x
x(5)
WIN 2000
x
x
x
x
x
x
x
x
x
WIN XP Home (4)
x
x
x
x
x
x
x
x
x
WIN XP Professional
x
x
x
x
x
x
x
x
x
Vista(32bit)
x
x
x
x
x
x
x
x
x
Win7(32bit)
x
x
x
x
x
x
x
x
x
Win7(64bit)
(22)
x(23)
x(20)
x(20)
x(20)
x(20)
x(20)
x(20)
x(20)
Win8/8.1
(22)
x(23)
x(20)
x(20)
x(20)
x(20)
x(20)
x(20)
x(20)
Win10
(22)
x(23)
x(20)
x(20)
x(20)
x(20)
x(20)
x(20)
x(20)
Win11
(22)
x(23)
x(20)
x(20)
x(20)
x(20)
x(20)
x(20)
x(20)

(1) just with USB-cable plug <-> plug, type A <-> A, item number: 9352.1
(2) just with USB-cable plug <-> plug, type A <-> mini B, item number: 9352.3
(3) only serial communication
(4) Siemens Step7 V5.2 and higher dont run with this operationing system
(5) USB-communication is only possible with the special driver for Win NT
(6) USB 2.0 is backward compatible to 1.1
(7) Cable is designed for direct connection to PC network card socket. It can also be a hub / switch
with uplink port or operated at a hub / switch with automatic detection of assignement and adaptation
(8) only in combination with the MPI-Speed-driver („continously-active“)
(9) Siemens Step7 supports these baud rates only with the MPI-Speed-Utility
(10) Update directly with PC or via Tele-Network if the cable is connected to a device of the
Tele-Network-family (Tele-Link, Tele-Book or Tele-Professional)
(11) only in the mode: MultiMaster-Mode
(12) up to a maximum baud rate of 187.5 KBit/s
(13) In this transmission, the baud rate is irrelevant, because it communicates via a virtual COM-port.
(14) with the use of the TS-adapter / item number: 9350.TS
(15) Update directly with PC and TIC-driver
(18) Operation requires Step 7 with additional software Tele-Service (TS) from Siemens
(19) only at PPI-communication possible
(20) Only with TIC-driver
(21) with integrated webserver possible
(22) No support of Siemens Step7-software possible
(23) Only with USB and with TIC-driver

HERRMANN IDB GmbH
Vöhringen
www.herrmann-idb.de

Wöhrle Belgium B.V.B.A.
Mechelen , Belgium
www.wohrle.be
  • Supplied driver TIC (Total Integrated Communication) (runs under Windows (any)) allows communication and configuration of the interface product
  • Function with TIA-Portal and Simatic-Manager, also with WinCC and Comfort Panel
  • TIC-(Totally Integrated Communication)-driver for Step7/TIA-Portal for Windows (any) 32/64 Bit:
    TIC firmware / configuration-tool / Step7-/TIA-driver
  • Automatic protocol- and baudrate-detection (depends on the used product from 9K6 to 12M)
  • Connects only to the bus when it is requested by PG
  • Firmwareupdate via internet for free
  • PPI-adapter for S7-200
  • MPI/Profibus-adapter for S7-300 + 400
  • CE/EMC compliant construction
  • All intelligent MPI-interface-products including a free OPC-server-DA-license "OPC-Manager lite" [limited to 100 items]
  • All products, including the examples and demo-version of communication-driver as download on the product-site
  • DPV1-master of class 2 and supports all functions that a PG supports:
    • Diagnosis, configuration and programming of controllers (via software such as Simatic-Manager, TIA-Portal)
    • Diagnosis and configuration of DP-slaves (via software such as Starter)
  • With full PD–diagnosis-socket
  • Power supply from the USB-jack
  • Active module, no influence on further bus-clients in the system
Access to MPI/Profibus without power supply
Produkbild
Your’re right in the middle of your production line and are standing in front of a passive assembly just like a switcher or a ET200, in that case you won’t be able to go Online without an external power supply of your programming adapter, unless you’re using the S7USB. This module is supplied completely from the USB-interface.
Supply voltage: 5V DC
Power consumption: 2 watt
Display: 2 status-LEDs
Handling/Configuration: Kabelmanager-Software
Interfaces:
to the PLC:
PPI/MPI/Profibus interface: 9,6 KBd - 12 MBd
to the PD/PC:
PD/diagnosis jack
Mini-USB-B-Buchse
Galvanic separation: 1000V PPI/MPI/Profibus to the PC
Operating temperature: 0 - 55°C
Case: ABS-plastic case
Dimensions: 65 x 43 x 17 mm

Scope of delivery: S7-USB-module
All prices plus costs of delivery, shipping insurance and VAT.

accessories:

9352.3
USB-cable plug/plug type A-B-Mini 3m

USB 1.1 / 2.0 up to 480 MBit
Quickbestellung INFOMAIL
by e-mail
25,00 €
plus VAT. and shipping


84,00 €
plus VAT. and shipping


9352-S7-BK
S7-bus-coupler

Disconnects all signals except differential bus lines Safety for all participants at VIPA 21x-2BM0x and 208-1DP0x
Quickbestellung INFOMAIL
by e-mail
42,00 €
plus VAT. and shipping


All prices plus costs of delivery, shipping insurance and VAT.

9352-S7-USB
S7-USB connector for Siemens S7 Controller

universal USB-module on PPI/MPI/Profibus 9,6 KBit/s up to 12MBit/s
Quickbestellung INFOMAIL
by e-mail
317,00 €
plus VAT. and shipping




maximum 3 articles
9352-USB
MPI-USB-cable 3m

PPI/MPI/Profibus up to 12Mbit/s
Quickbestellung INFOMAIL
by e-mail
359,00 €
plus VAT. and shipping




maximum 3 articles
9352-USB.05M
MPI-USB-cable 5m Obsolete

PPI/MPI/Profibus up to 12Mbit/s
Quickbestellung INFOMAIL
by e-mail
390,00 €
plus VAT. and shipping




maximum 3 articles

All prices plus costs of delivery, shipping insurance and VAT.

9352.3
USB-cable plug/plug type A-B-Mini 3m

USB 1.1 / 2.0 up to 480 MBit
Quickbestellung INFOMAIL
by e-mail
25,00 €
plus VAT. and shipping


9359-1
PG-USB-cable 3m for Siemens S5 Controller

for PLC's + LED + metal case
Quickbestellung INFOMAIL
by e-mail
145,00 €
plus VAT. and shipping


9352-LANCON
S7-LAN connector for Siemens S7 PLC controller

Network-connection for the S7-200/300/400-PLC +++ S7-adapter PPI/MPI/PROFIBUS +++ Of developer and manufacturer +++ Smallest Ethernet-gateway S7 +++ Network for each S7-PLC +++ Fast commissioning +++ Replacement for CP343-1/443-1
Quickbestellung INFOMAIL
by e-mail
423,00 €
plus VAT. and shipping


9350-9-DIAG

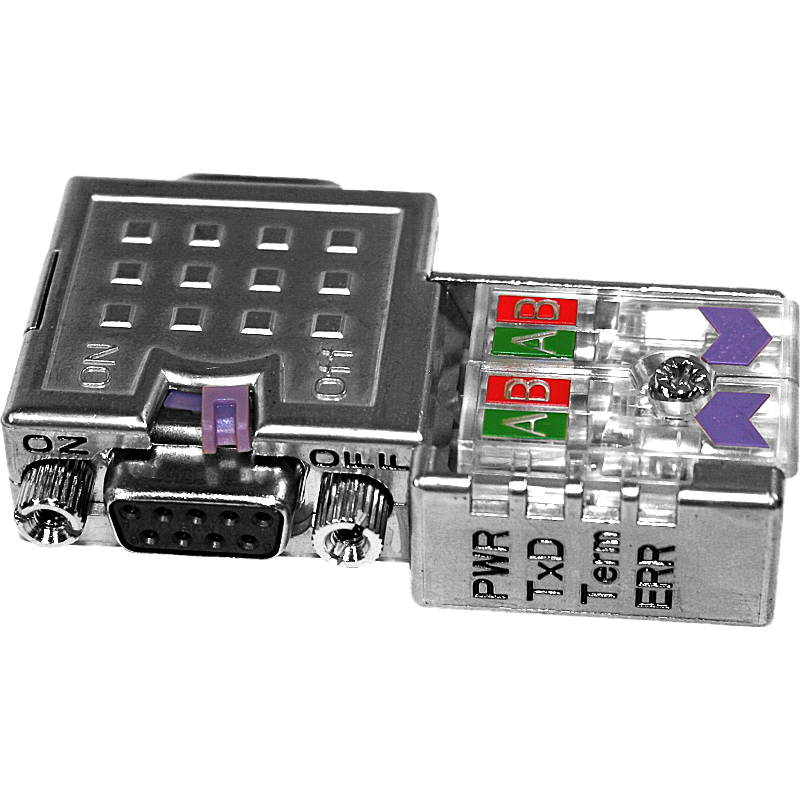

DiagConn 90° Highend-connector
