PLC-clock
DCF-time reception for the PLC via digital I/O
- Transfer of DCF-time and date to the PLC
- Representation in sec, min, h, day, month, year, weekday
- Statusbits for summer-, wintertime , DCF-OK, etc.
- 4 LEDs for displaying power supply, mode and DCF-Signal
| Technical Specifications: | |
| Supply voltage: | 24V/DC +/- 20% |
| Power consumption: | 3 watt |
| Display: | 4 status-LEDs |
| Handling/Configuration: | DIP-Switch |
| Interfaces: |
to the PLC:
5 x screw type terminal for E/A-inputs5 x screw type terminal for E/A-outputs others:
2 x screw type terminal for 24V/DC power supply15pol female for DCF77-antenna connection |
| Operating temperature: | 5 - 55°C |
| Case: | powder coated metal case with mounting flange |
| Dimensions: | 97 x 149 x 36 mm |

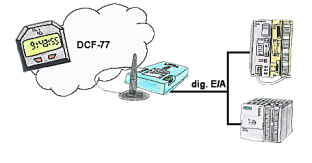

Atomic time at the PLC  For your production flow you’re always in need of an
exact time? No problem, connect the SPS-Clock with 4 digital in-/outputs of
your PLC, after synchronisation of the SPS-Clock the updating time can be read
in a DB of the PLC.
| |
to the order datas
| article: | |||||
|---|---|---|---|---|---|
| Art. ID. | name | price | quantity | ||
| 9366 | DCF-77-antenna cable length 5m for connecting to SPS-Clock |
51,- € |   |
||
| 9365 | SPS-CLOCK atomic time to digital I/O of PLC |
251,- € | |
||
| 9366-1 | Amplifier for DCF-antenna processing of the DCF-77-signal for longer distances between antenna and SPS-Clock |
77,- € | |
||
to the order datas
| accessories: | |||||
|---|---|---|---|---|---|
| Art. ID. | name | price | quantity | ||
| 9391.1 | 24V DC power-supply unit 625mA Primary 110V - 240 VAC Euro+USA-plug |
39,- € | |
||
