TELE-PROFessional (TP)
Facilities management world wide – remote maintenance and diagnosis via telephone
• secured modem-protocol, no additional software needed
• high throughput
• no PLC-crash possible
• all online functions possible
• compatible to SIMATIC-S7-200/300/400
• compatible to all SIMATIC-S5-PLC’s
• supports operation on H1, L1, L2 regarding path selection
• supports the operation KOR/MUX of Siemens, as well as PD-BUS
• easy handling because of menu navigation and display in plain text
• easy and quick configuration by menu item initial configuration
• multi-stage password levels provide high data security
• cost improvement because of call-back function
• PD-PD-coupling possible
• integrated telephone directory
• compatible to all TELE-Network-devices
• integrated MUX as 2. PD-socket on Siemens
• analogue modem for world wide use
• EMC-compatible circuit arrangement
• other PLC-protocols with optional Tele-Manager reloadable
• software-updates via telephone line transferable
• incl. modem cable and power supply unit
• high throughput
• no PLC-crash possible
• all online functions possible
• compatible to SIMATIC-S7-200/300/400
• compatible to all SIMATIC-S5-PLC’s
• supports operation on H1, L1, L2 regarding path selection
• supports the operation KOR/MUX of Siemens, as well as PD-BUS
• easy handling because of menu navigation and display in plain text
• easy and quick configuration by menu item initial configuration
• multi-stage password levels provide high data security
• cost improvement because of call-back function
• PD-PD-coupling possible
• integrated telephone directory
• compatible to all TELE-Network-devices
• integrated MUX as 2. PD-socket on Siemens
• analogue modem for world wide use
• EMC-compatible circuit arrangement
• other PLC-protocols with optional Tele-Manager reloadable
• software-updates via telephone line transferable
• incl. modem cable and power supply unit
| Technical Specifications: | |
| Supply voltage: | 24V/DC +/- 20% |
| Power consumption: | 5 watt |
| Display: | expressive LCD-display |
| Handling/Configuration: | integrated keypad Tele-Manager |
| Interfaces: |
to the PLC:
TTY/20mA current loop (AG-TELE aktiv, PLC passiv)RS232: 9,6 KBd - 115,2 KBd / fully assigned to the PD/PC:
TTY/20mA current loop (100 % mechanically and electr. compatible)RS232: 9,6 KBd - 115,2 KBd / with a 1on1-cable to the PC others:
1 x parallel port, 1 x PCMCIA |
| Integrated modem: | 33K6-analogue modem with BZT-approval |
| Operating temperature: | 5 - 55°C |
| Case: | powder coated metal case with mounting flange |
| Dimensions: | 280 x 170 x 55 mm |
Remote maintenance / telecontrol of PLC-devices ![]() Access to the connected PLC takes place by coupling via Analogue-,
ISDN- (only with AB-adapter) and GSM-(only with external GSM-modem)-line.
| PLC coupling (data exchange between PLCs) ![]() Your pumping stations report the water levels of the central
control via telephone network. The central office itself can of course transmit
commands/messages to the substations as well. Thereto no dedicated line is required,
a “normal” telephone connection is sufficient because the devices
hangs up the line after occured message.
|

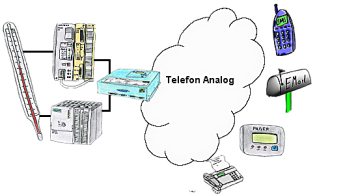

PLC-coupling (data exchange between PLC-devices) ![]() Your outstation reports the current value cyclically, or in case of malfunction the status via FAX, to your mobile phone as SMS or to your pager. | Sending ASCII-data to a PC ![]() Your car park or control sends the configuration/capacity
utilisation to a PC with a modem, so that the data can be used for further processing.
|

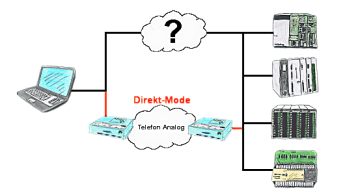

Direct-mode „extended serial interface“ ![]() There is an unsupported control or data logger or converter
integrated in your installation which protocol is not supported? No problem,
the signs that the PC in the office sends will be transferred via telephone
line by the Direct-mode , and on-site reproduced by the TP/TB. The way back
is identical. So in that case there’s also a communication to the electronic
devices available.
|
to the order datas
| article: | |||||
|---|---|---|---|---|---|
| Art. ID. | name | price | quantity | ||
| 9371 | TELE-PROFessional | 1099,- € | |||
| 9371-US | TELE-PROFessional worldwide PLC remote maintenance USA-version |
1099,- € | |||
to the order datas
| options: | |||||
|---|---|---|---|---|---|
| Art. ID. | name | price | quantity | ||
| 9370-11 | Option ASCII-TELE | 251,- € | |||
| 9370-3 | Option FAX-TELE | 251,- € | |||
| 9370-7 | Option H1 with CP-cable | 251,- € | |||
| 9370-6 | Option L1 with CP-cable | 251,- € | |||
| 9370-5 | Option L2 with CP-cable | 251,- € | |||
| 9370-2 | Option PLC-TELE | 251,- € | |||
| 9370.A | Option TP+TB AEG TELE-PROFessional for AEG A120,A250 |
1273,- € | |||
| 9370.AB | Option TP+TB Allen-Bradley TELE-PROFessional for Allen-Bradley |
1273,- € | |||
| 9370.B | Option TP+TB Bosch TELE-PROFessional for Bosch |
1273,- € | |||
| 9370.G | Option TP+TB GE-Fanuc TELE-PROFessional for GE-Fanuc |
1273,- € | |||
| 9370.KM | Option TP+TB Klöckner-Moeller TELE-PROFessional for Klöckner-Moeller |
1273,- € | |||
| 9370.M | Option TP+TB Mitsubishi TELE-PROFessional for Mitsubishi |
1273,- € | |||
| 9370.P | Option TP+TB Pilz TELE-PROFessional for Pilz PSS |
1273,- € | |||
| 9370.T | Option TP+TB Telemechanique TELE-PROFessional for Telemechanique |
1273,- € | |||
to the order datas
| accessories: | |||||
|---|---|---|---|---|---|
| Art. ID. | name | price | quantity | ||
| 9391.1 | 24V DC power-supply unit 625mA Primary 110V - 240 VAC Euro+USA-plug |
39,- € | |||
| 9391-MT | Mounting set for DIN-rail-holder |
25,- € | |||
| 9370-ISDN | ISDN-adapter for analogue terminals | 251,- € | |||
| 9379-ANT | Magnetic base antenna for TP, TS + MPI-Modem |
24,- € | |||
| 9361-3 | S5-connecting cable 3m forTELE-PROF, MINI-/PG-MUX-II |
38,- € | |||
| 9361-3.05M | S5-connecting cable 5m for TELE-PROF, MINI-/PG-MUX-II |
43,- € | |||
| 9361-3.06M | S5-connecting cable 6m for TELE-PROF, MINI-/PG-MUX-II |
46,- € | |||
| 9361-3.10M | S5-connecting cable 10m for TELE-PROF, MINI-/PG-MUX-II |
56,- € | |||
| 9370-COM | Serial PCMCIA-adapter for TP + TB |
205,- € | |||
| 9371-6 | Servicebag for TP, TB + TP-II-FLAT |
59,- € | |||
| 9370-SLM | Leased-line modem for TP only usuable as pairs |
128,- € | |||
| 9371-24 | Power connector 2pins big | 2,- € | |||
| 9370-TAE | TAE junction box | 20,- € | |||
| 9370-SET | Phone-connector-set 16parts worldwide use |
230,- € | |||
| 9370-8-D/USA | Phone-cable analogue Germany+USA | 10,- € | |||
| 9370-8-ISDN | Phone-cable ISDN | 10,- € | |||
| 9370-8-BE | Special phone-cable for Belgium | 23,- € | |||
| 9370-8-DK | Special phone-cable for Denmark | 23,- € | |||
| 9370-8-FR | Special phone-cable for France | 23,- € | |||
| 9370-8-GB | Special phone-cable for Great Britain | 23,- € | |||
| 9370-8-NL | Special phone-cable for Netherlands | 23,- € | |||
| 9370-8-CH | Special phone-cable for Switzerland | 23,- € | |||
| 9370-8-AT | Special phone-cable for Austria | 23,- € | |||
