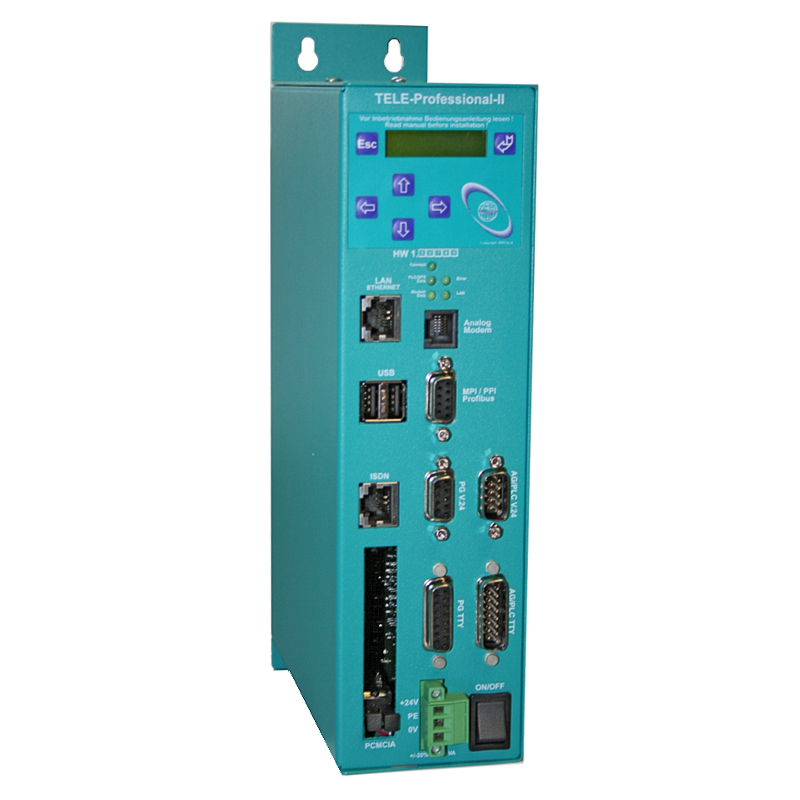

TELE-PROFessional-II (TP-II)

Programming of S5- and S7-PLC’s via telephone from afar

• secured modem-protocol, no additional software needed
• UMTS- / VPN- / internet-service
• also for PLC’s with ProfiNet
• SMS and fax sending directly from S7-300/400 (no PLC-programming necessary)
• analogue modem couples automatically via ISDN
• with integrated CP-343-1 / 443-1 functionality
• Ethernet also for router function
• PCMCIA-slots for extensions (memory cards / specific modem cards (GSM) / WLAN)
• compatible to the forerunner model (TELE-Prof / TELE-Book / TELE-Link)
• also as TCP/IP-router
• S7-variables display via Web-Browser
• S7-remote maintenance with MPI-Interface
• S5-remote maintenance (access to every S5 direct / via H1, L1, L2 and KOR/MUX)
• integrated telephone directory
• call-back of partner possible
• software-update via PC (LAN) respectively from device to device possible
Technical Specifications:
Supply voltage: 24V/DC +/- 20%
Power consumption: 15 watt
Display: expressive LCD display
5 status LEDs
Handling/Configuration: integrated keypad
WEB-Browser
Interfaces:
to the PLC:
PPI/MPI/Profibus interface: 9,6 KBd - 12 MBd
TTY/20mA current loop (AG-TELE aktiv, PLC passiv)
RS232: 9,6 KBd - 115,2 KBd / fully assigned
to the PD/PC:
10/100BaseTX RJ45-ethernet jack
TTY/20mA current loop (100 % mechanically and electr. compatible)
RS232: 9,6 KBd - 115,2 KBd / with a 1on1-cable to the PC
others:
2xUSB, 2xPCMCIA
Integrated modem: 33K6 HIGH-SPEED, V.42/BIS MNP5 analogue modem
ISDN (Euro ISDN + 1TR6)
Operating temperature: 5 - 55°C
Case: powder coated metal case with mounting flange and DIN-rail mounting
Dimensions: Flat 300 x 175 x 70 mm
Hoch 67 x 280 x 170 mm


Remote maintenance / telecontrol of PLC

Unbenanntes Dokument

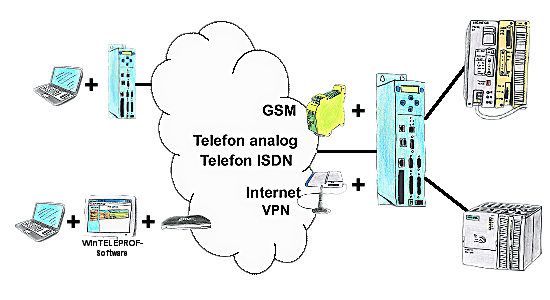

Access to the connected PLC takes place by coupling via Analogue-, ISDN-, mixed Analogue-ISDN-, GSM-, UMTS-line and also via Internet.
Analogue and ISDN - how do they come together?

Unbenanntes Dokument

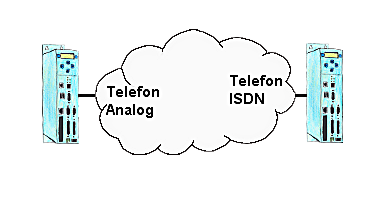

You have on the plant side only ISDN for telephone, but in your office there is only an analogue system? No problem, you have to install on the clients side the TP-II and activate there the analogue-emulation in the device. No, the modem signals will be send digitalized over ISDN and you can connect to it. So, you will be able to communicate though the telephone systems are different and your client isn´t forced to install an analogue connection.

Router – Mode (access to the network without router)

Unbenanntes Dokument
The Tele-Prof-II can also be used as a router for access from a PC via dial-up connection, so that a communication with the behind covered network results. Furthermore a network connection can be made with the TP-II <=> TP-II-line, but in doing so the IP-address-root must differ.
S7-CP-alternate (without LAN-CP to the PLC)

Unbenanntes Dokument
Do you have a PLC without CP343-1 or CP443-1 and a TP-II as remote maintenance device? Then activate the CP-mode of the TP-II and your visualisation goes directly ONLINE via the LAN of the TP-II.
PLC coupling (data exchange between PLCs)

Unbenanntes Dokument

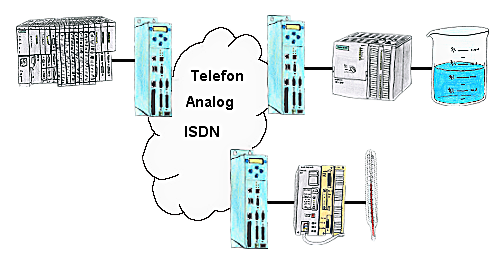

Your pumping stations report the water levels of the central control via telephone network. The central office itself can of course transmit commands/messages to the substations as well. Thereto no dedicated line is required, a “normal” telephone connection is sufficient because the devices cut the line after occured message.
Failure report transmission released by the PLC

Unbenanntes Dokument

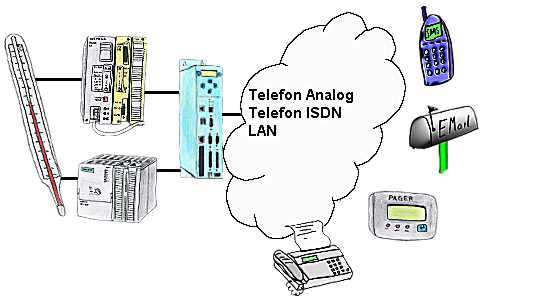

Your outstation reports the current value cyclically, or in case of malfunction the status via FAX, as SMS to your mobile phone, to your pager or also via e-mail.

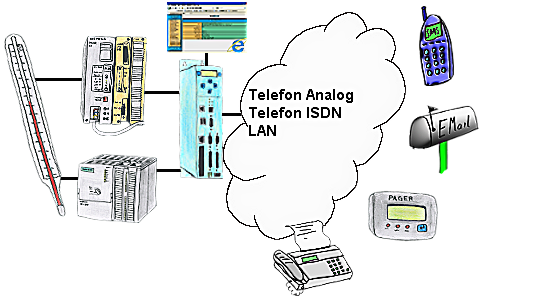

Failure report transmission without any change in the PLC programm

Unbenanntes Dokument
Your outstation reports the current value cyclically, or in case of malfunction the status via FAX, as SMS to your mobile phone, to your pager or also via e-mail. And this without an intervention of the PLC-program. Here the variables and actions are stored and processed in the TP-II.

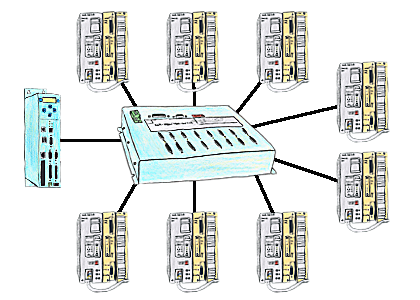

Remote maintenance of centralized PLC-devices

Unbenanntes Dokument
You have many PLC and you want to programm them central on one place? No problem, you have to connect them all to the KOR/MUX-Tele-Switch, connect it with the TP-II and after telephone connect you will be able with the PD-bus-selection of your Step5-software to go ONLINE. Of course the MOR/MUX-Tele-Switch is cascadable, so you can connect up to 30 PLCs to the devices.
Sending ASCII-data to a PC

Unbenanntes Dokument

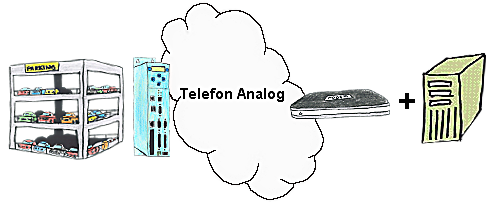

Your car park or control sends the configuration / capacity utilisation to a PC with a modem, so that the data can be used for further processing.

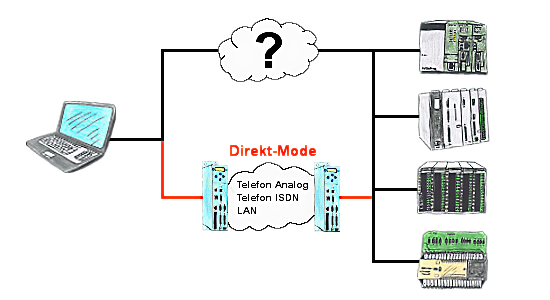

Direct-mode „extended serial interface“

Unbenanntes Dokument
There is an unsupported control or data logger or converter integrated in your installation which protocol is not supported? No problem, the signs that the PC in the office sends will be transferred via telephone line by the Direct-mode, and on-site reproduced by the TP-II. The way back is identical. So in that case there’s also a communication to the electronic devices available.

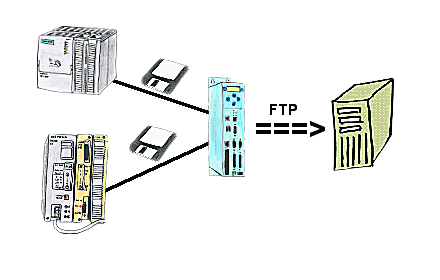

Data logger with FTP-interface

Unbenanntes Dokument
You need a data logger which tape-records the specified data of the PLC and you can collect the data via FTP on demand. No problem, TP-II with the option Datalogger is the solution for you.
to the order datas
article:
Art. ID.namepricequantity
9372-OEM TELE-PROFessional II worldwide use
OEM - Version (all accessories optional)		 1188,- € Quickbestellung INFOMAIL

to the order datas
variants:
Art. ID.namepricequantity
9372-FLAT TELE-PROFessional II worldwide use "FLAT"
flat version / OEM - Version (all accessories optional)		 1188,- € Quickbestellung INFOMAIL

to the order datas
accessories:
Art. ID.namepricequantity
9359.1:1 1:1 cable 9pins D-SUB 23,- € Quickbestellung INFOMAIL
9391.1 24V DC power-supply unit 625mA
Primary 110V - 240 VAC Euro+USA-plug		 39,- € Quickbestellung INFOMAIL
9391-MT Mounting set
for DIN-rail-holder		 25,- € Quickbestellung INFOMAIL
9636-CROSS Cross-cable 3m Cat5+
both sides RJ45-Plug		 10,- € Quickbestellung INFOMAIL
9379.1 MPI-/Profibus connecting cable 1m 10,- € Quickbestellung INFOMAIL
9636-TCPIP Patch-cable 3m, Cat5+
both sides RJ45-Plug		 10,- € Quickbestellung INFOMAIL
9361-3 S5-connecting cable 3m
forTELE-PROF, MINI-/PG-MUX-II		 38,- € Quickbestellung INFOMAIL
9361-3.05M S5-connecting cable 5m
for TELE-PROF, MINI-/PG-MUX-II		 43,- € Quickbestellung INFOMAIL
9361-3.06M S5-connecting cable 6m
for TELE-PROF, MINI-/PG-MUX-II		 46,- € Quickbestellung INFOMAIL
9361-3.10M S5-connecting cable 10m
for TELE-PROF, MINI-/PG-MUX-II		 56,- € Quickbestellung INFOMAIL
9371-6 Servicebag
for TP, TB + TP-II-FLAT		 59,- € Quickbestellung INFOMAIL
9372-24 Power connector 3pins big 2,- € Quickbestellung INFOMAIL
9370-TAE TAE junction box 20,- € Quickbestellung INFOMAIL
9372 TELE-PROFessional II Starter-Kit
completing 9372-OEM		 162,- € Quickbestellung INFOMAIL
9370-SET Phone-connector-set 16parts
worldwide use		 230,- € Quickbestellung INFOMAIL
9370-8-D/USA Phone-cable analogue Germany+USA 10,- € Quickbestellung INFOMAIL
9370-8-ISDN Phone-cable ISDN 10,- € Quickbestellung INFOMAIL
9370-8-BE Special phone-cable for Belgium 23,- € Quickbestellung INFOMAIL
9370-8-DK Special phone-cable for Denmark 23,- € Quickbestellung INFOMAIL
9370-8-FR Special phone-cable for France 23,- € Quickbestellung INFOMAIL
9370-8-GB Special phone-cable for Great Britain 23,- € Quickbestellung INFOMAIL
9370-8-NL Special phone-cable for Netherlands 23,- € Quickbestellung INFOMAIL
9370-8-CH Special phone-cable for Switzerland 23,- € Quickbestellung INFOMAIL
9370-8-AT Special phone-cable for Austria 23,- € Quickbestellung INFOMAIL
9352.1 USB-cable plug/plug Type A-A 3m 10,- € Quickbestellung INFOMAIL
