USB-serial-converter cable
Connecting a serial interface via a USB-Port - industrial design
USB <=> RS-232
- Including S5-Patch (Step5 supports virtual COM-ports)
- Generates from a USB-2.0-port a serial Port (9pol. COM-interface)
- Supports S5- and S7-interface parameter
- Drivers are included for Windows (any) (32+64-bit)
- Free selectable COM-Port: COM1 – COM256
more...
ARTNR: 9359-1-RS232

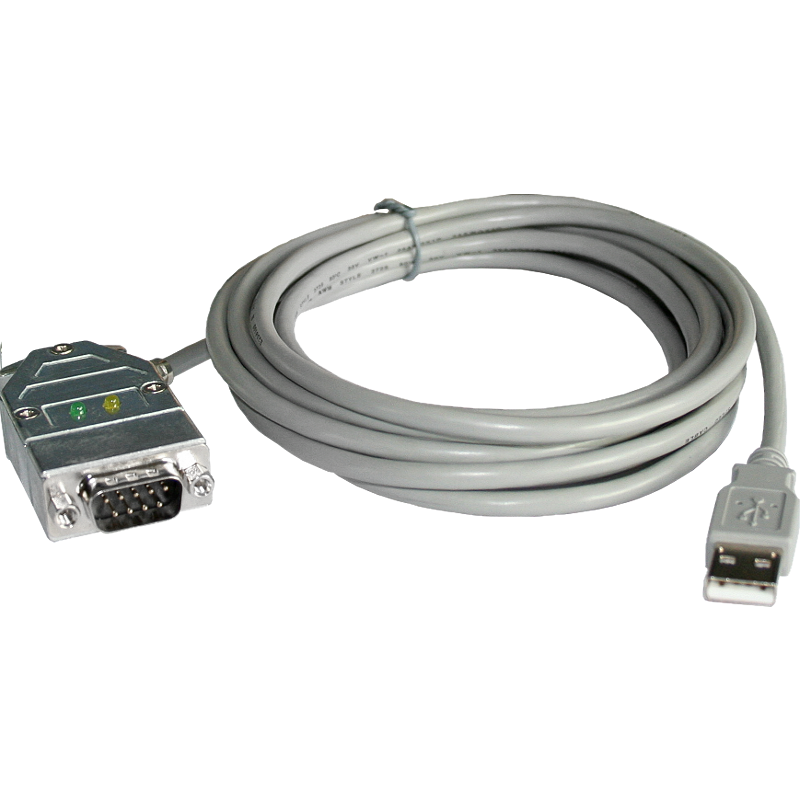

USB-Serial-converter cable 3m
| EAN number: | 4260363241113 | |
| HS-code: | 85444290 | |
| Weight: | 0.2 kg |
- Including S5-Patch (Step5 supports virtual COM-ports)
- Generates from a USB-2.0-port a serial Port (9pol. COM-interface)
- Supports S5- and S7-interface parameter
- Drivers are included for Windows (any) (32+64-bit)
- Free selectable COM-Port: COM1 – COM256
- Baud rate: 300 Bit/s – 115,2 KBit/s
- Dataflowcontrol: Xon/Xoff, RTS/CTS
- Function also with/in VMWare
- Several converters are simultaneously useable at one PC
- Complete electronics in the plug housing
- Cable length 3m
- Power supply from the USB interface

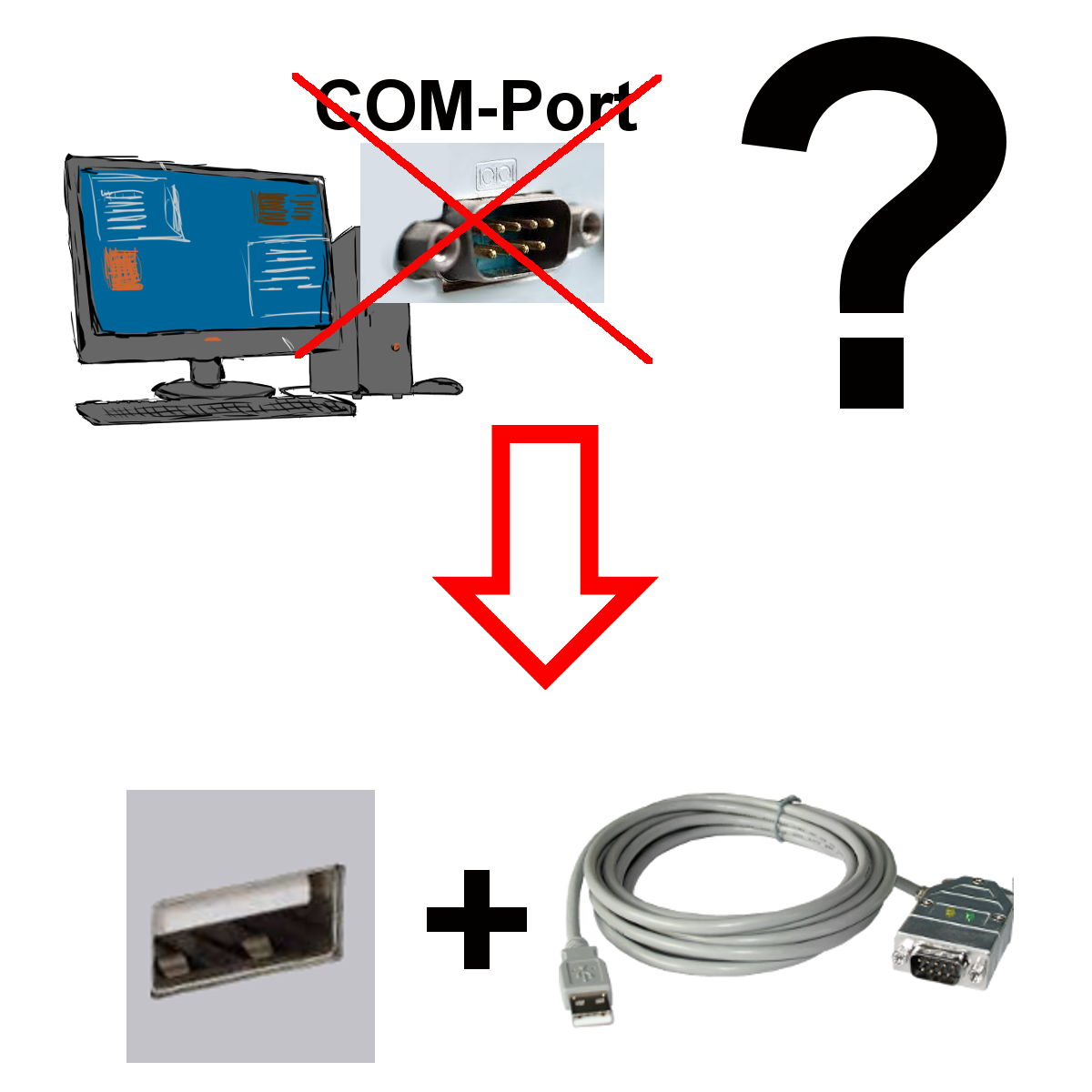

Receive new PC and detected missing serial COM port, but it is mandatory?
With a USB-serial-converter, you create a virtual COM-port on your PC, which can also be recognized and used by most applications/apps.
The only difference to a "real" physical COM-port is that there is no interrupt-number and address. Under Windows usually no problem.
Applications that are still MSDOS-based such as Step5 of Siemens are not functioning with virtual COM-ports. This problem is solved
with the available "S5-Patch". USB-serial-converter-cable also works with STEP5 from Siemens.
Not every USB-serial-converter supports all transfer parameters, most "cheap" only the format "8-N-1". USB-serial-converter-cable
supports all possible transmission settings. To the cable you get the USB driver for your Windows-PC.
Two in the metal housing integrated LEDs shows the signal-flow with RXD- and TXD-display.
| Supply voltage: | 5V DC |
| Power consumption: | 0,2 watt |
| Display: | 2 status-LEDs for RXT/TXD |
| Interfaces: |
to the PD/PC:
USB 2.0 cable type A
others:
RS232: 300 Bd - 115,2 KBd |
| Operating temperature: | -30 - +55°C |
| Case: | metal case |
| Dimensions: | 60 x 30 x 14 mm |
| Scope of delivery: | USB-RS232-converter-cable |
accessories:
SINUM-adapter for RS232
for USB-RS232-converter to SINUMERIK 805
by e-mail
plus VAT. and shipping
Converter
UNI-COMPotential split level conversion for L1-BUS, TTY, RS232, RS422
L1-ControllerInterface converter for connecting different interface types
Ethernet-Extender-SetExtend Ethernet via 2-wire-cable (also Profibus)
plus VAT. and shipping

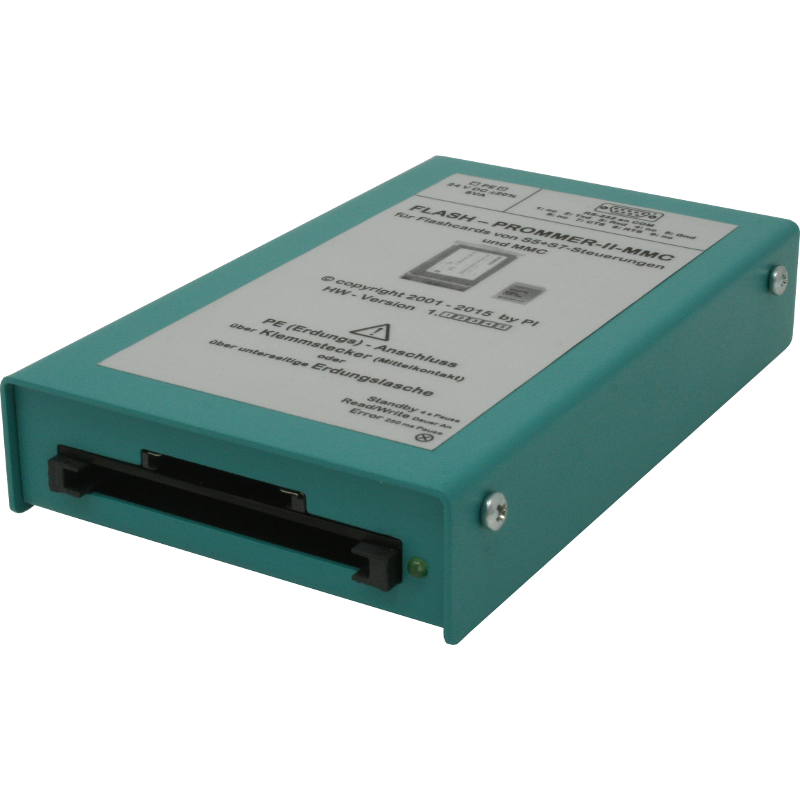

FLASH-PROMMER-II-MMC 24VDC
for Flashcards + MMC Win7-support for S5D-, S7P- and binary-files
by e-mail
plus VAT. and shipping
FLASH-PROMMER-II-MMC 24VDC, USB-bundle
for Flashcards + MMC Win7-support for S5D-, S7P- and binary-files inclusive USB-RS232-converter-cable
by e-mail
plus VAT. and shipping
plus VAT. and shipping

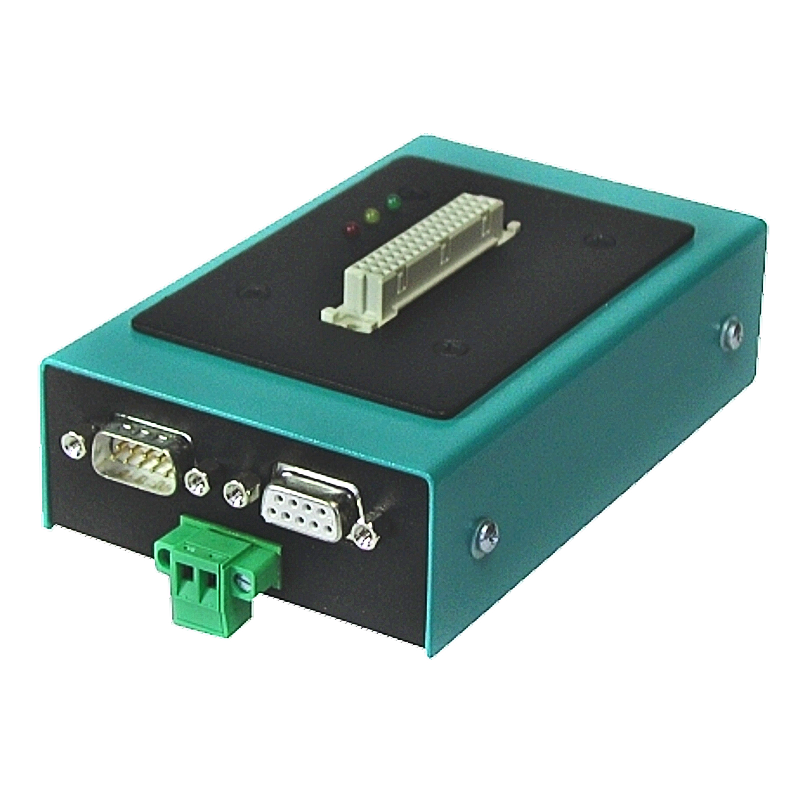

MINI-PROMMER III 24VDC Obsolete
