Oxygen - Service - Controller II
O₂-analysis 100% - 10-24 of industrial gases
19
OxygenServiceController 100% - 10E-24%
- Integrated zirconium probe
- High metering precesion
- Automatic switch of range %, ppm, E-xx
- High resolution of the display areas
- Integrated switchable pump
more...
variants:
ARTNR: 9110.1
OSC-II 19
4336,00 € plus VAT. and shipping
ARTNR: 9110.1
OSC-II 19
| EAN number: | 4260363242011 | |
| HS-code: | 90271010 | |
| Weight: | 5.4 kg |
Alternativen
4336,00 €
plus VAT. and shipping
plus VAT. and shipping
4553,00 €
plus VAT. and shipping
plus VAT. and shipping
4661,00 €
plus VAT. and shipping
plus VAT. and shipping
2710,00 €
plus VAT. and shipping
plus VAT. and shipping
9110.4
OSC-II Z-Box
External device with probe, pump and mass-flow-controller. Connection to wallcase with thermocouple extension wire recommended
by e-mail
OSC-II Z-Box
External device with probe, pump and mass-flow-controller. Connection to wallcase with thermocouple extension wire recommended
by e-mail
2746,00 €
plus VAT. and shipping
plus VAT. and shipping
9101-RS232
Mesaurement data output via RS232
Cyclic output of measurement data O2-content, temperature and EMK in ASCII-format via V24-port
by e-mail
Mesaurement data output via RS232
Cyclic output of measurement data O2-content, temperature and EMK in ASCII-format via V24-port
by e-mail
520,00 €
plus VAT. and shipping
plus VAT. and shipping
9100
Lift and force pump for OSC
with mounting angle bracket
by e-mail
Lift and force pump for OSC
with mounting angle bracket
by e-mail
326,00 €
plus VAT. and shipping
plus VAT. and shipping
9101
Zirconium/platinum-probe with heater
by e-mail
Zirconium/platinum-probe with heater
by e-mail
2438,00 €
plus VAT. and shipping
plus VAT. and shipping
9101.1
Heater for zirconium-probe
by e-mail
Heater for zirconium-probe
by e-mail
477,00 €
plus VAT. and shipping
plus VAT. and shipping
9108
Flowmeter
by e-mail
Flowmeter
by e-mail
244,00 €
plus VAT. and shipping
plus VAT. and shipping
9100.1
Lift and force pump for OSC
with higher flow-rate with mounting angle bracket
by e-mail
Lift and force pump for OSC
with higher flow-rate with mounting angle bracket
by e-mail
376,00 €
plus VAT. and shipping
plus VAT. and shipping
9102

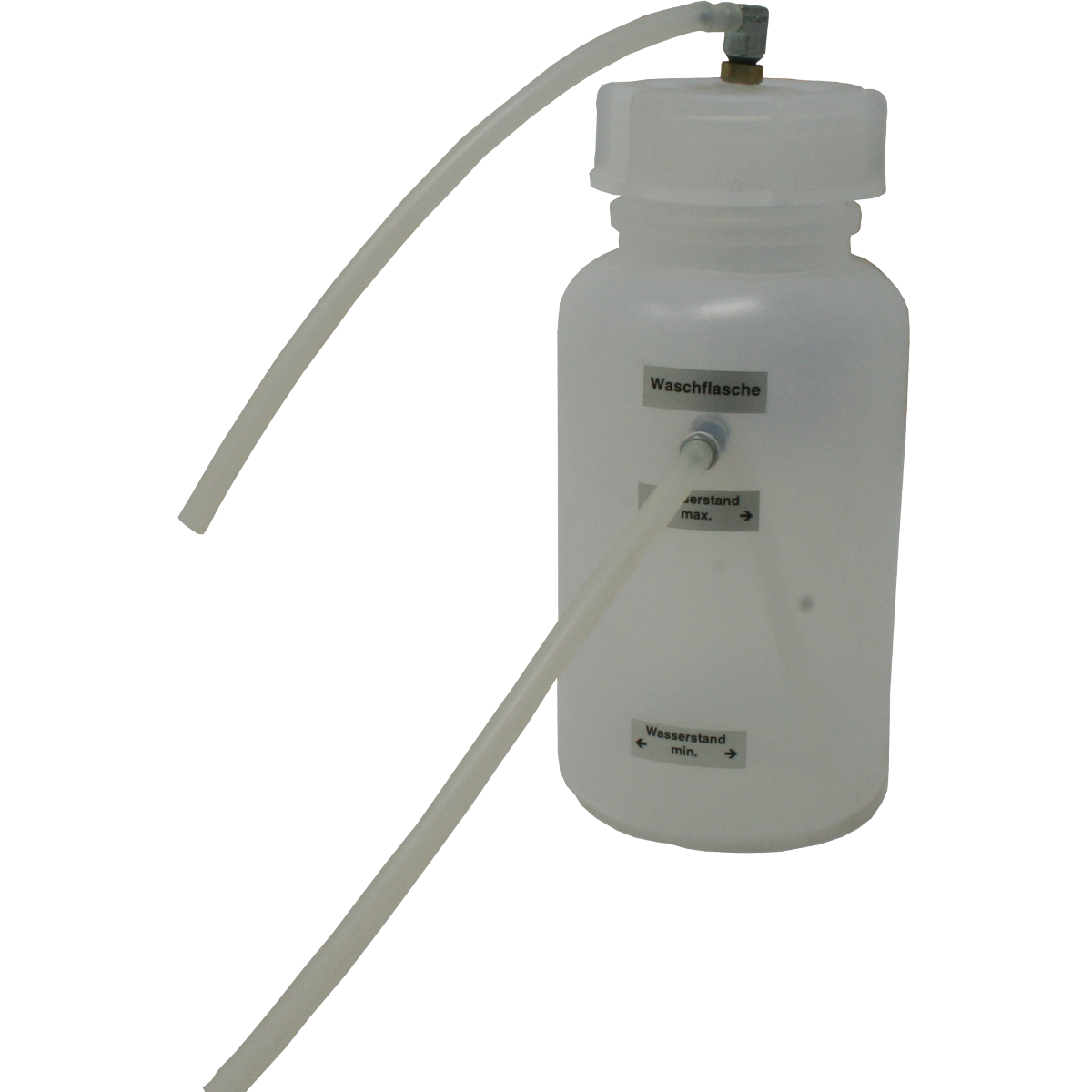

Wash bottle for OSC
Diameter x Height: 75 x 175mm
by e-mail
Wash bottle for OSC
Diameter x Height: 75 x 175mm
by e-mail
99,00 €
plus VAT. and shipping
plus VAT. and shipping
9103

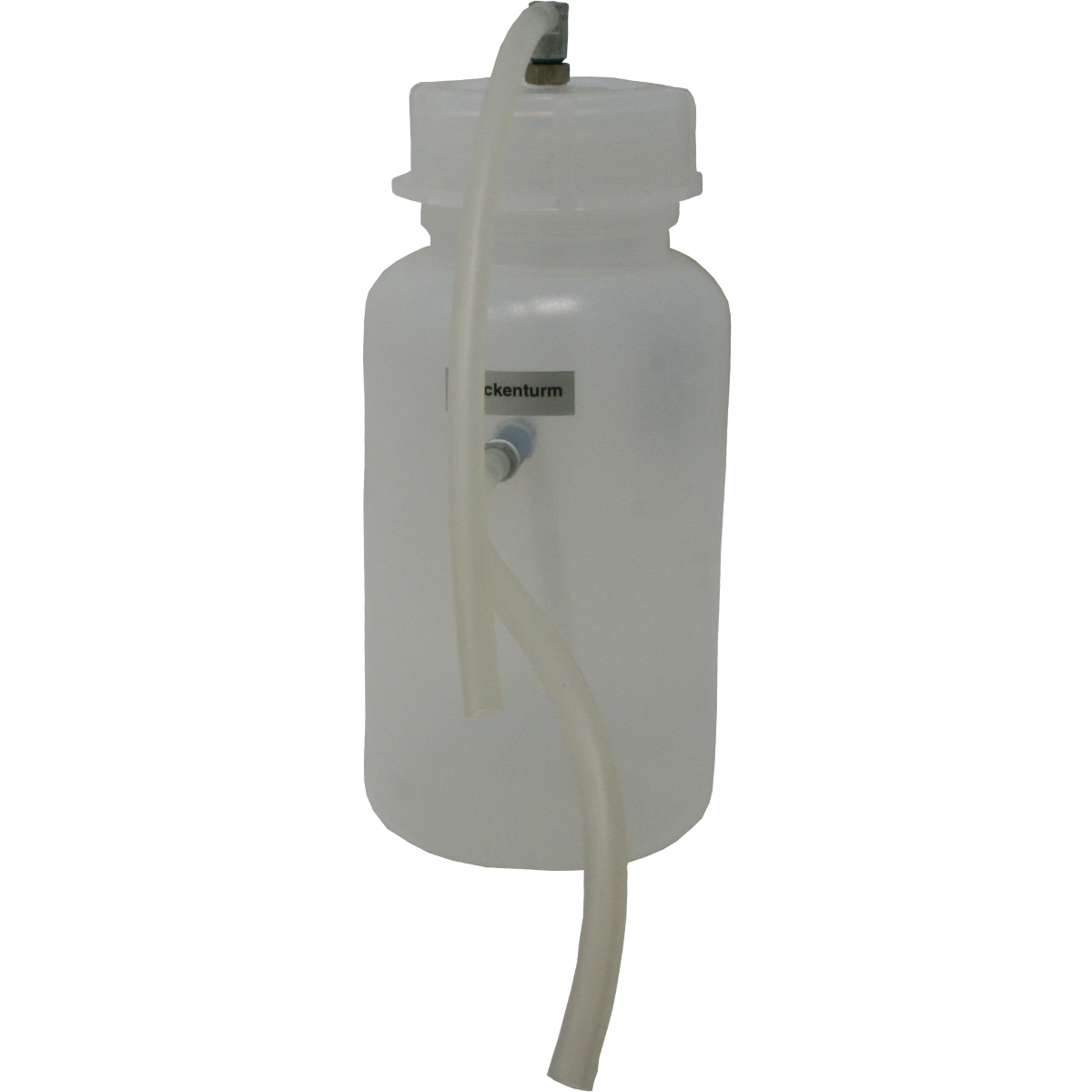

Drying tower for OSC
inclusive condensate-filling Diameter x Height: 75 x 175mm
by e-mail
Drying tower for OSC
inclusive condensate-filling Diameter x Height: 75 x 175mm
by e-mail
139,00 €
plus VAT. and shipping
plus VAT. and shipping
9104
Condensate filling for drying tower
by e-mail
Condensate filling for drying tower
by e-mail
40,00 €
plus VAT. and shipping
plus VAT. and shipping
9105

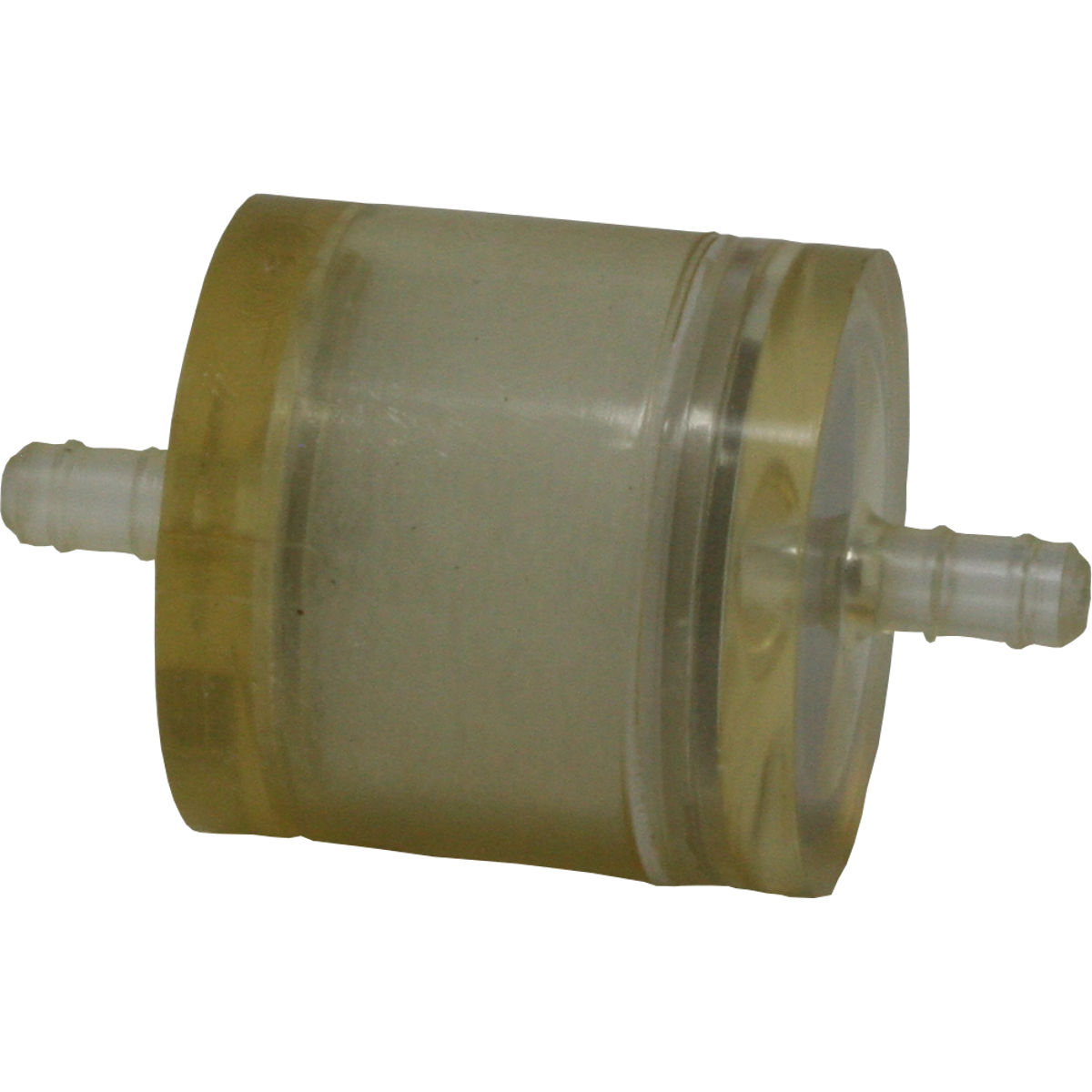

Triple filter for OSC
with hose nozzle as measuring gas connection Diameter x Height (without gas connection): 30 x 30mm
by e-mail
Triple filter for OSC
with hose nozzle as measuring gas connection Diameter x Height (without gas connection): 30 x 30mm
by e-mail
49,00 €
plus VAT. and shipping
plus VAT. and shipping
- Integrated zirconium probe
- High metering precesion
- Automatic switch of range %, ppm, E-xx
- High resolution of the display areas
- Integrated switchable pump
- Integrated flowmeter with regulating valve 0 - 10 l/h
- Probe offset with known O2-content of test gas possible
- Free adjustable limit values for the relay outputs
- Configurations are code protected against accidental modifications
- Configurations are stored with mains failure protection
Oxygen analysis in industrial gases
Continuous measurement and display of the oxygen-content without an operating-function on the measuring-device or measuring-range-switching?
OSC-II-devices are the solution, they show the O2-value from % down to E -24 without any action on the part of the operator. The measuring range will be automatically
switched between the various measuring-ranges, the optimal measuring-range is always displayed and used. You can also parameterize integrated relay-outputs
and thereby use trigger-actions depending on the detected oxygen-concentration. The device is available in different versions:
19"-mounting, case-device and table-top-device. Also available as a wall-mounted-device on request.
Documentation of oxygen concentration
The integratet current output issues the actual concentration in the range of 0/4 - 20mA via free definable limits.
Free definable limits
You need some limits? No problem, with the OSC-II-devices you will be able to define 3 relay outputs (toggle switch) like UG (down level) or OG (top level) or as a ready-flag (internal probe has working temperature).
Fuzzy controller with the OSC-II
Through 3 free configurable limits (of each kind) you won´t be able to realice a fuzzy-controller of your heat treatment furnace.
| Supply voltage: | 240V AC 50-60Hz |
| Power consumption: | 200 watt |
| Display: |
illuminated, detailed graphics display (70 x 35 mm) 5 LEDs (power, heating, relay outputs) |
| Handling/Configuration: | integrated keypad |
| Interfaces: |
1 x analogue outputs: 0/4 - 20mA 3 x digital outputs: 230V / 2A 2 x sample gas connection 4mm VA-pipe (in-/outputs) 1 x D-Sub-female for RS232/422(optional) |
| Operating temperature: | |
| Case: | metal case in the versions (19"-slot / table device / service carrying case) |
| Dimensions: |
19"-slot: 440 x 370 x 135 mm table device: 360 x 350 x 150 mm service carrying Case: 360 x 350 x 150 mm |
| Scope of delivery: |
OSC-II-device Power-cord DIN-connector 5pin Connector 3pins big |
