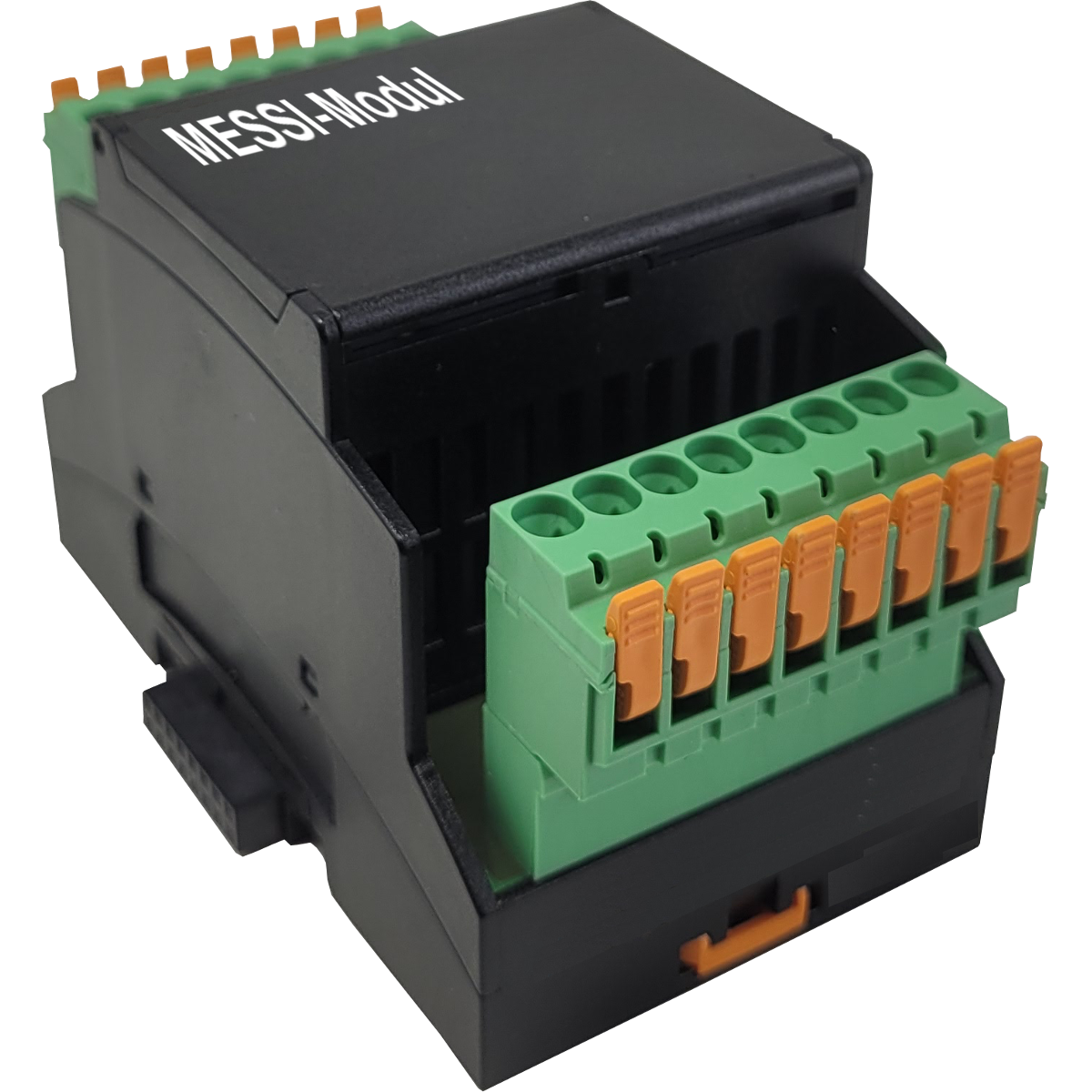

Extension MESSI-IO
Turn your EtherSens ProSuite into a fault reporter
Extension-module for EtherSens-ProSuite
4x digital IN (com. GND, max. 24V DC)
5x digital OUT (com. Supply max. 80V)
4x Analog IN (0..30V, 0/4..20mA, differential)
[16 bit]
Supply from IO-Bus
Send alerts via SMS/email/voice message for each assigned input
Sends device status via SMS/email
Features:
- Pluggable extension for every EtherSens-ProSuite
- Terminal blocks with spring clamps and removable
- 4x digital inputs with common ground
more...
variants:
ARTNR: 9230-MESSI-IO
Extension 4xDig.In - 5x Dig.Out - 4x Ana.In
99,00 € plus VAT. and shipping
ARTNR: 9230-MESSI-IO
Extension 4xDig.In - 5x Dig.Out - 4x Ana.In
| EAN number: | 4260721031462 | |
| HS-code: | 85423190 | |
| Weight: | 0.2 kg |
Turns every EtherSens ProSuite into a fault reporter
Send alerts via SMS/email/voice message for each assigned input
Sends device status via SMS/email
Features:
Send alerts via SMS/email/voice message for each assigned input
Sends device status via SMS/email
Features:
- Pluggable extension for every EtherSens-ProSuite
- Terminal blocks with spring clamps and removable
- 4x digital inputs with common ground
- 5x digital relay outputs with common power supply
one of which can be used for PWM - 4x analog inputs (switchable between voltage, current and differential measurement)
- Supply directly from IO bus of EtherSens-ProSuite
| Supply voltage: | not necessary because supply directly from IO-BUS |
| Handling/Configuration: | with webserver of EtherSens-ProSuite |
| Interfaces: |
Removable Phoenix spring-clamp for IO: 4x digital IN with common ground, maximum 24V DC 5x digital relay output with common power supply, maximum 80V and 1.25A 4x analog IN (switchable between voltage [0..30V], current [0/4..20mA] and differential measurement) |
| Operating temperature: | 0 - 55°C |
| Case: | plastic clamping-case |
| Dimensions: | 60 x 90 x 60 mm |
| Scope of delivery: |
MESSI-IO-module 2x spring-clamp 8pin |
All prices plus costs of delivery, shipping insurance and VAT.
All prices plus costs of delivery, shipping insurance and VAT.

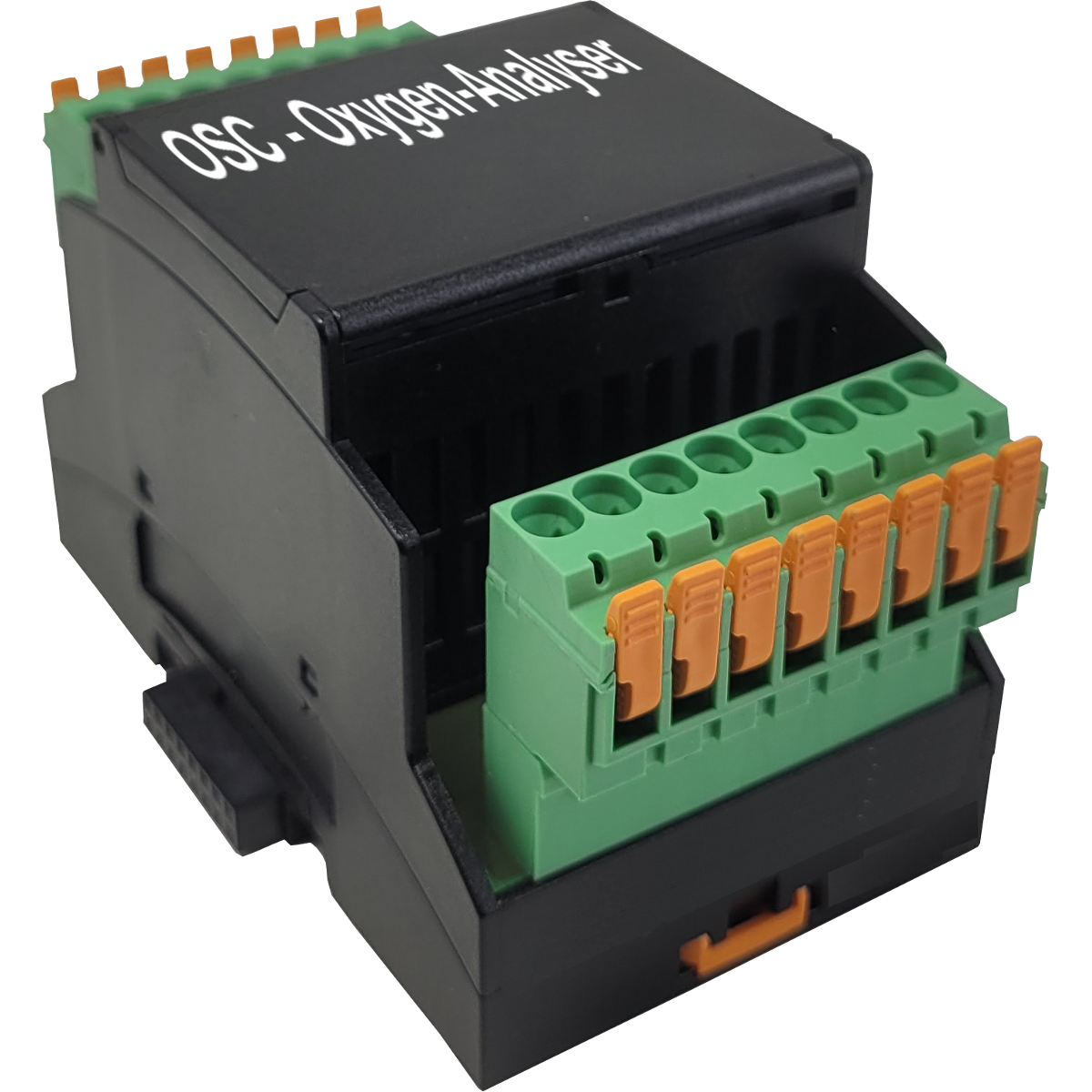

9230-OSC-IO
Extension OSC for EtherSens-ProSuite
Module for oxygen analysis function detects EMK, temperature voltage and controls heating of the measuring probe Zirconium dioxide probe optionally Power supply from EtherSens ProSuite IO bus-connection
by e-mail
Extension OSC for EtherSens-ProSuite
Module for oxygen analysis function detects EMK, temperature voltage and controls heating of the measuring probe Zirconium dioxide probe optionally Power supply from EtherSens ProSuite IO bus-connection
by e-mail
99,00 €
plus VAT. and shipping
plus VAT. and shipping

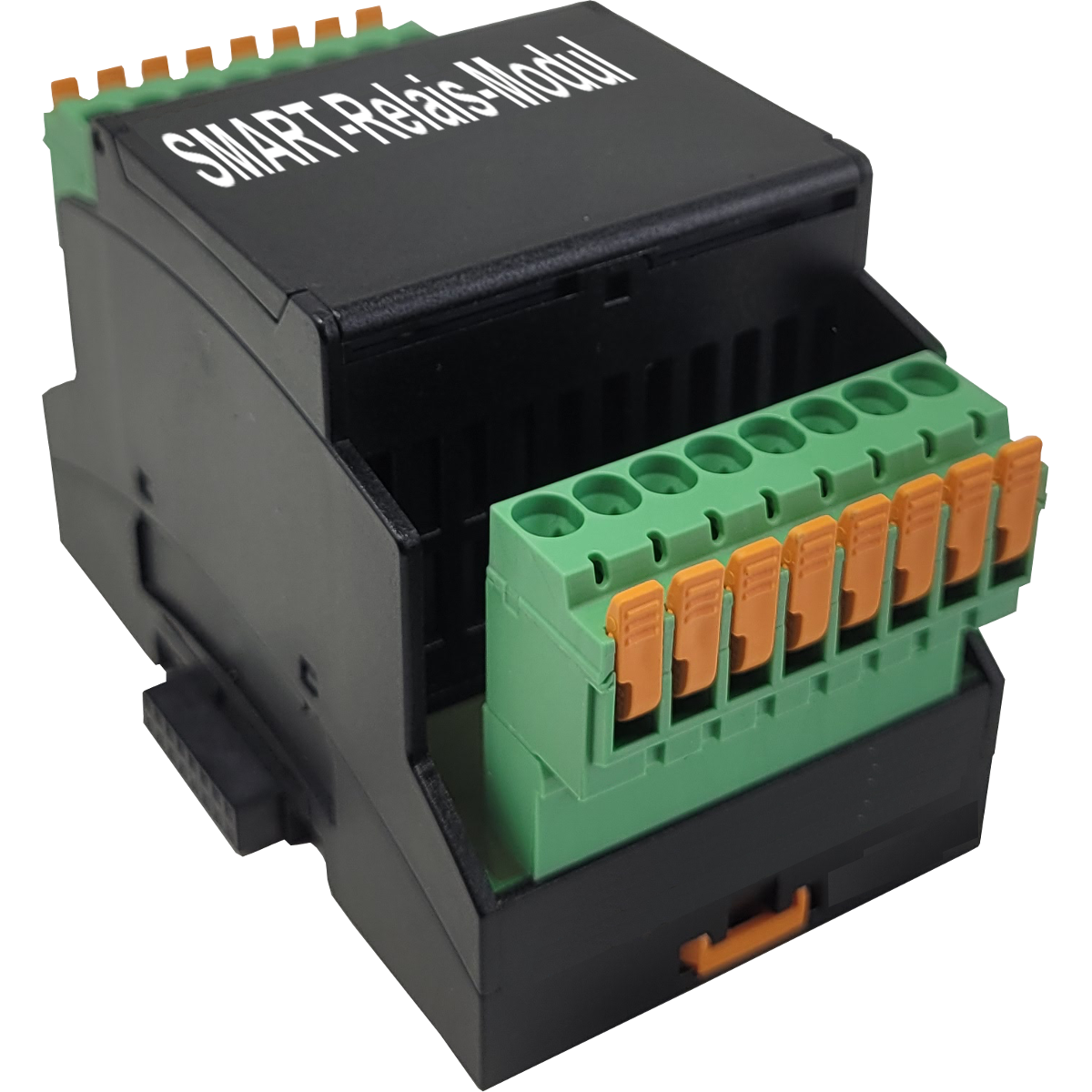

9230-SMART-IO
Extension SMART-RELAY for EtherSens-ProSuite
Measure current/voltage/energy values without Rogowski coil or split core TCP/IP controlled relay ON/OFF Power supply from EtherSens ProSuite IO bus-connection
by e-mail
Extension SMART-RELAY for EtherSens-ProSuite
Measure current/voltage/energy values without Rogowski coil or split core TCP/IP controlled relay ON/OFF Power supply from EtherSens ProSuite IO bus-connection
by e-mail
99,00 €
plus VAT. and shipping
plus VAT. and shipping

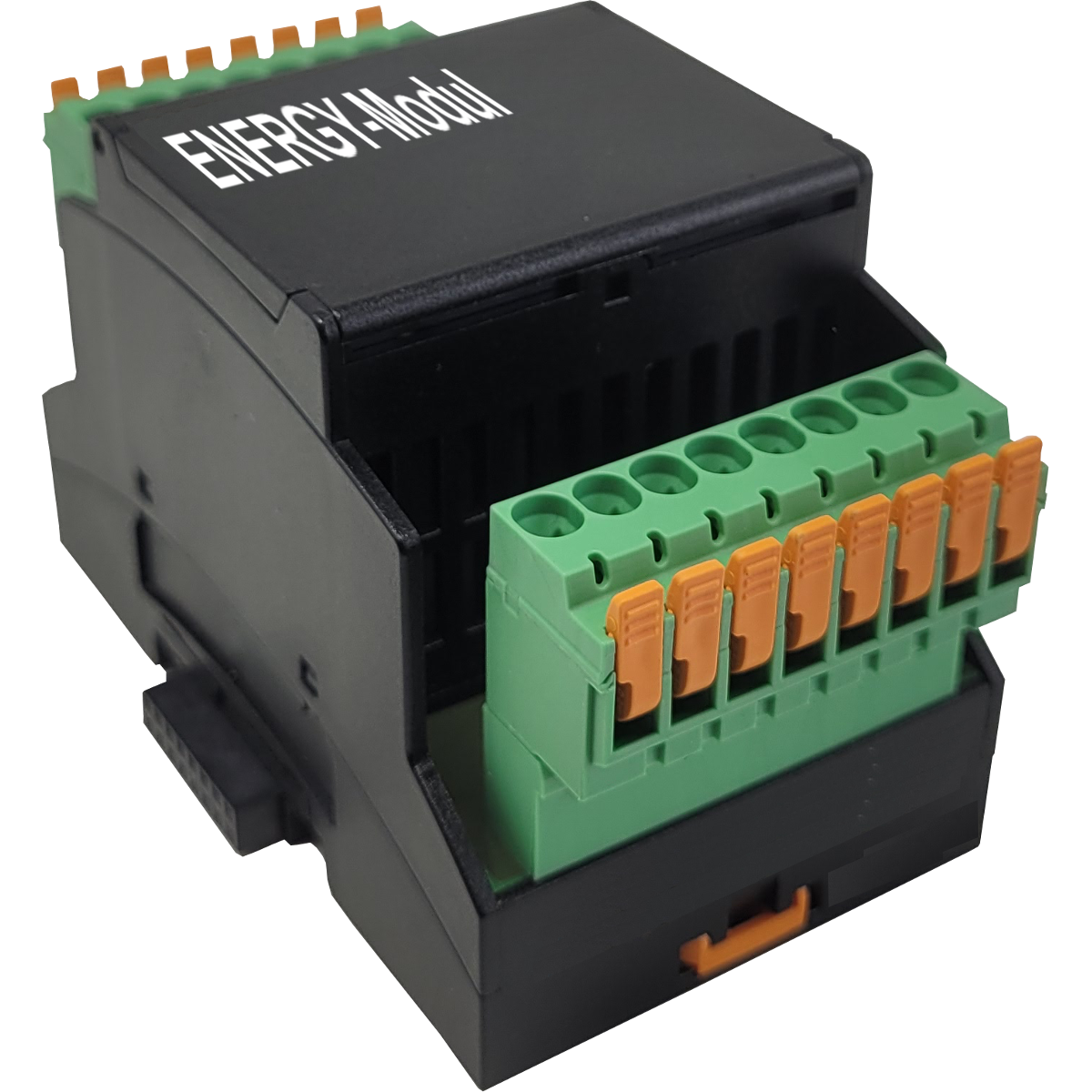

9230-ENERGY-IO
Extension Energy for EtherSens ProSuite
Extension-module for EtherSens-ProSuite Energy-analysis (EN 50470-1 EN 50470-3) L1, L2, L3, N realtime analysis Up to 8000 measurements / second Hz / cos phi / power-factor Energy consumption kWh For Rogwski-coils up to 0,5V Power supply from EtherSens ProSuite IO bus-connection
by e-mail
Extension Energy for EtherSens ProSuite
Extension-module for EtherSens-ProSuite Energy-analysis (EN 50470-1 EN 50470-3) L1, L2, L3, N realtime analysis Up to 8000 measurements / second Hz / cos phi / power-factor Energy consumption kWh For Rogwski-coils up to 0,5V Power supply from EtherSens ProSuite IO bus-connection
by e-mail
99,00 €
plus VAT. and shipping
plus VAT. and shipping
All prices plus costs of delivery, shipping insurance and VAT.
