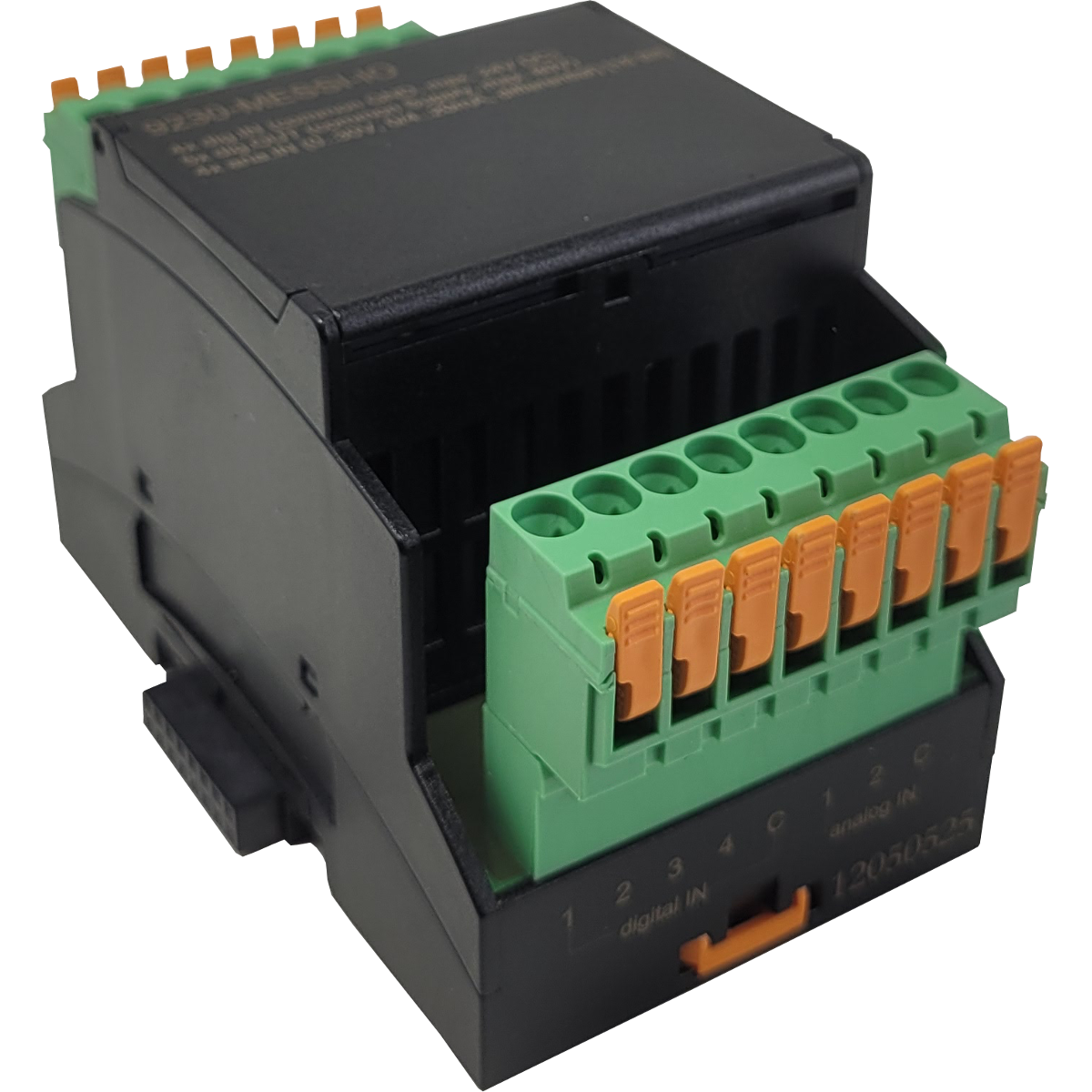

MESSI-IO


Universal I/O for EtherSens-Prosuite (Ideal for fault-reporting)

Extension-board for EtherSens-ProSuite
4x digital IN (com. GND, max. 24V DC)
5x digital OUT (com. Supply max. 80V)
4x Analog IN (0..30V, 0/4..20mA, differential)
[16 bit]
Supply from IO-Bus

Features:
  • Pluggable extension for every EtherSens-ProSuite
  • Terminal blocks with spring clamps and removable
  • 4x digital inputs with common ground
  • 5x digital relay outputs with common power supply
    one of which can be used for PWM
  • 4x analog inputs (switchable between voltage, current and differential measurement)

more...
99,00 € plus VAT. and shipping
ARTNR: 9230-MESSI-IO
Extension 4xDig.In - 5x Dig.Out - 4x Ana.In
EAN number: 4260721031462
HS-code: 85423190
Weight: 0.2 kg


Alternativen

9201-PROSUITE-LTE
EtherSens ProSuite LTE
Integrated LTE-modem 4G WIFI operating as a client or access-point IO-modules direct pluggable Configuration via web-server Supply: 24V DC
Quickbestellung INFOMAIL
by e-mail
414,00 €
plus VAT. and shipping


9230-MESSI-IO
Extension 4xDig.In - 5x Dig.Out - 4x Ana.In
Extension-board for EtherSens-ProSuite 4x digital IN (com. GND, max. 24V DC) 5x digital OUT (com. Supply max. 80V) 4x Analog IN (0..30V, 0/4..20mA, differential) [16 bit] Supply from IO-Bus
Quickbestellung INFOMAIL
by e-mail
99,00 €
plus VAT. and shipping


9391.1
24V DC power-supply unit 1250mA
Primary 110V - 240 VAC Euro+USA-plug
Quickbestellung INFOMAIL
by e-mail
59,00 €
plus VAT. and shipping


9636-CROSS
Cross-cable 3m Cat5+, shielded
RJ45 plug <=> RJ45 plug, twisted pinning
Quickbestellung INFOMAIL
by e-mail
11,00 €
plus VAT. and shipping


9636-TCPIP
Patch-cable 3m, Cat5+, shielded
RJ45 plug <=> RJ45 plug, 1:1
Quickbestellung INFOMAIL
by e-mail
11,00 €
plus VAT. and shipping


9636-TCPIP.02M
Patch-cable 0.25m, Cat5e, shielded
RJ45 plug <=> RJ45 plug, 1:1
Quickbestellung INFOMAIL
by e-mail
15,00 €
plus VAT. and shipping


9636-TCPIP.1M
Patch-cable 1m, Cat5e, shielded
RJ45 plug <=> RJ45 plug, 1:1
Quickbestellung INFOMAIL
by e-mail
15,00 €
plus VAT. and shipping


9352-WLAN-ANT
Magnetic base antenna
for S7-WLAN-Bridge, WLAN-Klemme, EtherSens cable length: 3m
Quickbestellung INFOMAIL
by e-mail
83,00 €
plus VAT. and shipping


9230-SD-32
Micro-SD-card 32GB
for EtherSens-devices SDHC class 10
Quickbestellung INFOMAIL
by e-mail
27,00 €
plus VAT. and shipping


9379-AV
Antenna extension GSM/LTE/WIFI
Base-price + cable length #9379-AV-L
Quickbestellung INFOMAIL
by e-mail
40,00 €
plus VAT. and shipping


9379-AV-L
Additional charge for special length
for antenna extension per meter 4,- Euro
Quickbestellung INFOMAIL
by e-mail
4,00 €
plus VAT. and shipping


9220-SMART
Enegrgy-sensor for EtherSens-ProSuite
Measure current/voltage/energy values without Rogowski coil or split core TCP/IP controlled relay ON/OFF Power supply from EtherSens ProSuite IO bus-connection
Quickbestellung INFOMAIL
by e-mail
99,00 €
plus VAT. and shipping


9220-GYRO-SENS-312
Gyro-Sensor 312 for EtherSens
Measuring range: ±1.5g / ±3g / ±6g / ±12g 3.3V DC supply (from I2C-interfaceport) I2C-connection 1m
Quickbestellung INFOMAIL
by e-mail
105,00 €
plus VAT. and shipping


9220-GYRO-SENS-313
Gyro-Sensor 313 for EtherSens
Measuring range: ±0.5g / ±1g / ±2g / ±4g 3.3V DC supply (from I2C-interfaceport) I2C-connection 1m
Quickbestellung INFOMAIL
by e-mail
105,00 €
plus VAT. and shipping


9220-SEG-ANZEIGE
Segment-display for EtherSens
4 Digit 14 segment-display WHITE 0,56" high in wall-mounting case 5V DC supply (from I2C-interfaceport) I2C-connection
Quickbestellung INFOMAIL
by e-mail
158,00 €
plus VAT. and shipping


9220-SONNE
Sun-light-sensor for EtherSens
max. 220k Lux (switchable ranges) 3.3V DC supply (from I2C-interfaceport) I2C-connection 1m
Quickbestellung INFOMAIL
by e-mail
105,00 €
plus VAT. and shipping


9220-T-LF-D
Temp./humidity/air-pressure for EtherSens
Measuring range: Temperature: -40 ...+85°C Humidity: 0...100% relative Feuchte Pressure: 300...1100 hPa 3.3V DC supply (from I2C-interfaceport) I2C-connection 1m
Quickbestellung INFOMAIL
by e-mail
105,00 €
plus VAT. and shipping


9201-PROSUITE-LTE-TDIS
EtherSens ProSuite LTE with touch-display
Integrated LTE-modem 4G WIFI operating as a client or access-point IO-modules direct pluggable Configuration via web-server or integrated touch-display Supply: 24V DC
Quickbestellung INFOMAIL
by e-mail
543,00 €
plus VAT. and shipping


9201-PROSUITE
EtherSens ProSuite
WIFI operating as a client or access-point IO-modules direct pluggable Configuration via web-server Supply: 24V DC
Quickbestellung INFOMAIL
by e-mail
264,00 €
plus VAT. and shipping


9201-PROSUITE-TDIS
EtherSens ProSuite with touch-display
WIFI operating as a client or access-point IO-modules direct pluggable Configuration via web-server or integrated touch-display Supply: 24V DC
Quickbestellung INFOMAIL
by e-mail
393,00 €
plus VAT. and shipping


9240-DBCSV
Option DB backup/restore as CSV
Function extension DB backup/restore: The extracted data block is converted with the source file from Simatic-Manager/TIA. into a CSV-file and saved.
Quickbestellung INFOMAIL
by e-mail
99,00 €
plus VAT. and shipping


9240-SMZ
Option PLC-message with additional text
Function extension PLC-message sending: PLC-messages from the PLC are enhanced with text blocks from the SD card and sent.
Quickbestellung INFOMAIL
by e-mail
99,00 €
plus VAT. and shipping


9240-SDÜ
Option Safe S7-PLC-data-transmission
Function extension for recognition of save data-transmission by toggle bit or counters in the S7-PLC. In case of a failure, a default configuration is mapped to the outputs.
Quickbestellung INFOMAIL
by e-mail
99,00 €
plus VAT. and shipping


Features:
  • Pluggable extension for every EtherSens-ProSuite
  • Terminal blocks with spring clamps and removable
  • 4x digital inputs with common ground
  • 5x digital relay outputs with common power supply
    one of which can be used for PWM
  • 4x analog inputs (switchable between voltage, current and differential measurement)
  • Supply directly from IO bus of EtherSens-ProSuite
Supply voltage: not necessary because supply directly from IO-BUS
Handling/Configuration: with webserver of EtherSens-ProSuite
Interfaces: Removable Phoenix spring-clamp for IO:
4x digital IN with common ground, maximum 24V DC
5x digital relay output with common power supply, maximum 80V and 1.25A
4x analog IN (switchable between voltage [0..30V], current [0/4..20mA] and differential measurement)
Operating temperature: 0 - 55°C
Case: plastic clamping-case
Dimensions: 60 x 90 x 60 mm

Scope of delivery: MESSI-IO-module
2x spring-clamp 8pin
