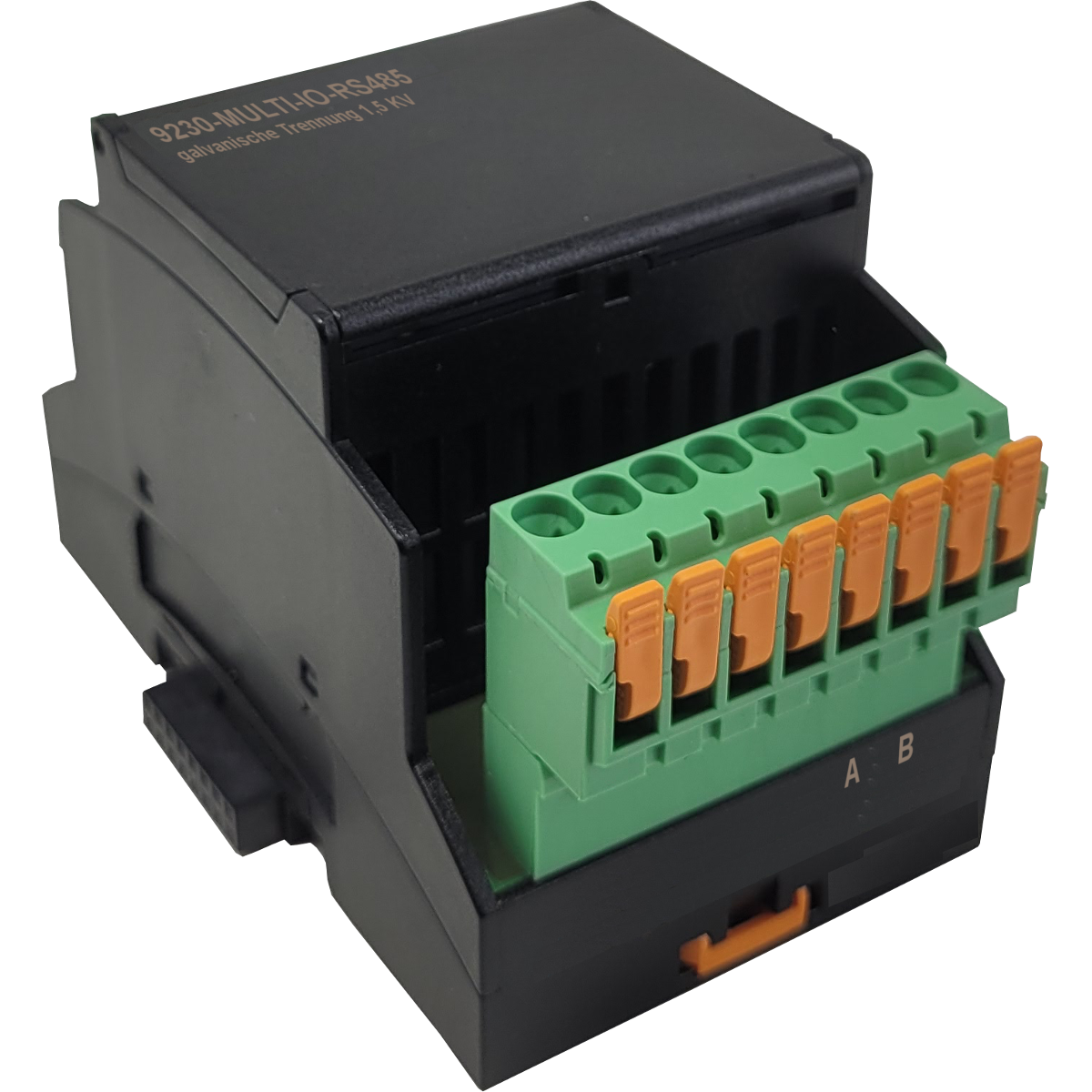

Extension MULTI-IO RS485
Ideal interface for Modbus RTU communications
Extension-module for EtherSens-ProSuite
for RS485
Galvanic separation 1,5KV
Supply from IO-Bus
for two-wire RS485 bus-systems
Features:
- Pluggable extension for every EtherSens-ProSuite
- Terminal block with spring clamps and removable
- Two-wire RS485 bus with terminals for A and B
more...
variants:
ARTNR: 9230-MULTI-IO-RS485
Extension RS485-IO
258,00 €
plus VAT. and shipping
ARTNR: 9230-MULTI-IO-RS485
Extension RS485-IO
| EAN number: | 4260721031547 | |
| HS-code: | 85423190 | |
| Weight: | 0.2 kg |
Ideal interface module for MODBUS RTU
for two-wire RS485 bus-systems
Features:
for two-wire RS485 bus-systems
Features:
- Pluggable extension for every EtherSens-ProSuite
- Terminal block with spring clamps and removable
- Two-wire RS485 bus with terminals for A and B
- Galvanic isolation up to 1500V
- Supply directly from IO bus of EtherSens-ProSuite
| Supply voltage: | not necessary because supply directly from IO-BUS |
| Handling/Configuration: | with webserver of EtherSens-ProSuite |
| Interfaces: |
Removable Phoenix spring-clamp for IO: 1x RS485 (terminal connection for A and B) |
| Operating temperature: | -30 - +55°C |
| Case: | plastic clamping-case |
| Dimensions: | 60 x 90 x 60 mm |
| Scope of delivery: |
MULTI-IO-RS485-module 1x spring-clamp 8pin |
All prices plus costs of delivery, shipping insurance and VAT.
All prices plus costs of delivery, shipping insurance and VAT.
9230-OSC-IO
Extension OSC for EtherSens-ProSuite
Module for oxygen analysis function detects EMK, temperature voltage and controls heating of the measuring probe Zirconium dioxide probe optionally Power supply from EtherSens ProSuite IO bus-connection
by e-mail
Extension OSC for EtherSens-ProSuite
Module for oxygen analysis function detects EMK, temperature voltage and controls heating of the measuring probe Zirconium dioxide probe optionally Power supply from EtherSens ProSuite IO bus-connection
by e-mail
136,00 €
plus VAT. and shipping
plus VAT. and shipping
9230-SMART-IO
Extension SMART-RELAY for EtherSens-ProSuite
Measure current/voltage/energy values without Rogowski coil or split core TCP/IP controlled relay ON/OFF Power supply from EtherSens ProSuite IO bus-connection
by e-mail
Extension SMART-RELAY for EtherSens-ProSuite
Measure current/voltage/energy values without Rogowski coil or split core TCP/IP controlled relay ON/OFF Power supply from EtherSens ProSuite IO bus-connection
by e-mail
114,00 €
plus VAT. and shipping
plus VAT. and shipping
9230-ENERGY-IO
Extension Energy for EtherSens ProSuite
Extension-module for EtherSens-ProSuite Energy-analysis (EN 50470-1 EN 50470-3) L1, L2, L3, N realtime analysis Up to 8000 measurements / second Hz / cos phi / power-factor Energy consumption kWh For Rogwski-coils up to 0,5V Power supply from EtherSens ProSuite IO bus-connection
by e-mail
Extension Energy for EtherSens ProSuite
Extension-module for EtherSens-ProSuite Energy-analysis (EN 50470-1 EN 50470-3) L1, L2, L3, N realtime analysis Up to 8000 measurements / second Hz / cos phi / power-factor Energy consumption kWh For Rogwski-coils up to 0,5V Power supply from EtherSens ProSuite IO bus-connection
by e-mail
price on request
plus VAT. and shipping
plus VAT. and shipping
All prices plus costs of delivery, shipping insurance and VAT.
