CONNECT-CONTROL with worldwide LTE - Process Informatik Entwicklungsgesellschaft mbH

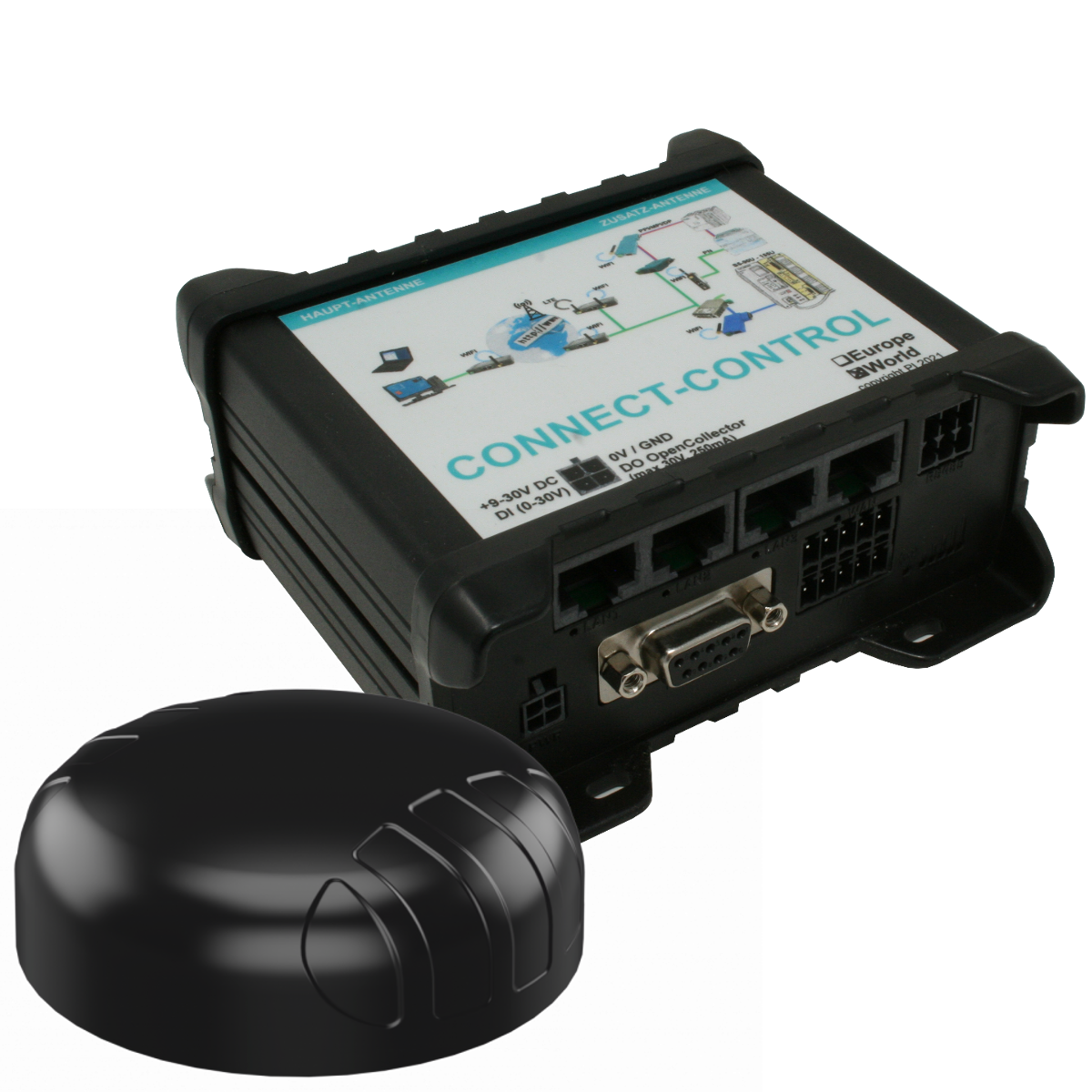

CONNECT-CONTROL with worldwide LTE


With ACBT through firewall +++ No on-site PC necessary +++ Internet without IT-knowledge

10 / 100 MBit
Connects LAN + WIFI devices also over LTE
with worldwide approval
No IT-skills required
Power-supply with 24V DC
Universal device (table / wall mounting)
IO-ports (digital / analog)
RS-232/485-port
USB-connector typ A

ACBT-Technologie: (AUTO-CONNECT and BYPASS TUNNEL)

Product overview:
Remote maintenance of systems/machines with the devices of the CONNECT-family without the use of the IT-department
The use makes no demands on the user, working according to the motto:
! Unpack, switch on, work !


benefits:
Remoteservice/Maschinenzugriff without configuration/IT-knowhow:
C ommunication

more...
variants:

635,00 € plus VAT. and shipping

ARTNR: 9354-CONNECT-CON-WORLD
CONNECT-CONTROL with worldwide LTE
EAN number: 4260721031042
HS-code: 85176200
Weight: 0.3 kg





CONNECT - CONNECT-LTE - CONNECT-HS - CONNECT-II - CONNECT-II-LTE - CONNECT-CONTROL-EU - CONNECT-CONTROL-WORLD

Power supply
+24V DC ±20% or
5V over USB-power-adapter
only +24V DC ±20%
only +24V DC ±20%
only +24V DC ±20%
only +24V DC ±20%
9 - 30V DC
230V AC with power cord
9 - 30V DC
230V AC with power cord
Power
2W
12W
1.2W
9W
19W
7W
7W
LAN-speed
10/100 MBit
10/100 MBit
10/100 MBit
10/100/1000 MBit
10/100/1000 MBit
10/100 MBit
10/100 MBit
USB-port
USB 2.0
---
USB 2.0
USB 3.0
USB 3.0
USB 2.0
USB 2.0
Internet over LTE
---
---
---
Internet over LAN
RS232-port
---
---
---
---
---
RS485-port
---
---
---
---
---
MOD-bus TCP and Serial
---
---
---
---
---
Digital_In (0-3V)
---
---
---
---
---
Digital_In (0-30V)
---
---
---
---
---
Analogue_In (0-24V)
---
---
---
---
---
Digital_Out Open-Collector (30V, 250mA)
---
---
---
---
---
Digital_Out SPST-relais-out (40V, 4A)
---
---
---
---
---
S5-PLC over cable
S5-LAN++ (Art.Nr.:9359-LAN)
S5-LAN++ (Art.Nr.:9359-LAN)
S5-LAN++ (Art.Nr.:9359-LAN)
S5-LAN++ (Art.Nr.:9359-LAN)
S5-LAN++ (Art.Nr.:9359-LAN)
S5-LAN++ (Art.Nr.:9359-LAN)
S5-LAN++ (Art.Nr.:9359-LAN)
S5-PLC over WIFI
S5-BRIDGE (Art.Nr.: 9359-S5-WIFI)
S5-BRIDGE (Art.Nr.: 9359-S5-WIFI)
S5-BRIDGE (Art.Nr.: 9359-S5-WIFI)
S5-BRIDGE (Art.Nr.: 9359-S5-WIFI)
S5-BRIDGE (Art.Nr.: 9359-S5-WIFI)
S5-BRIDGE (Art.Nr.: 9359-S5-WIFI)
S5-BRIDGE (Art.Nr.: 9359-S5-WIFI)
S7-PLC (PPI/MPI/DP) over cable
S7-LAN (Art.Nr.: 9352-LANCON)
S7-LAN (Art.Nr.: 9352-LANCON)
S7-LAN (Art.Nr.: 9352-LANCON)
S7-LAN (Art.Nr.: 9352-LANCON)
S7-LAN (Art.Nr.: 9352-LANCON)
S7-LAN (Art.Nr.: 9352-LANCON)
S7-LAN (Art.Nr.: 9352-LANCON)
S7-PLC (PPI/MPI/DP) over WIFI
S7-BRIDGE (Art.Nr.: 9352-S7-WIFI)
S7-BRIDGE (Art.Nr.: 9352-S7-WIFI)
S7-BRIDGE (Art.Nr.: 9352-S7-WIFI)
S7-BRIDGE (Art.Nr.: 9352-S7-WIFI)
S7-BRIDGE (Art.Nr.: 9352-S7-WIFI)
S7-BRIDGE (Art.Nr.: 9352-S7-WIFI)
S7-BRIDGE (Art.Nr.: 9352-S7-WIFI)
S7-PLC (PN) over cable
direct at device
direct at device
direct at device
direct at device
direct at device
direct at device
direct at device
S7-PLC (PN) over WIFI
ALF-UA (Art.Nr.: 9352-ALF-UA)
ALF-UA (Art.Nr.: 9352-ALF-UA)
ALF-UA (Art.Nr.: 9352-ALF-UA)
ALF-UA (Art.Nr.: 9352-ALF-UA)
ALF-UA (Art.Nr.: 9352-ALF-UA)
ALF-UA (Art.Nr.: 9352-ALF-UA)
ALF-UA (Art.Nr.: 9352-ALF-UA)
further LAN-client over cable
direct at device or
ALF-UA (Art.Nr.: 9352-ALF-UA)
direct at device or
ALF-UA (Art.Nr.: 9352-ALF-UA)
direct at device or
ALF-UA (Art.Nr.: 9352-ALF-UA)
direct at device or
ALF-UA (Art.Nr.: 9352-ALF-UA)
direct at device or
ALF-UA (Art.Nr.: 9352-ALF-UA)
direct at device or
ALF-UA (Art.Nr.: 9352-ALF-UA)
direct at device or
ALF-UA (Art.Nr.: 9352-ALF-UA)
further WIFI-client
direct at device
direct at device
direct at device
direct at device
direct at device
direct at device
direct at device
ACBT-Technologie: (AUTO-CONNECT and BYPASS TUNNEL)

Product overview:
Remote maintenance of systems/machines with the devices of the CONNECT-family without the use of the IT-department
The use makes no demands on the user, working according to the motto:
! Unpack, switch on, work !


benefits:
Remoteservice/Maschinenzugriff without configuration/IT-knowhow:
C ommunication
O hne (without)
N etzwerk-Kenntnisse - (network-knowhow)
N ur (only)
E instecken, (pluggin)
C onnecten => (connect)
T echnik mal einfach (technology times easy)
No hidden costs, any prepaid card with LTE
No installation of additional software tools
Avoidance of on-site maintenance-work through remote-access
No PC required on site
Switch on only, automatic connection establishment (no portal login)
• Access to every LAN participant with TCP- and UDP-protocols:
  • PCs in this net
  • Panel in this net
  • S7-controls over S7-TCPIP or S7-LAN, S7-GATE, S7-BRIDGE
  • S5-controls over S5-LAN++
  • SINUMERIK 840D/840D SL
  • Mitsubishi-controls MELSEC IQR, FX5, QnA and L-series
  • Rockwell-controls Controllogix and Compactlogix
  • Bosch Rexroth-controls
  • Beckhoff TwinCAT-controls
  • B&R-control-systems
Open WebInterface with keyword, no matter which subnet
• Workplaces at the same time in parallel on different participants on site
Remote-access to customer systems without an intranet
• Connection without much effort
• Only your devices are visible in the cloud
Encrypted transmission between the CONNECT-devices
• Quick and easy configuration with WebInterface, no unnecessary input masks
Integrated firewall regulates access from the intranet to the machine network
• Remote access to all devices in the cloud
Import / export configuration between devices in the cloud
• Integrated diagnostic tools on site for network-analysis

[HOME]


[FACTORY]


No network connection on the machine available?
CONNECT-LTE + Standard SIM-card = communication over LTE


Accessories:
Connection of most S5/7 controls by using our additional devices "S7-LAN, S7-BRIDGE, S5-LAN++, S5-BRIDGE or ALF-UA" directly to the CONNECT via cable or via WIFI.
Watch the S5-controller, transfer parallel the S7-controller-program, work as if you were sitting in front of the machine.

No time for configuration as plant-/production-stoppage?
==> CONNECT-PROJECT
We parameterize all devices and additional devices for you according to your specifications, send them to you and “neutral” to your end customer. No one has to change or adapt the parameterization:.
==> "Unpack, switch on, work"

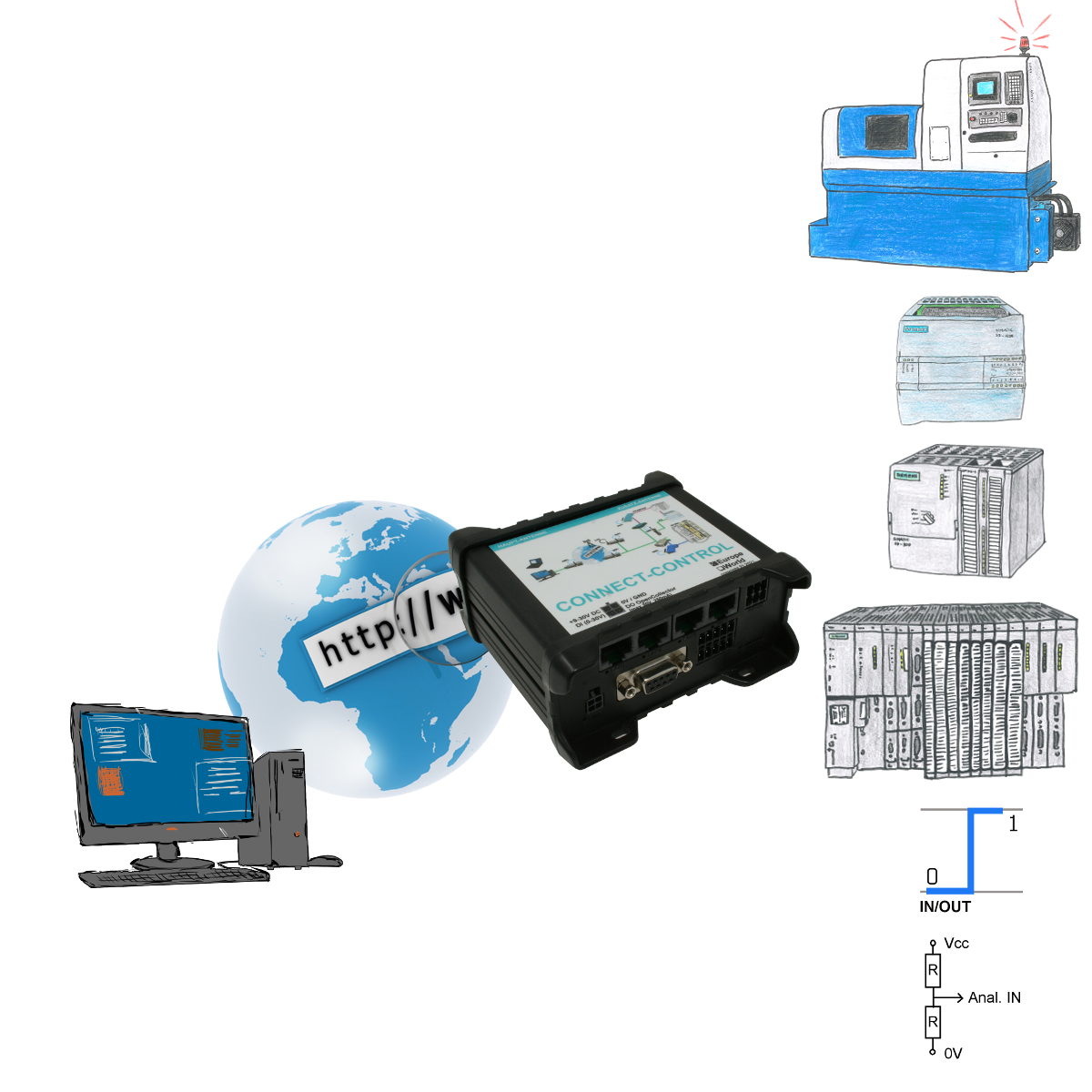

Universally on machine and PLC
Produkbild
Remote access to all your systems, PLCs without great effort. Even triggering of actions by setting the integrated digital-outputs or reading in the digital and analog-inputs is possible via the Internet connection.
Regardless of whether you use your PC with the CONNECT-software or have connected a device from the CONNECT-family. Couplings via LTE also enable access to the LAN-interface on the system side. No special SIM-card is required for this.
A solution with little effort and everything within your "private" cloud.
Cloud3
Produkbild
Worldwide remote-access thanks to our own cloud
Produkbild

Worldwide remote-maintenance without additional costs thanks to our own cloud
Your devices connect to your own cloud, no matter where they are in the world. Only your devices are in your own private cloud, no one else has access to the cloud. In addition, you can provide each device with its own connection-password, so that the individual systems are protected despite the private cloud.
No registration on any portals, no hidden additional costs, your devices in your own cloud are always accessible.
This is how remote maintenance/remote access is fun.

Cloud2
Produkbild
Cloud4
Produkbild
Cloud5
Produkbild
Cloud6
Produkbild
CONNECT-FACTORY
Produkbild
CONNECT-HOME
Produkbild
LTE
Produkbild
Connection of lan-clients
Produkbild
Connection of wifi-clients
Produkbild
Gateway
Produkbild
CONNECT (autonomic tunneling of the firewall)
Produkbild
Simple and uncomplicated remote maintenance
Produkbild

Simple and uncomplicated remote-access to your devices/systems via the Internet
VPN-tunnel, registration at any portal is not necessary, activate the device and select and communicate with the opposite system
No great effort to implement access. Use of the devices without consulting IT, no time-consuming commissioning procedure
All your devices in your own cloud, no access from third-party CONNECT-devices to your devices/systems


Produkbild

Produkbild

Produkbild
Supply voltage: 9 - 30V DC
Power consumption: 7 Watt
Display: WebBrowser
Status LEDs
Handling/Configuration: WEB-Browser

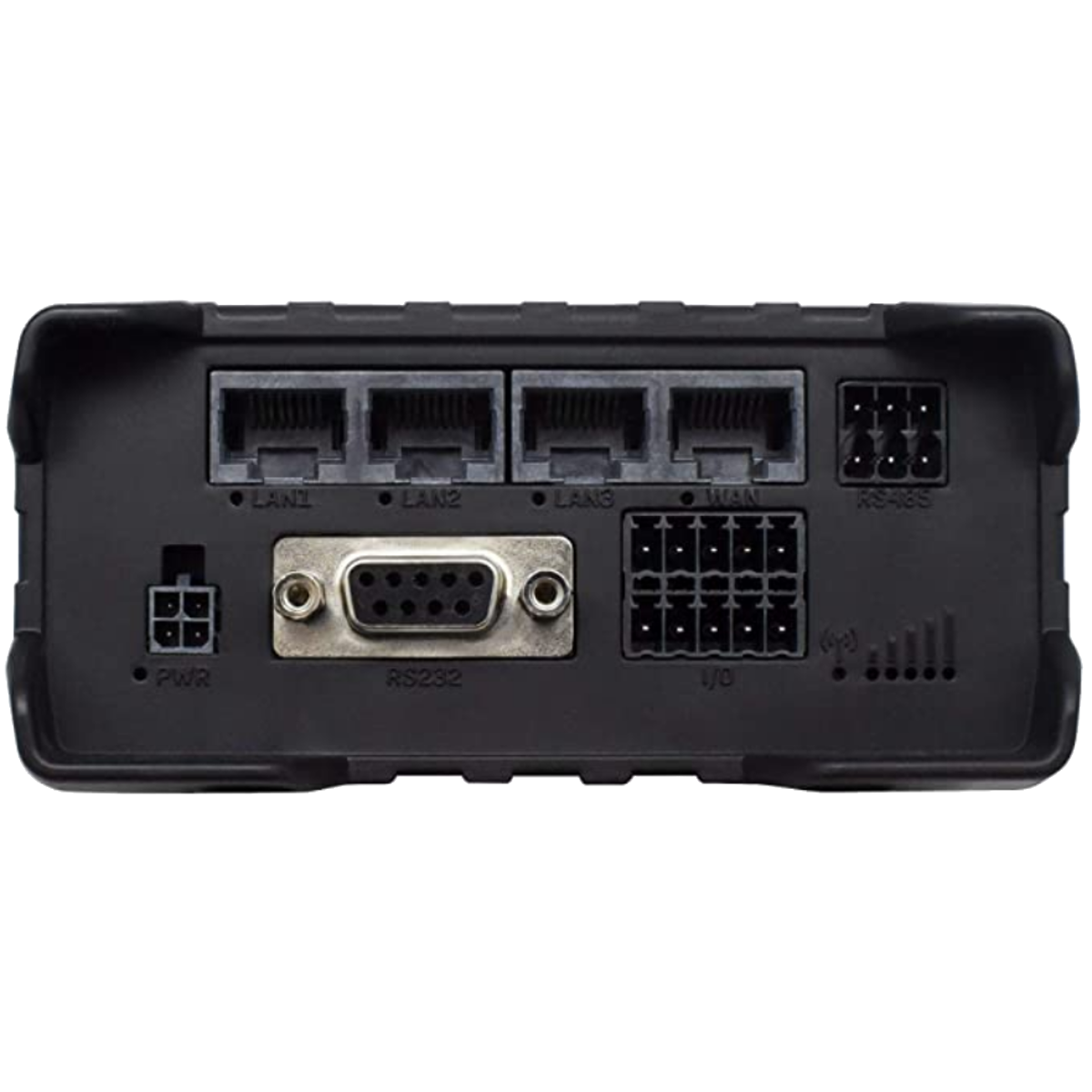

Interfaces: 4 x 10/100BaseTX RJ45-ethernet-plug auto-MDI/MDIX (3x LAN, 1x WAN)

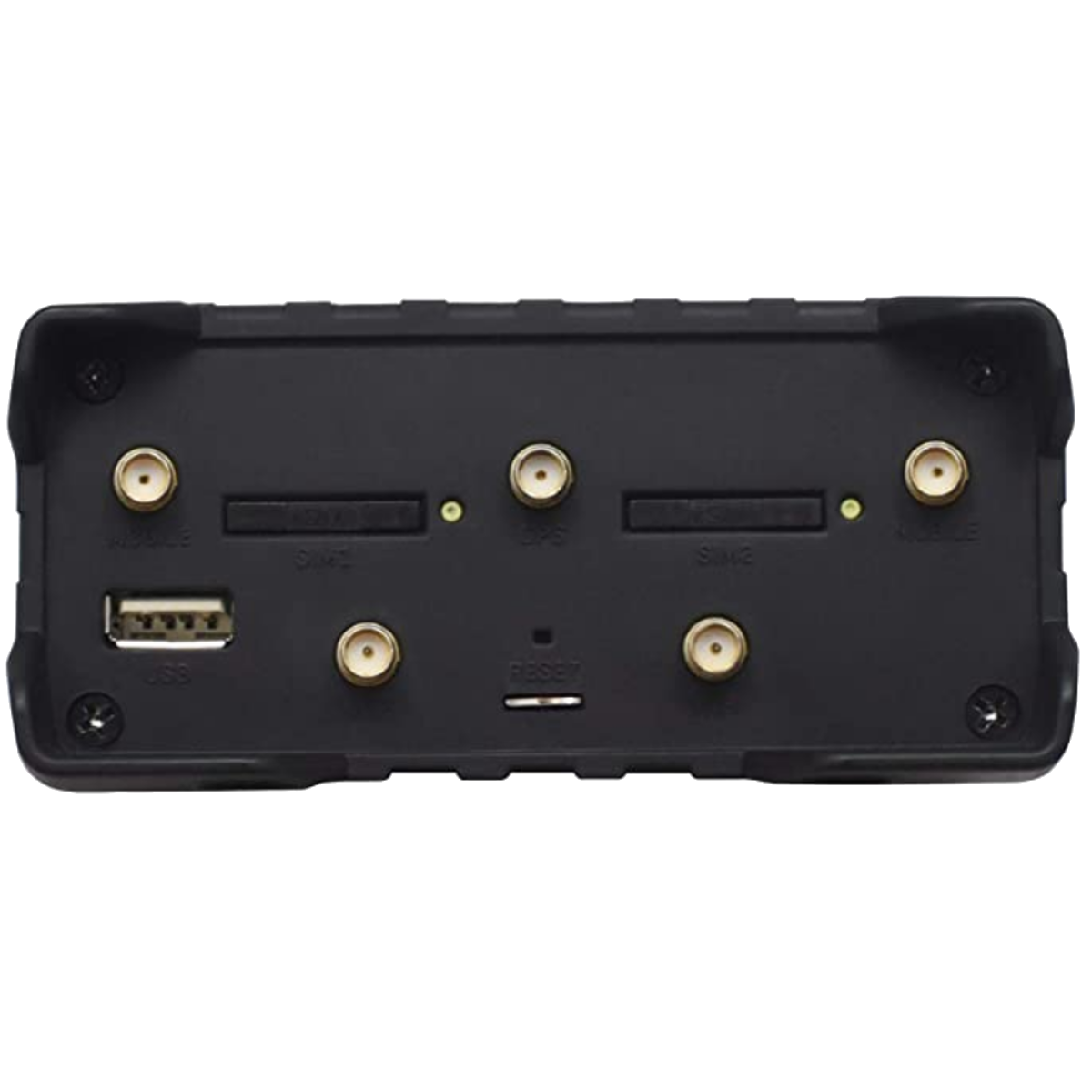

2x Antenna-connector RP-SMA(f) (WIFI 2.4 GHz IEEE 802.11b/g/n)
2x Antenna-connector SMA(f) (FDD LTE: B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28)
1x Antenna-connector SMA(f) GNSS-receiver
RS485-port via plug-connector 6pol.
RS232-port via D-Sub 9pol female
2x digital input (0 - 3V, 0 - 30V)
1x analogue input (0 - 24V)
1x digital output OpenCollector (30V, 250mA)
1x digital SPST-relay-output (40V, 4A)
USB 2.0-socket type A
2x SIM-slot
Operating temperature: -40 - 75°C
Case: Metal-housing, suitable for table- or wall-mounting
Dimensions: 106 x 80 x 46 mm

Scope of delivery: 9354-CONNECT-CON-WELT
Plug-in power supply 230V AC => 9V DC
2x LTE-magnetic-base-antenna (SMA (m), 3 m cable)
2x WLAN-magnetic-base-antenna (RP-SMA (m), 1.5 m cable)
GNSS antenna (SMA (m), 3 m cable)
RS485-terminal strip
I/O-terminal strip
Ethernetcable 1.5 m
Power connection cable (2m)
