CONNECT-HS-LOGGER

Remote maintenance

	TELE LINK NETWORK
	TELE-PROF-II	TELE-PROF	TELE-BOOK	MPI-Modem	TELEService	S5-LAN	S7-LAN	TeleRouter
secured modem-protocol	✓	✓	✓
additional software needed				Siemens TS -Software	Siemens TS -Software	VPN-Client	VPN-Client
Providing WinTELEPROF-software	✓	✓	✓
modem	analogue/ISDN	analogue	opt. via PCMCIA	analogue/GSM	analogue/ISDN/GSM	internet-connection	internet-connection	internet-connection
modem for world wide use	✓	✓	✓	✓	✓
interfaces
MPI/Profibus	9600-12MBd			9600-12MBd	9600-12MBd		9600-12MBd
RS232	2x	2x	2x	1x	1x
TTY	2x	2x	2x			1x
PCMCIA	2x (optionally)	1x	1x
Ethernet	10/100BaseTx					1x	1x	5x
USB	2x				1x
LCD-display	✓	✓	✓	✓	instead 10 LEDs	instead status-LED	instead webserver	instead webserver
supported PLC-protocols *
S7	✓	✓	✓	✓	✓		✓
S5	✓	✓ (optional)	✓ (optional)			✓
Pilz PSS	✓	✓ (optional)	✓ (optional)
Allen-Bradley	✓	✓ (optional)	✓ (optional)
AEG		✓ (optional)	✓ (optional)
Bosch		✓ (optional)	✓ (optional)
Telemecanique		✓ (optional)	✓ (optional)
GE-Fanuc		✓ (optional)	✓ (optional)
Klöckner-Moeller		✓ (optional)	✓ (optional)
Mitsubishi		✓ (optional)	✓ (optional)
SMS-sending/Pager(S5/S7)	✓	✓	✓		✓ (no pager)			only for analogue / ISDN
HMI-messaging module(S5/S7)	✓							✓
SMS-receive with GSM					✓
DTMF with analogue					✓
e-mail-dispatch	✓				✓			✓
FAX-dispatch(S5/S7)	✓	✓ (optional)	✓ (optional)					only for analogue / ISDN
PLC-data coupling(S5/S7)	✓	✓ (optional)	✓ (optional)			✓	✓
ASCII-transfer from S5/S7	✓	✓ (optional)	✓ (optional)			only with ASCII-LAN
internet-coupling	✓
Usage as dial-up-router	✓							✓
power supply	24V/DC	24V/DC	24V/DC	24V/DC	24V/DC	24V/DC	24V/DC	24V/DC
dimensions w x h x d (in mm)	High: 67 x 280 x 170 FLAT: 300 x 175 x 70	300 x 175 x 66	235 x 162 x 37	90 x 162 x 54	40 x 125 x 115	42 x 15 x 65	65 x 43 x 17	154 x 92 x 28
* other PLC types on request

back to device-selection

Connecting existing machines and systems to modern Industry 4.0 infrastructures is
increasingly becoming the focus of automation. Retrofitting can save the costly
replacement of controllers.

Process-Informatik Entwicklungsgesellschaft mbH has the solution to transfer
even older PLC generations, S5 and S7-200/300/400, the state of variables into a CSV-file.

There is no reason to deny these older systems, which have been operating reliably
since the 1980s, the step to the OPC UA world. This allows these systems to be
transferred to the modern world without significant effort, extensive
modifications, or even a controller replacement.

These older controllers are made network-compatible via adapters available
from Process-Informatik Entwicklungsgesellschaft mbH
such as the S5-LAN++, S5-BRIDGE for the AS511 interface and
S7-LAN++, S7-BRIDGE for the PPI/MPI/Profibus interface.
This allows even very old controllers – back to the S5-90U – to be integrated into
modern IT and cloud environments and continue to be used in the long term.

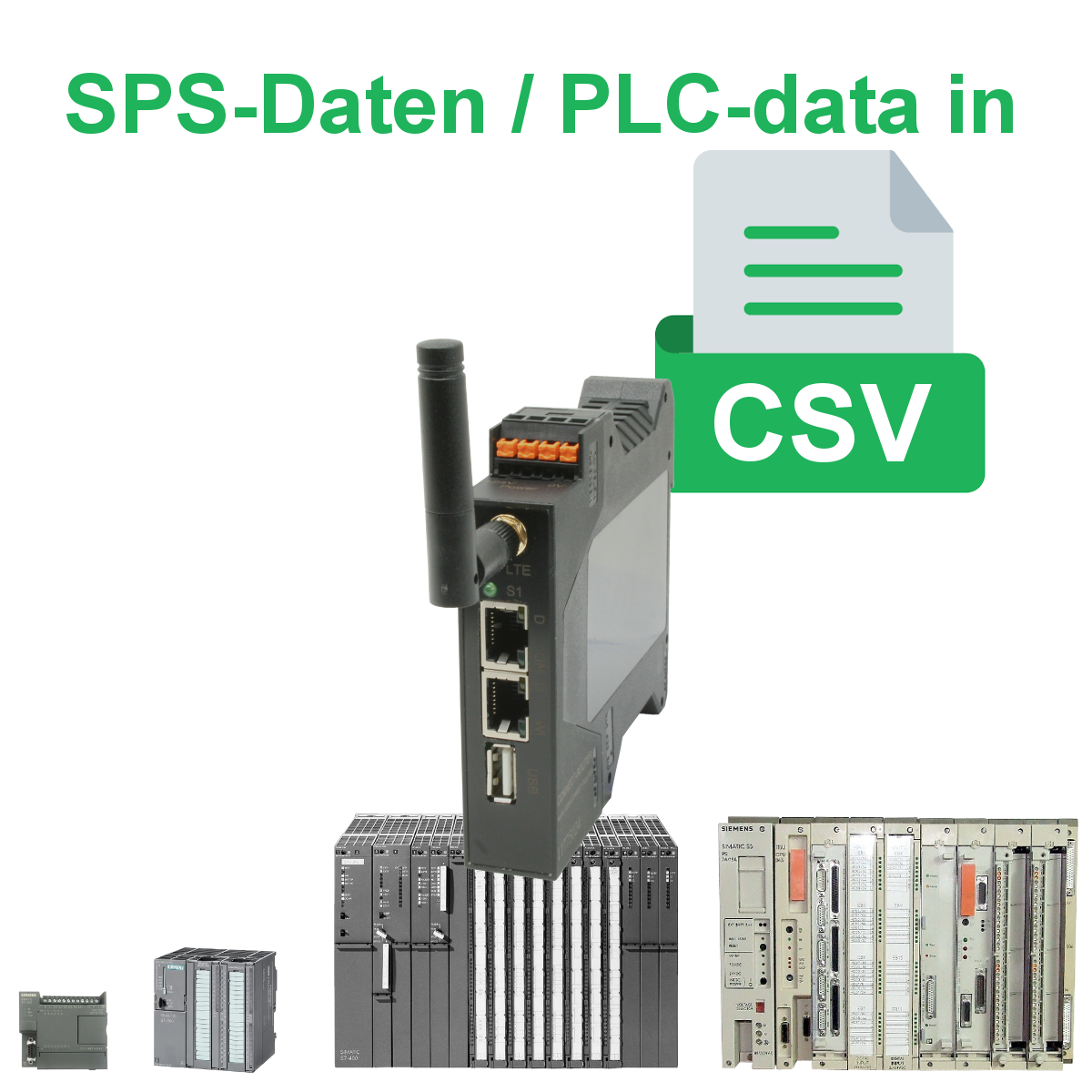

Configuration is done via the web interface. The device writes the CSV-file
either to the inserted USB-stick or to a network-drive.

Features:

• Target drive: USB-stick or network-drive
• S7-TCPIP RFC1006-controls to OPC UA
  • S7-200/300/400 (PPI/MPI/Profibus) over S7-LAN++
  • S7-300/400 PN-PLC
  • LOGO!
  • S5-90U .. S5-155U over S5-LAN++
• Fast and easy installation
• Input voltage 24V DC
• DIN-rail mounting

Supply voltage:	24V DC +/- 20%
Power consumption:	12 watt
Display:	status-LEDs
Handling/Configuration:	with integrated webserver
Interfaces:	to the PLC: 10/100BaseTX RJ45-ethernetplug to the PD/PC: WLAN connection (802.11 b/g/n)
Security	WEP 64/128bit WPA (TKIP with IEEE 802.1x) WPA2 (AES with IEEE 802.1x) WPA Mixed
Operating temperature:	-30 - +55°C
Case:	plastic clamping-case
Dimensions:	114 x 100 x 22.3 mm
Scope of delivery:	CONNECT-HS-Logger WIFI-stub-antenna Black power plug

All prices plus costs of delivery, shipping insurance and VAT.

All prices plus costs of delivery, shipping insurance and VAT.

CONNECT devices

CONNECT-Remote-Access
Desktop device / remote support 100MBit Ethernet + WIFI

CONNECT-HS-Remote-Access
Din-rail device / remote support 100MBit Ethernet + WIFI

CONNECT-LTE-Remote-Access
Desktop device / remote support 100MBit Ethernet + WIFI + LTE

CONNECT-LTE-HS-Remote-Access
Din rail mounting device / remote support 100MBit Ethernet + WIFI + LTE

CONNECT-IP-Switch
Converting IP addresses +++ Universally usable +++ Table device

CONNECT-HS-IP-Switch
Converting IP addresses +++ Universally usable +++ For DIN-Rail-mounting

CONNECT-Router
Industrial WLAN-Router +++ Datarate 150 Mbit/s +++ Table-device +++ Make your own WIFI

CONNECT-HS-Router
Industrial WLAN-Router +++ Datarate 150 Mbit/s +++ Din-rail-mounting +++ Make your own WIFI

CONNECT-CONTROL
Desktop-/wall-device / remote support 100MBit Ethernet + WIFI + LTE + GPS + IO-ports

CONNECT-II-Remote-Access
Quad Core Desktop device / remote support 1000MBit Ethernet + WIFI (2.4 / 5.0 GHz)

CONNECT-II-LTE-Remote-Access
Quad Core Desktop device / remote support 1000MBit Ethernet + WIFI (2.4 / 5.0 GHz) + LTE

CONNECT-TimeServer
Time for PLC and network +++ NTP-time-server +++ Time in S5-PLC/S7-PLC +++ Network time-server

CONNECT-HS-TimeServer
Time for PLC and network +++ NTP-time-server +++ Time in S5-PLC/S7-PLC +++ Network time-server

CONNECT-software
Software solution, connects CONNECT-CLOUD with PC

Protocol converter S7-TCPIP <=> ISO(H1)

CONNECT-HS-UnifiedPanel
Connects Unified-Panel with S5-PLC via S5-LAN++

CONNECT-HS-OPC UA - gateway
Implementing S7-200/300/400/Logo!/S5 PLCs to OPC UA

All prices plus costs of delivery, shipping insurance and VAT.
