CONNECT-II-Remote-Access - Process Informatik Entwicklungsgesellschaft mbH

CONNECT-II-Remote-Access


With ACBT through firewall +++ No on-site PC necessary +++ Internet without IT-knowledge

10 / 100 / 1000 MBit
Connects LAN + WIFI devices
No IT-skills required
Power-supply with 24V DC
Table-device

ACBT-Technologie: (AUTO-CONNECT and BYPASS TUNNEL)

Product overview:
Remote maintenance of systems/machines with the devices of the CONNECT-family without the use of the IT-department
The use makes no demands on the user, working according to the motto:
! Unpack, switch on, work !


benefits:
Remoteservice/Maschinenzugriff without configuration/IT-knowhow:
C ommunication

more...
variants:

548,00 € plus VAT. and shipping

ARTNR: 9354-CONNECT-II
Remote maintenance without IT-knowledge 1000 MBit
EAN number: 4260363249454
HS-code: 85176200
Weight: 0.3 kg





CONNECT - CONNECT-LTE - CONNECT-HS - CONNECT-II - CONNECT-II-LTE - CONNECT-CONTROL-EU - CONNECT-CONTROL-WORLD

Power supply
+24V DC ±20% or
5V over USB-power-adapter
only +24V DC ±20%
only +24V DC ±20%
only +24V DC ±20%
only +24V DC ±20%
9 - 30V DC
230V AC with power cord
9 - 30V DC
230V AC with power cord
Power
2W
12W
1.2W
9W
19W
7W
7W
LAN-speed
10/100 MBit
10/100 MBit
10/100 MBit
10/100/1000 MBit
10/100/1000 MBit
10/100 MBit
10/100 MBit
USB-port
USB 2.0
---
USB 2.0
USB 3.0
USB 3.0
USB 2.0
USB 2.0
Internet over LTE
---
---
---
Internet over LAN
RS232-port
---
---
---
---
---
RS485-port
---
---
---
---
---
MOD-bus TCP and Serial
---
---
---
---
---
Digital_In (0-3V)
---
---
---
---
---
Digital_In (0-30V)
---
---
---
---
---
Analogue_In (0-24V)
---
---
---
---
---
Digital_Out Open-Collector (30V, 250mA)
---
---
---
---
---
Digital_Out SPST-relais-out (40V, 4A)
---
---
---
---
---
S5-PLC over cable
S5-LAN++ (Art.Nr.:9359-LAN)
S5-LAN++ (Art.Nr.:9359-LAN)
S5-LAN++ (Art.Nr.:9359-LAN)
S5-LAN++ (Art.Nr.:9359-LAN)
S5-LAN++ (Art.Nr.:9359-LAN)
S5-LAN++ (Art.Nr.:9359-LAN)
S5-LAN++ (Art.Nr.:9359-LAN)
S5-PLC over WIFI
S5-BRIDGE (Art.Nr.: 9359-S5-WIFI)
S5-BRIDGE (Art.Nr.: 9359-S5-WIFI)
S5-BRIDGE (Art.Nr.: 9359-S5-WIFI)
S5-BRIDGE (Art.Nr.: 9359-S5-WIFI)
S5-BRIDGE (Art.Nr.: 9359-S5-WIFI)
S5-BRIDGE (Art.Nr.: 9359-S5-WIFI)
S5-BRIDGE (Art.Nr.: 9359-S5-WIFI)
S7-PLC (PPI/MPI/DP) over cable
S7-LAN (Art.Nr.: 9352-LANCON)
S7-LAN (Art.Nr.: 9352-LANCON)
S7-LAN (Art.Nr.: 9352-LANCON)
S7-LAN (Art.Nr.: 9352-LANCON)
S7-LAN (Art.Nr.: 9352-LANCON)
S7-LAN (Art.Nr.: 9352-LANCON)
S7-LAN (Art.Nr.: 9352-LANCON)
S7-PLC (PPI/MPI/DP) over WIFI
S7-BRIDGE (Art.Nr.: 9352-S7-WIFI)
S7-BRIDGE (Art.Nr.: 9352-S7-WIFI)
S7-BRIDGE (Art.Nr.: 9352-S7-WIFI)
S7-BRIDGE (Art.Nr.: 9352-S7-WIFI)
S7-BRIDGE (Art.Nr.: 9352-S7-WIFI)
S7-BRIDGE (Art.Nr.: 9352-S7-WIFI)
S7-BRIDGE (Art.Nr.: 9352-S7-WIFI)
S7-PLC (PN) over cable
direct at device
direct at device
direct at device
direct at device
direct at device
direct at device
direct at device
S7-PLC (PN) over WIFI
ALF-UA (Art.Nr.: 9352-ALF-UA)
ALF-UA (Art.Nr.: 9352-ALF-UA)
ALF-UA (Art.Nr.: 9352-ALF-UA)
ALF-UA (Art.Nr.: 9352-ALF-UA)
ALF-UA (Art.Nr.: 9352-ALF-UA)
ALF-UA (Art.Nr.: 9352-ALF-UA)
ALF-UA (Art.Nr.: 9352-ALF-UA)
further LAN-client over cable
direct at device or
ALF-UA (Art.Nr.: 9352-ALF-UA)
direct at device or
ALF-UA (Art.Nr.: 9352-ALF-UA)
direct at device or
ALF-UA (Art.Nr.: 9352-ALF-UA)
direct at device or
ALF-UA (Art.Nr.: 9352-ALF-UA)
direct at device or
ALF-UA (Art.Nr.: 9352-ALF-UA)
direct at device or
ALF-UA (Art.Nr.: 9352-ALF-UA)
direct at device or
ALF-UA (Art.Nr.: 9352-ALF-UA)
further WIFI-client
direct at device
direct at device
direct at device
direct at device
direct at device
direct at device
direct at device
ACBT-Technologie: (AUTO-CONNECT and BYPASS TUNNEL)

Product overview:
Remote maintenance of systems/machines with the devices of the CONNECT-family without the use of the IT-department
The use makes no demands on the user, working according to the motto:
! Unpack, switch on, work !


benefits:
Remoteservice/Maschinenzugriff without configuration/IT-knowhow:
C ommunication
O hne (without)
N etzwerk-Kenntnisse - (network-knowhow)
N ur (only)
E instecken, (pluggin)
C onnecten => (connect)
T echnik mal einfach (technology times easy)
No hidden costs, any prepaid card with LTE
No installation of additional software tools
Avoidance of on-site maintenance-work through remote-access
No PC required on site
Switch on only, automatic connection establishment (no portal login)
• Access to every LAN participant with TCP- and UDP-protocols:
  • PCs in this net
  • Panel in this net
  • S7-controls over S7-TCPIP or S7-LAN, S7-GATE, S7-BRIDGE
  • S5-controls over S5-LAN++
  • SINUMERIK 840D/840D SL
  • Mitsubishi-controls MELSEC IQR, FX5, QnA and L-series
  • Rockwell-controls Controllogix and Compactlogix
  • Bosch Rexroth-controls
  • Beckhoff TwinCAT-controls
  • B&R-control-systems
Open WebInterface with keyword, no matter which subnet
• Workplaces at the same time in parallel on different participants on site
Remote-access to customer systems without an intranet
• Connection without much effort
• Only your devices are visible in the cloud
Encrypted transmission between the CONNECT-devices
• Quick and easy configuration with WebInterface, no unnecessary input masks
Integrated firewall regulates access from the intranet to the machine network
• Remote access to all devices in the cloud
Import / export configuration between devices in the cloud
• Integrated diagnostic tools on site for network-analysis

[HOME]


[FACTORY]


No network connection on the machine available?
CONNECT-LTE + Standard SIM-card = communication over LTE


Accessories:
Connection of most S5/7 controls by using our additional devices "S7-LAN, S7-BRIDGE, S5-LAN++, S5-BRIDGE or ALF-UA" directly to the CONNECT via cable or via WIFI.
Watch the S5-controller, transfer parallel the S7-controller-program, work as if you were sitting in front of the machine.

No time for configuration as plant-/production-stoppage?
==> CONNECT-PROJECT
We parameterize all devices and additional devices for you according to your specifications, send them to you and “neutral” to your end customer. No one has to change or adapt the parameterization:.
==> "Unpack, switch on, work"


Cloud5
Produkbild

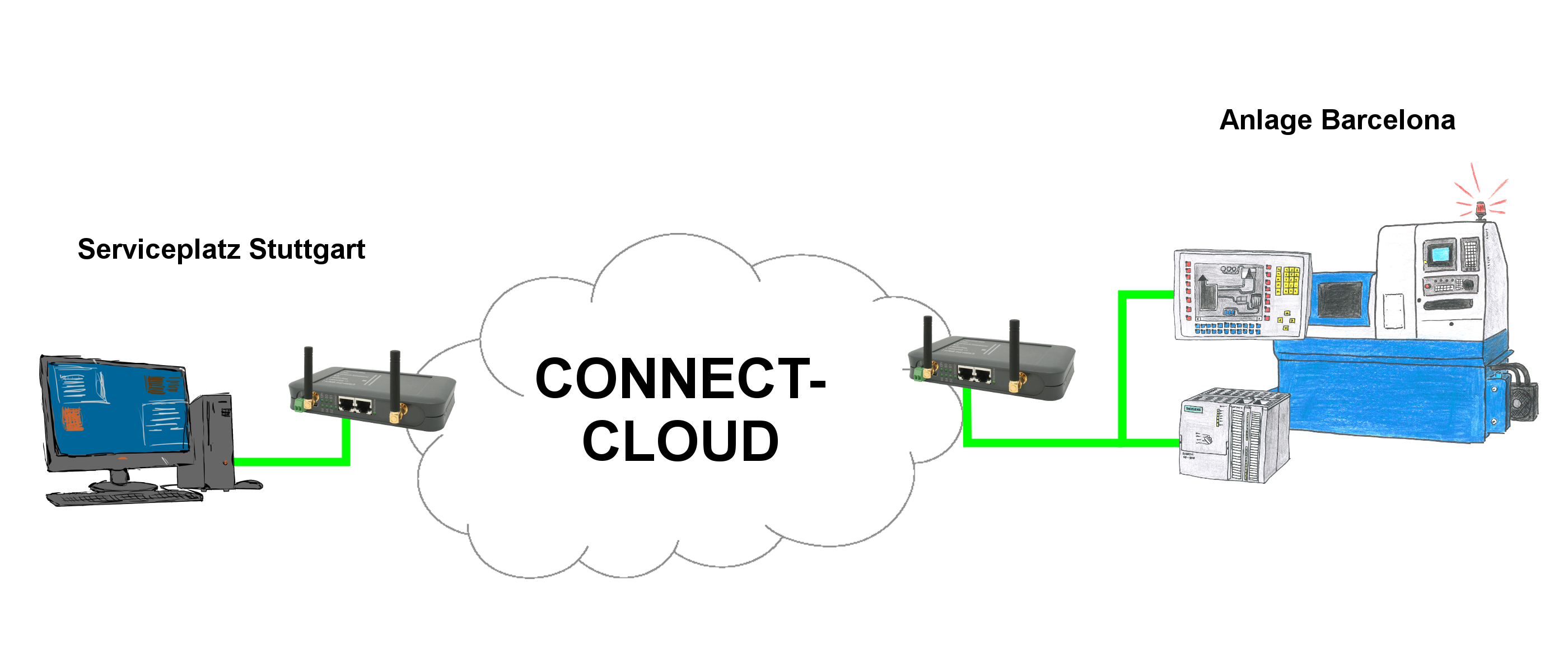

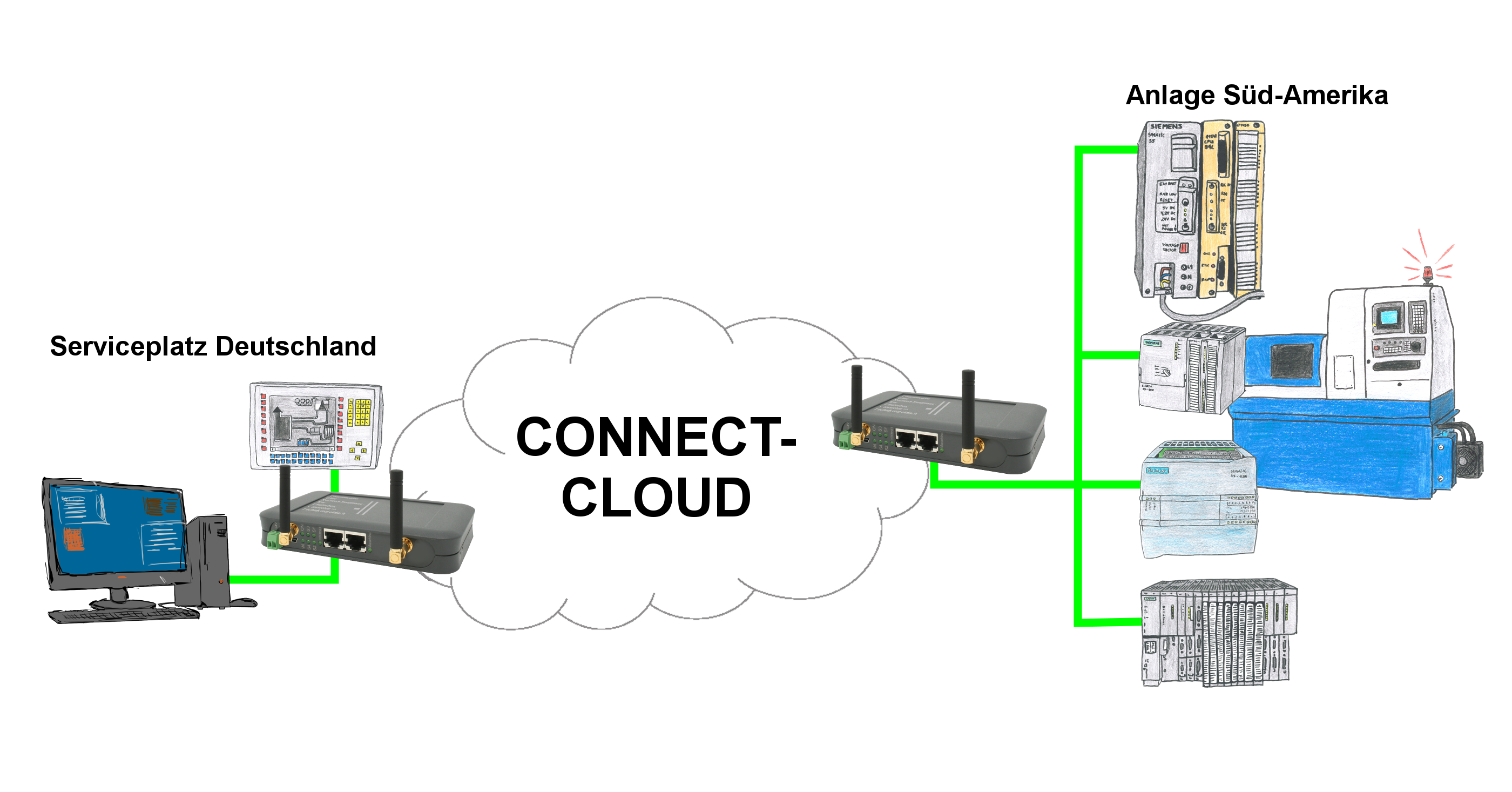

Worldwide remote-access thanks to our own cloud
Produkbild

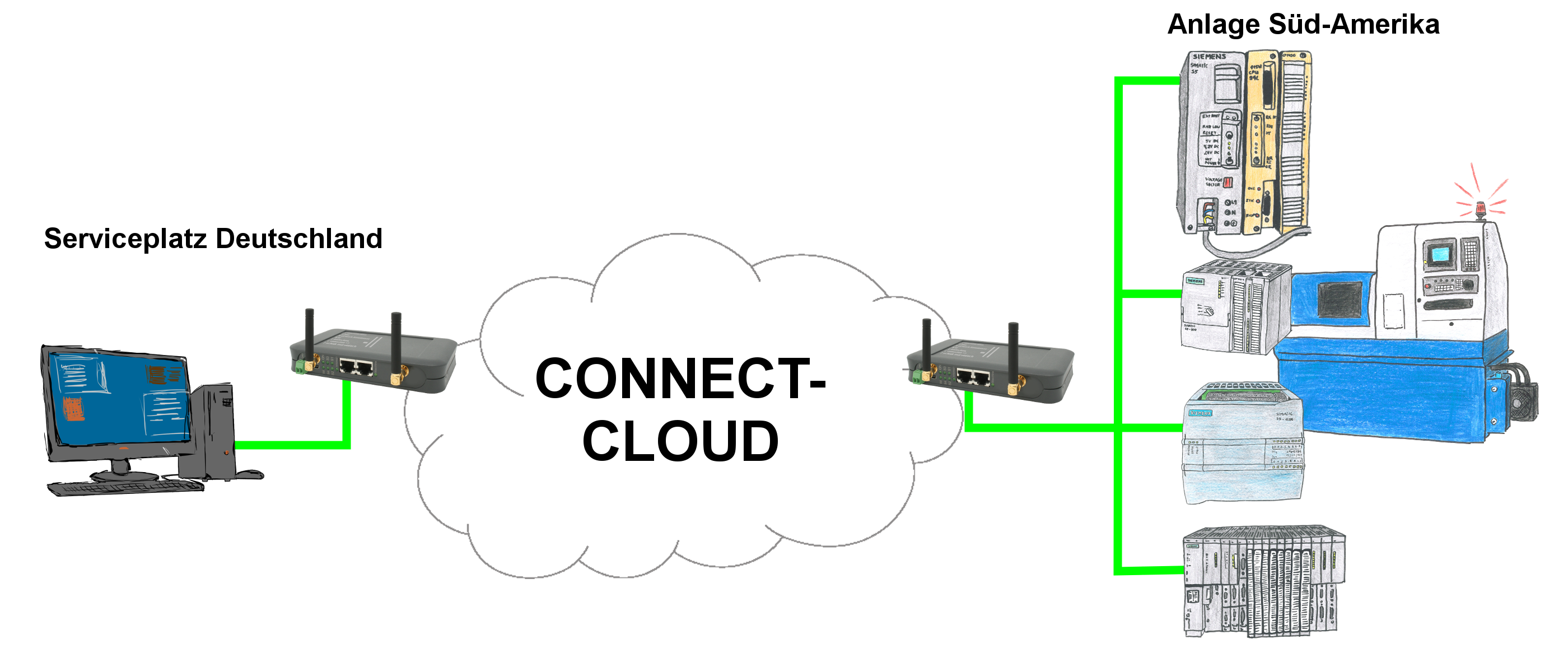

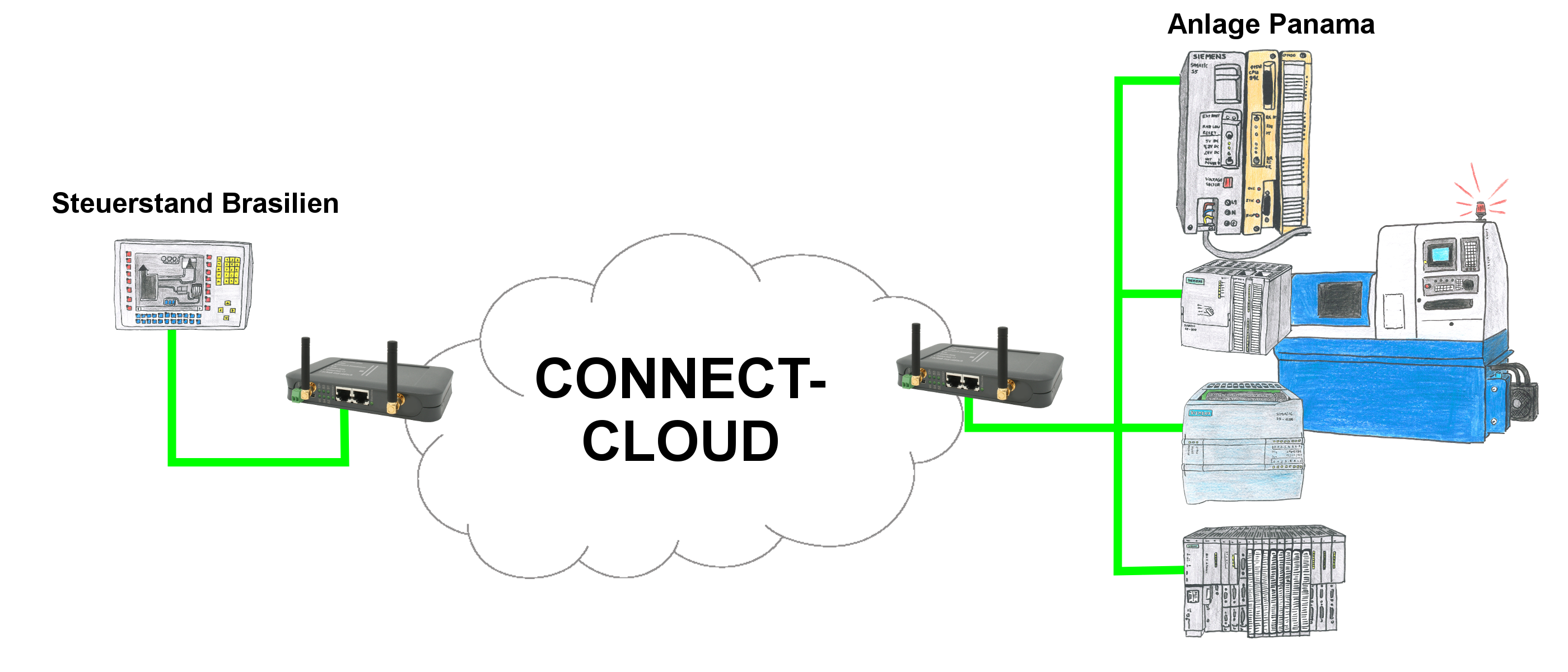

Worldwide remote-maintenance without additional costs thanks to our own cloud
Your devices connect to your own cloud, no matter where they are in the world. Only your devices are in your own private cloud, no one else has access to the cloud. In addition, you can provide each device with its own connection-password, so that the individual systems are protected despite the private cloud.
No registration on any portals, no hidden additional costs, your devices in your own cloud are always accessible.
This is how remote maintenance/remote access is fun.

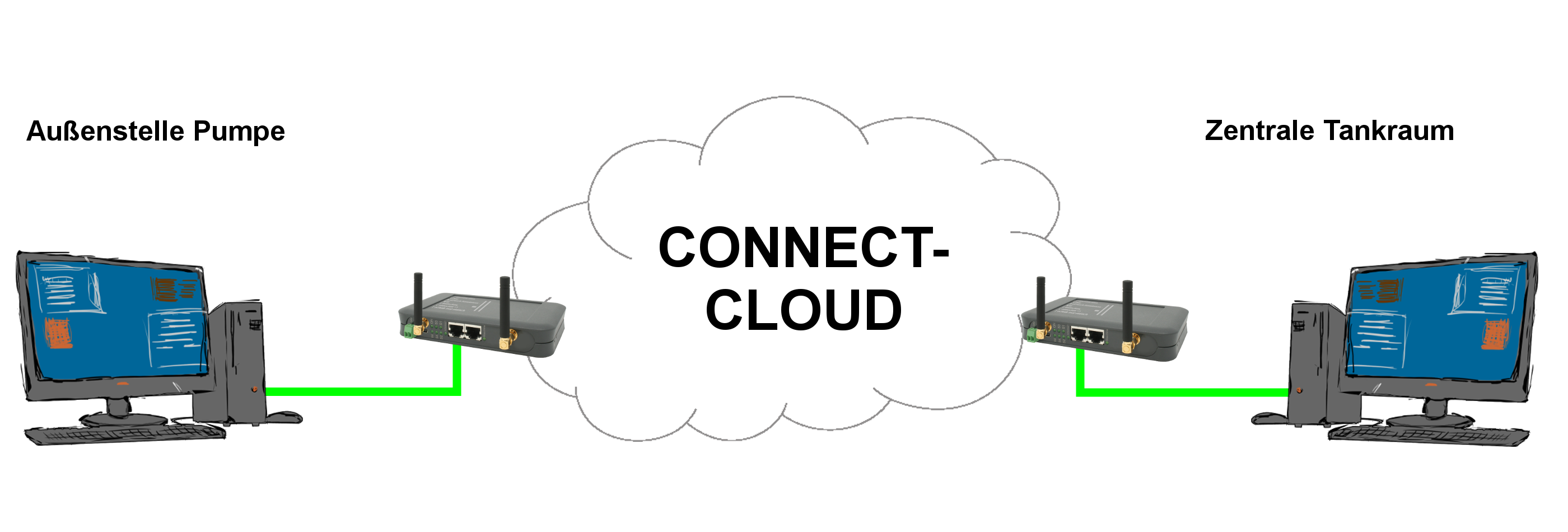

Cloud2
Produkbild

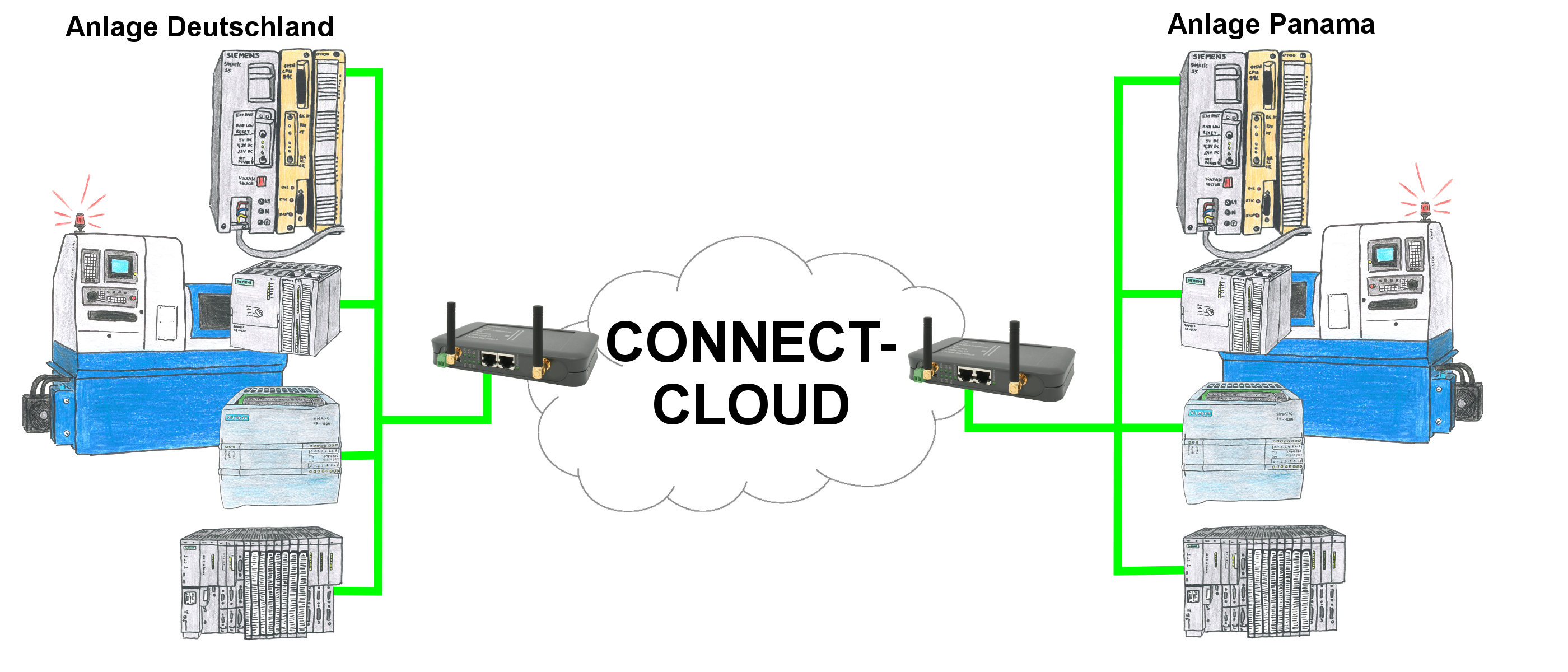

Cloud3
Produkbild
Cloud4
Produkbild
Cloud6
Produkbild

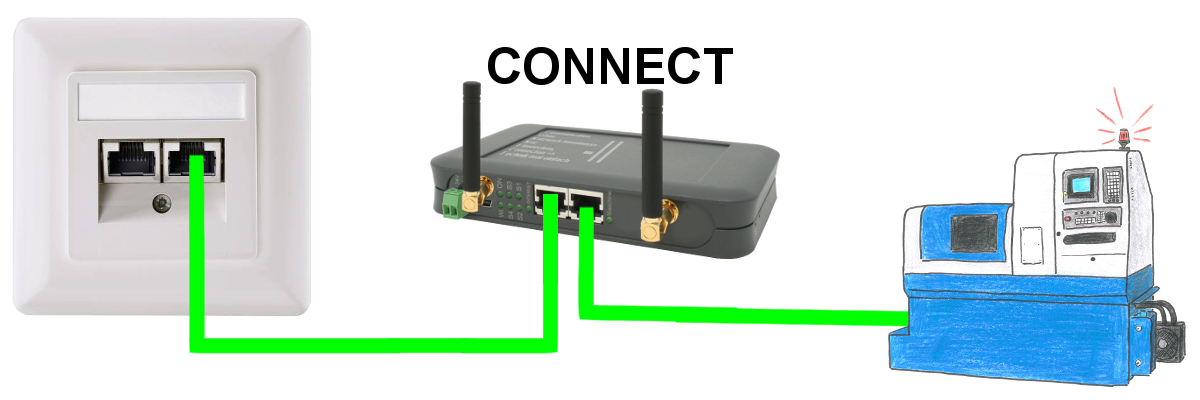

CONNECT-FACTORY
Produkbild

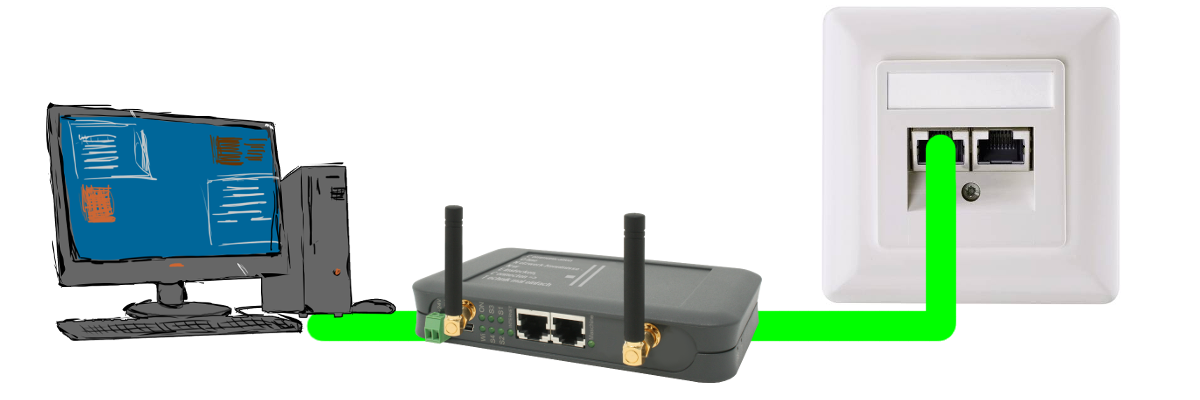

CONNECT-HOME
Produkbild

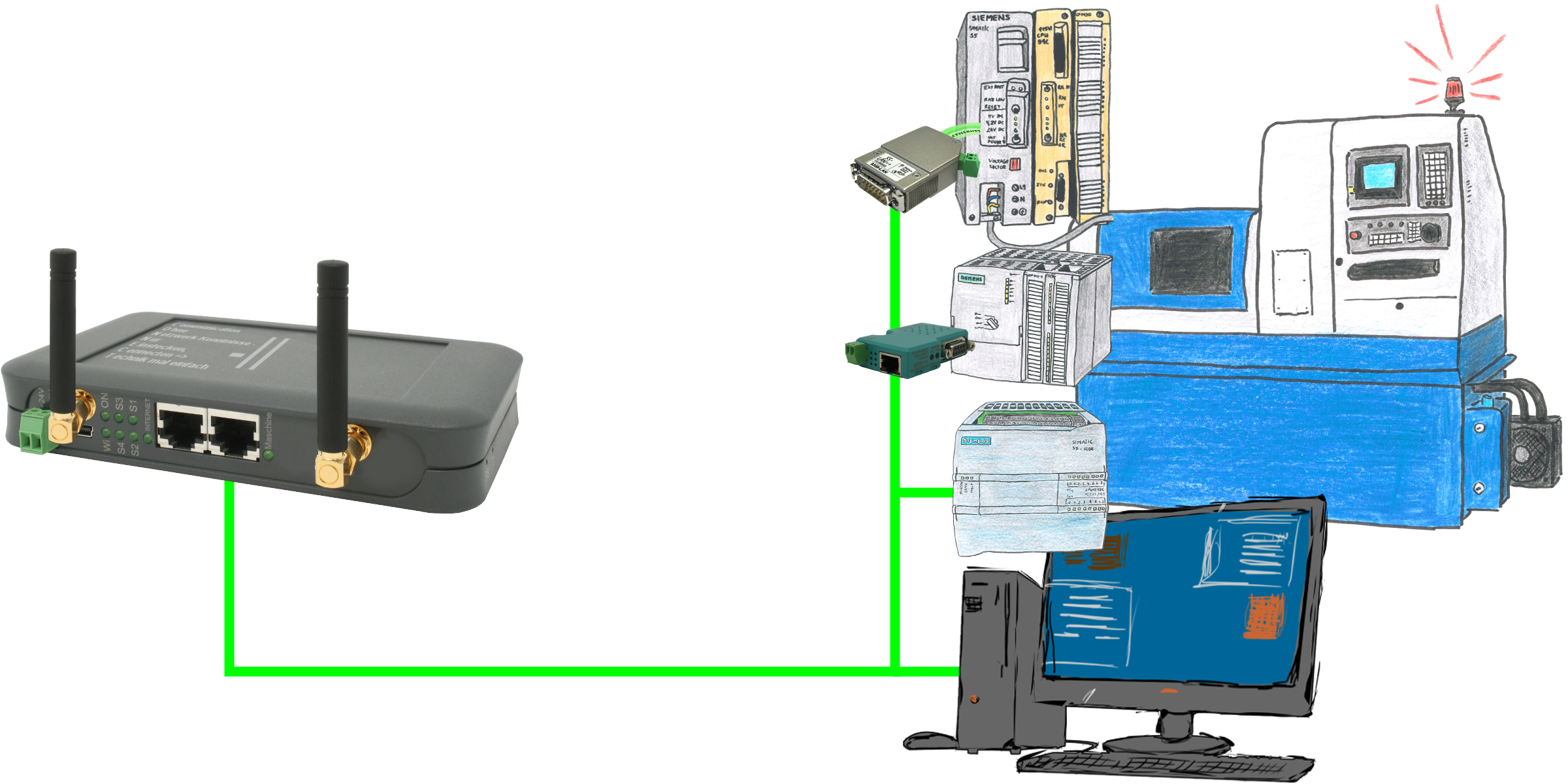

Connection of lan-clients
Produkbild

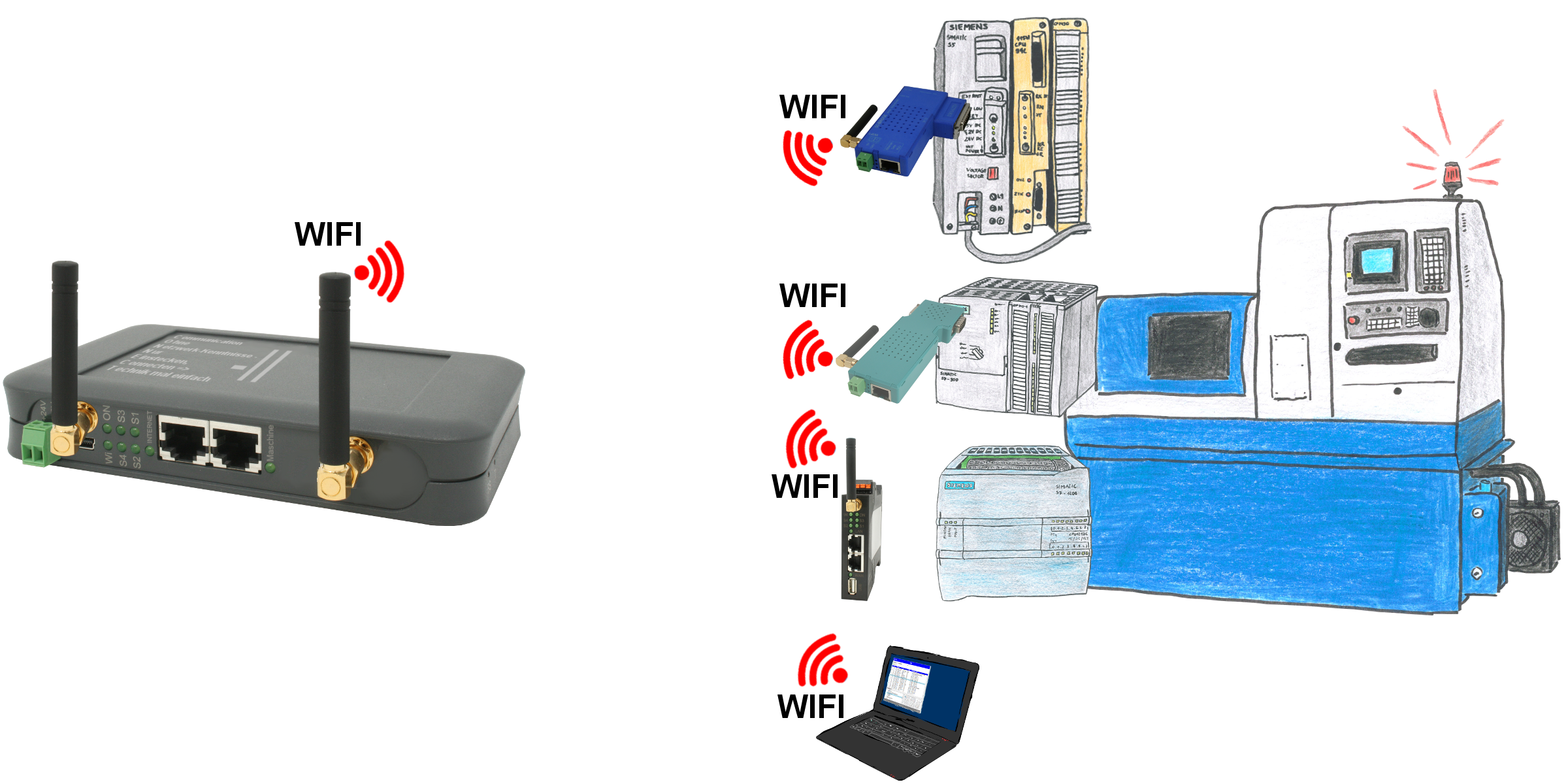

Connection of wifi-clients
Produkbild
Gateway
Produkbild

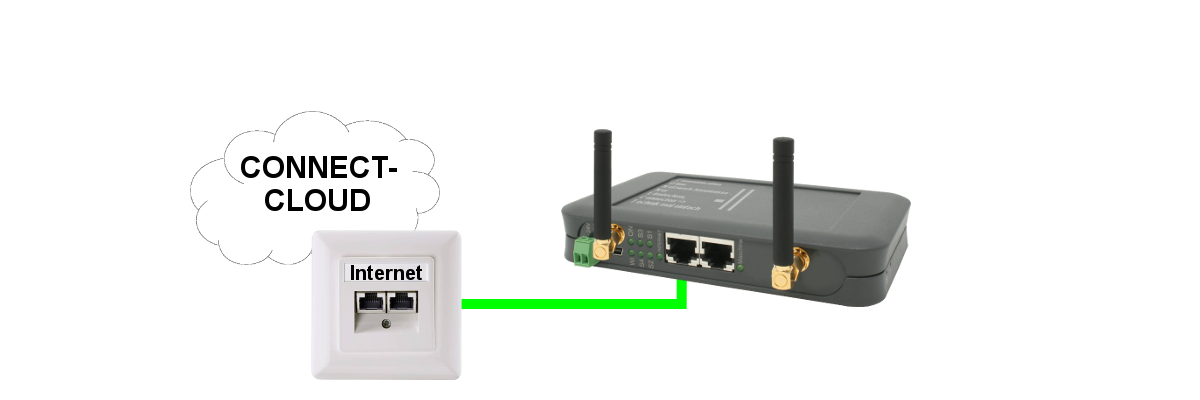

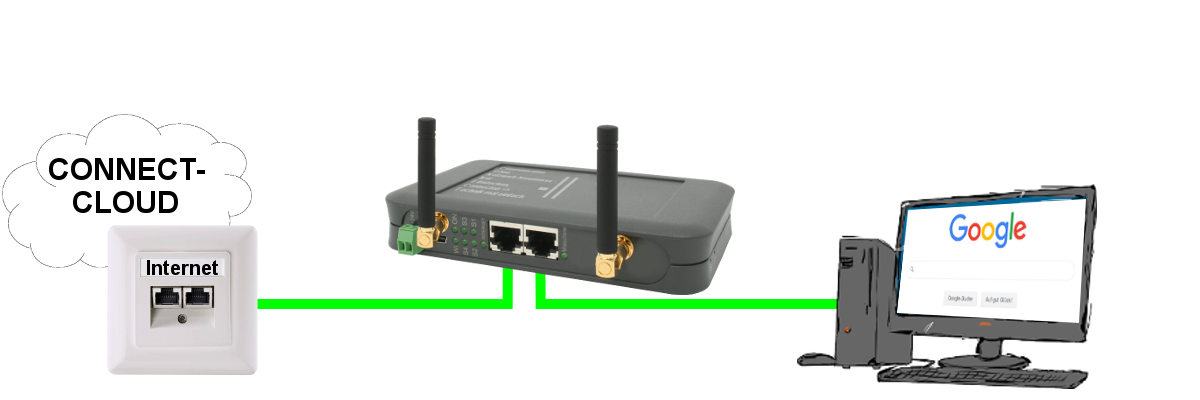

CONNECT (autonomic tunneling of the firewall)
Produkbild
Simple and uncomplicated remote maintenance
Produkbild

Simple and uncomplicated remote-access to your devices/systems via the Internet
VPN-tunnel, registration at any portal is not necessary, activate the device and select and communicate with the opposite system
No great effort to implement access. Use of the devices without consulting IT, no time-consuming commissioning procedure
All your devices in your own cloud, no access from third-party CONNECT-devices to your devices/systems

Supply voltage: 24V DC +/- 20%
Power consumption: 9 Watt
Display: WEB-Browser
status LEDs
Handling/Configuration: WEB-Browser
Interfaces: 2 x 10/100/1000BaseTX RJ45-ethernet-plug
2 x Antenna-connector RP-SMA(f) (2.4 GHz IEEE 802.11b/g)
Operating temperature: 0 - 55°C
Case: ABS-plastic table-case
Dimensions: 115 x 95 x 30 mm

Scope of delivery: 9354-CONNECT-II
2x WIFI-stub-antenna
small power plug
All prices plus costs of delivery, shipping insurance and VAT.

accessories:

9352-ALF-ANT-WAND
Stationary antenna for wall fastening

For S5-/S7-BRIDGE, CONNECT CONNECT-ROUTER cable length: 2,5m for indoor and outdoor use incl. wall holder
Quickbestellung INFOMAIL
by e-mail
85,00 €
plus VAT. and shipping


9352-ALF-ANT
Magnetic base antenna for indoor use

For S5-/S7-BRIDGE, CONNECT CONNECT-ROUTER cable length: 1,5m
Quickbestellung INFOMAIL
by e-mail
83,00 €
plus VAT. and shipping


9379-AV
Antenna extension GSM/LTE/WIFI
Base-price + cable length #9379-AV-L
Quickbestellung INFOMAIL
by e-mail
40,00 €
plus VAT. and shipping


9379-AV-L
Additional charge for special length
for antenna extension per meter 4,- Euro
Quickbestellung INFOMAIL
by e-mail
4,00 €
plus VAT. and shipping


9354-Koffer
Transport-suitcase including deposits
With lock Shockproof, can be without packaging be sent
Quickbestellung INFOMAIL
by e-mail
96,00 €
plus VAT. and shipping


9352-S7-WIFI
S7-BRIDGE

Online with S7-PLC wo. cables +++ S7-adapter PPI/MPI/PROFIBUS/PN +++ No WIFI-infrastructure +++ Integrated access-point +++ PPI/MPI/DP/PN - LAN - WIFI
9352-LANCON
S7-LAN connector for Siemens S7 PLC controller

Network-connection for the S7-200/300/400-PLC +++ S7-adapter PPI/MPI/PROFIBUS +++ Of developer and manufacturer +++ Smallest Ethernet-gateway S7 +++ Network for each S7-PLC +++ Fast commissioning +++ Replacement for CP343-1/443-1
9359-S5-WIFI
S5-BRIDGE

ONLINE with S5PLC without cable +++ S5-adapter 90-155U/CPs/IPs +++ No WIFi-infrastructure +++ Integrated access-point +++ Configuration via WebAccess +++ S5 Bridge (TTY - LAN - WIFI)
9359-LAN
S5-LAN++

Industrial Ethernet <> S5 PD-interface (TTY) Including Gateway Plus and S7-TCP / IP functions
9354-ETH-PORT
Ethernet over USB

RJ45-port (LAN 10/100MBit) to USB type A
Quickbestellung INFOMAIL
by e-mail
42,00 €
plus VAT. and shipping


9391.1
24V DC power-supply unit 625mA

Primary 110V - 240 VAC Euro+USA-plug
Quickbestellung INFOMAIL
by e-mail
59,00 €
plus VAT. and shipping


9352-24
Power connector 2pins small

cable coupling by screw-connector (small)
Quickbestellung INFOMAIL
by e-mail
4,00 €
plus VAT. and shipping


9636-TCPIP.1M
Patch-cable 1m, Cat5e, shielded
RJ45 plug <=> RJ45 plug, 1:1
Quickbestellung INFOMAIL
by e-mail
15,00 €
plus VAT. and shipping


options:

9354-O-ROUTER
Option for CONNECT: Router
WiFi router function with the operating modes: Access-Point or Client
Quickbestellung INFOMAIL
by e-mail
47,00 €
plus VAT. and shipping


9354-O-IP-SWITCH
Option for CONNECT: IP-SWITCH
Automatic exchange of IP addresses for cross- subnet network communication
Quickbestellung INFOMAIL
by e-mail
99,00 €
plus VAT. and shipping


9354-O-IP-MULTI
Option for CONNECT: IP-MULTI
Multiple connections to different systems at the same time (parallel connections) Is only required on the central-device
Quickbestellung INFOMAIL
by e-mail
199,00 €
plus VAT. and shipping


9354-O-TSERVER
Option for CONNECT: TimeServer
GPS-time for S5-/S7-PLC + NTP-server
Quickbestellung INFOMAIL
by e-mail
52,00 €
plus VAT. and shipping


9354-O-MESSENGER
Option for CONNECT: PLC-SMS/EMail
Option for devices of the CONNECT-family PLC controlled sending of SMS messages (only for LTE-variants) and emails or fixed texts
Quickbestellung INFOMAIL
by e-mail
199,00 €
plus VAT. and shipping


All prices plus costs of delivery, shipping insurance and VAT.

9354-CONNECT-II
CONNECT-II-Remote-Access

With ACBT through firewall +++ No on-site PC necessary +++ Internet without IT-knowledge
Quickbestellung INFOMAIL
by e-mail
548,00 €
plus VAT. and shipping




maximum 3 articles
9354-CONNECT-II-LTE
CONNECT-II-LTE-Remote-Access

With ACBT through firewall +++ No on-site PC necessary +++ Internet without IT-knowledge
Quickbestellung INFOMAIL
by e-mail
793,00 €
plus VAT. and shipping




maximum 3 articles
9354-CONNECT
CONNECT-Remote-Access

With ACBT through firewall +++ No PC on site required +++ Without IT-knowledge to Internet +++ Independent of OS +++ Remotemaintenance wo. portals +++ Remote-control made easy
Quickbestellung INFOMAIL
by e-mail
369,00 €
plus VAT. and shipping




maximum 3 articles
9354-CONNECT-HS
CONNECT-Remote-Access DIN-Rail-mounting

With ACBT through firewall +++ No on-site PC necessary +++ Internet without IT-knowledge
Quickbestellung INFOMAIL
by e-mail
369,00 €
plus VAT. and shipping




maximum 3 articles
9354-CONNECT-LTE
CONNECT-LTE-Remote-Access

With ACBT through firewall +++ No on-site PC necessary +++ Internet without IT-knowledge
Quickbestellung INFOMAIL
by e-mail
581,00 €
plus VAT. and shipping




maximum 3 articles
581,00 €
plus VAT. and shipping




maximum 3 articles
9354-CONNECT-ROUTER
CONNECT-Router table-device

Industrial WIFI-Router Integrated USB-port expandable by software-options table-device
Quickbestellung INFOMAIL
by e-mail
317,00 €
plus VAT. and shipping




maximum 3 articles
9354-CONNECT-HS-ROUTER
CONNECT-Router for Din-Rail-mounting

Industrial WIFI-Router Integrated USB-port expandable by software-options One-click mounting
Quickbestellung INFOMAIL
by e-mail
317,00 €
plus VAT. and shipping




maximum 3 articles
9354-CONNECT-IP-SWITCH
CONNECT-IP-Switch table device

Sets IP addresses from the machine network to the company network table device
Quickbestellung INFOMAIL
by e-mail
317,00 €
plus VAT. and shipping




maximum 3 articles
9354-CONNECT-HS-IP-SWITCH
CONNECT-IP-Switch Din-Rail-mounting

Sets IP addresses from the machine network to the company network One-click mounting
Quickbestellung INFOMAIL
by e-mail
317,00 €
plus VAT. and shipping




maximum 3 articles
9354-SW-CONNECT
SOFTWARE-CONNECT

PC-software-tool replaces CONNECT device Number of licenses corresponds to number of simultaneous connections windows (any)
Quickbestellung INFOMAIL
by e-mail
99,00 €
plus VAT. and shipping


9354-CONNECT-HS-PU
CONNECT protocol converter Din-Rail-mounting

Conversion S7-TCPIP RFC1006 <=> H1 (ISO) a separate IP address for each H1 (ISO) device company-network/WIFI bridged machine network decoupled one-click mounting
Quickbestellung INFOMAIL
by e-mail
5400,00 €
plus VAT. and shipping




maximum 3 articles

All prices plus costs of delivery, shipping insurance and VAT.

9354-CONNECT-II-LTE
CONNECT-II-LTE-Remote-Access

With ACBT through firewall +++ No on-site PC necessary +++ Internet without IT-knowledge
Quickbestellung INFOMAIL
by e-mail
793,00 €
plus VAT. and shipping


9352-LANCON
S7-LAN connector for Siemens S7 PLC controller

Network-connection for the S7-200/300/400-PLC +++ S7-adapter PPI/MPI/PROFIBUS +++ Of developer and manufacturer +++ Smallest Ethernet-gateway S7 +++ Network for each S7-PLC +++ Fast commissioning +++ Replacement for CP343-1/443-1
Quickbestellung INFOMAIL
by e-mail
423,00 €
plus VAT. and shipping


9352-ALF-UA
ALF-UA high-speed WIFI-Router for Din-Rail-mounting Obsolete

Successor: CONNECT-Router for Din-Rail-mounting (Art.No: 9354-CONNECT-HS-ROUTER)
Industrial WIFI-Router for Unified Access Integrated USB-port Basic-plattform, functionality with software-options expandable One-click mounting
Quickbestellung INFOMAIL
by e-mail
0,00 €
plus VAT. and shipping

9352-ALF-ANT
Magnetic base antenna for indoor use

For S5-/S7-BRIDGE, CONNECT CONNECT-ROUTER cable length: 1,5m
Quickbestellung INFOMAIL
by e-mail
83,00 €
plus VAT. and shipping


9391.1
24V DC power-supply unit 625mA

Primary 110V - 240 VAC Euro+USA-plug
Quickbestellung INFOMAIL
by e-mail
59,00 €
plus VAT. and shipping


Automatic-mode

Other downloads

Extension

Support-videos
