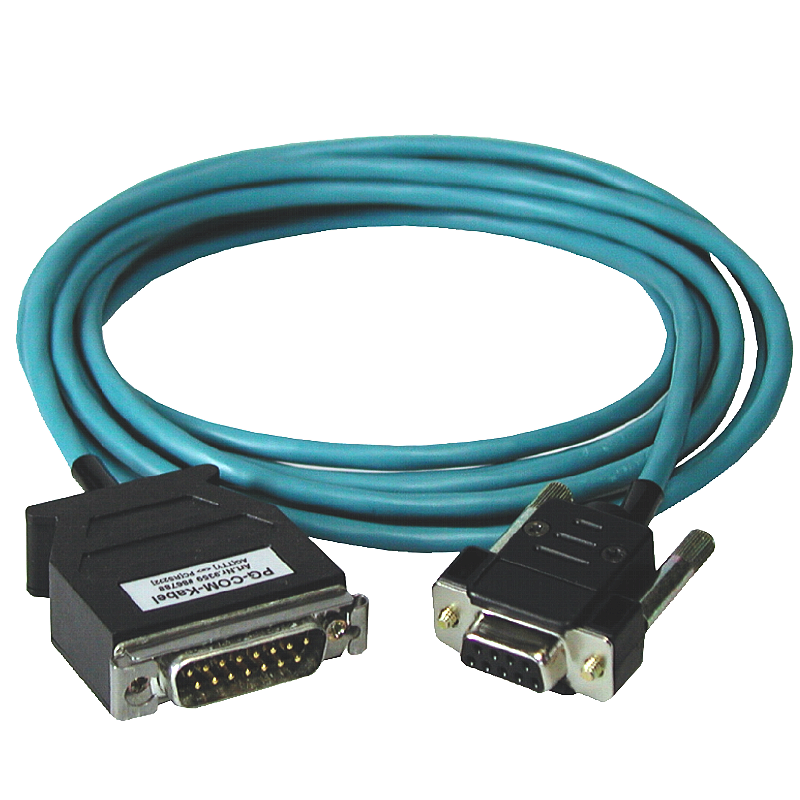

PG-UNI - Process Informatik Entwicklungsgesellschaft mbH

PG-UNI


Couples the PC (9 pol. COM-interface) with the 15 pol. X4/X5 interface port of the PLC

for PLC/CP-IP - connection

  • Complete electronics in the plug housing
  • Slide lock for firm grip on the PLC
  • Supply from the PLC of 20mA-current sources
  • Galvanic separation to 1000V with PG-ISO-adapter

more...
variants:

104,- € plus VAT. and shipping

ARTNR: 9359-3
PG-UNI-cable 3m
EAN number: 4260363240307
HS-code: 85444290
Weight: 0.2 kg


S5

device type
S5-90U
x
+ext. 24V
+ext. 24V
x
x
x
S5-95U
x
+ext. 24V
+ext. 24V
x
x
x
S5-100U
x
+ext. 24V(3)
+ext. 24V
x
x
x
S5-115U
at 944 + 9359-8
at 944 + 9359-8 + ext. 24V (4)
x
x
x
x
S5-135U
at 928B + 9359-8
at 928B + 9359-8 +ext. 24V (6)
x
x
x
x
S5-155U
x
x
x
x
x
x
S5-AG110S
+9359-5-150 + 9359-4
+ ext. 24V (3)
+9359-5-150 + ext. 24V
S5-AG130W/B
+9359-5-150 + 9359-4
+ ext. 24V (3)
+9359-5-150 + ext. 24V
S5-AG150A/K/S/U
+9359-5-150 + 9359-4
+ ext. 24V (3)
+9359-5-150 + ext. 24V
CP-143
x
x
x
CP-521
+CP521 adapter

+CP521 adapter(1)
CP-523
+CP523 adapter

+CP523 adapter(1)
CP-525
+9359-5(1)
CP-526
x

x

x
CP-527
x

x

x
CP-528
x

x

x
CP-544
x (7)

x (7)

x (7)
CP-5430
x

x

x
CP-5431
x


IP-246
x

x

x
IP-247
x

x

x
IP-252
x

x

x
IP-266

x
+9359-4(1)
WF-470
SIN-805
+9359-6 + ext. 24V(5)
+9359-6 + ext. 24V(8)
+9359-6(1)
SIN-820
+9359-6 + ext. 24V(5)
+9359-6 + ext. 24V(8)
+9359-6(1)
SIN-840
+9359-6 + ext. 24V(5)
+9359-6 + ext. 24V(8)
+9359-6(1)
SIN-850
+9359-6 + ext. 24V(5)
+9359-6 + ext. 24V(8)
+9359-6(1)
SIN-880
+9359-6 + ext. 24V(5)
+9359-6 + ext. 24V(8)

+9359-6(1)
Connection on PC
RS232-port
Ethernet RJ45
Ethernet RJ45 / WLAN/WIFI
USB-port type A
RS232-port
RS232-port
max. prolongation: 300m (UNI-extension) 300m (S5-LAN-extension) +ext. 24V 100m (PG-USB-extension)   300m (UNI-extension)

(1) ISO adapter can not be used because the required supply voltage on the PG interface of the module is not present.
(2) At the CPU 6ES5 102-8MA02 Release 3 is a PG-ISO-Adapter or Netz-Adapter additional required.
(3) With S5-LAN++ from HW V2.3 [2010] the "Netz-Adapter" is no more needed, this version has included current-sources.
(4) With S5-LAN++ from HW V2.3 [2010] no accessories are needed, this version has included current-sources.
(5) With S5-LAN++ from HW V2.3 [2010] a Sinum-Adapter with special pinning is needed.
(6) Only for CPU928B with PG-ISO-Adapter and ext. 24V DC, unless there is an S5-LAN++ from HW V2.3 [2010] used.
(7) CP544 has bolts at the programming-interface. The products do not fit 100% on this interface.
(8) With S5-BRIDGE a Sinum-Adapter with special pinning is needed.

DCOS IGA Automation GmbH
Plauen
www.iga-plauen.de

Wöhrle Belgium B.V.B.A.
Mechelen , Belgium
www.wohrle.be

Junger GmbH
Gütersloh
www.junger-gmbh.de
  • Complete electronics in the plug housing
  • Slide lock for firm grip on the PLC
  • Supply from the PLC of 20mA-current sources
  • Galvanic separation to 1000V with PG-ISO-adapter
  • Prolongable up to 300 meters on PLC side
  • Functioned also at many CP’s, IP’s and Sinumerik-PLC’s

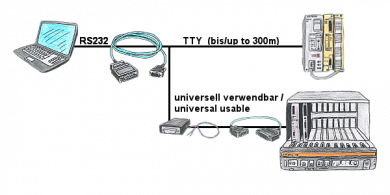

Serial communication to the S5-PLC
Produkbild
Universally to the S5-PLC, free 9-pin COM-port is sufficient on the PC and free PG-port on the PLC.
No external supply necessary as long as PLC offers current-sources on the PG-interface. Distance to PLC up to a maximum of 300m over 4-wire connection. Each S5-PLC can be connected, also 25-pin AS511 plug-in-card (S5-150U) via net-adapter and AG-150-adapter.

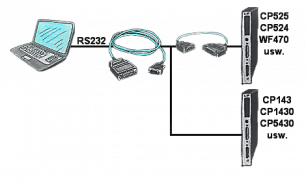

Serial communication with CP and more S5-assemblies
Produkbild
You have a PC with programming software and a 9pin COM-port as interface? No problem, for this purpose the PG-UNI-cable is exactly the right product. Connect it to a Siemens assembly such as H1-CP (CP1430), WF470 and PC or CP-525 with the CP525-adapter and PC and you’re Online.
Supply voltage: from the current sources of the PLC
Power consumption: 0,2 watt
Display: -
Interfaces:
to the PLC:
TTY/20mA current loop (PG-COM passiv, PLC aktiv)
to the PD/PC:
RS232: 9,6 KBd - 115,2 KBd
Operating temperature: 0 - 55°C
Case: plastic case
Dimensions: 47 x 40 x 15 mm
Scope of delivery:
PG-UNI-cable
All prices plus costs of delivery, shipping insurance and VAT.

accessories:

9359-4
Power-adapter

for PG-UNI-cable /UNI-II-cable/S5-LAN++
Quickbestellung INFOMAIL
by e-mail
69,- €
plus VAT. and shipping

9359-9
Adapter COM 1 : COM2

9pin (male) - 25pin (female)
Quickbestellung INFOMAIL
by e-mail
21,- €
plus VAT. and shipping

9359-9.M
Adapter COM 1 : COM2

25pin (male) - 9pin (female)
Quickbestellung INFOMAIL
by e-mail
21,- €
plus VAT. and shipping

9359-MAX233
RS232 / V24 chip

for interfacecable
Quickbestellung INFOMAIL
by e-mail
12,- €
plus VAT. and shipping

9359-5-WF470
WF-470-adapter

for PG-UNI + PG-UNI-II-cable <-> WF470
Quickbestellung INFOMAIL
by e-mail
46,- €
plus VAT. and shipping

9359-5K
CP-525-K-adapter

for PG-UNI + PG-UNI-II-cable <-> CP-525- communication
Quickbestellung INFOMAIL
by e-mail
46,- €
plus VAT. and shipping

9359-8
PG-ISO-adapter

1000V galv. seperation
Quickbestellung INFOMAIL
by e-mail
104,- €
plus VAT. and shipping

9359-5-150
AG-150-adapter

for PG-UNI + PG-UNI-II-cable + S5-LAN++ (up to HW2.2) with Netz-Adapter to AG-150
Quickbestellung INFOMAIL
by e-mail
46,- €
plus VAT. and shipping

9359-7
PG-UNI - lengthening set

complete assembling set
Quickbestellung INFOMAIL
by e-mail
32,- €
plus VAT. and shipping

9359-6
SINUM-adapter

for PG-UNI + PG-UNI-II-cable + S5-LAN++ (up to HW2.2) to SINUMERIK
Quickbestellung INFOMAIL
by e-mail
46,- €
plus VAT. and shipping

9359-5
CP-525-adapter

for PG-UNI + PG-UNI-II-cable <-> CP-525
Quickbestellung INFOMAIL
by e-mail
46,- €
plus VAT. and shipping

9310
Additional charge 25-pins PC-plug
Special construction of the RS232-side with 25pin D-Sub female with screwing locks
Quickbestellung INFOMAIL
by e-mail
39,- €
plus VAT. and shipping

9310-M
Additional charge 25-pins PC-plug in metallized case
Special construction of the RS232-side with 25pin D-Sub female with screwing locks in metallized case
Quickbestellung INFOMAIL
by e-mail
77,- €
plus VAT. and shipping

9359-3.X
Special length: PG-UNI-cable (3m) + 9390
for PLC/CP/IP - connection
Quickbestellung INFOMAIL
by e-mail
118,- €
plus VAT. and shipping

9359-3.05M.X
Special length: PG-UNI-cable (5m) + 9390
for PLC/CP/IP - connection
Quickbestellung INFOMAIL
by e-mail
143,- €
plus VAT. and shipping

9390
Additional charge for special length
for S5-Interface cables per Meter 3,- Euro
Quickbestellung INFOMAIL
by e-mail
3,- €
plus VAT. and shipping

9359-SON
Additional charge for special wiring
PG-COM/ PG-UNI/ PG-UNI-II
Quickbestellung INFOMAIL
by e-mail
10,- €
plus VAT. and shipping

All prices plus costs of delivery, shipping insurance and VAT.

Variationen:

9359-3.05M
PG-UNI-cable 5m

for PLC/CP-IP - connection
Quickbestellung INFOMAIL
by e-mail
115,- €
plus VAT. and shipping

9359-3.10M
PG-UNI-cable 10m

for PLC/CP-IP - connection
Quickbestellung INFOMAIL
by e-mail
133,- €
plus VAT. and shipping

9359-3.10CM
PG-UNI-cable 0.1m special length

for PLC/CP-IP - connection
Quickbestellung INFOMAIL
by e-mail
104,- €
plus VAT. and shipping

9359-90
CP-cable

connects PD-TTY-port of TP-I, TP-II with L1,H1,L2-CP, D-Sub 15pin (male) <=> D-Sub 15pin (male)
Quickbestellung INFOMAIL
by e-mail
57,- €
plus VAT. and shipping

9359-3-RON
Interface-cable for OP270

Quickbestellung INFOMAIL
by e-mail
132,- €
plus VAT. and shipping

All prices plus costs of delivery, shipping insurance and VAT.

9390
Additional charge for special length
for S5-Interface cables per Meter 3,- Euro
Quickbestellung INFOMAIL
by e-mail
3,- €
plus VAT. and shipping

9359-3.X
Special length: PG-UNI-cable (3m) + 9390
for PLC/CP/IP - connection
Quickbestellung INFOMAIL
by e-mail
118,- €
plus VAT. and shipping

9359-8
PG-ISO-adapter

1000V galv. seperation
Quickbestellung INFOMAIL
by e-mail
104,- €
plus VAT. and shipping

9359-7
PG-UNI - lengthening set

complete assembling set
Quickbestellung INFOMAIL
by e-mail
32,- €
plus VAT. and shipping

9359-5
CP-525-adapter

for PG-UNI + PG-UNI-II-cable <-> CP-525
Quickbestellung INFOMAIL
by e-mail
46,- €
plus VAT. and shipping

9359-4
Power-adapter

for PG-UNI-cable /UNI-II-cable/S5-LAN++
Quickbestellung INFOMAIL
by e-mail
69,- €
plus VAT. and shipping
