PD- / PLC-Switcher

Coupling of one PLC to several PD’s or one PD to several PLC’s

  • Connecting mechanism, pin assignment and electrical data match the control’s specifications
  • Applicable with all original and compatible programming devices
  • All connection- and operating controls frontal
  • Supply from the PLC or external

Technical data


Supply voltage: 5V/DC
Power consumption: 1 watt
Display: LED-display for aktiv port
Handling/Configuration: toggle or rotary switch for port selection
Interfaces:
to the PLC:
1 / 2 / 4 x TTY/20mA current loop (switch passiv, PLC aktiv)
to the PD/PC:
1 / 2 x TTY/20mA current loop (100 % mechanically and electr. compatible)
Operating temperature: 5 - 55°C
Case: EMC-dense metal case with mounting flange
Dimensions: 135 x 110 x 50 mm
Scope of delivery:
PG-Switch
Cable 15pin 1to1
Power connector 2pins big
Commercial data:
EAN number: 4260363240208
HS-code: 85389099
Weight: 0.4000 kg


Kleverles Projekte

technical data
docu / downloads
order data

Applications

Interface switch for the S5

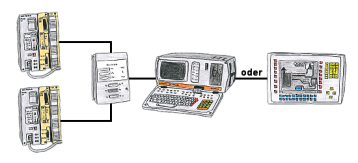

Your PD-interface of the S5-PLC is already occupied with a panel and you should accomplish program modifications without removing the panel? No problem, connect a device if the PG-Switch-family one-time to the PLC and then connect the panel and also your PC to the device. With a toggle switch (PG-Switch-I) you select the pc or panel to communciate with the PLC. The selection on a PG-Switch-II will be driven via the 24V-controll input. The PG-Switch-III has an automatic detection. The panel is connected to the device and can communicate to the PLC. You connect your PD/PC to the device and it switches automatically, so you can communicate. After plug off the PD/PG the device switches back, so the panel is connected to the PLC.

Interface-switch for PD/PC

You have to work with more PLC-devices, but no pleasure to switch on/off? No problem, you connect a device of the AG-Switch-family to the PLC-devices and your PD/PC and you will be able to communicate to both PLCs. The selection which PLC you make for AG-Switch-I via toggle switch and for the AG-Switch-II via 24V-controll input.

order data applications technical data

technical data
applications
docu / downloads

All prices plus costs of delivery, shipping insurance and VAT.

article:
Art. ID.namepricequantity
9360PG-SWITCH
PD- / PLC-switcher
89,- € Quickbestellung INFOMAIL
9360-2PG-SWITCH II
PD- / PLC-switcher
129,- € Quickbestellung INFOMAIL
9360-3PG-SWITCH III
PD- / PLC-switcher
129,- € Quickbestellung INFOMAIL
9360.AAG-SWITCH
PD-/PLC-switcher
89,- € Quickbestellung INFOMAIL
9360.A-2AG-SWITCH II
PD-/PLC-switcher
129,- € Quickbestellung INFOMAIL
9360.A-4AG-SWITCH 4-times
PD-/PLC-switcher
296,- € Quickbestellung INFOMAIL

order data applications technical data
accessories:
Art. ID.namepricequantity
9371-24Power connector 2pins big
connector plug lockable by jack with screws
3,- € Quickbestellung INFOMAIL
9391.124V DC power-supply unit 625mA
Primary 110V - 240 VAC Euro+USA-plug
39,- € Quickbestellung INFOMAIL
