MPI / PPI - Profibusmodem - Process Informatik Entwicklungsgesellschaft mbH

MPI / PPI - Profibusmodem


Programming of S7-PLC’s via telephone from afar

  • Standard modem-protocol, the Siemens TS-software is needed
  • Analogue modem for world wide use
  • Data transmission via radio (GSM)
  • Screwable antenna/prolongable (GSM)
  • For Siemens-S7-Teleservice

more...
469,- €
plus VAT. and shipping

ARTNR: 9379-OP
MPI/PPI-Modem
EAN number: 4260363240031
HS-code: 85389099

quantity



Remote maintenance

TELE LINK NETWORK


secured modem-protocol
additional software needed
Siemens TS -Software
Siemens TS -Software
VPN-Client
VPN-Client
Providing WinTELEPROF-software
modem
analogue/ISDN
analogue
opt. via PCMCIA
analogue/GSM
analogue/ISDN/GSM
internet-connection
internet-connection
internet-connection
modem for world wide use
interfaces
MPI/Profibus
9600-12MBd
9600-12MBd
9600-12MBd
9600-12MBd
RS232
2x
2x
2x
1x
1x
TTY
2x
2x
2x
1x
PCMCIA
2x (optionally)
1x
1x
Ethernet
10/100BaseTx
1x
1x
5x
USB
2x
1x
LCD-display
instead 10 LEDs
instead status-LED
instead webserver
instead webserver
supported PLC-protocols *
S7
S5
✓ (optional)
✓ (optional)
Pilz PSS
✓ (optional)
✓ (optional)
Allen-Bradley
✓ (optional)
✓ (optional)
AEG
✓ (optional)
✓ (optional)
Bosch
✓ (optional)
✓ (optional)
Telemecanique
✓ (optional)
✓ (optional)
GE-Fanuc
✓ (optional)
✓ (optional)
Klöckner-Moeller
✓ (optional)
✓ (optional)
Mitsubishi
✓ (optional)
✓ (optional)
SMS-sending/Pager(S5/S7)
✓ (no pager)
only for analogue / ISDN
HMI-messaging module(S5/S7)
SMS-receive with GSM
DTMF with analogue
e-mail-dispatch
FAX-dispatch(S5/S7)
✓ (optional)
✓ (optional)
only for analogue / ISDN
PLC-data coupling(S5/S7)
✓ (optional)
✓ (optional)
ASCII-transfer from S5/S7
✓ (optional)
✓ (optional)
only with ASCII-LAN
internet-coupling
Usage as dial-up-router
power supply
24V/DC
24V/DC
24V/DC
24V/DC
24V/DC
24V/DC
24V/DC
24V/DC
dimensions w x h x d (in mm)
High: 67 x 280 x 170
FLAT: 300 x 175 x 70
300 x 175 x 66
235 x 162 x 37
90 x 162 x 54
40 x 125 x 115
42 x 15 x 65
65 x 43 x 17
154 x 92 x 28

* other PLC types on request

Wöhrle Belgium B.V.B.A.
Mechelen , Belgium
www.wohrle.be
  • Standard modem-protocol, the Siemens TS-software is needed
  • Analogue modem for world wide use
  • Data transmission via radio (GSM)
  • Screwable antenna/prolongable (GSM)
  • For Siemens-S7-Teleservice
  • Incl. modem-cable and S7-cable (1m)
  • GSM-Modem incl. magnetic base antenna and S7-cable (1m)

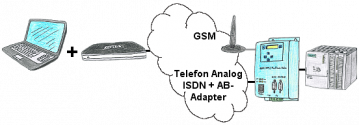

Remote maintenance / telecontrol of PLC
Produkbild
The access to the connected PLC with the Siemens TS-software or PG-2000 including TS-option results of coupling via Analogue-, ISDN- (only with AB-adapter) as well as GSM-line.

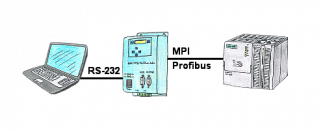

Use on-site without PC-adapter?
Produkbild
With the MPI/PPI/Profibus-modem you can connect serial to your PC/laptop and then communicate directly with the PLC without a PC-adapter or other S7-programming cables.
Supply voltage: 24V DC +/- 20%
Power consumption: 5 watt
Display: expressive LCD-display
4 status-LEDs
Handling/Configuration: integrated keypad
Interfaces:
to the PLC:
PPI/MPI/Profibus interface: 9,6 KBd - 12 MBd
to the PD/PC:
RS232: 9,6 KBd - 115,2 KBd / with a 1on1-cable to the PC
others:
-
Integrated modem: 33K6-analogue modem
GSM-modem
Operating temperature: 0 - 55°C
Case: powder coated metal case with mounting flange
Dimensions: 165 x 90 x 50 mm
Scope of delivery:
MPI / PPI - Profibusmodem
MPI-conncting-cable 1m
Power connector 3pins big
For Analogue-version: telephone-cable TAE
For GSM-version: magnetic base antenna
All prices plus costs of delivery, shipping insurance and VAT.

accessories:

230,- €
plus VAT. and shipping
Stück

9379-ANT
Magnetic base antenna

for TP, TS + MPI-Modem
Quickbestellung INFOMAIL
by e-mail
24,- €
plus VAT. and shipping
Stück

9372-24
Power connector 3pins big

connector plug lockable by jack with screws
Quickbestellung INFOMAIL
by e-mail
3,- €
plus VAT. and shipping
Stück

9370-8-D/USA
Phone-cable analogue Germany+USA

RJ12 plug <=> RJ12 plug with TAE-adapter for Germany
Quickbestellung INFOMAIL
by e-mail
10,- €
plus VAT. and shipping
Stück

9391.1
24V DC power-supply unit 625mA

Primary 110V - 240 VAC Euro+USA-plug
Quickbestellung INFOMAIL
by e-mail
39,- €
plus VAT. and shipping
Stück

9379.1
MPI-/Profibus connecting cable 1m

connects MPI-modem/TP-II with the S7-PLC
Quickbestellung INFOMAIL
by e-mail
10,- €
plus VAT. and shipping
Stück

9359.1:1
1:1 cable 9pins D-SUB

D-SUB 9pins (male) <=> D-Sub 9pins (female), 1to1-assignment
Quickbestellung INFOMAIL
by e-mail
23,- €
plus VAT. and shipping
Stück

9370-TAE
TAE junction box

analogue telephone box (NFN) for on-wall mounting
Quickbestellung INFOMAIL
by e-mail
20,- €
plus VAT. and shipping
Stück

9370-8-BE
Special phone-cable for Belgium

RJ12 plug <=> telephone plug of Belgium
Quickbestellung INFOMAIL
by e-mail
23,- €
plus VAT. and shipping
Stück

9370-8-FR
Special phone-cable for France

RJ12 plug <=> telephone plug of France
Quickbestellung INFOMAIL
by e-mail
23,- €
plus VAT. and shipping
Stück

9370-8-DK
Special phone-cable for Denmark

RJ12 plug <=> telephone plug of Denmark
Quickbestellung INFOMAIL
by e-mail
23,- €
plus VAT. and shipping
Stück

9370-8-NL
Special phone-cable for Netherlands

RJ12 plug <=> telephone plug of the Netherlands
Quickbestellung INFOMAIL
by e-mail
23,- €
plus VAT. and shipping
Stück

9370-8-AT
Special phone-cable for Austria Obsolete

RJ12 plug <=> telephone plug of Austria
Quickbestellung INFOMAIL
by e-mail
23,- €
plus VAT. and shipping
Stück

9370-8-CH
Special phone-cable for Switzerland Obsolete

RJ12 plug <=> telephone plug of Switzerland
Quickbestellung INFOMAIL
by e-mail
23,- €
plus VAT. and shipping
Stück

9370-8-GB
Special phone-cable for Great Britain

RJ12 plug <=> telephone plug of Great Britain
Quickbestellung INFOMAIL
by e-mail
23,- €
plus VAT. and shipping
Stück

9370-8-IT
Special phone-cable for Italy

Quickbestellung INFOMAIL
by e-mail
23,- €
plus VAT. and shipping
Stück

9370-ISDN
ISDN-adapter for analogue terminals

full ISDN-functionality e.g. call waiting, 3-way conferencing, broker's call
Quickbestellung INFOMAIL
by e-mail
251,- €
plus VAT. and shipping
Stück

9352-S7-BK
S7-bus-coupler

Disconnects all signals except differential bus lines Safety for all participants at VIPA 21x-2BM0x and 208-1DP0x
Quickbestellung INFOMAIL
by e-mail
39,- €
plus VAT. and shipping
Stück

All prices plus costs of delivery, shipping insurance and VAT.

Variationen:

9379-G-OP
MPI/PPI-Modem GSM

maximum baud rate MPI- and Profibus up to 12Mbaud
Quickbestellung INFOMAIL
by e-mail
619,- €
plus VAT. and shipping
Stück

All prices plus costs of delivery, shipping insurance and VAT.

9352-LANCON
S7-LAN connector for Siemens S7 PLC controller

Simatic S7 network adapter for PPI-MPI-PROFIBUS / network for every S7 controller in less than 3 minutes
Quickbestellung INFOMAIL
by e-mail
399,- €
plus VAT. and shipping
Stück

9350-9-DIAG
DiagConn 90° Highend-connector

for PROFIBUS with diagnosis function country of origin: Germany not preferential
Quickbestellung INFOMAIL
by e-mail
43,- €
plus VAT. and shipping
Stück

9359.05M
PG-COM-cable 5m

PC 9pins COM-port <=> PLC 15pins X4/X5 port
Quickbestellung INFOMAIL
by e-mail
66,- €
plus VAT. and shipping
Stück

9352-S7-USB
S7-USB connector for Siemens S7 Controller

universal USB-module on PPI/MPI/Profibus 9,6 KBit/s up to 12MBit/s
Quickbestellung INFOMAIL
by e-mail
299,- €
plus VAT. and shipping
Stück

9352.3
USB-cable plug/plug type A-B-Mini 3m

USB 1.1 / 2.0 up to 480 MBit
Quickbestellung INFOMAIL
by e-mail
23,- €
plus VAT. and shipping
Stück

9359-4
Power-adapter

for PG-UNI-cable /UNI-II-cable/S5-LAN++
Quickbestellung INFOMAIL
by e-mail
59,- €
plus VAT. and shipping
Stück

Automatic-mode
