TELE-BOOK (TB)

PLC-remote maintenance also available from the car, with 12V power supply

as PLC-or PG-TELE switchable

Secured modem-protocol, no additional software needed
High throughput
All online functions possible
Easy handling because of menu navigation and display in plain text
Easy and quick configuration by menu item initial configuration

more...

1165,00 € plus VAT. and shipping

ARTNR: 9380
TELE-BOOK PLC remote maintenance
Obsolete

EAN number:		4260363240338
HS-code:		85389099

Remote maintenance

	TELE LINK NETWORK
	TELE-PROF-II	TELE-PROF	TELE-BOOK	MPI-Modem	TELEService	S5-LAN	S7-LAN	TeleRouter
secured modem-protocol	✓	✓	✓
additional software needed				Siemens TS -Software	Siemens TS -Software	VPN-Client	VPN-Client
Providing WinTELEPROF-software	✓	✓	✓
modem	analogue/ISDN	analogue	opt. via PCMCIA	analogue/GSM	analogue/ISDN/GSM	internet-connection	internet-connection	internet-connection
modem for world wide use	✓	✓	✓	✓	✓
interfaces
MPI/Profibus	9600-12MBd			9600-12MBd	9600-12MBd		9600-12MBd
RS232	2x	2x	2x	1x	1x
TTY	2x	2x	2x			1x
PCMCIA	2x (optionally)	1x	1x
Ethernet	10/100BaseTx					1x	1x	5x
USB	2x				1x
LCD-display	✓	✓	✓	✓	instead 10 LEDs	instead status-LED	instead webserver	instead webserver
supported PLC-protocols *
S7	✓	✓	✓	✓	✓		✓
S5	✓	✓ (optional)	✓ (optional)			✓
Pilz PSS	✓	✓ (optional)	✓ (optional)
Allen-Bradley	✓	✓ (optional)	✓ (optional)
AEG		✓ (optional)	✓ (optional)
Bosch		✓ (optional)	✓ (optional)
Telemecanique		✓ (optional)	✓ (optional)
GE-Fanuc		✓ (optional)	✓ (optional)
Klöckner-Moeller		✓ (optional)	✓ (optional)
Mitsubishi		✓ (optional)	✓ (optional)
SMS-sending/Pager(S5/S7)	✓	✓	✓		✓ (no pager)			only for analogue / ISDN
HMI-messaging module(S5/S7)	✓							✓
SMS-receive with GSM					✓
DTMF with analogue					✓
e-mail-dispatch	✓				✓			✓
FAX-dispatch(S5/S7)	✓	✓ (optional)	✓ (optional)					only for analogue / ISDN
PLC-data coupling(S5/S7)	✓	✓ (optional)	✓ (optional)			✓	✓
ASCII-transfer from S5/S7	✓	✓ (optional)	✓ (optional)			only with ASCII-LAN
internet-coupling	✓
Usage as dial-up-router	✓							✓
power supply	24V/DC	24V/DC	24V/DC	24V/DC	24V/DC	24V/DC	24V/DC	24V/DC
dimensions w x h x d (in mm)	High: 67 x 280 x 170 FLAT: 300 x 175 x 70	300 x 175 x 66	235 x 162 x 37	90 x 162 x 54	40 x 125 x 115	42 x 15 x 65	65 x 43 x 17	154 x 92 x 28
* other PLC types on request

Secured modem-protocol, no additional software needed
High throughput
All online functions possible
Easy handling because of menu navigation and display in plain text
Easy and quick configuration by menu item initial configuration
Multi-stage password levels provide high data security
Cost improvement because of call-back function
Integrated telephone directory
Compatible to all TELE-Network-devices
EMC-compatible circuit arrangement
Other PLC-protocols with optional Tele-Manager reloadable
Software-updates via telephone line transferable
Incl. power supply unit

Use in the car with a 12V supply only
Produkbild

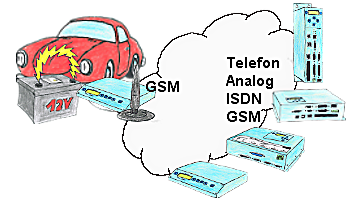

Your’re on road with your car and your employee reports a failure? What next? Approach the next parking place and try to get a telephone line to solve the problem? Or solve the problem in your head? Hit the next parking place and start your Tele-Book which is plugged on your car’s cigarette lighter, and build-up a connection to your installation. With the notebook you will solve the problem within a short time.

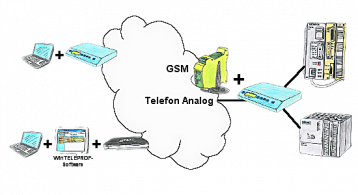

Remote maintenance / telecontrol of PLC-devices
Produkbild

Access to the connected PLC takes place by coupling via Analogue-, ISDN- (only with AB-adapter) and GSM-(only with external GSM-modem)-line.

PLC-coupling (data exchange between PLC-devices)
Produkbild

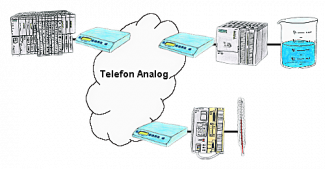

Your pumping stations report the water levels of the central control via telephone network. The central office itself can of course transmit commands/messages to the substations as well. Thereto no dedicated line is required, a “normal” telephone connection is sufficient because the devices hangs up the line after occured message.

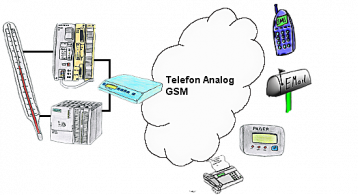

Failure report transmission released by the PLC
Produkbild

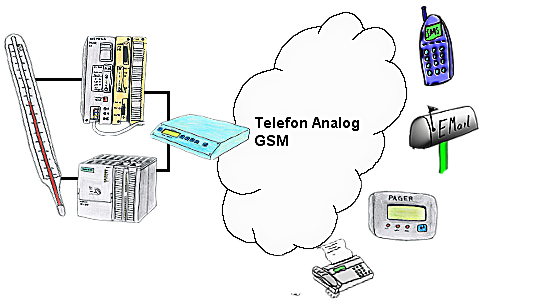

Your outstation reports the current value cyclically, or in case of malfunction the status via FAX, to your mobile phone as SMS or to your pager.

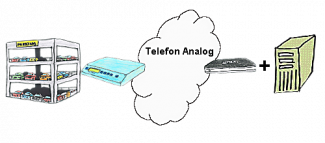

Sending ASCII-data to a PC
Produkbild

Your car park or control sends the configuration/capacity utilisation to a PC with a modem, so that the data can be used for further processing.

Direct-mode „extended serial interface“
Produkbild

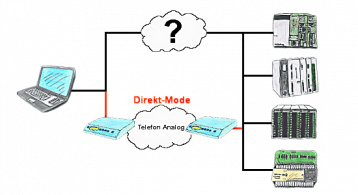

There is an unsupported control or data logger or converter integrated in your installation which protocol is not supported? No problem, the signs that the PC in the office sends will be transferred via telephone line by the Direct-mode , and on-site reproduced by the TP/TB. The way back is identical. So in that case there’s also a communication to the electronic devices available.


Supply voltage:	24V DC (12 - 36V)
Power consumption:	3 watt
Display:	expressive LCD-display
Handling/Configuration:	integrated keypad Tele-Manager
Interfaces:	to the PLC: RS232: 9,6 KBd - 115,2 KBd / fully assigned to the PD/PC: TTY/20mA current loop (100 % mechanically and electr. compatible) RS232: 9,6 KBd - 115,2 KBd / with a 1on1-cable to the PC others: 1 x PCMCIA
Integrated modem:	-
Operating temperature:	0 - 55°C
Case:	powder coated metal table case
Dimensions:	233 x 162 x 39 mm

Scope of delivery:	TELE-BOOK Power connector 3pins big
