Windows
windows (any)
company license
- Backup of the PLC-programnof the projected PLC for data protection
- Simple restoring of the made backup
- Connection of the PLC via serial-port
- Supports S5-90U - 155U on PG-port and S7-300/400 via MPI/Profibus
- Optional ability to control the connected PLC directly (start, stop, memory reset)
more...
ARTNR: 9650-UNI
PLC-Data saftey S5/S7/H1-BACKUP/RESTORE
| EAN number: | 4260363243339 | |
| HS-code: | 85234990 |
- Backup of the PLC-programnof the projected PLC for data protection
- Simple restoring of the made backup
- Connection of the PLC via serial-port
- Supports S5-90U - 155U on PG-port and S7-300/400 via MPI/Profibus
- Optional ability to control the connected PLC directly (start, stop, memory reset)
- Optional possibility to contact the S5-PLC via network and S5-LAN++
- Optional possibility to contact the S7-PLC via network and S7-LAN++
- Optional possibility to contact the S7-PLC with network RJ45-plug via network (S7-TCPIP RFC1006)
- Windows operating-software
- 16-bit for Win98/98SE/Me/XP
- 32-bit for Windows (any)
For operation with Win11, the "Microsoft Visual C ++ 2010 Redistributable Pack X86" is needed!!
Guaranteeing security against production-downtimes through regular backups of S5- or S7-PLCs on your PC. S5/S7/H1-backup/restore-software
saves all projected controls at a predetermined time. Whether every minute, hourly, daily, weekly or once a month, the PLC is completely
read out and saved on the hard-disk/network-drive of the computer.
If the backup-battery fails or the PLC is damaged, you can use this backup-file to restore the PLC.

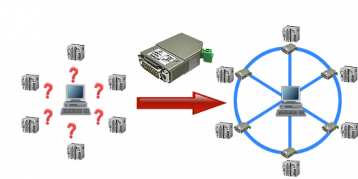

Your machines are fully distributed in your company area, it is not always a PC connected with the machine. What could be better than to connect the machines to your company network and backup
the data central from one point!
With the option "Communication via S5-LAN++" and the S5-LAN++-modules, you can meet this requirement immediately.
options:
Option: PLC Start/Stop/General Reset
for S5/S7/H1-Backup/Restore-Software company license
by e-mail
plus VAT. and shipping
Option: Communication via S5-LAN++
for S5/S7/H1-Backup/Restore-Software company license
by e-mail
plus VAT. and shipping
Option: Communication via S7-LAN
for S5/S7/H1-Backup/Restore-Software company license
by e-mail
plus VAT. and shipping
Option: Communication via S7-TCPIP RFC1006
for S5/S7/H1-Backup/Restore-Software company license
by e-mail
plus VAT. and shipping
SPS-PLC Start-Stop-General Reset
control of planned asset S5/7-SPS-PLC's no backup/restore included windows (any), company license
by e-mail
plus VAT. and shipping
PLC – Data safety
MS-DOSOption: Communication via S5-LAN++
for S5/S7/H1-Backup/Restore-Software company license
by e-mail
plus VAT. and shipping
S5-LAN++
Industrial Ethernet <> S5 PD-interface (TTY) Including Gateway Plus and S7-TCP / IP functions
by e-mail
plus VAT. and shipping
Option: Communication via S7-TCPIP RFC1006
for S5/S7/H1-Backup/Restore-Software company license
by e-mail
plus VAT. and shipping
