PLC-data logging/triggering - Process Informatik Entwicklungsgesellschaft mbH

PLC-data logging/triggering Download


Automated writing of data from the PLC to a file

singlelicense
windows (any) (from .Net 3.5)

A modern and contemporary platform that can be expanded at any time can be found here:
PLC-Datalogger


Log/archive production data in CSV file/XML file

With "PLC-data logging/triggering" process and production data of any number of SIMATIC S7 can be quickly and easily recorded and logged. The S7 models S7-1500, S7-1200, S7-300 / 400, LOGO !, WIN AC RTX and S5 are supported via S5-LAN ++.
With minimal configuration effort directly for logging.
Using the trigger, the logging can be controlled depending on the time or by events in the PLC. The process data is structured, recorded as a stack or as a ring buffer and saved as CSV or XML. The target directory and the file name


more...
variants:

Price on request plus VAT. and shipping

ARTNR: 9771-S7L
PLC-data logging/triggering TCP/IP S7 - Standard
EAN number: 4260363245814
HS-code: 85234999


A modern and contemporary platform that can be expanded at any time can be found here:
PLC-Datalogger


Log/archive production data in CSV file/XML file

With "PLC-data logging/triggering" process and production data of any number of SIMATIC S7 can be quickly and easily recorded and logged. The S7 models S7-1500, S7-1200, S7-300 / 400, LOGO !, WIN AC RTX and S5 are supported via S5-LAN ++.
With minimal configuration effort directly for logging.
Using the trigger, the logging can be controlled depending on the time or by events in the PLC. The process data is structured, recorded as a stack or as a ring buffer and saved as CSV or XML. The target directory and the file name can be created dynamically with date and time stamps. The application can run as a service.
The program can be run on all Windows 32/64 bit (windows (any)).

"PLC-data logging/triggering" offers you:
  • Free evaluation without registration
  • Simple and fast logging
  • Industrial reliability
  • Qualified support
  • Comprehensive documentation
  • Create snapshots of SIMATIC S7 process data
  • Saving production data
  • Data-logging without PLC-program
  • Data-logging controlled by the PLC
  • Cycle-accurate recording for system-failure analysis
  • Archive production data
  • Save recipes
Connection:
The connection to the S7 is made via the S7-TCP/IP-protocol.
No programming is required in the PLC.
Supports all S7 data-types from Bool to DateTime and String etc.

Supported operating systems:
  • Windows (any)
Hardware requirements:
Min. Pentium III 1.200 MHz, 1 GB RAM, ca. 40 MB for software and enough space for the logger files

Supported PLC types:
  • S7-1500
  • S7-1200
  • S7-300/400
  • Win AC RTX
  • S7-200
  • LOGO!
  • S7-kompatible SPS (z. Bsp.: VIPA, Saia, Berthel)
  • S5 über S5-LAN++
  • S7-LAN
Features:
  • 4 trigger types for logging
    from interval to value change, from edges to user-defined conditions
  • Data from up to 256 SIMATIC S7 controllers
    can be monitored and logged at the same time
  • Siemens controls like
    SIMATIC LOGO! / SIMATIC S7-200 / SIMATIC S7-300 / SIMATIC S7-400 / SIMATIC S7-1200 / SIMATIC S7-1500 / S7-compatible PLC (for e.g.: VIPA, Saia, Berthel) / S5 (over S5-LAN++) / S7-LAN
  • Reading and logging of
    inputs, outputs, flags, data-blocks, timers and counters
  • Execution of logging
    via the command-line, as a service or directly in the application
  • Addressing "organized data" as
    variables in stacks and ring-buffers
  • Reading device information such as
    Location, module identifier, module series, DB-sizes and system-time
  • PDU-optimized access for
    high-performance acquisition of consistent data
  • Abort detection for backup of
    constant connections through automatic reconnection
  • Addressing of all data-areas with
    identifiers in the format of the SIEMENS and IEC-syntax
  • Boolean values and numeric values of
    1 to 8, 16, 32 and 64 bit data length – also as ARRAY OF
  • Signed and unsigned integer values above
    BYTE, WORD, DWORD, INT and DINT – also as ARRAY OF
  • Single/double precision floating point values
    REAL and DOUBLE – also as ARRAY OF
  • Date and time values about
    TIME, S5-TIME, DATE and DATE_AND_TIME
  • Character and character-strings above
    CHAR to S7-STRING – also via BYTE with its own encoding
  • Structured data
    with static and dynamic addressing
Differences of license types:
Features
Standard
Advanced
Expert
Evaluation
[Demo]
Trigger based log-file creation

x
x
x
Stack Logging

x
x
x
Ring-buffer logging


x
x
Command line logging

x
x
x
Logging as a service
x
x
x
x
Maximum number of channels
4
16
256
256
Maximum number of shown records
500
500
500
100
Maximum number of records each event
1
32767
32767
1
Maximum number of triggers
2
4
8
8
Interval trigger
x
x
x
x
Boolean trigger

x
x
x
Conditional/edge trigger

x
x
x
Maximum number of variables
100
500
1000
1000
Log to CSV
x
x
x
x
Log to XML

x
x
x
Destination directory selectable
x
x
x
x
Add date/time to file-name and directory
x
x
x
x
Trigger time-grid 100ms - days
x
x
x
x
Fixed number of data records can be buffered in PLC

x
x
x
Real-time recording by FIFO in the PLC


x
x
Start/stop recording by PLC


x
x

License
Single LicenseInstallation on one workstation/PC
Subsequent LicenseInstallation on an additional workstation/PC
one subsequentlicense for each additional workstation/PC
Requirement: 1x singlelicense
Site / Branch / Standort Licenseunlimited number of installations at one location
(= one postal address) of a company

Support/Updates:
A license is purchased once for a specific installation or as a dongle and is valid indefinitely (= unlimited license lifetime). In addition, our top-level support from our developers as well as updates including new functions can be purchased for 12 months.

Shortly before the support expires, it is possible to extend it for at least another 12 months for 10% of the current list-price. Updates (= current demo-version) and new functions can only be obtained with valid support. Support requests can still be made, but depending on the scope, these will be dealt with later.
Up to one month before the end of active support, we will inform you about the possibility of extending support. A support renewal is possible at any time in the first year after the end of support for 10% + 20% for each started quarter (since the end of support) of the current list-price. After the first year, a new license must be purchased for the support renewal.

Differences between"PLC-data logging/triggering" and "PLC-data in Excel" (Find the right product for your requirements):
Features
PLC-data logging/triggering
PLC-data in Excel
What happens in the event of a trigger event
Defined values are appended in a given file with a time stamp
one file for several trigger events (infinite list)
The specified file is filled with values from the controller and saved as a new file
one Excel file per trigger event
Filename
Specified by the configuration of the tool
Can be specified by the PLC, otherwise by the tool
Number of configured S7 connections
Depending on the license from 4 to 256
1 connection
Number of variables/connection
Depending on the license from 100 to 1000
Depending on the license from 100 to unlimited


Licensing process:
Free download of the complete range of functions
for 14 days:
/9771-S7L_sps-daten-loggentriggern.html/

Licensing under "License"
(mouse click on the key symbol)
Your machine-code for this PC with order by email
to verkauf@process-informatik.de
You will receive a license code to enter under
"License", so that the program is licensed on your
PC.
With a USB-dongle, there is no machine-code, the
USB-dongle contains the license, comes via UPS.
PLC-data in Excel-readable file
Produkbild

Save your PLC content, production-data in a file on your PC. This file, a CSV- or XML-file (depending on the license), can then be used e.g. further processed with Excel.
A file that includes all configured variables in an infinitely-long list with a suitable time-stamp, either controlled by the PC or via a PLC-trigger (depending on the license). No matter which Siemens-control, as soon as a network-connection is available, nothing stands in the way of recording.

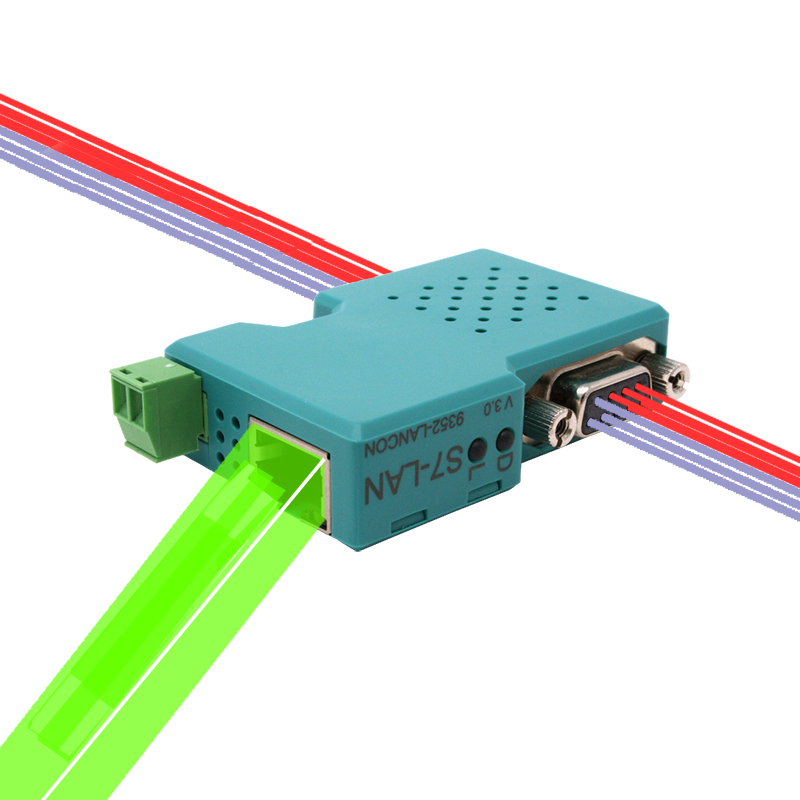

With S7-LAN for PPI, MPI or Profibus or S5-LAN++ for S5-controllers, PLCs without a network-connection can also be addressed and recorded. And depending on the license are several parallel connections possible.
