CONNECT-CONTROL - Process Informatik Entwicklungsgesellschaft mbH

CONNECT-CONTROL

CONNECT-CONTROL with Europe- or World-wide-LTE-approval enable/support remote-service and machine-access to Siemens S5- and S7-controls,and many other controls fully automatically without any configuration or IT-knowledge. All devices of the CONNECT-family with theACBT-technology (AUTO-CONNECT and BYPASS TUNNEL) bypass each firewall without use/consultation of the IT-department.And does not require any requirements for the user, according to the motto: "unpacking, turning on, work".
Smaller control tasks with integrated digital- and analog-IO-ports such as sending messages at certain events,processes can be solved directly without control with the CONNECT-CONTROL. Modbus via RS485 or TCP can also be connected.With the integrated GNSS-receiver, satellite data is available for further processing.

Particularity:

  • ACBT-technology (AUTO-CONNECT and BYPASS TUNNEL) bypasses every firewall

more...

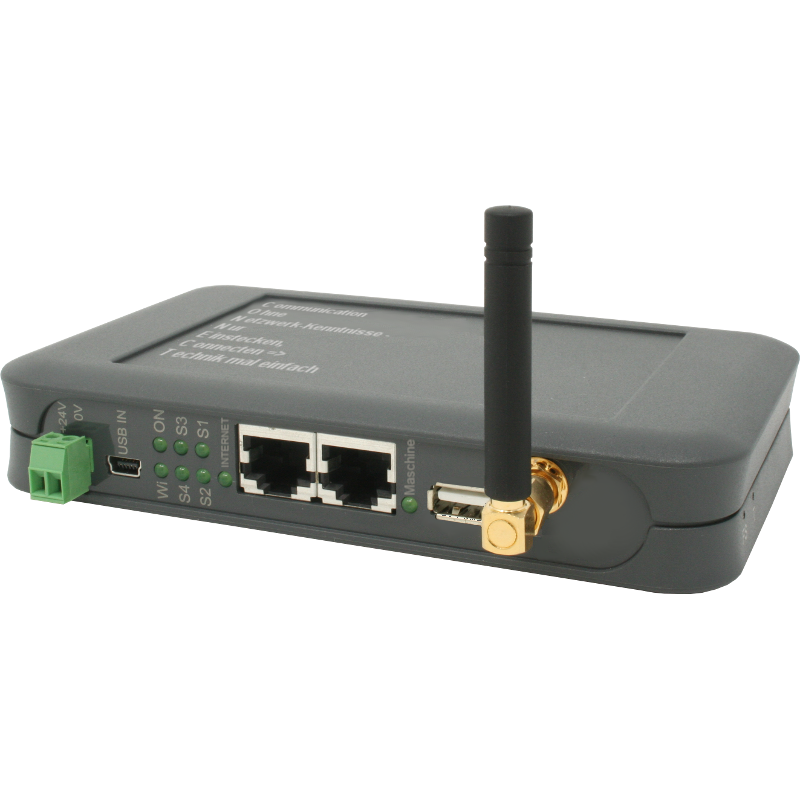

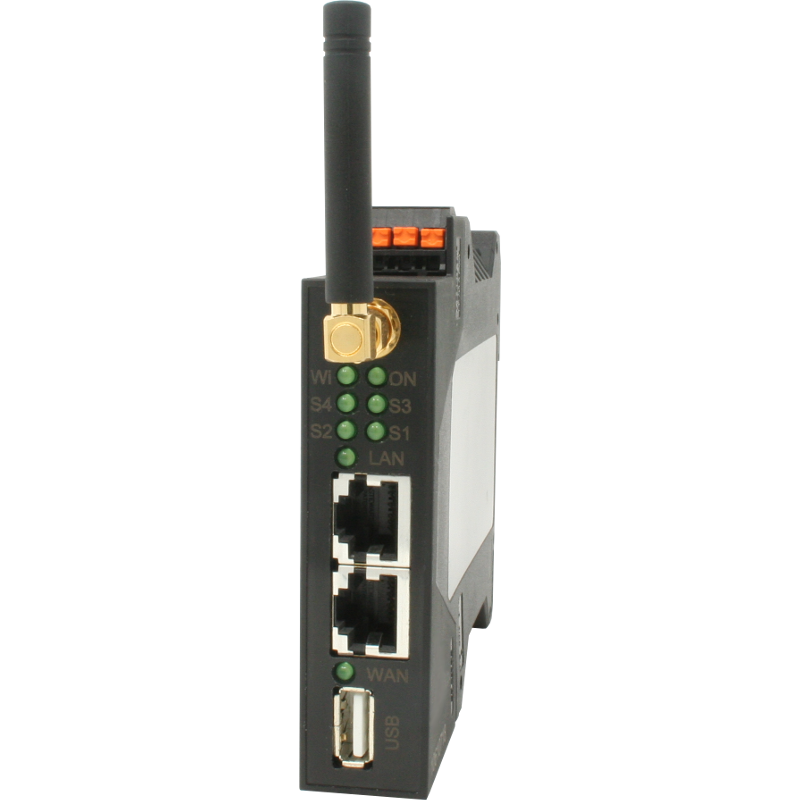

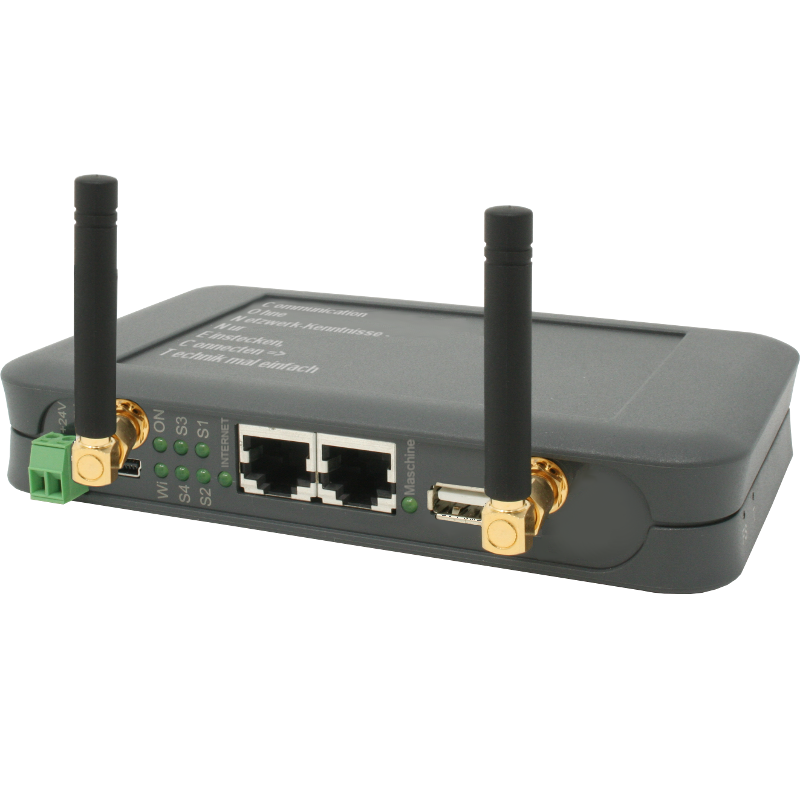

CONNECT - CONNECT-LTE - CONNECT-HS - CONNECT-II - CONNECT-II-LTE - CONNECT-CONTROL-EU - CONNECT-CONTROL-WORLD

Power supply
+24V DC ±20% or
5V over USB-power-adapter
only +24V DC ±20%
only +24V DC ±20%
only +24V DC ±20%
only +24V DC ±20%
9 - 30V DC
230V AC with power cord
9 - 30V DC
230V AC with power cord
Power
2W
12W
1.2W
9W
19W
7W
7W
LAN-speed
10/100 MBit
10/100 MBit
10/100 MBit
10/100/1000 MBit
10/100/1000 MBit
10/100 MBit
10/100 MBit
USB-port
USB 2.0
---
USB 2.0
USB 3.0
USB 3.0
USB 2.0
USB 2.0
Internet over LTE
---
✓
---
---
✓
✓
✓
Internet over LAN
✓
✓
✓
✓
✓
✓
✓
RS232-port
---
---
---
---
---
✓
✓
RS485-port
---
---
---
---
---
✓
✓
MOD-bus TCP and Serial
---
---
---
---
---
✓
✓
Digital_In (0-3V)
---
---
---
---
---
✓
✓
Digital_In (0-30V)
---
---
---
---
---
✓
✓
Analogue_In (0-24V)
---
---
---
---
---
✓
✓
Digital_Out Open-Collector (30V, 250mA)
---
---
---
---
---
✓
✓
Digital_Out SPST-relais-out (40V, 4A)
---
---
---
---
---
✓
✓
S5-PLC over cable
S5-LAN++ (Art.Nr.:9359-LAN)
S5-LAN++ (Art.Nr.:9359-LAN)
S5-LAN++ (Art.Nr.:9359-LAN)
S5-LAN++ (Art.Nr.:9359-LAN)
S5-LAN++ (Art.Nr.:9359-LAN)
S5-LAN++ (Art.Nr.:9359-LAN)
S5-LAN++ (Art.Nr.:9359-LAN)
S5-PLC over WIFI
S5-BRIDGE (Art.Nr.: 9359-S5-WIFI)
S5-BRIDGE (Art.Nr.: 9359-S5-WIFI)
S5-BRIDGE (Art.Nr.: 9359-S5-WIFI)
S5-BRIDGE (Art.Nr.: 9359-S5-WIFI)
S5-BRIDGE (Art.Nr.: 9359-S5-WIFI)
S5-BRIDGE (Art.Nr.: 9359-S5-WIFI)
S5-BRIDGE (Art.Nr.: 9359-S5-WIFI)
S7-PLC (PPI/MPI/DP) over cable
S7-LAN (Art.Nr.: 9352-LANCON)
S7-LAN (Art.Nr.: 9352-LANCON)
S7-LAN (Art.Nr.: 9352-LANCON)
S7-LAN (Art.Nr.: 9352-LANCON)
S7-LAN (Art.Nr.: 9352-LANCON)
S7-LAN (Art.Nr.: 9352-LANCON)
S7-LAN (Art.Nr.: 9352-LANCON)
S7-PLC (PPI/MPI/DP) over WIFI
S7-BRIDGE (Art.Nr.: 9352-S7-WIFI)
S7-BRIDGE (Art.Nr.: 9352-S7-WIFI)
S7-BRIDGE (Art.Nr.: 9352-S7-WIFI)
S7-BRIDGE (Art.Nr.: 9352-S7-WIFI)
S7-BRIDGE (Art.Nr.: 9352-S7-WIFI)
S7-BRIDGE (Art.Nr.: 9352-S7-WIFI)
S7-BRIDGE (Art.Nr.: 9352-S7-WIFI)
S7-PLC (PN) over cable
direct at device
direct at device
direct at device
direct at device
direct at device
direct at device
direct at device
S7-PLC (PN) over WIFI
ALF-UA (Art.Nr.: 9352-ALF-UA)
ALF-UA (Art.Nr.: 9352-ALF-UA)
ALF-UA (Art.Nr.: 9352-ALF-UA)
ALF-UA (Art.Nr.: 9352-ALF-UA)
ALF-UA (Art.Nr.: 9352-ALF-UA)
ALF-UA (Art.Nr.: 9352-ALF-UA)
ALF-UA (Art.Nr.: 9352-ALF-UA)
further LAN-client over cable
direct at device or
ALF-UA (Art.Nr.: 9352-ALF-UA)
direct at device or
ALF-UA (Art.Nr.: 9352-ALF-UA)
direct at device or
ALF-UA (Art.Nr.: 9352-ALF-UA)
direct at device or
ALF-UA (Art.Nr.: 9352-ALF-UA)
direct at device or
ALF-UA (Art.Nr.: 9352-ALF-UA)
direct at device or
ALF-UA (Art.Nr.: 9352-ALF-UA)
direct at device or
ALF-UA (Art.Nr.: 9352-ALF-UA)
further WIFI-client
direct at device
direct at device
direct at device
direct at device
direct at device
direct at device
direct at device
CONNECT-CONTROL with Europe- or World-wide-LTE-approval enable/support remote-service and machine-access to Siemens S5- and S7-controls, and many other controls fully automatically without any configuration or IT-knowledge. All devices of the CONNECT-family with the ACBT-technology (AUTO-CONNECT and BYPASS TUNNEL) bypass each firewall without use/consultation of the IT-department. And does not require any requirements for the user, according to the motto: "unpacking, turning on, work".
Smaller control tasks with integrated digital- and analog-IO-ports such as sending messages at certain events, processes can be solved directly without control with the CONNECT-CONTROL. Modbus via RS485 or TCP can also be connected. With the integrated GNSS-receiver, satellite data is available for further processing.

Particularity:

  • ACBT-technology (AUTO-CONNECT and BYPASS TUNNEL) bypasses every firewall
  • No on-site PC necessary!
  • "Europe- or world-wide" use
  • At the same time WiFi-access-point/-client
  • 2 LTE antennas (improved reception when moving)
  • 2 WIFI antennas (improved reception)
  • GPS receiver (determination of position)
  • Modbus-interface (TCP and RS485)
  • Ideal for smaller control-tasks:
    • Digital- and analog-input
    • Digital-outputs (open-collector and relay-output)
  • Dual-SIM-card-operation (reduction of roaming-costs; increased availability through fallback to a second card)
  • Micro-SD-slot
  • USB 2.0-interface type A
  • RS232-interface
  • 3-way Ethernet-switch (LAN1, LAN2, LAN3), expandable to 4-way-switch (LAN1, LAN2, LAN3, WAN)
  • Input-voltage-range 9 to 30V (also use in vehicles)
  • Passive PoE on LAN1 (9-30V DC)
  • Wall- and table-mounting, Din-rail-adapter optional
  • Power-connection-cable (2m) for RUTxxx and magnetic-base-antennas (screwable) LTE, WIFI and GPS included
Worldwide remote-access thanks to our own cloud
Produkbild

Worldwide remote-maintenance without additional costs thanks to our own cloud
Your devices connect to your own cloud, no matter where they are in the world. Only your devices are in your own private cloud, no one else has access to the cloud. In addition, you can provide each device with its own connection-password, so that the individual systems are protected despite the private cloud.
No registration on any portals, no hidden additional costs, your devices in your own cloud are always accessible.
This is how remote maintenance/remote access is fun.

Cloud2
Produkbild
Cloud3
Produkbild
Cloud4
Produkbild
Cloud5
Produkbild
Cloud6
Produkbild
CONNECT-FACTORY
Produkbild
CONNECT-HOME
Produkbild
LTE
Produkbild
Connection of lan-clients
Produkbild
Connection of wifi-clients
Produkbild
Gateway
Produkbild
CONNECT (autonomic tunneling of the firewall)
Produkbild
Simple and uncomplicated remote maintenance
Produkbild

Simple and uncomplicated remote-access to your devices/systems via the Internet
VPN-tunnel, registration at any portal is not necessary, activate the device and select and communicate with the opposite system
No great effort to implement access. Use of the devices without consulting IT, no time-consuming commissioning procedure
All your devices in your own cloud, no access from third-party CONNECT-devices to your devices/systems

Supply voltage: 9 - 30V DC
Power consumption: 7 Watt
Display: WebBrowser
Status LEDs
Handling/Configuration: WEB-Browser
Interfaces: 4 x 10/100BaseTX RJ45-ethernet-plug auto-MDI/MDIX (3x LAN, 1x WAN)
2x Antenna-connector RP-SMA(f) (WIFI 2.4 GHz IEEE 802.11b/g/n)
2x Antenna-connector SMA(f) (FDD LTE:
  Europe: B1/B2/B3/B5/B7/B8/B20)
  World: B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28)
1x Antenna-connector SMA(f) GNSS-receiver
RS485-port via plug-connector 6pol.
RS232-port via D-Sub 9pol female
2x digital input (0 - 3V, 0 - 30V)
1x analogue input (0 - 24V)
1x digital output OpenCollector (30V, 250mA)
1x digital SPST-relay-output (40V, 4A)
USB 2.0-socket type A
2x SIM-slot
Operating temperature: -40 - 75°C
Case: Metal-housing, suitable for table- or wall-mounting
Dimensions: 106 x 80 x 46 mm

Scope of delivery: 9354-CONNECT-CON-EUROPE or 9354-CONNECT-CON-WELT
Plug-in power supply 230V AC => 9V DC
2x LTE-magnetic-base-antenna (SMA (m), 3 m cable)
2x WLAN-magnetic-base-antenna (RP-SMA (m), 1.5 m cable)
GNSS antenna (SMA (m), 3 m cable)
RS485-terminal strip
I/O-terminal strip
Ethernetcable 1.5 m
Power connection cable (2m)
