Remote maintenance - Process Informatik Entwicklungsgesellschaft mbH

Remote maintenance

Which system programmer does not know this: On Friday, just before weekend, a call from a customer comes in: „ The production stands still, nothing works. You have to solve this problemimmediately. Otherwise...e.g.“. No other choice than going as fast as possible to the customer to set the important system into operation.

What could be the problem? Which input, that is necessary for the release of the program, is not set? Is the problem caused by the end switch?

During the long ride to the customer, many of such questions come to mind. Then sometimes it happens, that you discover a still missing link in your PLC program. Wouldn’t it be nice, to get ridof the problem simply with a phone call.

Why not? Our remote maintenance devices are the answer to the question.


more...

Which system programmer does not know this: On Friday, just before weekend, a call from a customer comes in: „ The production stands still, nothing works. You have to solve this problem immediately. Otherwise...e.g.“. No other choice than going as fast as possible to the customer to set the important system into operation.

What could be the problem? Which input, that is necessary for the release of the program, is not set? Is the problem caused by the end switch?

During the long ride to the customer, many of such questions come to mind. Then sometimes it happens, that you discover a still missing link in your PLC program. Wouldn’t it be nice, to get rid of the problem simply with a phone call.

Why not? Our remote maintenance devices are the answer to the question.

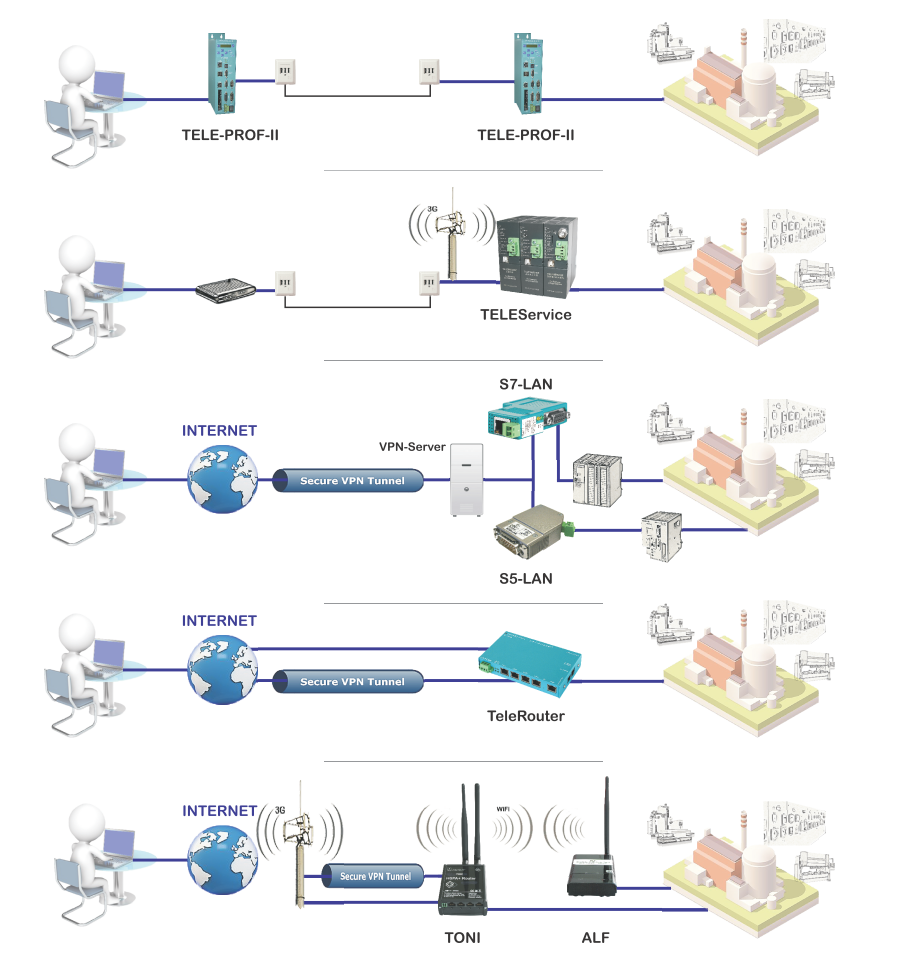

application table:
TELE LINK NETWORK


secured modem-protocol
additional software needed
Siemens TS -Software
Siemens TS -Software
VPN-Client
VPN-Client
Providing WinTELEPROF-software
modem
analogue/ISDN
analogue
opt. via PCMCIA
analogue/GSM
analogue/ISDN/GSM
internet-connection
internet-connection
internet-connection
modem for world wide use
interfaces
MPI/Profibus
9600-12MBd
9600-12MBd
9600-12MBd
9600-12MBd
RS232
2x
2x
2x
1x
1x
TTY
2x
2x
2x
1x
PCMCIA
2x (optionally)
1x
1x
Ethernet
10/100BaseTx
1x
1x
5x
USB
2x
1x
LCD-display
instead 10 LEDs
instead status-LED
instead webserver
instead webserver
supported PLC-protocols *
S7
S5
✓ (optional)
✓ (optional)
Pilz PSS
✓ (optional)
✓ (optional)
Allen-Bradley
✓ (optional)
✓ (optional)
AEG
✓ (optional)
✓ (optional)
Bosch
✓ (optional)
✓ (optional)
Telemecanique
✓ (optional)
✓ (optional)
GE-Fanuc
✓ (optional)
✓ (optional)
Klöckner-Moeller
✓ (optional)
✓ (optional)
Mitsubishi
✓ (optional)
✓ (optional)
SMS-sending/Pager(S5/S7)
✓ (no pager)
only for analogue / ISDN
HMI-messaging module(S5/S7)
SMS-receive with GSM
DTMF with analogue
e-mail-dispatch
FAX-dispatch(S5/S7)
✓ (optional)
✓ (optional)
only for analogue / ISDN
PLC-data coupling(S5/S7)
✓ (optional)
✓ (optional)
ASCII-transfer from S5/S7
✓ (optional)
✓ (optional)
only with ASCII-LAN
internet-coupling
Usage as dial-up-router
power supply
24V/DC
24V/DC
24V/DC
24V/DC
24V/DC
24V/DC
24V/DC
24V/DC
dimensions w x h x d (in mm)
High: 67 x 280 x 170
FLAT: 300 x 175 x 70
300 x 175 x 66
235 x 162 x 37
90 x 162 x 54
40 x 125 x 115
42 x 15 x 65
65 x 43 x 17
154 x 92 x 28

* other PLC types on request
All prices plus costs of delivery, shipping insurance and VAT.
All prices plus costs of delivery, shipping insurance and VAT.
All prices plus costs of delivery, shipping insurance and VAT.

Automatic-mode

TeleRouter
The simple and quick router solution for automation
S7-LAN
smallest simatic S7 ethernet gateway with PD-socket, multifunctional, 1 adapter for all PPI, MPI and Profibus applications
with ext. 24V-connector
easy remote maintenance over internet
CONNECT
Desktop device / remote support 100MBit Ethernet + WIFI
CONNECT-HS
Din-rail device / remote support 100MBit Ethernet + WIFI
CONNECT-LTE
Desktop device / remote support 100MBit Ethernet + WIFI + LTE
CONNECT-II
Desktop device / remote support 1000MBit Ethernet + WIFI
CONNECT-II-LTE
Desktop device / remote support 1000MBit Ethernet + WIFI + LTE
CONNECT-CONTROL Europe-LTE
Desktop-/wall-device / remote support 100MBit Ethernet + WIFI + LTE (world-wide) + GPS + IO-ports
CONNECT-CONTROL World-LTE
Desktop-/wall-device / remote support 100MBit Ethernet + WIFI + LTE (world-wide) + GPS + IO-ports
CONNECT-software
Software solution, connects CONNECT-CLOUD with PC
Emergency-package remote-maintenance S5 and S7
For you completely configured, just plug it in and you are connected
TELE-PROFessional (TP)
Facilities management world wide – remote maintenance and diagnosis via telephone
TELE-BOOK (TB)
PLC-remote maintenance also available from the car, with 12V power supply
TELE-Manager
configuration / update of TELE-Network devices from PC (Windows-Software)
Win-TELE-PROF
replacement of the PD-TELE at telephone bounded remote maintenance
MPI / PPI - Profibusmodem
Programming of S7-PLC’s via telephone from afar
TELE-PROFessional-II (TP-II)
Programming of S5- and S7-PLC’s via telephone from afar

TELEService GSM
Remote maintenance of PPI, MPI and Profibus <=> analogue 56K-, ISDN-, GSM-Modem
S5-LAN++
Ethernet for each S5-PLC +++ Network to PG-interface +++ Of developer and manufacturer +++ Remotemaintenance via Internet +++ S5 (CP-343-1 compatible)
S5-TCP/IP 100
Turbo ethernet for PLC-oldie Simatic S5
ALF-UA
Industrial WLAN-Router +++ High-speed datarate 150 Mbit/s +++ Integrated firewall +++ Din-rail-mounting +++ Make your own WIFI
