Oxygen - Service - Controller II

O₂-analysis 100% - 10-24% of industrial gases

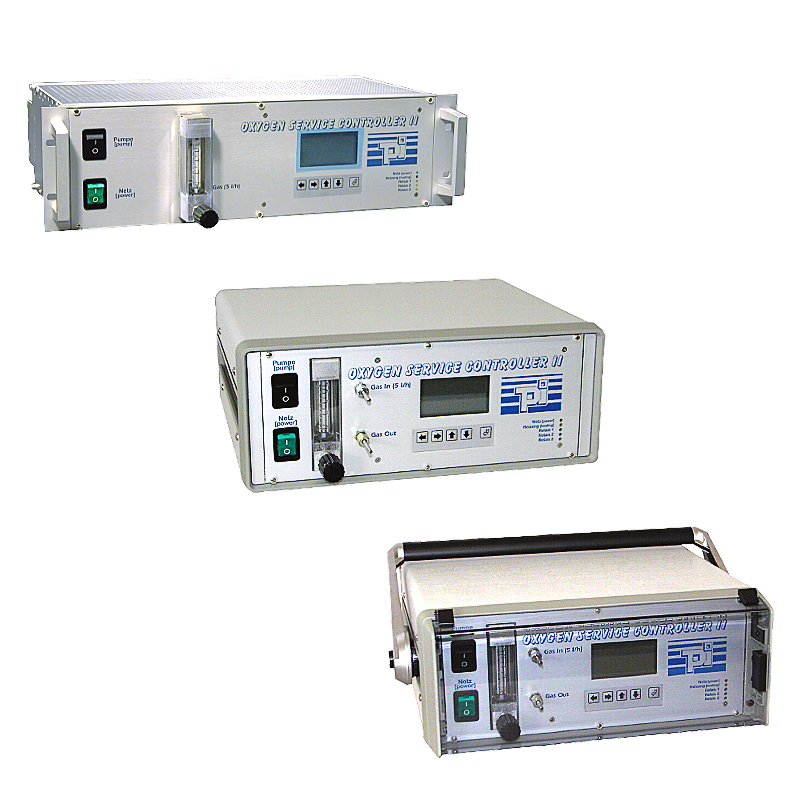

19"- & table- & service-portable-device

  • Integrated zirconium probe
  • High metering precesion
  • Automatic switch of range %, ppm, E-xx
  • High resolution of the display areas
  • Integrated switchable pump
  • Integrated flowmeter with regulating valve 0 - 10 l/h
  • Probe offset with known O2-content of test gas possible
  • Free adjustable limit values for the relay outputs
  • Configurations are code protected against accidental modifications
  • Configurations are stored with mains failure protection

Technical data


Supply voltage: 240V AC 50-60Hz
Power consumption: 200 watt
Display: illuminated, detailed graphics display (70 x 35 mm)
5 LEDs (power, heating, relay outputs)
Handling/Configuration: integrated keypad
Interfaces: 1 x analogue outputs: 0/4 - 20mA
3 x digital outputs: 230V / 2A
2 x sample gas connection 4mm VA-pipe (in-/outputs)
1 x D-Sub-female for RS232/422(optional)
Operating temperature:
Case: metal case in the versions (19"-slot / table device / service carrying case)
Dimensions: 19"-slot: 440 x 370 x 135 mm
table device: 360 x 350 x 150 mm
service carrying Case: 360 x 350 x 150 mm
Scope of delivery:
OSC-II-device
Power-cord
DIN-connector 5pin
Connector 3pins big
Commercial data:
EAN number: 4260363242011
HS-code: 90271010
Weight: 5.4000 kg


Kleverles Projekte

technical data
docu / downloads
order data

Applications

Oxygen analysis in industrial gases

You need a continuous measurement of the concentration of oxygen without any configuration of the device or a switch of range of measurement? No problem, with the OSC-II-devices you are right. It shows you the concentration from % down to E -24 without any action from you. It switches automatically the ragne of measurement.

Documentation of oxygen concentration

The integratet current output issues the actual concentration in the range of 0/4 - 20mA via free definable limits.
Free definable limits

You need some limits? No problem, with the OSC-II-devices you will be able to define 3 relay outputs (toggle switch) like UG (down level) or OG (top level) or as a ready-flag (internal probe has working temperature).

Fuzzy controller with the OSC-II

Through 3 free configurable limits (of each kind) you won´t be able to realice a fuzzy-controller of your heat treatment furnace.

order data applications technical data

technical data
applications
docu / downloads

All prices plus costs of delivery, shipping insurance and VAT.

article:
Art. ID.namepricequantity
9110.0OSC-II Wallcase
Without probe, pump and mass-flow-controller
2556,- € Quickbestellung INFOMAIL
9110.1OSC-II 19
OxygenServiceController 100% - 10E-24%
4090,- € Quickbestellung INFOMAIL
9110.2OSC-II Desktop Device
OxygenServiceController 100% - 10E-24%
4295,- € Quickbestellung INFOMAIL
9110.3OSC-II Service-portable-set
OxygenServiceController 100% - 10E-24%
4397,- € Quickbestellung INFOMAIL
9110.4OSC-II Z-Box
External device with probe, pump and
mass-flow-controller. Connection to wallcase
with thermocouple extension wire recommended
2590,- € Quickbestellung INFOMAIL

order data applications technical data
options:
Art. ID.namepricequantity
9101-RS232Mesaurement data output via RS232
Cyclic output of measurement data O2-content,
temperature and EMK in ASCII-format via
V24-port
490,- € Quickbestellung INFOMAIL

order data applications technical data
spare parts:
Art. ID.namepricequantity
9100Lift and force pump for OSC
with mounting angle bracket
307,- € Quickbestellung INFOMAIL
9100.1Lift and force pump for OSC
with higher flow-rate
with mounting angle bracket
354,- € Quickbestellung INFOMAIL
9101Zirconium/platinum-probe with heater2300,- € Quickbestellung INFOMAIL
9101.1Heater for zirconium-probe450,- € Quickbestellung INFOMAIL
9108Flowmeter230,- € Quickbestellung INFOMAIL
