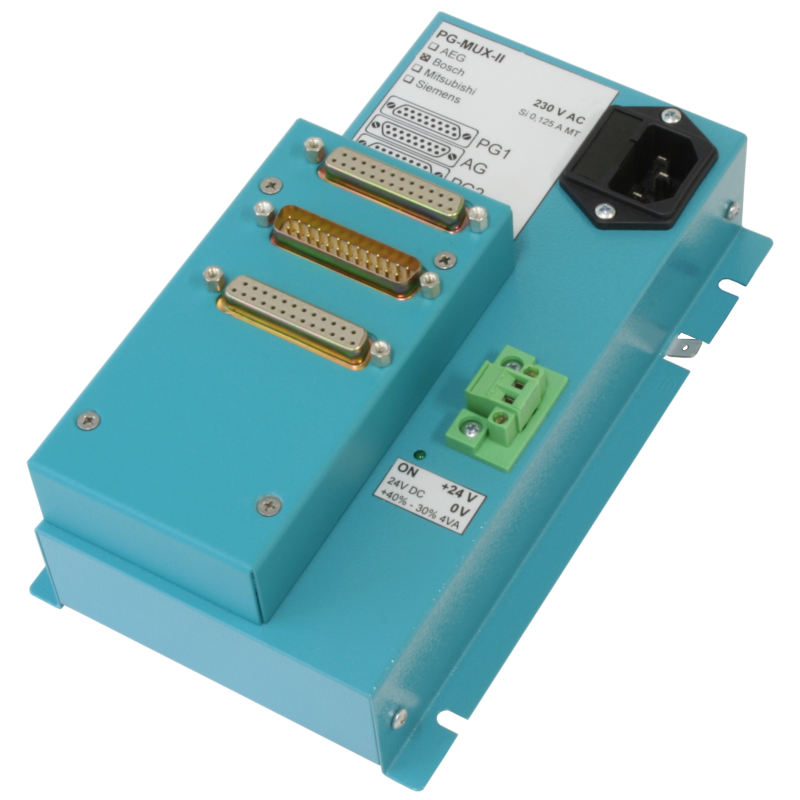

PG-MUX-II for Bosch

Doubled PG-interface +++ HMI and PG parallel to PLC +++ Prof.device, active ports +++ All connections on the front +++ For BOSCH CL200/300/400

with PLC-specific connecting cable to PLC
and power cable

Features:

Devices are advanced versions of the world widely used PG-MUX
All connectors and controls on the front
Permanent checking of the device functions and power supply => restart at failure
Right away ONLINE with both interfaces to the PLC
All PD functions can be accomplished parallel by 2 PD’s

895,00 € plus VAT. and shipping

ARTNR: 9361-12
PG-MUX-II for BOSCH BUEP19 / +E
Obsolete

9361-12
PG-MUX-II for BOSCH BUEP19 / +E Obsolete
with PLC-specific connecting cable to PLC and power cable

by e-mail

895,00 €
plus VAT. and shipping

9391-MT
Mounting set
for DIN-rail-holder, self mounting

by e-mail

27,00 €
plus VAT. and shipping

9391.1
24V DC power-supply unit 1250mA
Primary 110V - 240 VAC Euro+USA-plug

by e-mail

59,00 €
plus VAT. and shipping

9371-24
Power connector 2pins big
connector plug lockable by jack with screws

by e-mail

4,00 €
plus VAT. and shipping

9391-UH
Mounting of universal DIN-rail-holder
of the relevant product, inclusive holder

by e-mail

63,00 €
plus VAT. and shipping

Features:

Devices are advanced versions of the world widely used PG-MUX
All connectors and controls on the front
Permanent checking of the device functions and power supply => restart at failure
Right away ONLINE with both interfaces to the PLC
All PD functions can be accomplished parallel by 2 PD’s
Provided PLC’s: CL 200, CL 300 and CL 400
No additional or specific adapters are needed
Connecting mechanics, pin assignment and the electrical data correspond to the PD/PLC-interfaces of the relevant PLCs
Capability of connecting on PD-side: 2 x AS511 (PD-protocol) / 1 x SINEC-L1-BUS (no master protocols, no cross traffic) + 1 x AS511
3m cable for PLC-connection included in delivery
Possible power supply: 230V AC or 24V DC


Supply voltage:	240V AC 50-60Hz 24V DC +/- 20%
Power consumption:	4 watt
Display:	LED for function and watchdog supervision
Interfaces:	to the PLC: RS-232 to the PD/PC: 2 PD x RS232 + TTY/20mA current loop (multiplexer aktive and passive usable, 100 % mechanically and electr. compatible)
Operating temperature:	-30 - +55°C
Case:	powder coated metal case with mounting flange
Dimensions:	190 x 110 x 80 mm

Scope of delivery:	PG-MUX-II for Bosch Power-cord PLC-connecting-cable Power connector 2pins big
