S7-To-Excel - Process Informatik Entwicklungsgesellschaft mbH

S7-To-Excel

Create with the S7-PLC Excel-files

S7-To-Excel-tool generates from any PLC-variables Excel-files according to your design. You customize the look directly into Excel!

  • free create of the Excel-tables with formulas and formats
  • Operation without Excel-installation
  • event and time controlled writing per worksheet (time-/event-trigger)
  • no programm in the PLC necessary
  • no limit on the count of variables (for advanced-version)
  • file-creation with time-stamp in the file-name
  • easy parameterization
  • the addresses of the PLC-variables are specified directly in the Excel table (for e.g. PLC_ADDR,DB10.DBW100,INT)
  • supported PLC-types:
    • S7-1500
    • S7-1200
    • S7 300/400
    • S7-200
    • S7-SoftPLC
    • Logo!-SPS
    • VIPA-S7
    • all S7 compatible controls

All parameters are stored directly in the XML-template-file.
The template includes all information as:

  • target directory
  • target-file with format-specification for the date and time
  • connection-parameters to the PLC (ip-address etc.)
  • addresses of the PLC-variables
  • condition (trigger) for generating the target file
  • This information is indicated with the help of keywords at any position in the Excel worksheet. Variables from the PLC will appear in the target file at the same position (cell), where the relevant variable address has been entered.

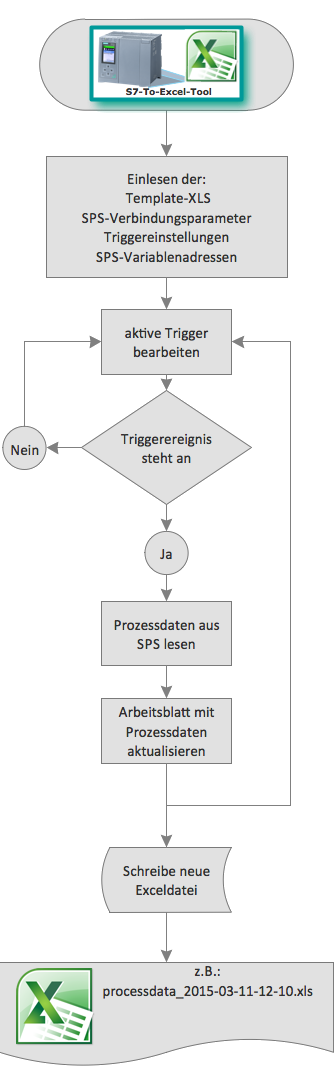

program flow

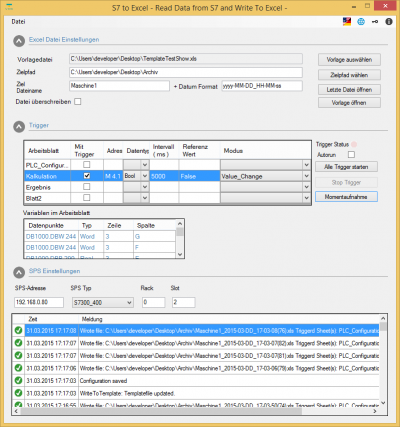

screenshot of the configuration

Commercial data:
EAN number: 4260363246323
HS-code: 85234999


Kleverles Projekte

order data applications technical data

technical data
applications
docu / downloads

All prices plus costs of delivery, shipping insurance and VAT.

article:
Art. ID.namepricequantity
9773-DOS7-To-Excel license-dongle AddOn
USB-dongle with license-key instead of
software-key
Only for Win7/8/8.1 and Win10
on request INFOMAIL
9773-S7S7-To-Excel-tool, single-license
for Windows 32/64-bit
writing Simatic S7 Processdata to Excel file by
XLS-Template
limited for 100 variables
on request INFOMAIL
9773-S7-2S7-To-Excel-tool, subsequent-license
for Windows 32/64-bit
writing Simatic S7 Processdata to Excel file by
XLS-Template
limited for 100 variables
on request INFOMAIL
9773-S7-3S7-To-Excel-tool, site / company license
for Windows 32/64-bit
writing Simatic S7 Processdata to Excel file by
XLS-Template
limited for 100 variables
on request INFOMAIL
9773-S7-AS7-To-Excel-tool, advanced, single-license
for Windows 32/64-bit
writing Simatic S7 Processdata to Excel file by
XLS-Template
count of variables unlimited
on request INFOMAIL
9773-S7-A-2S7-To-Excel-tool, advanced, subsequent-license
for Windows 32/64-bit
writing Simatic S7 Processdata to Excel file by
XLS-Template
count of variables unlimited
on request INFOMAIL
9773-S7-A-3S7-To-Excel-tool, advanced, state / company license
for Windows 32/64-bit
writing Simatic S7 Processdata to Excel file by
XLS-Template
count of variables unlimited
on request INFOMAIL
9773-S7-ES7-To-Excel-tool, expert, single-license
for Windows 32/64-bit
writing Simatic S7 Processdata to Excel file by
XLS-Template
count of variables unlimited
all possibilities of enhancement
on request INFOMAIL
9773-S7-E-2S7-To-Excel-tool, expert, subsequent-license
for Windows 32/64-bit
writing Simatic S7 Processdata to Excel file by
XLS-Template
count of variables unlimited
all possibilities of enhancement
on request INFOMAIL
9773-S7-E-3S7-To-Excel-tool, expert, state / company license
for Windows 32/64-bit
writing Simatic S7 Processdata to Excel file by
XLS-Template
count of variables unlimited
all possibilities of enhancement
on request INFOMAIL
SUP-9773-S7Software Update & Support service
Automatical Upgrade for innovations
incl. technical support for 12 months
for a S7-To-Excel standard single-license
on request INFOMAIL
SUP-9773-S7-2Software Update & Support service
Automatical Upgrade for innovations
incl. technical support for 12 months
for a S7-To-Excel standard subsequent-license
on request INFOMAIL
SUP-9773-S7-3Software Update & Support service
Automatical Upgrade for innovations
incl. technical support for 12 months
for a S7-To-Excel standard site-license
on request INFOMAIL
SUP-9773-S7-ASoftware Update & Support service
Automatical Upgrade for innovations
incl. technical support for 12 months
for a S7-To-Excel advanced single-license
on request INFOMAIL
SUP-9773-S7-A-2Software Update & Support service
Automatical Upgrade for innovations
incl. technical support for 12 months
for a S7-To-Excel advanced subsequent-license
on request INFOMAIL
SUP-9773-S7-A-3Software Update & Support service
Automatical Upgrade for innovations
incl. technical support for 12 months
for a S7-To-Excel advanced site-license
on request INFOMAIL
SUP-9773-S7-ESoftware Update & Support service
Automatical Upgrade for innovations
incl. technical support for 12 months
for a S7-To-Excel expert single-license
on request INFOMAIL
SUP-9773-S7-E-2Software Update & Support service
Automatical Upgrade for innovations
incl. technical support for 12 months
for a S7-To-Excel expert subsequent-license
on request INFOMAIL
SUP-9773-S7-E-3Software Update & Support service
Automatical Upgrade for innovations
incl. technical support for 12 months
for a S7-To-Excel expert site-license
on request INFOMAIL
