S7-VISU - Process Informatik Entwicklungsgesellschaft mbH

S7-VISU Produktvideo anzeigen

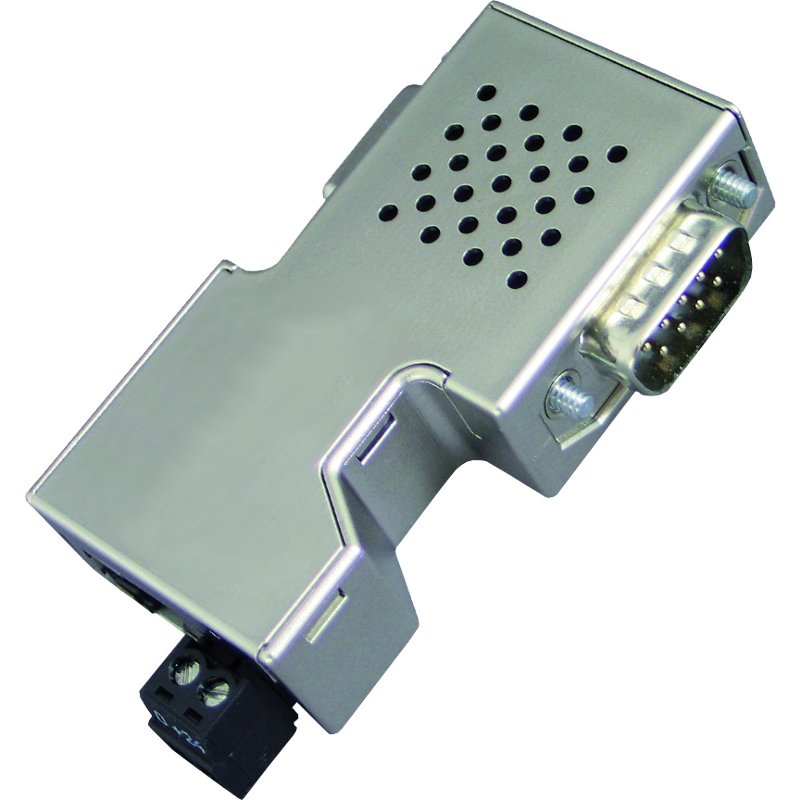

Web-Visualization in a connector for S7-300/400-PLCs

  • Upgrades a Profibus/MPI-capable-SIMATIC S7-System® into a fully featured Visualization and Control System
  • Visualizes thanks Web-Technique platformneutral and free of charge with standard Web
  • Imports symbols and variables time efficient directly from a STEP7-project®
  • Guarantees fast output at minimum eort due to intuitive Point and Click Engineering Tool
  • Power-supply direct from the connected bus-node or external possible

docu / downloads
order data
applications

Technical data


Supply voltage: 24V/DC +/- 20%
Power consumption: 2 watt
Display: Web-Browser
4 status-LEDs
Handling/Configuration: Web-Browser
Windows-Software
Interfaces:
Profibus/MPI:
9,6 KBd - 12 MBd, automatically
Ethernet:
10/100BaseTX RJ45-ethernet jack
Operating temperature: 0 - 50°C
Case: ABS-plastic case
Dimensions: 65 x 48 x 16 mm
Scope of delivery:
S7-VISU-module
Power connector 2pins small
Commercial data:
EAN number: 4260363244275
HS-code: 85423190


Kleverles Projekte

technical data
docu / downloads
order data

Applications

Easy Web-Visualization

You need a web-visualization which is kept simple, with no additional Plugins like ActiveX, Flash® or Java® and is compatible with most general browser? Then you have found with S7-Visu the solution. Visualizations under Windows®/Linux on PC-based systems are just realizable as those for tablets or Phones with browser support. The simultaneous operation of multiple browsers at the same time is possible.




order data applications technical data Cart
ARTNR #
Summe: 0,-

technical data
applications
docu / downloads

All prices plus costs of delivery, shipping insurance and VAT.

article:
Art. ID.namepricequantity
9353-S7-VISU S7-VISU
Web-Visualization in a connector
for S7-300/400-PLCs
499,- € Quickbestellung INFOMAIL

order data applications technical data Cart
ARTNR #
Summe: 0,-
accessories:
Art. ID.namepricequantity
9352-24 Power connector 2pins small
cable coupling by screw-connector (small)
3,- € Quickbestellung INFOMAIL
9353-AE atvise elements
Image-database with high-quality
Bitmaps and vector-graphics in the
SVG-format
1200,- € Quickbestellung INFOMAIL
9391-USB USB-powercable for 24V DC, max. 3W
USB-plug type A to 2 open braids
24V DC, maximum current: 125mA (for PC
100mA)
length: 5m
89,- € Quickbestellung INFOMAIL
9391.1 24V DC power-supply unit 625mA
Primary 110V - 240 VAC Euro+USA-plug
39,- € Quickbestellung INFOMAIL
