Memory-modules - Process Informatik Entwicklungsgesellschaft mbH

Memory-modules


Memory-modules for SIMATIC® - S5&S7

not RoHs-compliant

Your Advantages by using our PC memory modules:

  • Simple Handling
    the programming number is identical with the Siemens programming number
  • Secure Handling
    each module has a label with its type and programming number
  • Reduced risk to use the wrong module by mistake
    module with 21 V = black written labels – modules with -12,5 V = red written labels

more...
variants:

41,00 € plus VAT. and shipping

ARTNR: 375-8LA11
EPROM module 8KByte for S90
Obsolete
EAN number: 4260363240765
HS-code: 85423255
Weight: 0.1 kg



Memory modules / Prommer

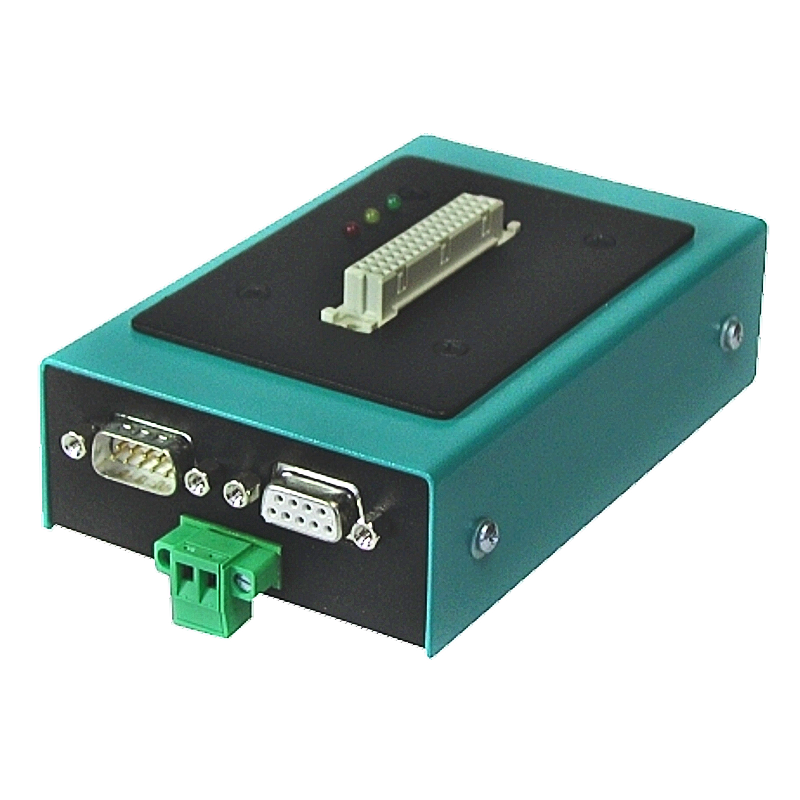

  Mini-Prommer-III
Mini-Prommer-III

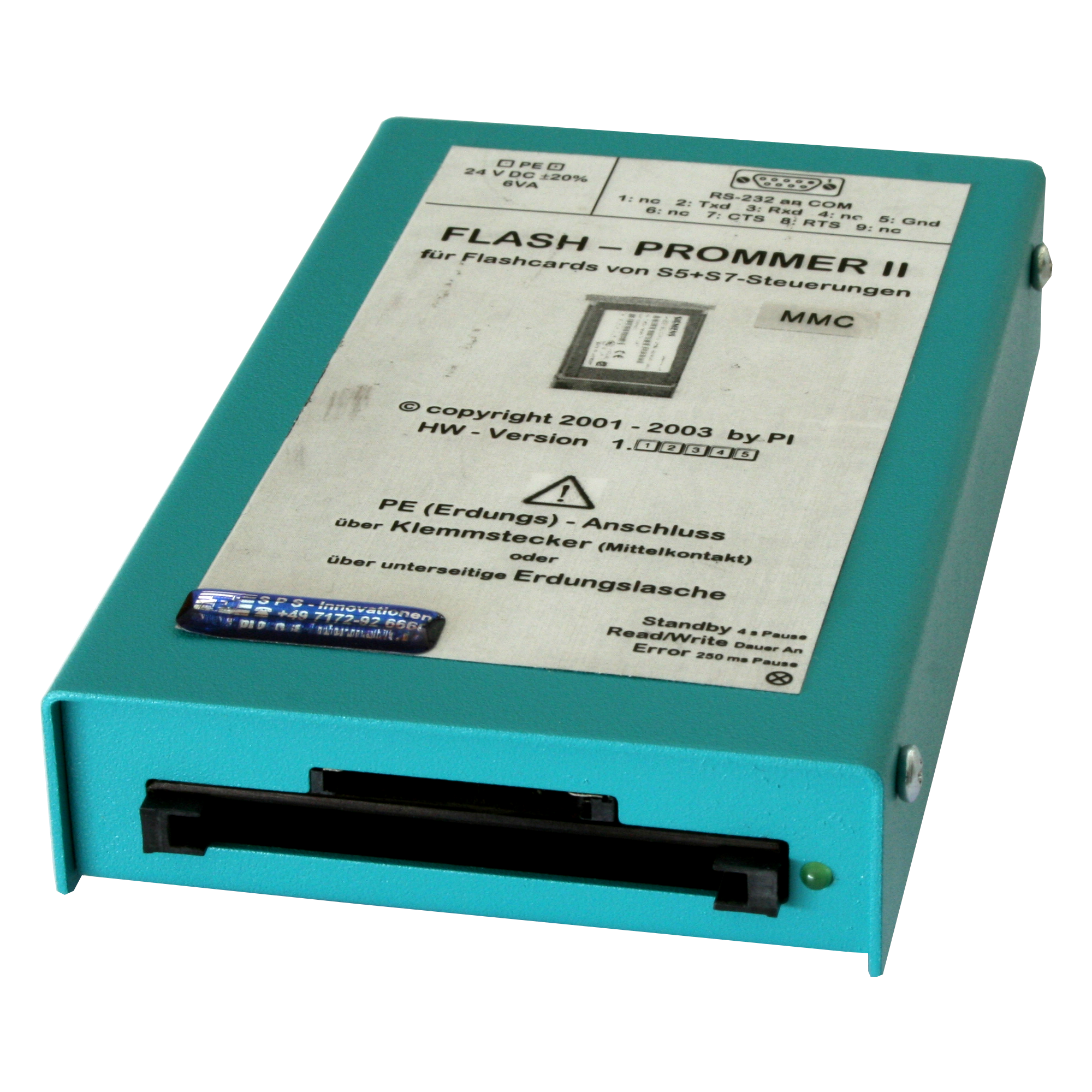

Flash-Prommer-II-MMC
Flash-Prommer-II-MMC

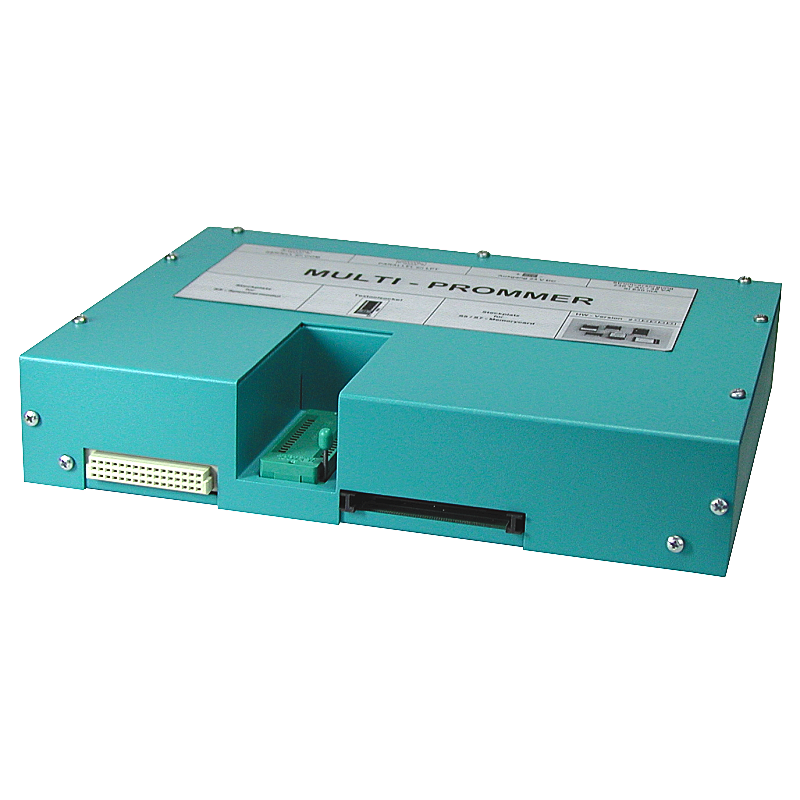

Multi-Prommer
Multi-Prommer
Supported formats Windows XP
(16-Bit-Version)
Windows 7
(32-Bit-Version)
Windows XP
(16-Bit-Version)
Windows 7
(32-Bit-Version)
Windows XP
(16-Bit-Version)
Windows 7
(32-Bit-Version)
Binäryfile *.BIN
Step-5 file *.S5D
Step-7 file(structur) *.S7P
S7-PLC-firmware-update (MMC)
ET-100 files *.308
ET-200 files *ET.200
ET2-Binäryexport *.2BF
Intel-Hex-format *.HEX
Motorola-Hex-format *.EPR
CP-525/524 files *.525
CP-5431-files Q*.*
CP-1430/CP-143-files A*.*
Module type Storage type Slot
2532 UV, NMOS DIL-Socket
27128 UV, NMOS DIL-Socket
2732A UV, NMOS DIL-Socket
2764 UV, NMOS DIL-Socket
27C010 UV, CMOS DIL-Socket
27C1001 UV, CMOS DIL-Socket
27C128 UV, CMOS DIL-Socket
2716BQ UV, CMOS DIL-Socket
27C200 UV, CMOS DIL-Socket
27C256 UV, CMOS DIL-Socket
27C400 UV, CMOS DIL-Socket
27C512 UV, CMOS DIL-Socket
27C64A UV, CMOS DIL-Socket
27C080 UV, CMOS DIL-Socket
27C801 UV, CMOS DIL-Socket
28F010 FLASH DIL-Socket
29F010 FLASH DIL-Socket
370-0AA41 UV, CMOS VG-strip ✓ (only reading) ✓ (only reading)
372-0AA51 UV, NMOS VG-strip ✓ (only reading) ✓ (only reading)
372-0AA61 UV, NMOS VG-strip ✓ (only reading) ✓ (only reading)
373-0AA21 UV, NMOS VG-strip
373-0AA41 UV, NMOS VG-strip ✓ (ab V1.5)
373-0AA61 UV, NMOS VG-strip ✓ (ab V1.5)
373-0AA81 UV, CMOS VG-strip ✓ (ab V1.5)
373-1AA41 UV, CMOS VG-strip
373-1AA61 UV, CMOS VG-strip
373-1AA81 UV, CMOS VG-strip
374-1FG11 FLASH PCMCIA ✓ (ab V3.15)
374-1FH11 FLASH PCMCIA ✓ (ab BS3.E)
374-1FH21 FLASH PCMCIA
374-1KG11 FLASH PCMCIA
374-1KJ11 FLASH PCMCIA
374-1KH21 FLASH PCMCIA
374-1KK21 FLASH PCMCIA
374-2FH21 FLASH PCMCIA
374-2KG21 FLASH PCMCIA
374-2KH21 FLASH PCMCIA
374-2KK21 FLASH PCMCIA
374-2KL21 FLASH PCMCIA
375-0LA11 UV, NMOS VG-strip
375-0LA15 UV, NMOS VG-strip
375-0LA21 UV, NMOS VG-strip
375-0LA41 UV, NMOS VG-strip
375-0LA61 UV, CMOS VG-strip ✓ (ab V1.5)
375-0LA71 UV, CMOS VG-strip
375-0LC11 EEPROM VG-strip
375-0LC15 EEPROM VG-strip
375-0LC21 EEPROM VG-strip
375-0LC31 EEPROM VG-strip
375-0LC41 EEPROM VG-strip
375-0LC61 EEPROM VG-strip
375-1LA15 UV, CMOS VG-strip
375-1LA21 UV, CMOS VG-strip
375-1LA41 UV, CMOS VG-strip ✓ (ab V1.5)
375-1LA61 UV, CMOS VG-strip
375-1LA71 UV, CMOS VG-strip
375-8LA11 UV, CMOS VG-strip
375-8LA12 FLASH VG-strip ✓ (ab V1.6)
375-8LC11 EEPROM VG-strip
375-8LC21 EEPROM VG-strip
375-TPA1 EEPROM VG-strip ✓ (ab V1.5)
376-0AA11 UV, NMOS VG-strip
376-0AA21 UV, NMOS VG-strip
376-0AA31 UV, CMOS VG-strip
376-1AA11 UV, CMOS VG-strip
376-1AA21 UV, CMOS VG-strip ✓ (ab V1.5)
376-1AA31 UV, CMOS VG-strip
6FX1126-0B
!Number has to be the same!
UV, CMOS VG-strip
6FX1128-4B
!Number has to be the same!
Don't confuse with 6FX1128-4BB10,
there is no compatibility!
UV, CMOS VG-strip
6FX1130-5B
!Number has to be the same!
UV, CMOS VG-strip
910-0AA31 UV, NMOS VG-strip ✓ (only reading) ✓ (only reading)
910-0AA41 UV, NMOS VG-strip ✓ (only reading) ✓ (only reading)
951-0FD00 FLASH PCMCIA
951-0KD00 FLASH PCMCIA
951-0KD80 FLASH PCMCIA
951-0KE00 FLASH PCMCIA
951-0KE80 FLASH PCMCIA
951-0KF00 FLASH PCMCIA
951-0KF80 FLASH PCMCIA
951-0KG00 FLASH PCMCIA
951-0KJ00 FLASH PCMCIA
951-1KH00 FLASH PCMCIA
951-1KK00 FLASH PCMCIA
951-1KM00 FLASH PCMCIA
952-0KD00 FLASH PCMCIA
952-0KE00 FLASH PCMCIA
952-0KF00 FLASH PCMCIA
952-0KG00 FLASH PCMCIA
952-0KH00 FLASH PCMCIA
952-1KK00 FLASH PCMCIA
952-1KL00 FLASH PCMCIA
952-1KM00 FLASH PCMCIA
A1SMCY_8KP UV, CMOS DIL-Socket
FX_EEPROM4 UV, CMOS DIL-Socket
FX_EPROM_8 UV, CMOS DIL-Socket

HERRMANN IDB GmbH
Vöhringen
www.herrmann-idb.de

Wöhrle Belgium B.V.B.A.
Mechelen , Belgium
www.wohrle.be
Your Advantages by using our PC memory modules:

  • Simple Handling
    the programming number is identical with the Siemens programming number
  • Secure Handling
    each module has a label with its type and programming number
  • Reduced risk to use the wrong module by mistake
    module with 21 V = black written labels – modules with -12,5 V = red written labels
  • Reliable and secure viability
    each module is produced and verified according to German Quality-Standards
  • Guarantied viability
    each module has to pass a PLC – write and read test
  • Guarantied Safeness through mark of conformity (CE) and electromagnetic compatibility mark (EMC)
    all of our modules comply with the current regulations
All prices plus costs of delivery, shipping insurance and VAT.
All prices plus costs of delivery, shipping insurance and VAT.

41,00 €
plus VAT. and shipping


41,00 €
plus VAT. and shipping


69,00 €
plus VAT. and shipping


375-OLA15
EPROM module 8KByte for S95-S115 Obsolete

375-0LA15 - not RoHs-compliant
Quickbestellung INFOMAIL
by e-mail
37,00 €
plus VAT. and shipping


375-OLA21
EPROM module 16KByte for S95-S115 Obsolete

375-0LA21 - not RoHs-compliant
Quickbestellung INFOMAIL
by e-mail
70,00 €
plus VAT. and shipping


375-OLA41
EPROM module 32KByte for S95-S115 Obsolete

375-0LA41 - not RoHs-compliant
Quickbestellung INFOMAIL
by e-mail
102,00 €
plus VAT. and shipping


158,00 €
plus VAT. and shipping


290,00 €
plus VAT. and shipping


37,00 €
plus VAT. and shipping


70,00 €
plus VAT. and shipping


109,00 €
plus VAT. and shipping


162,00 €
plus VAT. and shipping


324,00 €
plus VAT. and shipping


375-OLC21
EEPROM module for S95-S115 Obsolete

2/4KByte - 375-0LC21 - not RoHs-compliant
Quickbestellung INFOMAIL
by e-mail
69,00 €
plus VAT. and shipping


375-OLC41
EEPROM module for S95-S115 Obsolete

8/16KByte - 375-0LC41 - not RoHs-compliant
Quickbestellung INFOMAIL
by e-mail
95,00 €
plus VAT. and shipping


375-OLC41X
EEPROM module for S95-S115 Obsolete

8/16KByte with PLC-write protection 375-0LC41X - not RoHs-compliant
Quickbestellung INFOMAIL
by e-mail
105,00 €
plus VAT. and shipping


375-OLC61
EEPROM-module for S95-S115 Obsolete

32KByte - not RoHs-compliant
Quickbestellung INFOMAIL
by e-mail
143,00 €
plus VAT. and shipping


127,00 €
plus VAT. and shipping


376-OAA11
EPROM module short 21V 8KWords Obsolete

for S135-S155 - not RoHs-compliant
Quickbestellung INFOMAIL
by e-mail
74,00 €
plus VAT. and shipping


376-OAA21
EPROM module short 21V 16KWords Obsolete

Successor: EPROM module short 21V 32KWords (Art.No: 376-OAA31)
376-0AA21 - for S135-S115 - not RoHs-compliant
Quickbestellung INFOMAIL
by e-mail
0,00 €
plus VAT. and shipping

376-OAA31
EPROM module short 21V 32KWords Obsolete

376-0AA31 - for S135-S155 - not RoHs-compliant
Quickbestellung INFOMAIL
by e-mail
110,00 €
plus VAT. and shipping


0,00 €
plus VAT. and shipping

376-1AA21
EPROM module short 12,5V 16KWords Obsolete

for S135-S155 - not RoHs-compliant
Quickbestellung INFOMAIL
by e-mail
88,00 €
plus VAT. and shipping


0,00 €
plus VAT. and shipping

373-OAA41
EPROM module 16KWords for S135-S155 Obsolete

373-0AA41 - not RoHS-compliant
Quickbestellung INFOMAIL
by e-mail
105,00 €
plus VAT. and shipping


373-OAA81
EPROM module 64KWords for S135-S155 Obsolete

373-0AA81 - not RoHs-compliant
Quickbestellung INFOMAIL
by e-mail
260,00 €
plus VAT. and shipping


105,00 €
plus VAT. and shipping


260,00 €
plus VAT. and shipping


114,00 €
plus VAT. and shipping


239,00 €
plus VAT. and shipping


260,00 €
plus VAT. and shipping


377-OAA11
RAM module short series 377 16KByte Obsolete

377-0AA11 - for S135-S155 - not RoHs-compliant
Quickbestellung INFOMAIL
by e-mail
144,00 €
plus VAT. and shipping


377-OAA21
RAM module short series 377 32KByte Obsolete

377-0AA21 - for S135-S155 - not RoHs-compliant
Quickbestellung INFOMAIL
by e-mail
233,00 €
plus VAT. and shipping


377-OAA32
RAM module short series 377 64KByte Obsolete

377-0AA32 - for S135-S155 - not RoHs-compliant
Quickbestellung INFOMAIL
by e-mail
308,00 €
plus VAT. and shipping


377-OAA41
RAM module short series 377 128KByte Obsolete

377-0AA41 - for S135-S155 - not RoHs-compliant
Quickbestellung INFOMAIL
by e-mail
540,00 €
plus VAT. and shipping


377-OAB21
RAM module long series 377 32KByte Obsolete

377-0AB21 - for S135-S155 - not RoHs-compliant
Quickbestellung INFOMAIL
by e-mail
207,00 €
plus VAT. and shipping


377-OAB31
RAM module long series 377 64KByte Obsolete

377-0AB31 - for S135-S155 - not RoHs-compliant
Quickbestellung INFOMAIL
by e-mail
281,00 €
plus VAT. and shipping


377-OAB41
RAM module long series 377 128KByte Obsolete

377-0AB41 - for S135-S155 - not RoHs-compliant
Quickbestellung INFOMAIL
by e-mail
539,00 €
plus VAT. and shipping


323,00 €
plus VAT. and shipping


313,00 €
plus VAT. and shipping


314,00 €
plus VAT. and shipping


0,00 €
plus VAT. and shipping

0,00 €
plus VAT. and shipping

68,00 €
plus VAT. and shipping


101,00 €
plus VAT. and shipping


134,00 €
plus VAT. and shipping


201,00 €
plus VAT. and shipping


291,00 €
plus VAT. and shipping


133,00 €
plus VAT. and shipping


193,00 €
plus VAT. and shipping


257,00 €
plus VAT. and shipping


Memory modules / Prommer

MULTI-PROMMER
programming device for S5 and S7-300/400 memory modules and Dual-In-Line (Multi-Prommer)
All prices plus costs of delivery, shipping insurance and VAT.

37,00 €
plus VAT. and shipping


375-OLA15
EPROM module 8KByte for S95-S115 Obsolete

375-0LA15 - not RoHs-compliant
Quickbestellung INFOMAIL
by e-mail
37,00 €
plus VAT. and shipping


375-OLA21
EPROM module 16KByte for S95-S115 Obsolete

375-0LA21 - not RoHs-compliant
Quickbestellung INFOMAIL
by e-mail
70,00 €
plus VAT. and shipping
