PLC-clock - Process Informatik Entwicklungsgesellschaft mbH

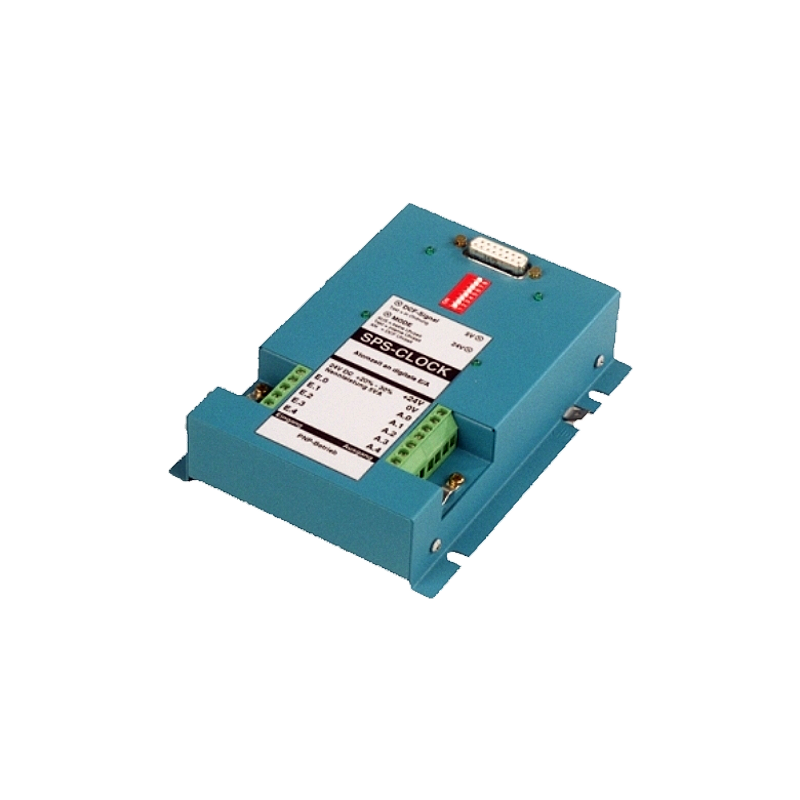

PLC-clock

DCF-time reception for the PLC via digital I/O

  • Transfer of DCF-time and date to the PLC
  • Representation in sec, min, h, day, month, year, weekday
  • Statusbits for summer-, wintertime , DCF-OK, etc.
  • 4 LEDs for displaying power supply, mode and DCF-Signal

docu / downloads
order data
applications

Technical data


Supply voltage: 24V/DC +/- 20%
Power consumption: 3 watt
Display: 4 status-LEDs
Handling/Configuration: DIP-Switch
Interfaces:
to the PLC:
5 x screw type terminal for E/A-inputs
5 x screw type terminal for E/A-outputs
others:
2 x screw type terminal for 24V/DC power supply
15pol female for DCF77-antenna connection
Operating temperature: 5 - 55°C
Case: powder coated metal case with mounting flange
Dimensions: 97 x 149 x 36 mm
Scope of delivery:
  SPS-CLOCK
Commercial data:
EAN number: 4260363240574
HS-code: 85389099
Weight: 0.5000 kg

technical data
docu / downloads
order data

Applications

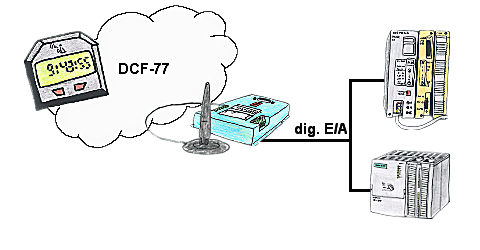

Atomic time at the PLC

For your production flow you’re always in need of an exact time? No problem, connect the SPS-Clock with 4 digital in-/outputs of your PLC, after synchronisation of the SPS-Clock the updating time can be read in a DB of the PLC.



order data applications technical data Cart
ARTNR #
Summe: 0,-

technical data
applications
docu / downloads

All prices plus costs of delivery, shipping insurance and VAT.

article:
Art. ID.namepricequantity
9365 SPS-CLOCK
atomic time to digital I/O of PLC
251,- € Quickbestellung INFOMAIL
9366 DCF-77-antenna
cable length 5m for connecting to SPS-Clock
51,- € Quickbestellung INFOMAIL

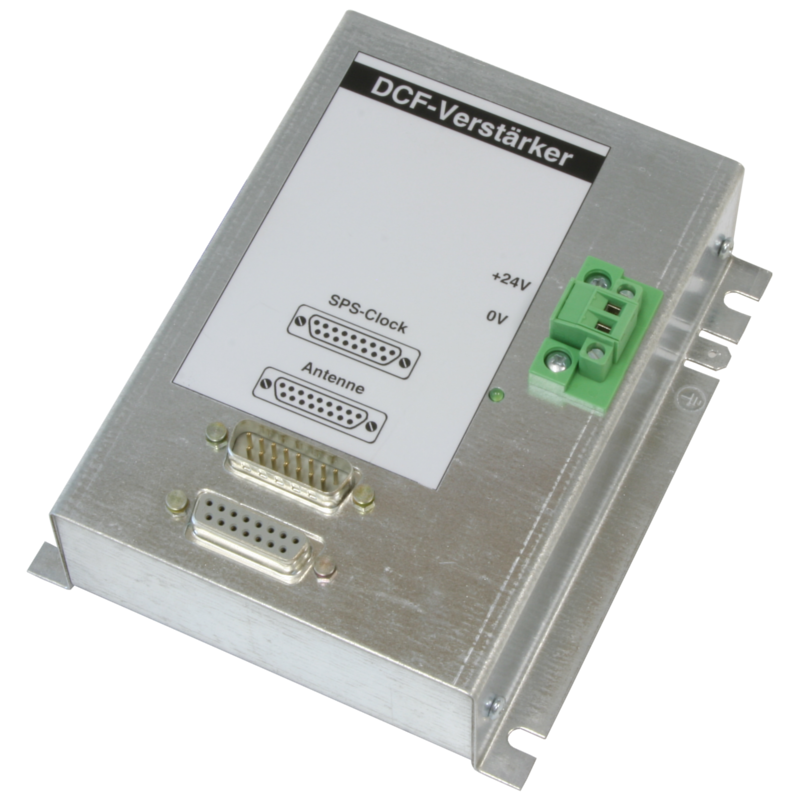

9366-1 Amplifier for DCF-antenna
processing of the DCF-77-signal for longer
distances between antenna and SPS-Clock
77,- € Quickbestellung INFOMAIL

order data applications technical data Cart
ARTNR #
Summe: 0,-
accessories:
Art. ID.namepricequantity
9391.1 24V DC power-supply unit 625mA
Primary 110V - 240 VAC Euro+USA-plug
39,- € Quickbestellung INFOMAIL
