S7
- Multifunctional, several functions in one product
- Well-priced alternative to high-priced original products
- Easy handling and therefore quick operation
- Extensive cable and adapter program
in our stock will have an extensive cable and adapter program available, even for special connections we have a solution for you - Easy to use
for most of the couplings an external power supply is not required - Service-friendly
our free technical hotline is available with help and advice - Reliability
each cable is manufactured to quality standards in germany and tested - Performance guarantee
each cable is tested using a special cable-test on all connections and online function to a PLC - CE and EMC safety
all cables are tested to the applicable guidelines
application table:
PPI-Bus | |||||||
PPI 9.6 KBit/s - 19.2 KBit/s | x | x | x | x | x | x | x |
Multimaster 9.6 KBit/s - 187.5 KBit/s | x | x | x | x | x | x | |
MPI-Bus | |||||||
19.2 KBit/s | x | x | x | x | x | x | x |
187.5 KBit/s | x | x | x | x | x | x | x |
1.5 MBit/s | x | x | x | x | x | x | |
Profibus | |||||||
9.6 KBit/s | x | x | x | x | x | x | |
19.2 KBit/s | x | x | x | x | x | x | x |
45.45 KBit/s | x | x | x | x | x | x | |
93.75 KBit/s | x | x | x | x | x | x | |
187.5 KBit/s | x | x | x | x | x | x | x |
500 KBit/s | x | x | x | x | x | x | |
1.5 MBit/s | x | x | x | x | x | x | |
3.0 MBit/s | x | x | x | x | x | x | |
6.0 MBit/s | x | x | x | x | x | x | |
12.0 MBit/s | x | x | x | x | x | x | |
Profibus-profile | |||||||
DP | x(12) | x | x | x | x | x | x |
standard | x(12) | x | x | x | x | x | x |
universal(DP/FMS) | x | x | x | x | x | x | |

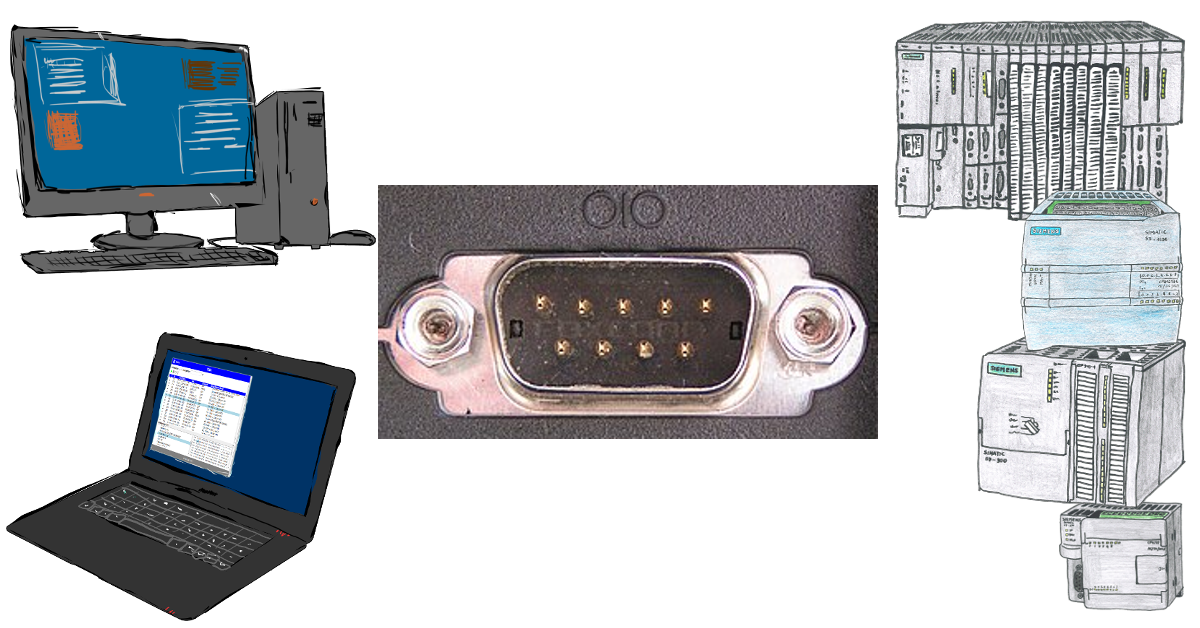

RS 232 | |||||||
9.6 KBit/s | x(19) | x(19) | |||||
19.2 KBit/s | x | x | |||||
38.4 KBit/s | x | x | |||||
57.6 KBit/s | x(9) | x(9) | |||||
115.2 KBit/s | x(9) | x(9) | |||||

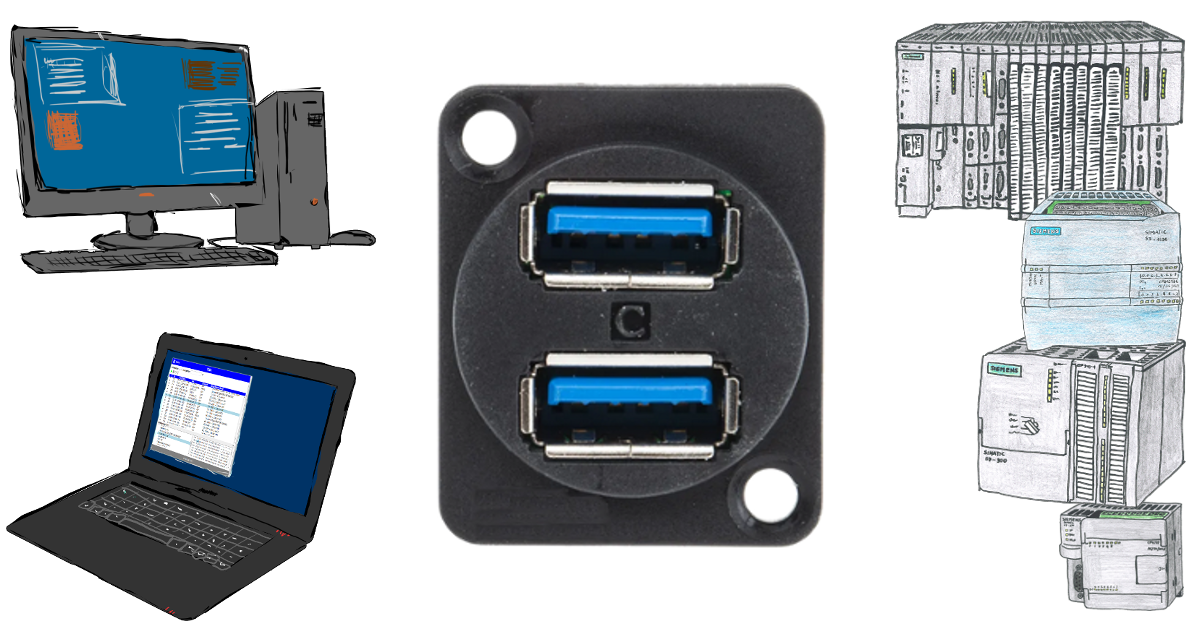

USB | |||||||
USB 1.1 (6) | x(1) | x | x(2) | ||||

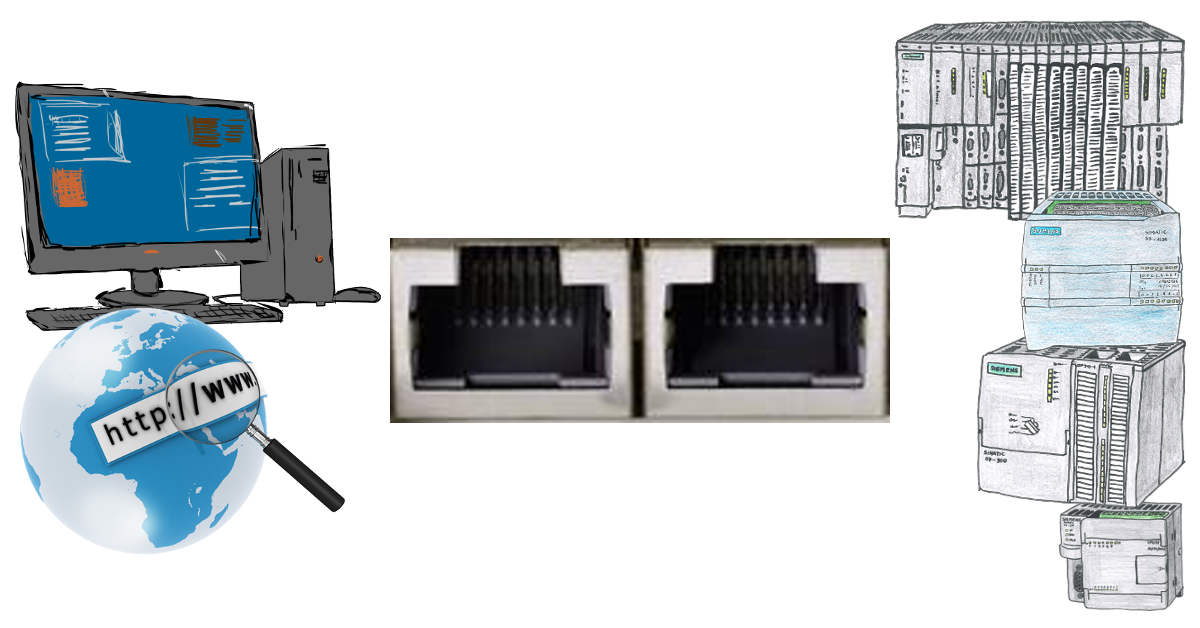

LAN | |||||||
10/100BaseTx | x(7) | x | x | ||||

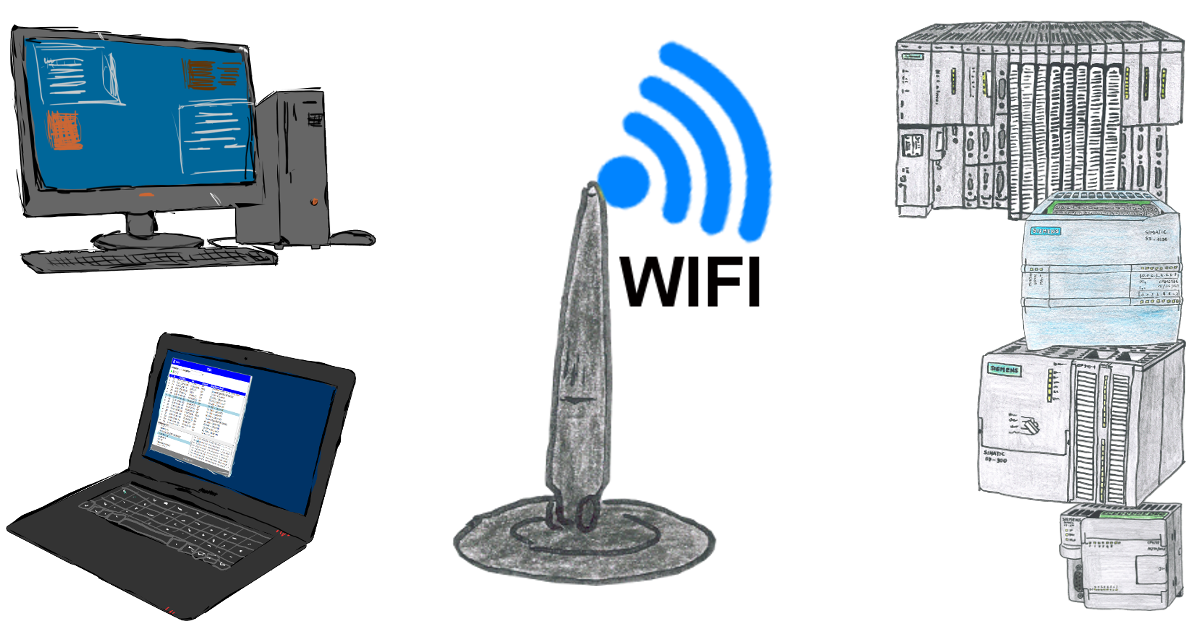

WIFI | |||||||
2.4 GHz | x | ||||||
TeleService operation | |||||||
with S7-300/400 | x(14)(18) | x(14)(18) | |||||
baud rates at TS-operation directly at the PC | |||||||
9.6 KBit/s | x | x | |||||
19.2 KBit/s | x | x | |||||
38.4 KBit/s | x(8) | x(8) | |||||
57.6 KBit/s | x(8) | x(8) | |||||
baud rates at TS-operation directly with a modem | |||||||
9.6 KBit/s | x | x | |||||
19.2 KBit/s | x | x | |||||
38.4 KBit/s | x | x | |||||
57.6 KBit/s | x | x | |||||
115.2 KBit/s | x | x | |||||
HMI | |||||||
9.6 KBit/s | x | x | x(13) | x(13) | x(13) | x(13) | x(13) |
19.2 KBit/s | x | x | x(13) | x(13) | x(13) | x(13) | x(13) |
38.4 KBit/s | x | x | x(13) | x(13) | x(13) | x(13) | x(13) |
57.6 KBit/s | x | x | x(13) | x(13) | x(13) | x(13) | x(13) |
115.2 KBit/s | x | x | x(13) | x(13) | x(13) | x(13) | x(13) |
update | |||||||
firmware-update | x(10) | x(10) | x(15) | x(15) | x(15) | x(15) | x(15) |
input/online help | |||||||
keypad | x | x | x | x(21) | x(21) | ||
display | x | x | x | x | x(21) | x(21) | |
PD connections (maximum) | |||||||
PLCVCOM | 1 | 1 | 8 | 1 | 8 | 8 | |

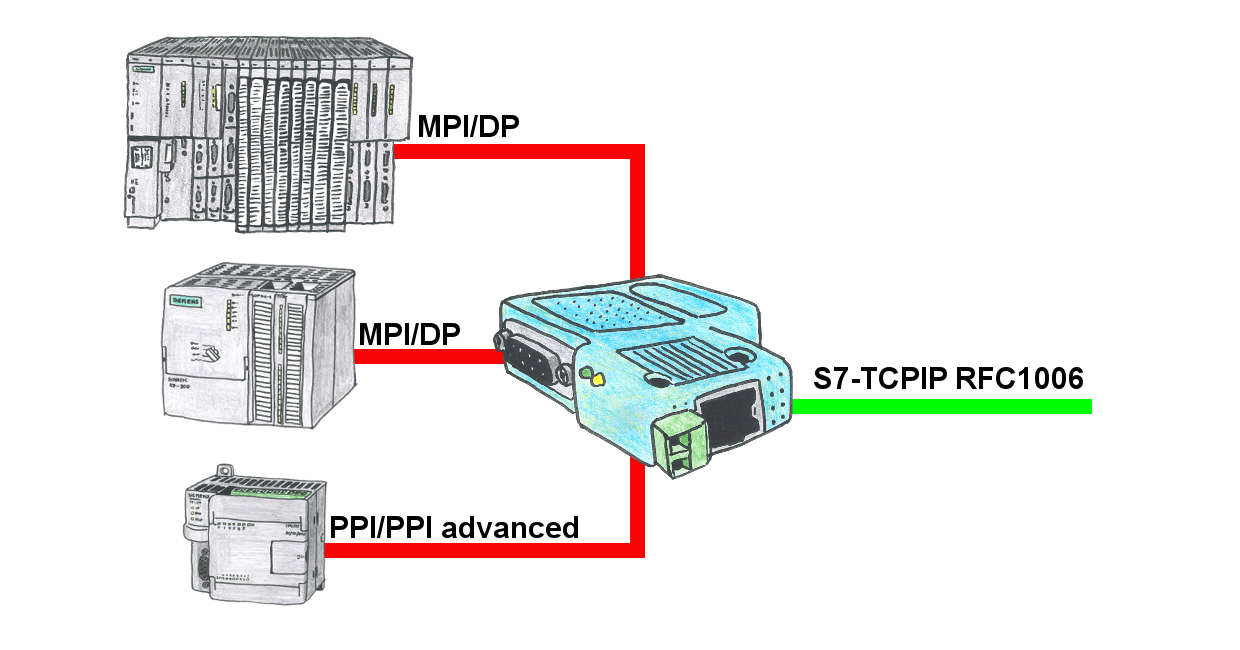

RFC1006 | x | x | x | ||||
AG connections (maximum) | |||||||
passive subscriber | 1 | 15 | 15 | 15 | 15 | 15 | 15 |
active subscriber | 126 | 126 | 126 | 126 | 126 | 126 | 126 |
more functions | |||||||

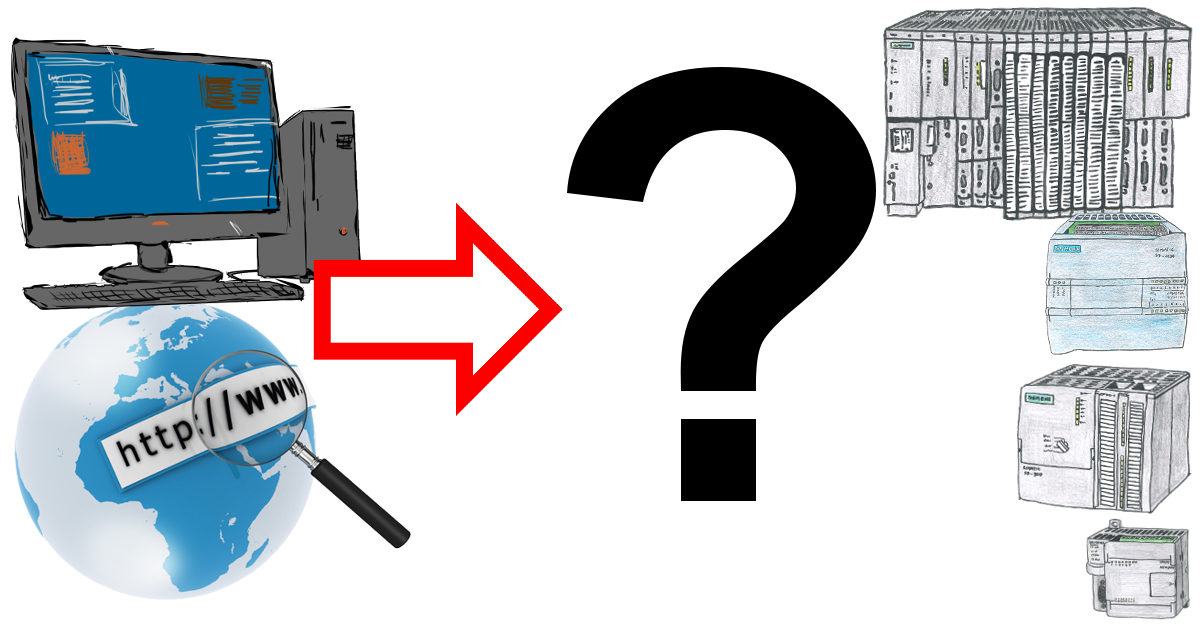

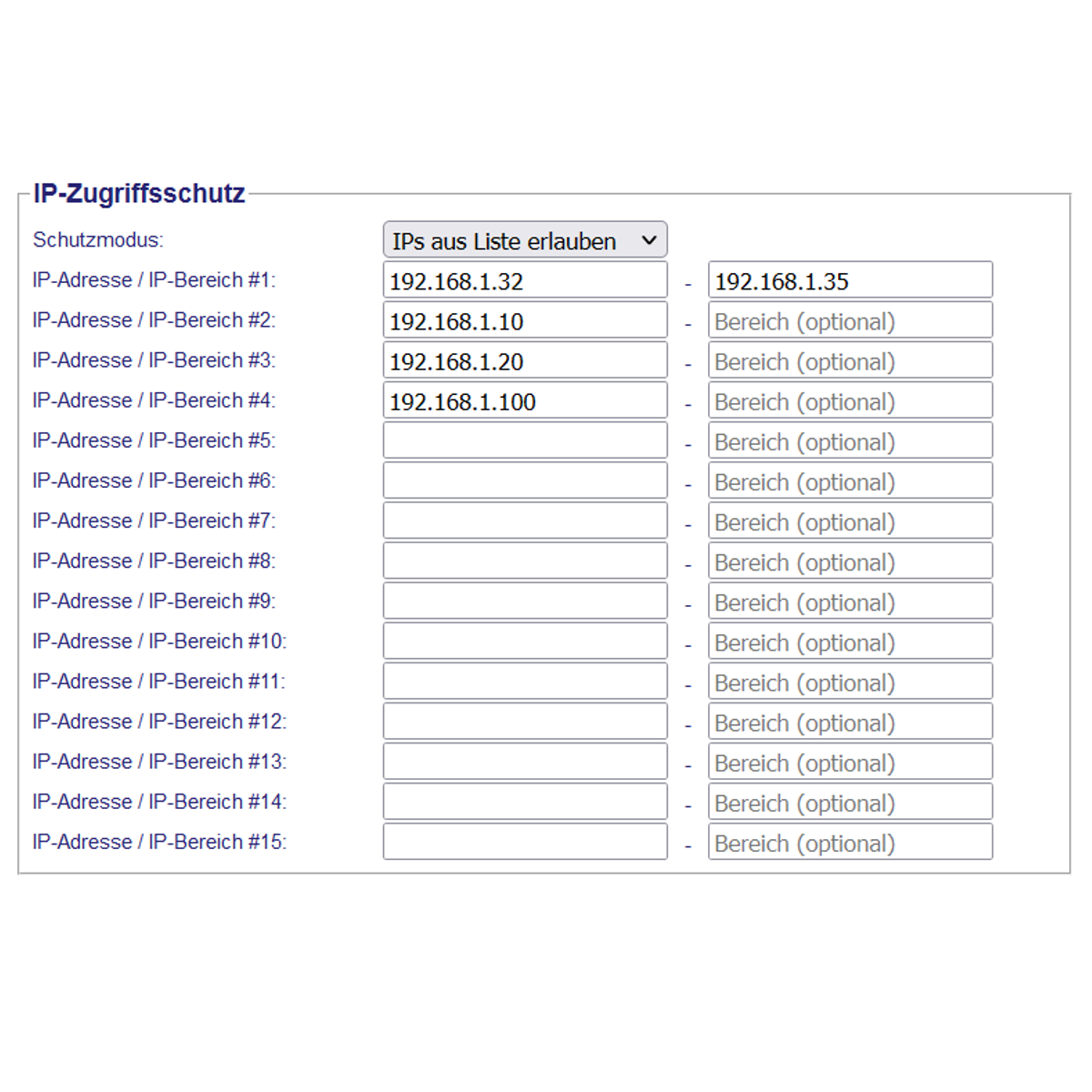

webserver for configuration | x | x | x | ||||
Remote access over existing VPN-channel | x | x | x | ||||
Access via existing WLAN-channel | x | x | x | ||||
status/control variable | x | x | x | ||||
S7 on S7/S5 DB exchange | x | x | x | ||||
S5 on MPI DB exchange | only as S5toMPI | ||||||
S7 on MPI (Send/Fetch) | x | x | x | ||||
Profinet Gateway | x | x | x | ||||
Time in PLC from NTP-server | x | x | x | ||||
galvanic separation | |||||||
to the bus (screen connected through) | 1KV | 1KV | 1KV | 1,5KV | 1KV | 1,5KV | 1,5KV |
mounting | |||||||
wall monuting (with opt. wall mounting-set) | x | x | x | x | |||
upgrading with | |||||||
CheapConn+cable | x | x | x | x | |||
supports | |||||||
WIN 98 | x | x(3) | x | x | x | ||
WIN 98 SE | x | x | x | x | x | x | x |
WIN ME | x | x | x | x | x | x | x |
WIN NT | x | x(5) | x(5) | x | x(5) | ||
WIN 2000 | x | x | x | x | x | x | x |
WIN XP Home (4) | x | x | x | x | x | x | x |
WIN XP Professional | x | x | x | x | x | x | x |
Vista(32bit) | x | x | x | x | x | x | x |
Win7(32bit) | x | x | x | x | x | x | x |
Win7(64bit) | (22) | x(23) | x(20) | x(20) | x(20) | x(20) | x(20) |
Win8/8.1 | (22) | x(23) | x(20) | x(20) | x(20) | x(20) | x(20) |
Win10 | (22) | x(23) | x(20) | x(20) | x(20) | x(20) | x(20) |
(1) just with USB-cable plug <-> plug, type A <-> A, item number: 9352.1
(2) just with USB-cable plug <-> plug, type A <-> mini B, item number: 9352.3
(3) only serial communication
(4) Siemens Step7 V5.2 and higher dont run with this operationing system
(5) USB-communication is only possible with the special driver for Win NT
(6) USB 2.0 is backward compatible to 1.1
(7) Cable is designed for direct connection to PC network card socket. It can also be a hub / switch with uplink port or operated at a hub / switch with automatic detection of assignement and adaptation
(8) only in combination with the MPI-Speed-driver („continously-active“)
(9) Siemens Step7 supports these baud rates only with the MPI-Speed-Utility
(10) Update directly with PC or via Tele-Network if the cable is connected to a device of the Tele-Network-family (Tele-Link, Tele-Book or Tele-Professional)
(11) only in the mode: MultiMaster-Mode
(12) up to a maximum baud rate of 187.5 KBit/s
(13) In this transmission, the baud rate is irrelevant, because it communicates via a virtual COM-port.
(14) with the use of the TS-adapter / item number: 9350.TS
(15) Update directly with PC and TIC-driver
(18) Operation requires Step 7 with additional software Tele-Service (TS) from Siemens
(19) only at PPI-communication possible
(20) Only with TIC-driver
(21) with integrated webserver possible
(22) No support of Siemens Step7-software possible
(23) Only with USB and with TIC-driver
