Remote maintenance

	TELE LINK NETWORK

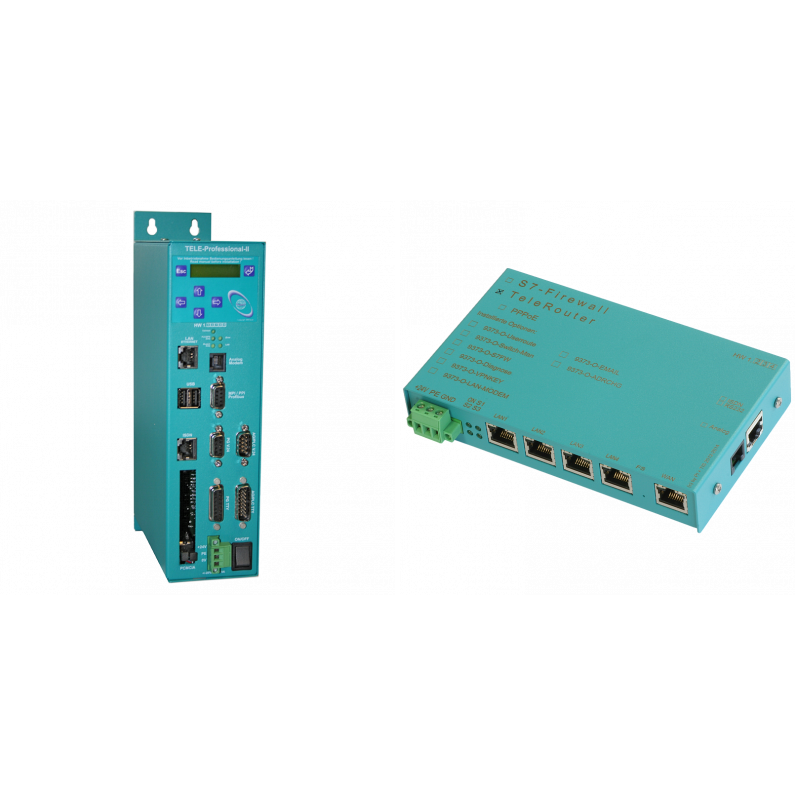

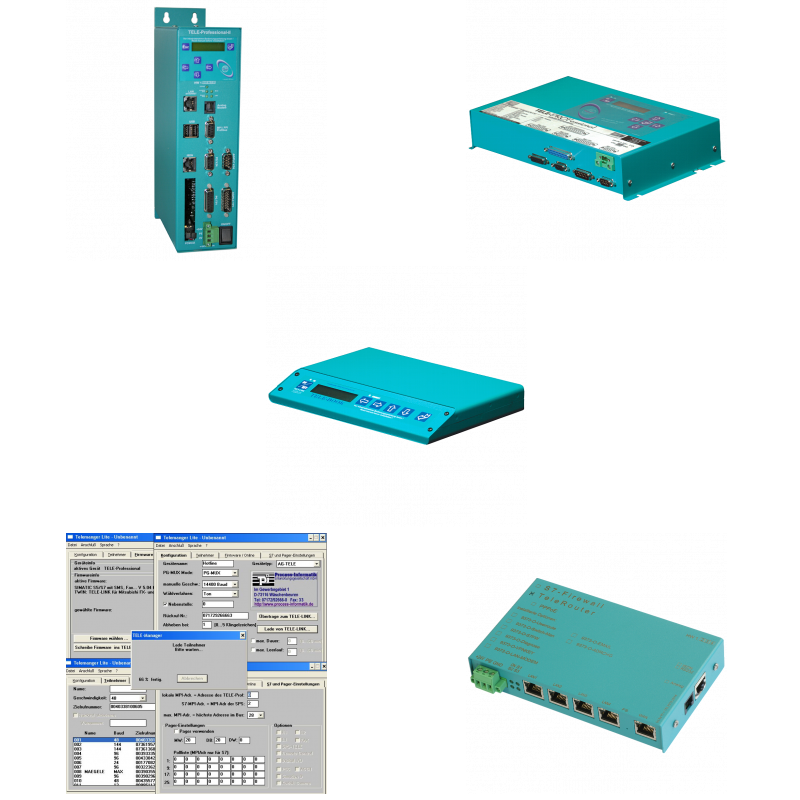

	TELE-PROF-II	TELE-PROF	TELE-BOOK	MPI-Modem	TELEService	S5-LAN	S7-LAN	TeleRouter
secured modem-protocol	✓	✓	✓
additional software needed				Siemens TS -Software	Siemens TS -Software	VPN-Client	VPN-Client
Providing WinTELEPROF-software	✓	✓	✓
modem	analogue/ISDN	analogue	opt. via PCMCIA	analogue/GSM	analogue/ISDN/GSM	internet-connection	internet-connection	internet-connection
modem for world wide use	✓	✓	✓	✓	✓
interfaces
MPI/Profibus	9600-12MBd			9600-12MBd	9600-12MBd		9600-12MBd
RS232	2x	2x	2x	1x	1x
TTY	2x	2x	2x			1x
PCMCIA	2x (optionally)	1x	1x
Ethernet	10/100BaseTx					1x	1x	5x
USB	2x				1x
LCD-display	✓	✓	✓	✓	instead 10 LEDs	instead status-LED	instead webserver	instead webserver
supported PLC-protocols *
S7	✓	✓	✓	✓	✓		✓
S5	✓	✓ (optional)	✓ (optional)			✓
Pilz PSS	✓	✓ (optional)	✓ (optional)
Allen-Bradley	✓	✓ (optional)	✓ (optional)
AEG		✓ (optional)	✓ (optional)
Bosch		✓ (optional)	✓ (optional)
Telemecanique		✓ (optional)	✓ (optional)
GE-Fanuc		✓ (optional)	✓ (optional)
Klöckner-Moeller		✓ (optional)	✓ (optional)
Mitsubishi		✓ (optional)	✓ (optional)
SMS-sending/Pager(S5/S7)	✓	✓	✓		✓ (no pager)			only for analogue / ISDN
HMI-messaging module(S5/S7)	✓							✓
SMS-receive with GSM					✓
DTMF with analogue					✓
e-mail-dispatch	✓				✓			✓
FAX-dispatch(S5/S7)	✓	✓ (optional)	✓ (optional)					only for analogue / ISDN
PLC-data coupling(S5/S7)	✓	✓ (optional)	✓ (optional)			✓	✓
ASCII-transfer from S5/S7	✓	✓ (optional)	✓ (optional)			only with ASCII-LAN
internet-coupling	✓
Usage as dial-up-router	✓							✓
power supply	24V/DC	24V/DC	24V/DC	24V/DC	24V/DC	24V/DC	24V/DC	24V/DC
dimensions w x h x d (in mm)	High: 67 x 280 x 170 FLAT: 300 x 175 x 70	300 x 175 x 66	235 x 162 x 37	90 x 162 x 54	40 x 125 x 115	42 x 15 x 65	65 x 43 x 17	154 x 92 x 28
* other PLC types on request
