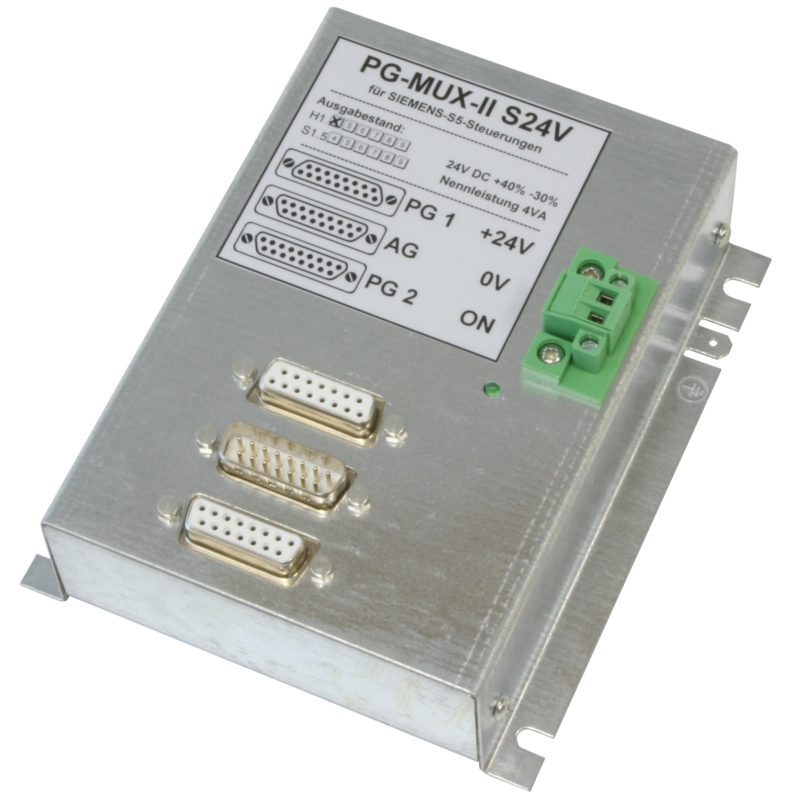

PG-MUX II for Siemens (only 24V-device)

PD-Interface Multiplexer for professionally usage (active)

  • Devices are advanced versions of the world widely used PG-MUX
  • All connectors and controls on the front
  • Permanent checking of the device functions and power supply => restart at failure
  • Right away ONLINE with both interfaces to the PLC
  • All PD functions can be accomplished parallel by 2 PD’s
  • Provided PLC’s: S5-90, S5-95, S5-100-series, S5-115 (also CPU945), S5-135U-series and S5-155-series
  • No additional or specific adapters are needed
  • Connecting mechanics, pin assignment and the electrical data correspond to the PD/PLC-interfaces of the relevant PLCs

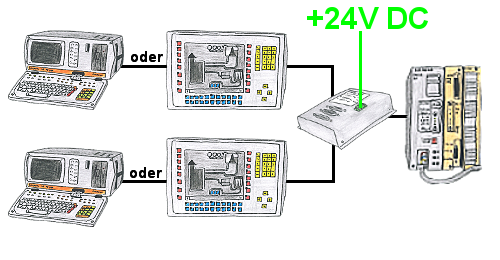

  • Capability of connecting on PD-side: 2 x AS511 (PD-protocol) / 1 x SINEC-L1-BUS (no master protocols, no cross traffic) + 1 x AS511
  • 3m cable for AG-connection included in delivery
  • Power supply (instead of PG-MUX-II): only 24V DC
Technical Specifications:
Supply voltage: 24V/DC +/- 20%
Power consumption: 4 watt
Display: LED for function and watchdog supervision
Interfaces:
to the PLC:
TTY/20mA current loop (multiplexer aktiv, PLC passiv)
to the PD/PC:
2 PD x TTY/20mA current loop (multiplexer aktiv, 100 % mechanically and electr. compatible)
Operating temperature: 5 - 55°C
Case: metal case with mounting flange
Dimensions: 95 x 135 x 35 mm
to the order datas
article:
Art. ID.namepricequantity
9361-5-24V PG-MUX-II for SIEMENS-S5 24V version
incl. connecting-cable to PLC		 663,- € Quickbestellung INFOMAIL

to the order datas
accessories:
Art. ID.namepricequantity
9391.1 24V DC power-supply unit 625mA
Primary 110V - 240 VAC Euro+USA-plug		 39,- € Quickbestellung INFOMAIL
9391-MT Mounting set
for DIN-rail-holder		 25,- € Quickbestellung INFOMAIL
9361-3 S5-connecting cable 3m
forTELE-PROF, MINI-/PG-MUX-II		 38,- € Quickbestellung INFOMAIL
9361-3.05M S5-connecting cable 5m
for TELE-PROF, MINI-/PG-MUX-II		 43,- € Quickbestellung INFOMAIL
9361-3.06M S5-connecting cable 6m
for TELE-PROF, MINI-/PG-MUX-II		 46,- € Quickbestellung INFOMAIL
9361-3.10M S5-connecting cable 10m
for TELE-PROF, MINI-/PG-MUX-II		 56,- € Quickbestellung INFOMAIL
9361-6 Servicebag
for PG-MUX-II		 59,- € Quickbestellung INFOMAIL
9371-24 Power connector 2pins big
connector plug lockable by jack with screws		 3,- € Quickbestellung INFOMAIL
