Welcome to the EtherSens configurator!

9220-U-I-BOX

U-I-box for EtherSens

9220-SONNE

Sun-light-sensor for EtherSens

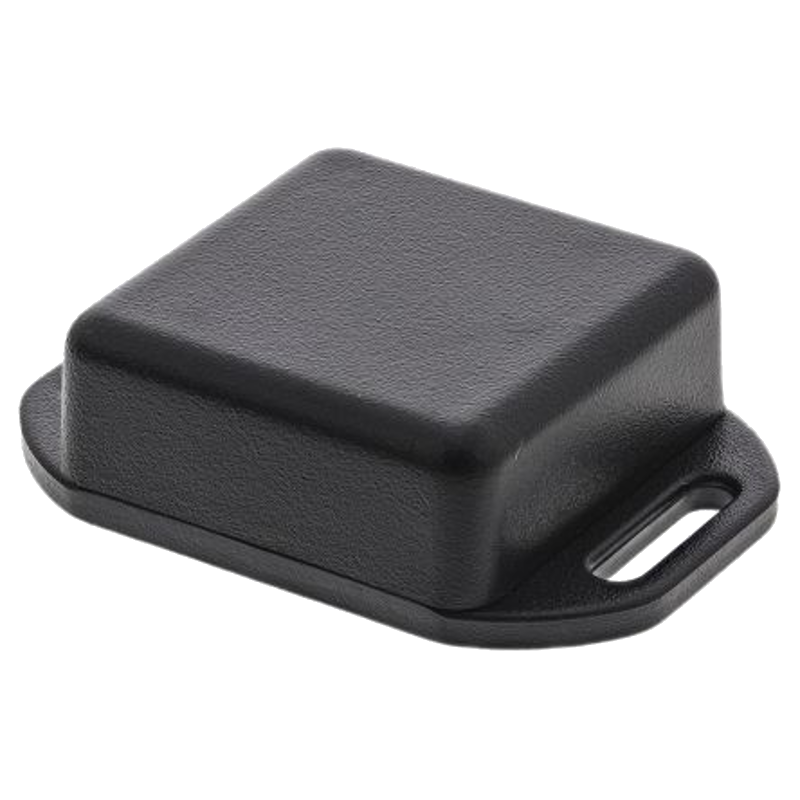

9220-GYRO-SENS-312

Gyro-Sensor 312 for EtherSens

9220-GYRO-SENS-313

Gyro-Sensor 313 for EtherSens

9220-SEG-ANZEIGE

Segment-display for EtherSens

9220-T-LF-D

Temp./humidity/air-pressure for EtherSens

bulk order
Art. ID.	name	price	quantity	quantity
4000-0	Your personal EtherSens
9201	EtherSens Basic Operating as a client or access-point Configuration via web-server Supply: 24V DC	264,00€
9230-AIO	Extension Analog-IO V1.0 Extension-board for EtherSens-devices 4 x analog IN 0-5V opt. with ext.Shunt 0/4-20mA opt. with ext. restistance 0-10/24/50V 4 x analog OUT 0/4-20mA (24V) Power consumption: 4W	128,00€
9230-DIO	Extension Digital-IO Extension-board for EtherSens-devices 12 x digital IN or OUT 24VDC 400mA free config with software Power consumption: 4W	191,00€
9230-RIO-24V	Extension 24V Relay-IO Extension-board for EtherSens-devices Supply voltage: 24V DC 4 x relay-OUT 230VAC/16A Power consumption: 4W	170,00€
9230-RIO-230V	Extension 230V Relay-IO Extension-board for EtherSens-devices Supply voltage: 230V AC 4 x relay-OUT 230VAC/16A Power consumption: 2,5W	227,00€
9230-NT-230V	Power-supply-rack-unit 230V Input voltage: 100 - 240VAC 50-60Hz Output voltage: 24V DC Power: 4W	68,00€
9230-AIO-V1.1	Extension Analog-IO V1.1 Extension-board for EtherSens-devices 4 x Analogue Input (switchable between U, I, differential) 4 x analog OUT 0/4-20mA (24V) Power consumption: 4W	149,00€
9230-MIO-422	Extension RS422-IO Extensionboard for EtherSens-devices V1.0 for RS422 (4-wire) Power consumption: 2W	158,00€
9230-MIO-232	Extension RS232-IO Extensionboard for EtherSens-devices V1.0 for RS232 (RxD, TxD) Power consumption: 2W	158,00€
9230-MIO-TTY	Extension TTY-IO Extensionboard for EtherSens-devices V1.0 for TTY (incl. 2x current-sources) Power consumption: 2W	158,00€
9230-MIO-485	Extension RS485-IO Extensionboard for EtherSens-devices V1.0 for RS485 Power consumption: 2W	158,00€
9230-EI2C-3.3V	Extension with ext. galv. separated I2C 3.3V Extension-board for EtherSens-devices with galvanic separated external I2C-connector for 3.3V Power consumption: 2W	117,00€
9230-EI2C-5V	Extension with ext. galv. separated I2C 5V Extension-board for EtherSens-devices with galvanic separated external I2C-connector for 5V Power consumption: 2W	117,00€
9230-LTE	Extension LTE-modem LTE-modem-board for EtherSens-devices Send/receive of SMS-messages Communication from/into internet Power consumption: 6,5W	264,00€
9230-ENERGY	Extension Energy-IO Extension-board for EtherSens-devices Energy-analysis (EN 50470-1 EN 50470-3) L1, L2, L3, N realtime analysis Up to 8000 measurements / second Hz / cos phi / power-factor Energy consumption kWh For Rogwski-coils up to 0,5V	352,00€
9230-USB	Extension USB-port USB-port for EtherSens-devices (data storage) Extension for: - DB-backup/restoure-function - CSV-recording Maximum current: 200mA for 5V DC	105,00€
9220-U-I-BOX	U-I-box for EtherSens max. 1000V DC / 40A 24V DC supply 20cm power-cable 4mm2 with Amphenol-plug I2C-connection 1m	158,00€
9220-SONNE	Sun-light-sensor for EtherSens max. 220k Lux (switchable ranges) 3.3V DC supply (from I2C-interfaceport) I2C-connection 1m	105,00€
9220-GYRO-SENS-312	Gyro-Sensor 312 for EtherSens Measuring range: ±1.5g / ±3g / ±6g / ±12g 3.3V DC supply (from I2C-interfaceport) I2C-connection 1m	105,00€
9220-GYRO-SENS-313	Gyro-Sensor 313 for EtherSens Measuring range: ±0.5g / ±1g / ±2g / ±4g 3.3V DC supply (from I2C-interfaceport) I2C-connection 1m	105,00€
9220-SEG-ANZEIGE	Segment-display for EtherSens 4 Digit 14 segment-display WHITE 0,56" high in wall-mounting case 5V DC supply (from I2C-interfaceport) I2C-connection	158,00€
9220-T-LF-D	Temp./humidity/air-pressure for EtherSens Measuring range: Temperature: -40 ...+85°C Humidity: 0...100% relative Feuchte Pressure: 300...1100 hPa 3.3V DC supply (from I2C-interfaceport) I2C-connection 1m	105,00€
9230-GG	Bigger Case Width 90mm instead of 45mm	106,00€
